SFX-TMB0201TrackMan iO

SAFETY & CONFORMITY GUIDE | PAGE 1IN-0026 Rev1.1 SAFETY AND CONFORMITY GUIDE SAFETY & CONFORMITY GUIDE | PAGE 2IN-0026 Rev1.1 ! READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS DEVICE WARNING! The following safety precautions must be observed! To reduce the risk of fire, electric shock, or injury: • Do not install near any heat sources such as radiators, heat registers, stoves, or other sources of heat. • Do not subject the device cables to excessive stress, heavy loads or pinching. • Do not open or disassemble the device. There are no user-serviceable parts. • Refer all device servicing to qualified personnel only. Servicing may be required when the device has been damaged (such as from a liquid spill or hit by objects), has been exposed to water, or has been dropped, or otherwise does not operate normally. • Fixed installation of the appliance can be performed by the user or qualified personnel and must conform to all local codes. • Use only accessories recommended by Trackman. CARELESS OR IMPROPER USE MAY CAUSE SERIOUS INJURY. Read all safety precautions before installation. It is essential that you fully understand and observe these precautions and warnings at all times. You can access safety materials in the included USB drive or download them anytime from https://www.Trackman.com/support. CAUTION. Hot surface. The device can be hot and must not be covered or touched without taking care. WARNING! This device must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This device is equipped with an appliance plug type IEC C5, which provides an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This device should be used indoors only. Never use this device outside or in any location where exposure to water or high humidity may occur. Do not touch the unit, AC/DC adapter or outlet with wet hands as this may result in electric shock. CAUTION. Radio frequency hazard. This device emits radio frequency energy when switched on. To avoid injury, keep a minimum safety distance of 20 cm ( 8in) from the antenna front when the device is on. RISK GROUP 2 WARNING! IR emitted from this product. Do not stare at operating lamp. ! IR SAFETY & CONFORMITY GUIDE | PAGE 3IN-0026 Rev1.1 SAFETY INSTRUCTIONS FOR DEVICE IN FIXED INSTALLATION This section deals with important regulatory and safety information. 1. Use only the supplied cord only. Do not modify the cord in any way. If it will not fit the outlet, have a proper socket outlet installed by a qualified electrician. 2. Plug the device into a 100–240V AC (50-60Hz) outlet only. 3. Do NOT cover the device or AC/DC adapter during use. 4. For cleaning and maintenance instructions, refer to the following section in this manual. 5. The user should maintain a minimum distance of 20 cm from this device during operation. 6. The device is designed for indoor use only. The device is NOT designed for use in the rain and/or outdoor environments. 7. Opening and/or attempting to repair the device under any circumstances is strictly prohibited due to the risk of personal injury. 8. Always examine the device, AC/DC adapter and power cord before use. If the cord is damaged, it must be replaced by qualified personnel or service agent. 9. Always use the device in a clean and brightly lit location. Playing in a dark or cluttered space may lead to accidents. 10. Be aware of your surroundings and use cautiously when children and others are nearby. Swinging a club during play while others are present may result in serious injury or death. 11. Ensure your simulator space is protected against damage from ricocheting golf balls and other flying objects. 12. Two or more persons are recommended while mounting the device on a ceiling or when using a drop-ceiling VESA 100x100 mount. Take extreme caution while using a ladder. Failure to do so may result in serious injury or property damage. CLEANING AND MAINTENANCE UNPLUG THE ADAPTER AND LET IT COOL DOWN FOR 10 MINUTES BEFORE CLEANING. The device and adapter may be cleaned using a dry cloth or a wrung-out damp cloth with lukewarm water only. Do not use strong or abrasive detergents when cleaning. SAFETY & CONFORMITY GUIDE | PAGE 4 IN-0026 Rev1.1 CONFORMITY EUROPE/UK We, Trackman A/S, hereby declare this AC/DC adapter and device are fully compliant with the essential requirements and regulation in EU-directive for radio products 2014/53/EU. Included in this declaration: Contact: Trackman A/S, Stubbeled 2, DK-2950 Vedbaek, Denmark The full text of EU Declaration of Conformity (DoC) is available online at https://www.Trackman.com/support CANADA IC: 10140A-TMB0201 Canadian representative: Company Number: 10140B Trackman 4037 Barry Dr., Beamsville L3J 0M2 ON Canada This device contains licence­exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence­exempt RSS(s). Operation is subject to the following two conditions 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’emetteur/recepteur exempt de licence contenu dans le present appareil est conforme aux CNR d’Innovation, Sciences et Developpement economique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. This radio transmitter has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list…

Text truncated - open the document above for the full version.

TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 1 of 1 Covered Equipment Certification Attestation Letter 3/6/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: SFX-TMB0201 Trackman A/S (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Trackman A/S (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Morten Becker Saul Title: Track lead Company Name: Trackman A/S Date: 6 March, 2023

TRACKMAN U.S. Agent Designation for Service of Process - Certification Attestation Letter March 15, 2023 Nemko North America, Inc. 303 River Road Ottawa KIV 11-12 Canada ATTN.: ReviewingEngineer FCC ID: SFX-TMB0201 Per section 2.911 (d)(7) of the FCC rules, Trackman AIS ("the applicant") certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: PhysicalU.S. Company Address: Agent name: Agent Email Address: FRN: TRACKMAN INC 16445N 91st Street Suite 104 Scottsdale 85260 Arizona Leonard B MacQueen [email protected] 0033529413 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketingand importation or the conclusion of any Commission-related proceedinginvolving the equipment. Applicant Signed: czPfßQJ? Designated Agent Signed: (Requir d, if different to Applicant): Signed: Signed: Printed name: Title: Morten Becker Saul Track Lead Printed name: Title: Company Name: Date: Leonard Controller Trackman acQueen Company Name: Trackman A/S Date: March 6, 2023 March 16, 2023 TrackMan • www.TrackMan.com • Stubbeled 2 • 2950 Vedboek - Denmark • +45 4557 0850 page I of 2

TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 1 of 1 3/16/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint NEMKO S.p.A. Via del Carroccio, 4 Biassono, MB, 20853, Italy, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Morten Becker Saul Track Lead

TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 1 of 1 March 31, 2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: SFX-TMB0201 Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of 180 days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☒ Short Term External Photos ------------------ ☒ Short Term Internal Photos ☐ Permanent* ☒ Short Term Operation Description ☒ Permanent ☒ Short Term Parts List & Placement/BOM ☒ Permanent ☒ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☒ Short Term Test Setup Photos ------------------ ☒ Short Term User’s Manual ☐ Permanent* ☒ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed Printed name: Morten Becker Saul Title: Track Lead Company Name: TRACKMAN A/S

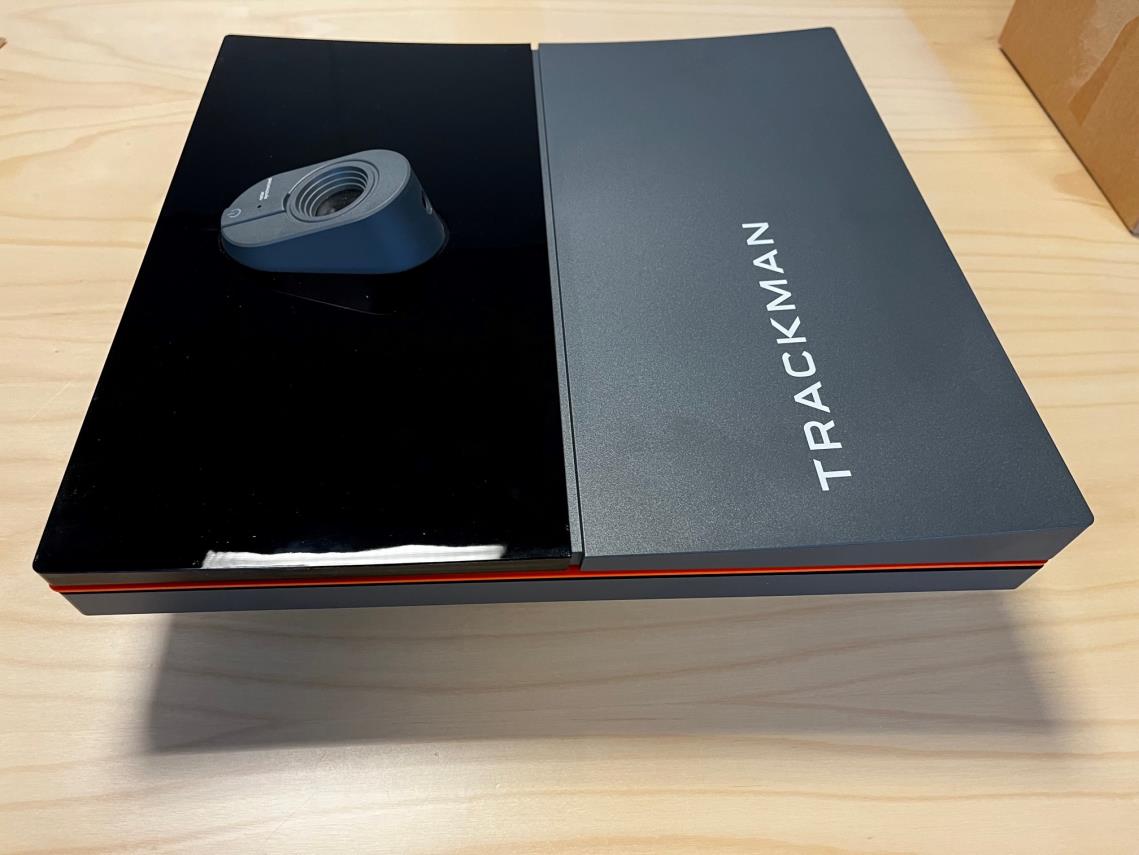

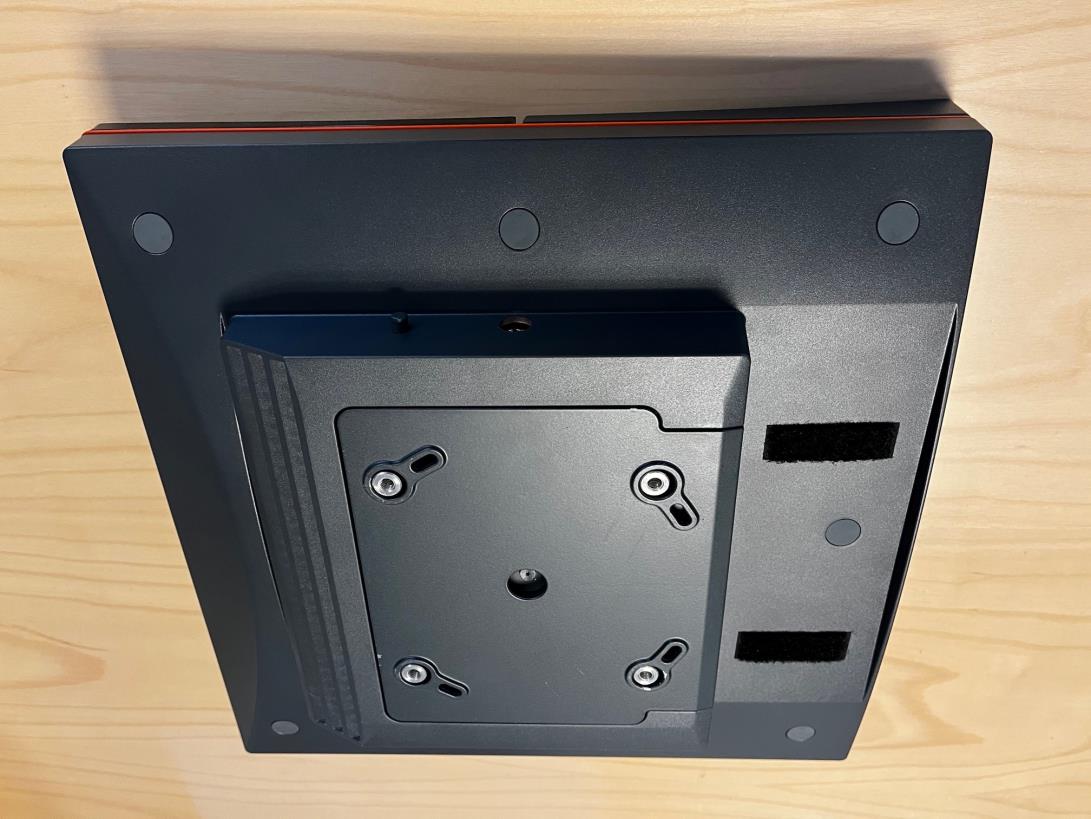

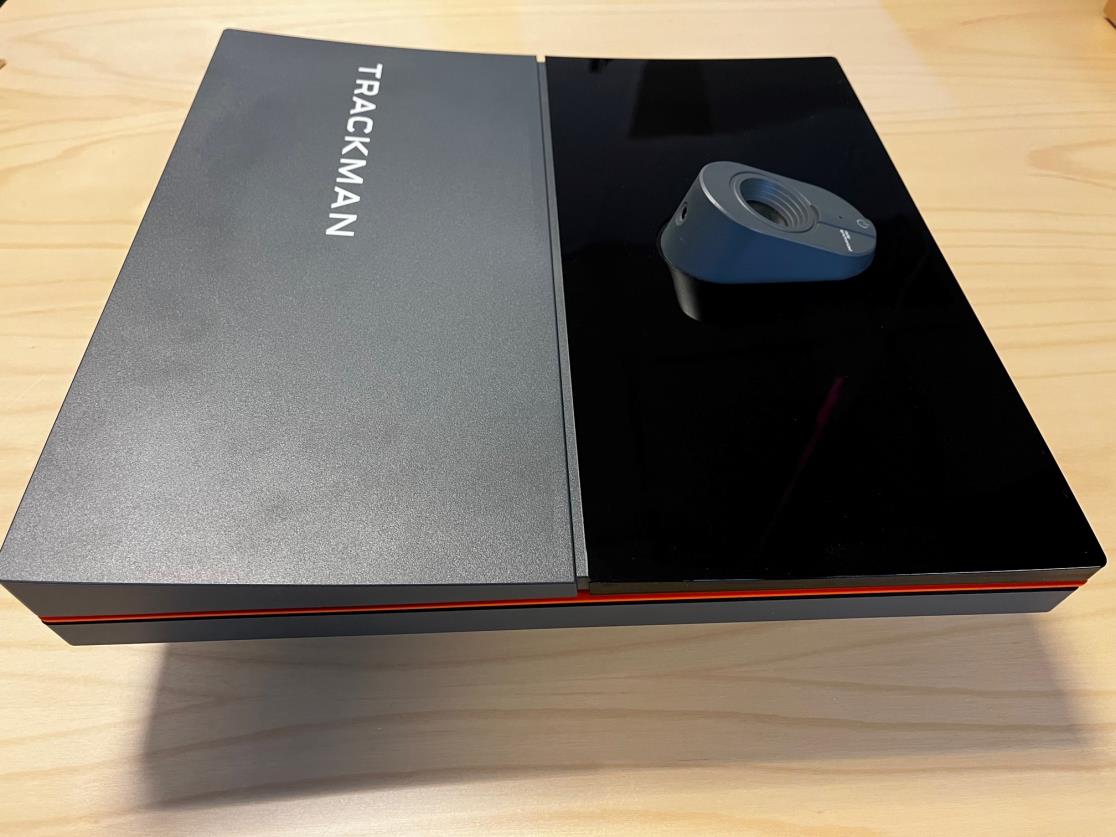

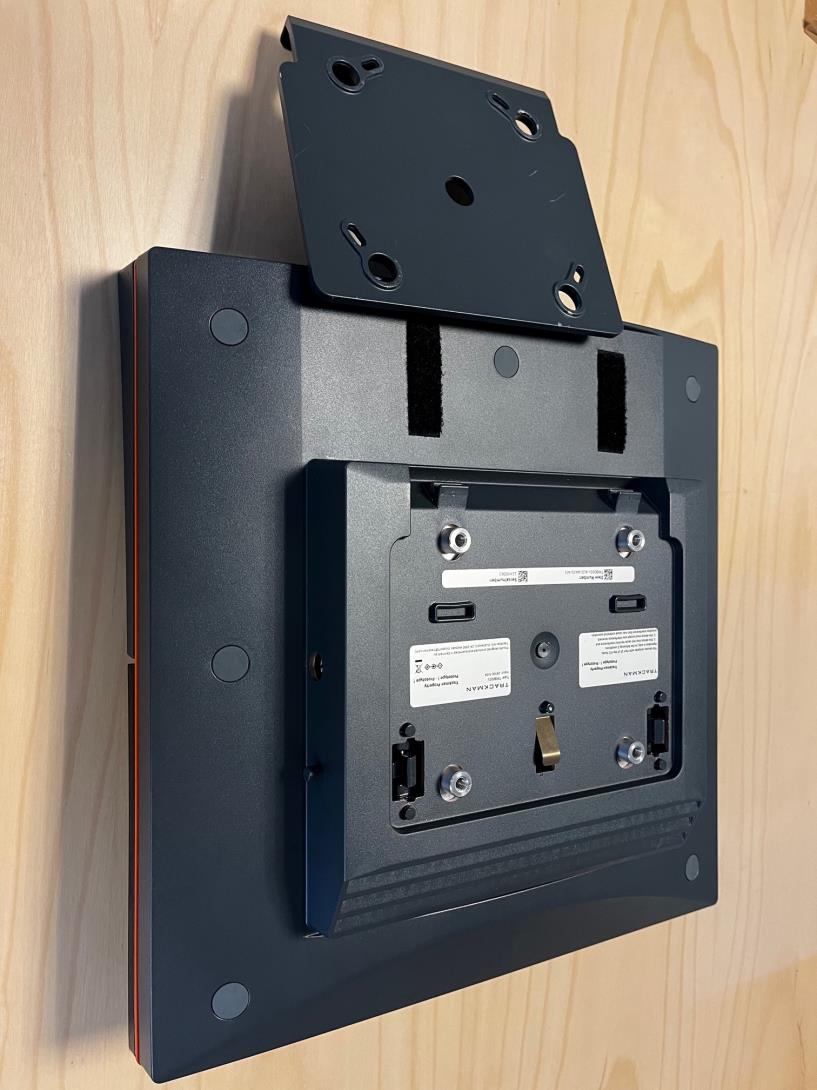

TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 1 of 3 TMB0201 External Photos TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 2 of 3 TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 3 of 3

TRACKMAN –TMB0201 PLACEMENT OF LABEL TMB0201 Placement of label

TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 1 of 6 TMB0201 Internal Photos Figure 1 IR LED Board EU41-6250-A-R Front Figure 2 IR LED Board EU41-6250-A-R Back TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 2 of 6 Figure 3 Sensor Board EU13-6281-A-R Front Figure 4 Sensor Board EU13-6281-A-R Back TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 3 of 6 Figure 5 Cal camera EA07-39 Front Figure 6 Cal camera EA07-39 Back TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 4 of 6 Figure 7 Mainboard EU13-6240-A-R Front Figure 8 Mainboard EU13-6240-A-R Back TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 5 of 6 Figure 9 kRCM EU23-2020-A-R Front Figure 10 kRCM EU23-2020-A-R Back TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 6 of 6 Figure 11 Antenna Board EU23-2022-04-R Front Figure 12 Antenna Board EU23-2022-04-R Back

Manufacturer: TRACKMAN AS Name: Oscar Frau Product: TrackMan iO Title: Project Handler FCC ID: SFX-TMB0201 Signature: MPE limits (§1.1310) Mode Frequency Duty Cycle Power 4 Antenna Gain 5 EIRP 1 EIRP Distance PD 2 PD Limit 3 Margin 2.1091 EIRP Limit 2.1091 EIRP Margin PD/PD Limit MHz % dBm dBi dBm mW cm mW/cm^2 mW/cm^2 dB mW dB K-Band 24161,2 100 -2,16 14 11,8 15,3 20 0,003 1,000 25,17 1260 19,16 0,00304 1 EIRP = ( Power dBm + Antenna Gain dBi ) + 10 x Log ( Duty Cycle % / 100 ) 2 PD = EIRP / (4xπxD 2 ) 3 CFR 47 Part 1, §1.1310(e), table 1 4 See TR REP006325, §8.3.3 (the value is the sum of t he two indipendent RF outputs): According to ANSI C63.10-2013: EIRP [dBm] = E meas [dBuV/m] + 20*Log(d Meas [m]) - 104.7 where distance d Meas = 3 (m) dBuV/m dBm mW sum (dBm) EIRP sum (mW) EIRP 103,85 8,69 7,40 11,8 15,3 104,13 8,97 7,89 5 See "TRACKMAN_TMB0201_Antenna Gain Declaration_Vc.p df" document 2.1091 EIRP Limit 1.1307 (b)(3)(i)(C) exemption limit RF Source Frequency F R λ λ/2π R/(λ/2π) Threshold ERP Threshold EIRP Threshold EIRP EIRP Margin MHz MHz m m m W W mW mW dB 1500-100000 24161,2 0,20 0,012 0,0020 101,2 0,76800 1,260 1260 15,3 19,2

TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 1 of 2 DK-Vedbaek 13-04-2023 Declaration of Antenna Specifications. Trackman hereby declares that the following equipment includes the below specified antennas. Equipment included in this declaration: Model: TrackMan iO Type: TMB0201 Part number: PC23-2022 Antenna Specifications: Gain [dBi] including Losses (antenna feeding network ~0,6dB, plastic antenna radome ~1.0dB) Total loss: ~1,6dB Type Model Manufacturer Comment 14 4x4 patch antenna array Integrated on PC23-2022 Trackman 24GHz antenna Figure 1. Antenna Gain without losses. Unit Manufacturer: Trackman A/S Stubbeled 2 DK-2950 Vedbæk TrackMan A/S · www.TrackMan.com · Stubbeled 2 · 2950 Vedboek - Denmark · +45 4557 0850 Page 2 of 2 Denmark.

This test report shall not be partially reproduced without the prior written consent of Nemko S.p.A. The phase of sampling of equipment under test is carried out by the customer. Results indicated in this test report refer exclusively to the tested samples and apply to the sample as received. This Test Report, when bearing the Nemko name and logo is only valid when issued by Nemko laboratory, or by a laboratory having special agreement with Nemko. Doc. N. TRF001; Rev. 0; Date: 2020-11-30 O N E W O R L D O U R A P P R O V A L RADIO TEST REPORT – REP006325 Type of assessment: Final product testing Applicant: Trackman A/S Product: Launch monitor Model: Model variant: TrackMan iO n/a FCC ID: IC Registration number: SFX-TMB0201 10140A-TMB0201 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.245 Operation within the bands 902-928 MHz, 2435-2465 MHz, 5785-5815 MHz, 10500-10550 MHz, and 24075-24175 MHz.  ISED RSS-210 Issue 10 December 2019, Amendment (April 2020) Licence-Exempt Radio Apparatus: Category I Equipment Date of issue: February 8, 2023 D. Guarnone Tested by Signature P. Barbieri Reviewed by Signature Report reference ID: REP006325 Page 2 of 45 Test location Company name Nemko Spa Address Via del Carroccio, 4 City Biassono Province MB Postal code 20853 Country Italy Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Website www.nemko.com Site number FCC: 682159; IC: 9109A (10 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Spa ISO/IEC 17025 accreditation. Copyright notification Nemko S.p.A. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko S.p.A. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: REP006325 Page 3 of 45 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer .................................................................................................................................................................................... 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test methods ............................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Exclusions ................................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C, general requirements test results ........................................................................................................................................ 5 2.2 FCC Part 15 Subpart C, test results ........................................................................................................................................................................... 5 2.3 RSS-GEN, Issue 5, test results ................................................................................................................................................................................... 5 2.4 RSS-210, Issue 10, test results .................................................................................................................................................................................. 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information ..................................................................................................................................................................…

Text truncated - open the document above for the full version.

O N E W O R L D O U R A P P R O V A L Setup photos REP006325, REP006323, REP006321 Applicant: Trackman AS Stubbeled 2, Vedbaek - DK-2950, Denmark Product name: Launch monitor Model: TrackMan iO FCC ID: IC Registration number: SFX-TMB0201 10140A-TMB0201 Report reference ID: REP006325, REP006323, REP006321 Page 2 of 9 Section 1. Setup photos (§15.245 / RSS-210) 1.1 Radiated emissions set-up for frequencies below 1 GHz Report reference ID: REP006325, REP006323, REP006321 Page 3 of 9 1.2 Radiated emissions set-up for frequencies above 1 GHz up to 18 GHz Report reference ID: REP006325, REP006323, REP006321 Page 4 of 9 1.3 Radiated emissions set-up for frequencies above 18 GHz Report reference ID: REP006325, REP006323, REP006321 Page 5 of 9 Section 2. Setup photos (§15.107 / ICES-003 §6.1) 2.1 Conducted emissions Report reference ID: REP006325, REP006323, REP006321 Page 6 of 9 Section 3. Setup photos (§15.109 / ICES-003 §6.2) 3.1 Radiated emissions Report reference ID: REP006325, REP006323, REP006321 Page 7 of 9 Section 4. Setup photos (EUT) Report reference ID: REP006325, REP006323, REP006321 Page 8 of 9 Report reference ID: REP006325, REP006323, REP006321 Page 9 of 9
