SGFJS109HR2RF Wireless Controller (Receiver Part)

Vision Electronics Co., Ltd 2.4GHz PS2 RF CONTROLLER INSTRUCTION MANUAL 1. SUMMARY Using 2.4GHz Multi Channel RF module. Compatible with SONY PLAYSTATION 2. Using AC key to change channels. Supporting 16 players simultaneously. Having auto-sleep function to save battery life. 2. OPERATION INSTRUCTION 2.1 Basic operation instruction 2.1.1 Connecting a).Insert receiver into PS2 console, receiver red LED bright, put AAA(LR03) 3PCS batteries into the battery compartment of controller. So receiver has been connected with controller. PS2 RX TX b). When several players (less than 16 players) connect the console simultaneously, receiver will auto check the controllers, and generate one-to-one channels. If channels repeat or be interfered, please refer to DISCONNECT and RESETTING. Player can check the green LED in the controller to know the connection situation. If green LED is bright, it means controller works well with receiver. If green LED is twinkle, it means the controller didn’t work well with receiver. If green LED is dark, it means the controller didn’t work with receiver. Vision Electronics Co., Ltd PS2 RX RX RX TX TX TX TX RX 2.1.2 DISCONNECT & RESETTING a). When battery is inadequate, or information sending is interfered by block, the channel will be changeful, or controller information will off and on. In this moment, the green LED in the controller will be dark. ......... In this situation, please check the battery and make sure that shock has been taken off. ......... Then please press AC key of wished controller, so receiver and wished controller has confirmed new channel. In the meanwhile, Connect LED in the receiver and controller will light, so you can play normally. TX Connect PS2 RX b). If original channels of several receivers repeat and interfere with each other, channel is changeful as well. So it is for controllers. Vision Electronics Co., Ltd PS2 RX RX RX TX TX TX TX RX In this situation, please turn off all the controllers power, Then turn on one of controller power and press AC key. So new channel will confirm and Connect LED in the receiver and controller will light. PS2 RX RX RX RX TX TX TX 1 2 3 4 2 3 4 Connect TX 1 Turn on the next controller power and press AC key, so this channel will confirm and CONNECT LED light. In this way you can reset the rest channels in turn. PS2 RX RX RX RX TX TX TX 1 2 3 4 1 3 4 Connec TX 2 c). In the situation that receiver’s ID is different from controller’s Controllers’ original setting have one for one ID. When receiver’s original ID is different from controller’s, you’d better reset ID. Vision Electronics Co., Ltd PS2 RX TX TX 1 2 1 Press AC key of receiver, then press the AC key of your wished controller. After that, ID resetting has completed. At the same time, channel will confirm and CONNECT LED lights. So you can play normally. Step 1: Press the AC key of receiver PS2 RX TX TX 2 1 Connect ? Step 2: Press the AC key of controller. PS2 RX TX TX 2 1 Connect 2 2.1.3 Sleep Mode If you do not touch any key of controller within 3 minutes, the controller will auto-sleep. 2.1.4 Wake Mode Under the Sleep Mode, press any key ( including D-PAD/3D/action keys) will wake up the controller. IMPORTANT HEALTH WARNINGS TAKING THE FOLLOWING PRECAUTIONS MAY REDUCE THE RISK OF PHOTOSENSITIVE EPILEPTIC SEIZURES: • Sit further away from the screen • Use a smaller TV screen • Play in a well-lit room • Do not play when you are drowsy or fatigued If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before playing. WE ALSO ADVISE YOU TO TAKE REGULAR BREAKS OF 15 MINUTES EVERY HOUR. Design and specifications are subject to change without notice. Dispose of this product or products contained in this pack in accordance with local and national disposal regulations. PlayStation®, PSone™ and PlayStation®2 are either trademarks or registered trademarks of Sony Computer Entertainment Inc. FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION To maintain compliance with the FCC’s RF exposure guidelines place the receiver module unit at least 20cm from nearby persons. Warning:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio / TV technician for help. PHOTOSENSITIVE SEIZURE WARNING A very small percentage of people may experience a seizure when exposed to certain visual images, including flashing lights or patterns that may appear in video games. Even people who have no history of seizures or epilepsy may have an undiagnosed condition that can cause these “photosensitive epileptic seizures” while watching video games. These seizures may have a variety of s…

Text truncated - open the document above for the full version.

Indicator s SN8P1707Q PS2 console NRF2401 8MHz 16MHz

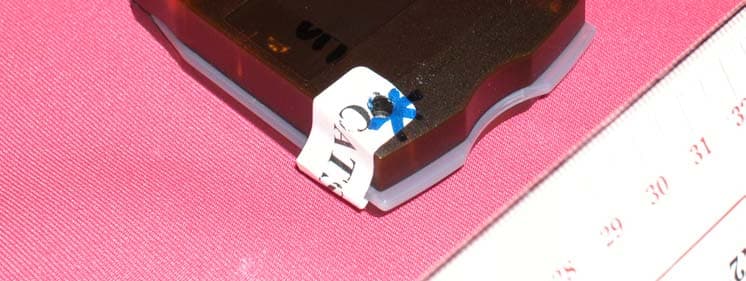

Test Setup FCC ID : SGFJS109HR2 External Photo - Front External Photo - Rear

2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602A0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT2 Model No: JS109HT2 FCC ID: SGFJS109HT2 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR2 IC: 5297A-JS109HR2 FCC ID: SGFJS109HR2 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT2 Model No: JS109HT2 FCC ID: SGFJS109HT2 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602A0 Model No: JS109HR2 IC: 5297A-JS109HR2 FCC ID: SGFJS109HR2 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 Version 2 44x19mm 44x19mm 44x19mm 44x19mm 47x16mm 45x20mm 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR2 Model No: JS110BR2FCC ID: SGFJS110BR2 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT2 Model No: JS110BT2FCC ID: SGFJS110BT2 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR2 Model No: JS110BR2FCC ID: SGFJS110BR2 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT2 Model No: JS110BT2FCC ID: SGFJS110BT2 47x16mm 45x20mm 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the followin…

Text truncated - open the document above for the full version.

Test Setup FCC ID : SGFJS109HR2 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : SGFJS109HR2 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : SGFJS109HR2 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : SGFJS109HR2 Internal Photo - 7

CIRCUIT DESCRIPTION JS109H(TECHCOPR PS2 NORDIC PROJECT) A. Receiver Section 1 Signal Dispose 1.1 PS2 console switch data with RF module by U2 and MCU disposed 1.2 Y1 provide clock so that U2 procedure go on. 1.3 U3 switch will force change to the frequency no interfering when there is other same frequency interfering during working 1.4 D1 on circuit show LED light during normal working, opposite will be off. 1.5 D2 on circuit show LED flash during connection or no signal input. The LED will illuminate upon finished connection. 2. RF module circuit 2.1 IC U1 on module is combined start and receive function with 2.4G IC chip. With GFSK signal and CRC adjust and identify ID code function. 2.2 Y1 on module provide time standard for U1 so that firmed on normal frequency. 2.3 Receiving and start appointed RF signal by C8 coupling and C10 filtering then through PCB antenna completed. Frequency Table (Frequency in GHz) CH1 2.414 CH2 2.418 CH3 2.422 CH4 2.426 CH5 2.430 CH6 2.434 CH7 2.438 CH8 2.442 CH9 2.446 CH10 2.450 CH11 2.454 CH12 2.458 CH13 2.462 CH14 2.466 CH15 2.470 CH16 2.474 PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 1 of 31December 2002 Single chip 2.4 GHz Transceiver )($785(6$33/,&$7,216 • True single chip GFSK transceiver in a small 24-pin package (QFN24 5x5mm) • Wireless mouse, keyboard, joystick • Keyless entry • Data rate 0 to1Mbps• Wireless data communication • Only 2 external components• Alarm and security systems • Multi Channel operation • 125 channels • Support frequency hopping • Channel switching time <200μs. • Home Automation • Remote control • Surveillance • Automotive • Power supply range: 1.9 to 3.6 V• Telemetry • Address and CRC computation• Intelligent sports equipment • Shock Burst™ mode for ultra-low power operation • Industrial sensors • Toys • Simultaneous dual receiver topology • Low supply current (TX), typical 8mA peak @ -5dBm output power • Data slicer / clock recovery of data • 100% RF tested • No need for external SAW filter • Low supply current (RX), typical 15mA peak in receive mode • World wide use *(1(5$/'(6&5,37,21 nRF2401 is a single-chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM band. The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator and a modulator. Output power and frequency channels are easily programmable by use of the 3-wire interface. Current consumption is very low, only 8mA at an output power of -5dBm and 15mA in receive mode. Built-in Power Down modes makes power saving easily realizable. 48,&.5()(5(1&('$7$ 3DUDPHWHU9DOXH8QLW Minimum supply voltage1.9V Maximum output power0dBm Maximum GFSK data rate1000kbps Supply current GFSK in transmit @ -5dBm output power8mA Supply current GFSK in receive mode15mA Temperature range-40 to +85 ° C Sensitivity-85dBm Supply current in Power Down mode<1 μΑ Table 1 nRF2401 quick reference data Q5) PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 2 of 31December 2002 7\SH1XPEHU'HVFULSWLRQ9HUVLRQ NRF2401 IC24 pin QFN 5x5A NRF2401-EVKITEvaluation kit (2 test PCB, 2 configuration PCB, SW)1.0 Table 2 nRF2401 ordering information %/2&.',$*5$0 DVDD VDD=3VVDD=3V DATA CS CLK1 3-wire interface Serial Programming Interface Frequency Synthesiser PA nRF Interface LNA PWR_UP VSS=0V XC1 XC2 400Ω IREF VDD_PS=1.8V VSS_PA=0V ANT1 ANT2 CE CLK2 DOUT2 DEMOD IF BPF 22kΩ VSS=0V VSS=0V VSS=3V DR2 DR1 VSS=0VVSS=0V Figure 1 nRF2401 with external components. PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 3 of 31December 2002 3,1)81&7,216 3LQ 1DPH 3LQIXQFWLRQ 'HVFULSWLRQ 1CEDigital InputChip Enable Activates RX or TX mode 2DR2Digital OutputRX Data Ready at Channel#2 3CLK2Digital I/OClock Output/Input for RX Data Channel#2 4DOUT2Digital OutputRX Data Channel 2 5CSDigital InputChip Select Activates Configuration Mode 6DR1Digital OutputRX Data Ready at Channel#1 7CLK1Digital I/OClock Input (TX) & Output/Input (RX) for Channel#1 8DATADigital I/ORX Data Channel 1/TX Data Input/ 3-wire interface 9DVDDPowerPositive Digital Supply output for decoupling purposes 10VSSPowerGround (0V) 11XC2Analog OutputCrystal Pin 2 12XC1Analog InputCrystal Pin 1 13VDD_PAPower OutputPower Supply (+1.8V) to Power Amplifier 14ANT1RFAntenna interface 1 15ANT2RFAntenna interface 2 16VSS_PAPowerGround (0V) 17VDDPowerPower Supply (+3V DC) 18VSSPowerGround (0V) 19IREFAnalog InputReference current 20VSSPowerGround (0V) 21VDDPowerPower Supply (+3V DC) 22VSSPowerGround (0V) 23PWR_UPDigital InputPower Up 24VDDPowerPower Supply (+3V DC) Table 3 nRF2401 pin function 3,1$66,*10(17 DOUT2 AVDD DATA Q5) QFN24 5x5 DVDD AVDD PWR_UP AVSS ANT2 AVSS VSS_PA CLK1 CE 2322 21 24 987 4 3 2 1 18 17 16 6 5 VDD_PA ANT1 14 IREF AVSS 2019 1112 13 15 10 CS XC2XC1 DR1 DR2 CLK2 AVDDAVSS Figure 2. nRF2401 pin assignment (top view) for a QFN24 5x5 package. PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 4 of 31December 2002 (/(&75,&$/63(&,),&$7,216 Conditions: VDD = +3V, VSS = 0V, T A = - 40ºC to + 85ºC 6\PERO 3DUDPHWHU FRQGLWLRQ 1RWHV 0LQ 7\S 0D[ 8QLWV 2SHUDWLQJFRQGLWLRQV VDDSupply voltage1.93.03.6V TEMPOperating Temperature-402785ºC 'LJLWDOLQSXWSLQ V IH HIGH level input voltageVDD- 0.3VDDV V IL LOW level input voltageVss0.3V 'LJLWDORXWSXWSLQ V OH HIGH level output voltage (I OH =-0.5mA)VDD- 0.3VDDV V OL LOW level output voltage (I OL =0.5mA)Vss0.3V *HQHUDO5)FRQGLWLRQV f OP Operating frequency1)24002524MHz f XTAL Crysta…

Text truncated - open the document above for the full version.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Techcorp Ltd. Application For Certification (FCC ID: SGFJS109HR2) RF Wireless Controller (Receiver module) 04175631 DL/ Sandy Lee October 26, 2004 INTERTEK TESTING SERVICES FCC ID: SGFJS109HR2 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: SGFJS109HR2 ii MEASUREMENT/TECHNICAL REPORT Techcorp Ltd. - MODEL: JOYTECH JS109HR2 FCC ID: SGFJS109HR2 October 26, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: SGFJS109HR2 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 3.4 Conducted Emission Configuration Photograph .................................................15 3.5 Conducted Emission Data.......................................................................................16 4.0 Equipment Photographs .....................................................................................18 5.0 Product Labelling ................................................................................................20 6.0 Technical Specifications ....................................................................................22 7.0 Instruction Manual ..............................................................................................24 8.0 Miscellaneous Information .................................................................................26 8.1 Bandwidth Plot ...................................................................................................27 8.2 Discussion of Pulse Desensitization ...................................................................28 8.3 Calculation of Average Factor ............................................................................29 8.4 Emissions Test Procedures................................................................................30 INTERTEK TESTING SERVICES FCC ID: SGFJS109HR2 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: SGFJS109HR2 1 EXHIBIT 1 GENERAL DESCRI…

Text truncated - open the document above for the full version.

Nordic Wireless PS2 Game-Pad Data Transfer Description : 2004/09/24 Normal Transfer: Key data no change Key data change 9.3ms 9.3ms Remote 9.3ms Key data no change 200us (Max.) Dongle Yellow: Key Data. 1byte Preamble+5 bytes Adress+19 bytes Payload+1 bytes CRC: 256us Blue: Motor Data. 1byte Preamble+5 bytes Addess+3bytes Payload+1 bytes CRC: 158us Bit format: RZ code. 1us 1us “1” “0” Calculation of average factor: For dongle: Average Factor = 0.158 / 9.3 = 0.017 or –35.3 dB As the calculated value exceeds 20 dB, average factor of 20 dB is used.

Test Setup FCC ID : SGFJS109HR2 Radiated Photo - Front Radiated Photo - Rear

Test Setup FCC ID : SGFJS109HR2 Conduct Photo - 1 Conduct Photo - 2 Test Setup FCC ID : SGFJS109HR2 Conduct Photo - 3
