SGFJS109HT1RF Wireless Controller (Controller Unit)

IMPORTANT HEALTH WARNINGS TAKING THE FOLLOWING PRECAUTIONS MAY REDUCE THE RISK OF PHOTOSENSITIVE EPILEPTIC SEIZURES: • Sit further away from the screen • Use a smaller TV screen • Play in a well-lit room • Do not play when you are drowsy or fatigued If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before playing. WE ALSO ADVISE YOU TO TAKE REGULAR BREAKS OF 15 MINUTES EVERY HOUR. Design and specifications are subject to change without notice. Dispose of this product or products contained in this pack in accordance with local and national disposal regulations. PlayStation®, PSone™ and PlayStation®2 are registered trademarks of Sony Computer Entertainment Inc. FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION To maintain compliance with the FCC’s RF exposure guidelines place the receiver module unit at least 20cm from nearby persons. Warning:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio / TV technician for help. PHOTOSENSITIVE SEIZURE WARNING A very small percentage of people may experience a seizure when exposed to certain visual images, including flashing lights or patterns that may appear in video games. Even people who have no history of seizures or epilepsy may have an undiagnosed condition that can cause these “photosensitive epileptic seizures” while watching video games. These seizures may have a variety of symptoms, including lightheadedness, altered vision, eye or face twitching, jerking or shaking of arms or legs, disorientation, confusion, or momentary loss of awareness. Seizures may also cause loss of consciousness or convulsions that can lead to injury from falling down or striking nearby objects. Immediately stop playing and consult a doctor if you experience any of these symptoms. Parents should watch for or ask their children about the above symptoms – children and teenagers are more likely than adults to experience these seizures. HELPLINE If you are experiencing a problem with this product contact the JoytechProduct Helpline on +44 (O) 8OO 38 99 647 (FREEPHONE UK ONLY) or visit our website at www.joytech.netto obtain localised helpline numbers. P.4

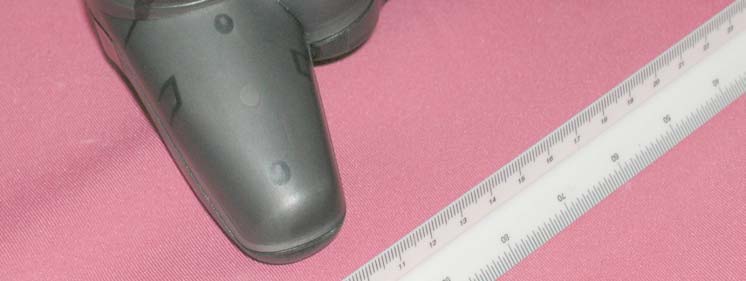

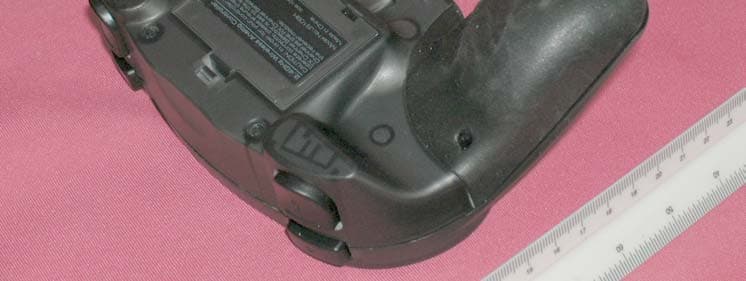

Test Setup FCC ID : SGFJS109HT1 External Photo - Front External Photo - Rear

2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602A0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT2 Model No: JS109HT2 FCC ID: SGFJS109HT2 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR2 IC: 5297A-JS109HR2 FCC ID: SGFJS109HR2 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT2 Model No: JS109HT2 FCC ID: SGFJS109HT2 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602A0 Model No: JS109HR2 IC: 5297A-JS109HR2 FCC ID: SGFJS109HR2 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 Version 2 44x19mm 44x19mm 44x19mm 44x19mm 47x16mm 45x20mm 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR2 Model No: JS110BR2FCC ID: SGFJS110BR2 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT2 Model No: JS110BT2FCC ID: SGFJS110BT2 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR2 Model No: JS110BR2FCC ID: SGFJS110BR2 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT2 Model No: JS110BT2FCC ID: SGFJS110BT2 47x16mm 45x20mm 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the followin…

Text truncated - open the document above for the full version.

Test Setup FCC ID : SGFJS109HT1 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : SGFJS109HT1 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : SGFJS109HT1 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : SGFJS109HT1 Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : SGFJS109HT1 Internal Photo - 9 Internal Photo - 10 Test Setup FCC ID : SGFJS109HT1 Internal Photo - 11 Internal Photo - 12 Test Setup FCC ID : SGFJS109HT1 Internal Photo - 13

CIRCUIT DESCRIPTION (ETOMS PS2 RFWES PROJECT) B. Controller Section. 1. Circuit Power Supply 1.1 IC U5 transform 3.3V to supply for MCU and RF module working. 1.2 U1 switch three modes as Off/On/Motor on. 2. Signal Dispose 2.1 IC U8 MCU obtain data which will be transmit to RF module starting to receiver by button and stick operation 2.2 RF module obtain signal to transmit to MCU that control Q4 Q8 to make Motor vibrate. 2.3 Y1 provide clock so that MCU procedure run. 2.4 U7 encoder switch set 1-8 ID to comply with the appointed receiver ID. 2.5 LED1 function is showing current working mode. Under analogue mode the LED will illuminate opposite go into digital mode. 2.6 LED2 on circuit display the connection status. The LED flash fast when the controller hasn’t connected with receiver. The LED flash slowly under connection status and normally working condition. 1. RF Module Circuit 1.1 IC on module is combined start and receiving function with 2.44GHz IC chip. Utilize DSSS technology to complete transmission. 1.2 RFW488R on RF module oscillate to provide clock for Module IC 1.3 RFW 488C on RF module filter the signal that will be started or received. Start and receive RF signal through coil PCB antenna.

Intertek Testing Services For SAR evaluation of the hand-held unit (so called controller unit), refer to TCB Exclusions List Revised on 17 July 2002. Potable transmitter with output power less than 60/fGHz (d < 2.5cm) can be certified by TCB without the SAR evaluation. In fact, the Output power for portable transmitters is the higher of the conducted or radiated (EIRP) source-based time-averaged output. And the fGHz is mid- band frequency in GHz, and d is the distance to a person’s body, excluding hands, wrists, feet, and ankles. For the tested model of JS109HT1, the measured peak conducted power was 3.5mW and the source-based time averaged output power was 0.32mW as TX duty cycle is 9%. The maximum field strength (FS) was 89.7dBμV/m at 2440.430MHz. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the EIRP can be calculated by: EIRP = (FS*D) 2 / 30 = 0.28mW Source-based time averaged output power = (0.28*0.09) mW = 0.025mW Based on the above calculation, it is concluded that the handset can be certified by TCB without the SAR evaluation. FCC ID: SGFJS109HT1 Date: October 21, 2004

SCH-JS109HPN020105.sch-1 - Wed Sep 08 14:22:48 2004

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Techcorp Ltd. Application For Certification RF Wireless Controller (Controller Unit) (FCC ID: SGFJS109HT1) 04073841 TL/ Sandy Lee October 21, 2004 INTERTEK TESTING SERVICES FCC ID: SGFJS109HT1 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2 : General Description EXHIBIT 3 : System Test Configuration EXHIBIT 4 : Measurement Results EXHIBIT 5 : Equipment Photographs EXHIBIT 6 : Product Labelling EXHIBIT 7 : Technical Specifications EXHIBIT 8 : Instruction Manual INTERTEK TESTING SERVICES FCC ID: SGFJS109HT1 ii MEASUREMENT/TECHNICAL REPORT Techcorp Ltd. - MODEL: JOYTECH JS109HT1 FCC ID: SGFJS109HT1 October 21, 2004 This report concerns (check one) Original Grant X Class II Change Equipment Type: DSS, Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: SGFJS109HT1 iii Table of Contents 1.0 Summary of test results ..........................................................................................2 2.0 General Description ........................................................................................... 4 2.1 Product Description .......................................................................................... 4 2.2 Related Submittal(s) Grants.............................................................................. 5 2.3 Test Methodology............................................................................................. 5 2.4 Test Facility ...................................................................................................... 5 3.0 System Test Configuration ................................................................................. 7 3.1 Justification ...................................................................................................... 7 3.2 EUT Exercising Software .................................................................................. 7 3.3 Support Equipment List and Description............................................................ 8 3.4 Equipment Modification .................................................................................... 9 4.0 Measurement Results ...................................................................................... 11 4.1 Maximum Conducted Output Power at Antenna Terminals.............................. 11 4.2 Minimum 6dB RF Bandwidth .......................................................................... 12 4.3 Maximum Power Density .....................................................................................13 4.4 Out of Band Conducted Emissions......................................................................14 4.5 Out of Band Radiated Emissions .................................................................... 15 4.6 Transmitter Radiated Emissions in Restricted Bands....................................... 15 4.7 Field Strength Calculation ............................................................................... 16 4.8 Radiated Emission Configuration Photograph ....................................................17 4.9 Radiated Emission Data ................................................................................. 18 4.10 AC Line Conducted Emission ......................................................................... 20 4.11 Radiated Emission from Digital Section of Transceiver ......................................21 4.12 Transmitter Duty Cycle Calculation and Measurements................................... 23 5.0 Equipment Photographs .................................................................................. 21 6.0 Product Labelling ............................................................................................. 27 7.0 Technical Specifications .................................................................................. 29 8.0 Instruction Manual ................................................................................................31 INTERTEK TESTING SERVICES FCC ID: SGFJS109HT1 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report 6 dB Bandwidth Plot h6dB.pdf Test Report Maximum Power Density Plot hpowden.pdf Test Report Out Band Antenna Conducted Emission Plot hobantcon.pdf Test Report Duty Cycle Calculation and Measurement hdcc.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf RF Exposure Info RF Safety RF exposure info.pdf INTERTEK TESTING SERVICES F…

Text truncated - open the document above for the full version.

ET Wireless PS2 Game-Pad Data Transfer Description V1.1: 2004/9/17 Allen Normal Transfer: 17ms 17ms Remote Dongle 200us (Max.) Yellow: Key Data. (Always send in each 17ms) 4bit Sink+2 bytes Preamble+7 bytes Header+17 bytes Payload+2 bytes CRC: 228us Green: ACK signal. 4bit Sink+2 bytes Preamble+7 bytes Header+2 bytes CRC: 92us Blue: Motor Data. 4bit Sink+2 bytes Preamble+7 bytes Header+3 bytes Payload+2 bytes CRC: 116us Bit format: RZ code. 1us Duty=50% “1” “0” 1us Transfer Data Fail (Remote) Transfer Data Fail (Dongle) Dongle Remote 1 2 17ms T1 3 Dongle 1 2 T1 3 T1 46 5 17ms 4 5 6 7 7 Data Transfer Fail Data Transfer OK Remote T1 z There are seven times to resend data. If remote can receive Dongle side ACK before the 7 th transmit, the transfer will end. z If data transfer fail in the 7 th time, the system will stop to send data in this time block (17ms). Wait next time block coming, the system will check key data values and then send to Dongle side. z 200 us < T1(Random) < 350us Worst Case: Transfer Data Fail (Remote) Dongle 1 2 17ms 3 46 5 7 200 us 200 us Remote Yellow: Key Data. 4bit Sink+2 bytes Preamble+7 bytes Header+17 bytes Payload+2 bytes CRC: 228us Average Factor = 7 * 0.228 / 17 = 0.09 or –20.9 dB

Plot H3 + Cable los s = -16.19 dBm

Test Setup FCC ID : SGFJS109HT1 Radiated Photo - Front Radiated Photo - Rear
