SGFJS110BR2RF Wireless Controller (Receiver Module)

Indicators WT6561 Xbox console NRF2401 6 MHz 16MHz

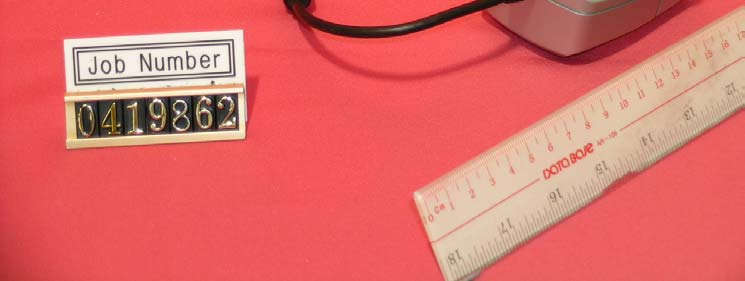

Test Setup FCC ID : SGFJS110BR2 External Photo - Front External Photo - Rear 04198621 04198621

2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602A0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT2 Model No: JS109HT2 FCC ID: SGFJS109HT2 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR2 IC: 5297A-JS109HR2 FCC ID: SGFJS109HR2 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT2 Model No: JS109HT2 FCC ID: SGFJS109HT2 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602A0 Model No: JS109HR2 IC: 5297A-JS109HR2 FCC ID: SGFJS109HR2 2.4GHz Wireless Analog Controller 506-109H0602A0 IC: 5297A-JS109HT1 Model No: JS109HT1 FCC ID: SGFJS109HT1 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT1 Model No: JS110BT1FCC ID: SGFJS110BT1 Version 2 44x19mm 44x19mm 44x19mm 44x19mm 47x16mm 45x20mm 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR2 Model No: JS110BR2FCC ID: SGFJS110BR2 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT2 Model No: JS110BT2FCC ID: SGFJS110BT2 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR2 Model No: JS110BR2FCC ID: SGFJS110BR2 2.4GHz Wireless Analog Controller2.4GHz Wireless Analog Controller 506-110B0602A0IC: 5297A-JS110BT2 Model No: JS110BT2FCC ID: SGFJS110BT2 47x16mm 45x20mm 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 5297A-JS110BR1 Model No: JS110BR1FCC ID: SGFJS110BR1 2.4GHz Wireless Receiver Module This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 506-109H0602B0 Model No: JS109HR1 IC: 5297A-JS109HR1 FCC ID: SGFJS109HR1 2.4GHz Wireless Receiver Module 506-110B0602B0 This device complies with Part 15 of the FCC Rules. Operation is subject to the followin…

Text truncated - open the document above for the full version.

Test Setup FCC ID : SGFJS110BR2 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : SGFJS110BR2 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : SGFJS110BR2 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : SGFJS110BR2 Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : SGFJS110BR2 Internal Photo - 9 Internal Photo - 10

JS110B(NORDIC) CIRCUIT DESCRIPTION A. Receiver Section 1. Circuit for Power Supply 1.1 IC U2 transform 3.3V to supply for U1 also for RF module working 2. Signal Dispose 2.1 U1 equal USB 1 to 2 HUB when X-box controller connects with console. Two USB transmit to A&B socket. 2.2 U1 will also shift data with RF module. 2.3 Y1 oscillate to provide clock for U1 to procedure run 2.4 S1 switch will force change to the frequency no interfering when there is other same frequency interfering during working. 2.5 D2 on circuit LED displays Power Supply status. 2.6. D1 on circuit show LED flash during connection or no signal input. The LED will illuminate upon finished connection. 3. RF module circuit 3.1 IC U1 on module is combined start and receive function with 2.4G IC chip. With GFSK signal and CRC adjust and identify ID code function. 3.2 Y1 on module provide clock standard for U1 so that firmed on normal frequency. 3.3 Receiving and start appointed RF signal by C8 coupling and C10 filtering then through PCB antenna completed. Frequency Table (Frequency in GHz) CH1 2.414 CH2 2.418 CH3 2.422 CH4 2.426 CH5 2.430 CH6 2.434 CH7 2.438 CH8 2.442 CH9 2.446 CH10 2.450 CH11 2.454 CH12 2.458 CH13 2.462 CH14 2.466 CH15 2.470 CH16 2.474 PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 1 of 31December 2002 Single chip 2.4 GHz Transceiver )($785(6$33/,&$7,216 • True single chip GFSK transceiver in a small 24-pin package (QFN24 5x5mm) • Wireless mouse, keyboard, joystick • Keyless entry • Data rate 0 to1Mbps• Wireless data communication • Only 2 external components• Alarm and security systems • Multi Channel operation • 125 channels • Support frequency hopping • Channel switching time <200μs. • Home Automation • Remote control • Surveillance • Automotive • Power supply range: 1.9 to 3.6 V• Telemetry • Address and CRC computation• Intelligent sports equipment • Shock Burst™ mode for ultra-low power operation • Industrial sensors • Toys • Simultaneous dual receiver topology • Low supply current (TX), typical 8mA peak @ -5dBm output power • Data slicer / clock recovery of data • 100% RF tested • No need for external SAW filter • Low supply current (RX), typical 15mA peak in receive mode • World wide use *(1(5$/'(6&5,37,21 nRF2401 is a single-chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM band. The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator and a modulator. Output power and frequency channels are easily programmable by use of the 3-wire interface. Current consumption is very low, only 8mA at an output power of -5dBm and 15mA in receive mode. Built-in Power Down modes makes power saving easily realizable. 48,&.5()(5(1&('$7$ 3DUDPHWHU9DOXH8QLW Minimum supply voltage1.9V Maximum output power0dBm Maximum GFSK data rate1000kbps Supply current GFSK in transmit @ -5dBm output power8mA Supply current GFSK in receive mode15mA Temperature range-40 to +85 ° C Sensitivity-85dBm Supply current in Power Down mode<1 μΑ Table 1 nRF2401 quick reference data Q5) PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 2 of 31December 2002 7\SH1XPEHU'HVFULSWLRQ9HUVLRQ NRF2401 IC24 pin QFN 5x5A NRF2401-EVKITEvaluation kit (2 test PCB, 2 configuration PCB, SW)1.0 Table 2 nRF2401 ordering information %/2&.',$*5$0 DVDD VDD=3VVDD=3V DATA CS CLK1 3-wire interface Serial Programming Interface Frequency Synthesiser PA nRF Interface LNA PWR_UP VSS=0V XC1 XC2 400Ω IREF VDD_PS=1.8V VSS_PA=0V ANT1 ANT2 CE CLK2 DOUT2 DEMOD IF BPF 22kΩ VSS=0V VSS=0V VSS=3V DR2 DR1 VSS=0VVSS=0V Figure 1 nRF2401 with external components. PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 3 of 31December 2002 3,1)81&7,216 3LQ 1DPH 3LQIXQFWLRQ 'HVFULSWLRQ 1CEDigital InputChip Enable Activates RX or TX mode 2DR2Digital OutputRX Data Ready at Channel#2 3CLK2Digital I/OClock Output/Input for RX Data Channel#2 4DOUT2Digital OutputRX Data Channel 2 5CSDigital InputChip Select Activates Configuration Mode 6DR1Digital OutputRX Data Ready at Channel#1 7CLK1Digital I/OClock Input (TX) & Output/Input (RX) for Channel#1 8DATADigital I/ORX Data Channel 1/TX Data Input/ 3-wire interface 9DVDDPowerPositive Digital Supply output for decoupling purposes 10VSSPowerGround (0V) 11XC2Analog OutputCrystal Pin 2 12XC1Analog InputCrystal Pin 1 13VDD_PAPower OutputPower Supply (+1.8V) to Power Amplifier 14ANT1RFAntenna interface 1 15ANT2RFAntenna interface 2 16VSS_PAPowerGround (0V) 17VDDPowerPower Supply (+3V DC) 18VSSPowerGround (0V) 19IREFAnalog InputReference current 20VSSPowerGround (0V) 21VDDPowerPower Supply (+3V DC) 22VSSPowerGround (0V) 23PWR_UPDigital InputPower Up 24VDDPowerPower Supply (+3V DC) Table 3 nRF2401 pin function 3,1$66,*10(17 DOUT2 AVDD DATA Q5) QFN24 5x5 DVDD AVDD PWR_UP AVSS ANT2 AVSS VSS_PA CLK1 CE 2322 21 24 987 4 3 2 1 18 17 16 6 5 VDD_PA ANT1 14 IREF AVSS 2019 1112 13 15 10 CS XC2XC1 DR1 DR2 CLK2 AVDDAVSS Figure 2. nRF2401 pin assignment (top view) for a QFN24 5x5 package. PRELIMINARY PRODUCT SPECIFICATION Q5)6LQJOH&KLS*+]5DGLR7UDQVFHLYHU Nordic VLSI ASA - Vestre Rosten 81, N-7075 Tiller, Norway - Phone +4772898900 - Fax +4772898989 Revision: 1.0Page 4 of 31December 2002 (/(&75,&$/63(&,),&$7,216 Conditions: VDD = +3V, VSS = 0V, T A = - 40ºC to + 85ºC 6\PERO 3DUDPHWHU FRQGLWLRQ 1RWHV 0LQ 7\S 0D[ 8QLWV 2SHUDWLQJFRQGLWLRQV VDDSupply voltage1.93.03.6V TEMPOperating Temperature-402785ºC 'LJLWDOLQSXWSLQ V IH HIGH level input voltageVDD- 0.3VDDV V IL LOW level input voltageVss0.3V 'LJLWDORXWSXWSLQ V OH HIGH level output voltage (I OH…

Text truncated - open the document above for the full version.

SCH-110BPN020105.sch-1 - Thu Nov 11 14:53:40 2004 S C H - 1 0 9 H P N 0 6 0 1 0 2 . s c h - 1 - M o n S e p 1 3 1 5 : 2 5 : 5 1 2 0 0 4

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Techcorp Ltd. Application For Certification (FCC ID: SGFJS110BR2) RF Wireless Controller (Receiver module) 04198621 DL/ Sandy Lee November 9, 2004 INTERTEK TESTING SERVICES FCC ID: SGFJS110BR2 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: SGFJS110BR2 ii MEASUREMENT/TECHNICAL REPORT Techcorp Ltd. - MODEL: JOYTECH JS110BR2 FCC ID: SGFJS110BR2 November 9, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: SGFJS110BR2 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 3.4 Conducted Emission Configuration Photograph .................................................15 3.5 Conducted Emission Data.......................................................................................16 4.0 Equipment Photographs .....................................................................................18 5.0 Product Labelling ................................................................................................20 6.0 Technical Specifications ....................................................................................22 7.0 Instruction Manual ..............................................................................................24 8.0 Miscellaneous Information .................................................................................26 8.1 Bandwidth Plot ...................................................................................................27 8.2 Discussion of Pulse Desensitization ...................................................................28 8.3 Calculation of Average Factor ............................................................................29 8.4 Emissions Test Procedures................................................................................30 INTERTEK TESTING SERVICES FCC ID: SGFJS110BR2 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: SGFJS110BR2 1 EXHIBIT 1 GENERAL DESCRI…

Text truncated - open the document above for the full version.

Fundament a l emission (C hannel 1) : 52.3 dB μ V/m Attenuation : 28.0 dB Emission at 2388.4 M H z : (52.3 – 28.0) or 24.3 dB μ V/m which is be low limit of 54.0 dB μ V/ m Fundament a l emission (Channel 16) : 53.5 dB μ V/m Attenuation : 27.92 dB Emission at 2539.0 M H z : (53.5 – 27.92) or 25.58 dB μ V/m which is be low limit of 54.0 dB μ V/ m

Nordic Wireless Xbox Game-Pad Data Transfer Description : 2004/09/24 Normal Transfer: Dongle Key data no change Key data change 6ms 6ms Remote 6ms Key data no change 200us (Max.) Yellow: Key Data. 1byte Preamble+5 bytes Adress+18 bytes Payload+1 bytes CRC: 250us Orange: Connect Data. 1byte Preamble+5 bytes Addess+3bytes Payload+1 bytes CRC: 156us Green: ACK signal. 1byte Preamble+5 bytes Addess+3bytes Payload+1 bytes CRC: 158us Blue: Motor Data. 1byte Preamble+5 bytes Addess+6bytes Payload+1 bytes CRC: 192us Bit format: RZ code. 1us 1us “1” “0” Calculation of average factor Normal Transfer: Dongle Key data no change Key data change 6ms 6ms Remote 6ms Key data no change 200us (Max.) For dongle: Blue: Motor Data. 1byte Preamble+5 bytes Addess+6bytes Payload+1 bytes CRC: 192us Average Factor = 0.192 / 6 = 0.032 or –29.9 dB As the calculated value exceeds 20 dB, average factor of 20 dB is used.

Report No.:04198621 Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:04198621 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.:04198621 Ctrl No.:N/A Tested By:Hong, Report No.:04198621 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.62500 34.3 56.0 1.87500 36.8 56.0 2.56500 37.6 56.0 3.71000 41.7 56.0 4.99500 34.9 56.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.24000 35.7 52.1 0.30000 35.7 50.2 0.55500 32.7 46.0 0.59000 32.6 46.0 0.97000 32.3 46.0 1.42000 32.3 46.0 2.11500 36.1 46.0 2.22000 37.2 46.0 3.71000 40.0 46.0 5.30500 34.9 50.0 5.75500 29.5 50.0 * limit exceeded

Test Setup FCC ID : SGFJS110BR2 Radiated Photo - Front Radiated Photo - Rear Radiated Model No.: JS110BR2 Job No.: 04198621 Radiated Model No.: JS110BR2 Job No.: 04198621

Test Setup FCC ID : SGFJS110BR2 Conduct Photo - 1 Conduct Photo - 2 Test Setup FCC ID : SGFJS110BR2 Conduct Photo - 3
