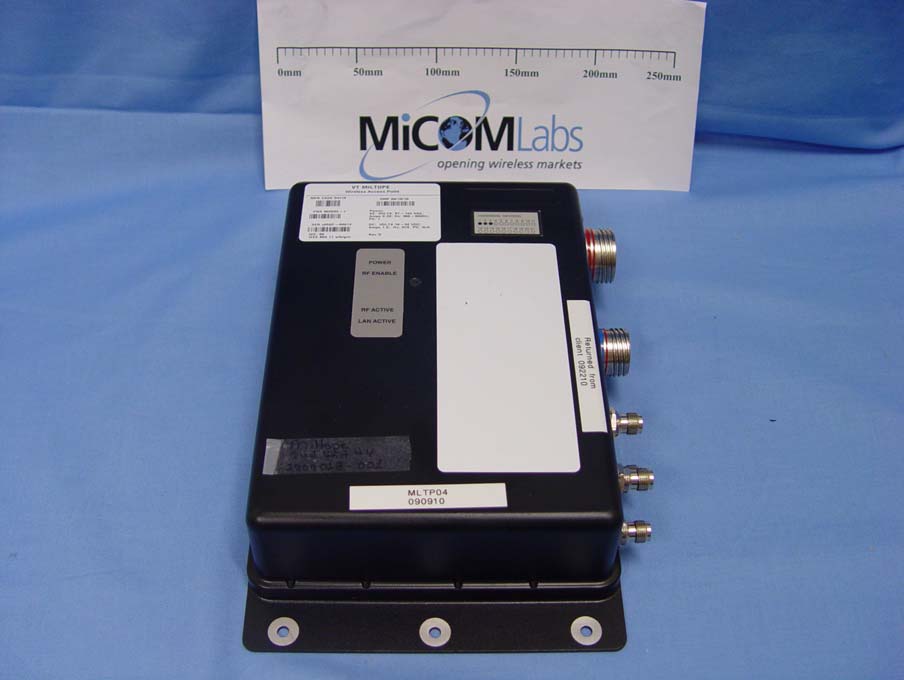

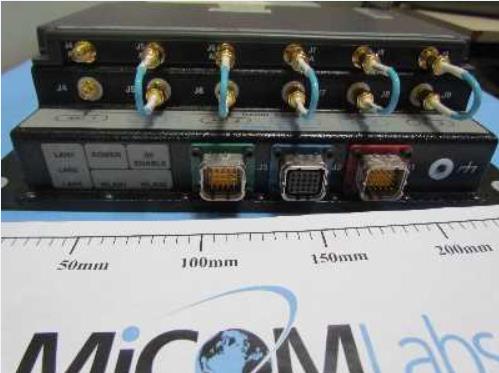

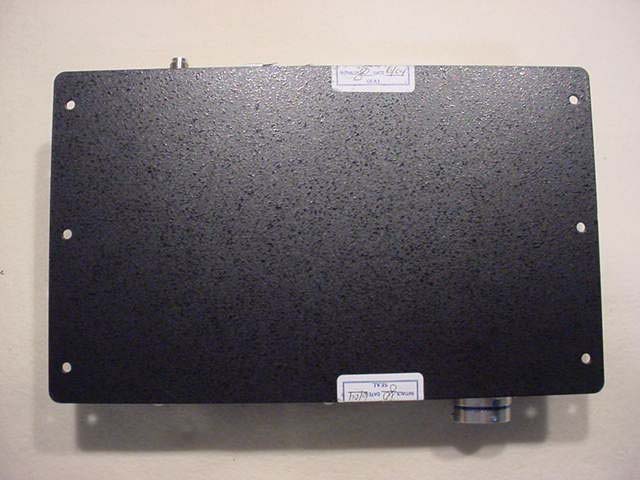

the wireless lab 16 December 2010 External Photographs VT Miltope Corporation nMAP Front View MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Side View Page 2 of 2

the wireless lab Maximum Permissible Exposure FCC, Part 15 Subpart C §15.407(f), Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The peak power in the table below is calculated by assuming a worst case scenario where all of the EUT transmitters for both the MIMO 3x3 and legacy radio are operating simultaneously in the same band. The Peak Power in mW is the highest transmitter power measured and combined for both radios. 1).. Radio 1 - 802.11a/b/g/n 3x3 Spatial Multiplexing MIMO. 2).. Radio 2 - 802.11a/b/g legacy device (does not operate in 5250 – 5350 MHz and 5470 – 5725 MHz bands) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (MHz) Ant Gain (dBi) Antenna Numeric Gain (numeric) Radio1 Pk Power (dBm) Radio2 Pk Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 5150 - 5250 +1.2 1.32 +14.49 +14.89 58.95 2.5 20.00 5250 - 5350 +1.2 1.32 +17.65 58.21 2.5 20.00 5470 - 5725 +1.2 1.32 +15.61 36.39 2.0 20.00 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the application requirements of RSS-102 shall be met. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com

COVER PAGE Test of Miltope Corporation nMAP To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: MLTP04-U2 Rev A TITLE PAGE TEST REPORT FROM Test of Miltope Corporation, Inc nMAP 11a/b/g/n Wireless AP to To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: MLTP04-U2 Rev A Note: this report contains data with regard to the 5,150 to 5,250 MHz, 5250 -5350 MHz and 5470 – 5725 MHz bands for the Miltope Corporation nMAP Wireless Access Point. 2.4 and 5.8 GHz test data are reported in MiCOM Labs test report MLTP04-U1. This report supersedes None Applicant: Miltope Corporation, Inc 3800 Richardson Road South Hope Hull AL 36043, USA Product F unction: Wireless Access Point Copy No: pdf Issue Date: 17th December 2010 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Cour t, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 TESTING CERTIFICATE #2381.01 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 3 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com This page has been left intentionally blank Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 4 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS 1. ACCREDITATION, LISTINGS & RECOGNITION ..................................................... 6 TESTING ACCREDITATION ............................................................................................. 6 RECOGNITION................................................................................................................... 7 2. DOCUMENT HISTORY ............................................................................................... 9 3. TEST RESULT CERTIFICATE ................................................................................. 10 4. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 11 Normative References ...................................................................................................... 11 Test and Uncertainty Procedures ..................................................................................... 12 5. PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 13 5.1. Scope of Test Program ............................................................................................ 13 6.1. EUT Details.............................................................................................................. 17 6.2. External A.C/D.C Power Adaptor............................................................................. 19 6.3. Operational Power Range ....................................................................................... 19 6.4. Types of Modulation Supported ............................................................................... 19 6.5. Antenna Details ....................................................................................................... 20 6.6. Cabling and I/O Ports .............................................................................................. 20 6.7. EUT Configurations ................................................................................................. 21 6.8. Equipment Details.................................................................................................... 22 6.9. Test Configurations.................................................................................................. 22 6.10. Equipment Modifications.......................................................................................... 22 6.11. Deviations from the Test Standard .......................................................................... 23 6. TEST SUMMARY ...................................................................................................... 24 7. TEST RESULTS ........................................................................................................ 27 7.1. Device Characteristics ............................................................................................. 27 7.1.1. 26 dB and 99 % Bandwidth ........................................................................ 27 7.1.2. Transmit Output Power............................................................................. 117 7.1.3. Peak Power Spectral Density ................................................................... 127 7.1.4. Peak Excursion Ratio ............................................................................... 242 7.1.5. Frequency Stability ................................................................................... 332 7.1.6. Maximum Permissible Exposure .............................................................. 333 7.1.7. Radiated Emissions .................................................................................. 334 7.1.8. Receiver Radiated Spurious Emissions (above 1 GHz) ........................... 400 7.1.9. Radiated Spurious Emissions – Digital Apparatus ................................... 404 7.1.10. AC Wireline Conducted Emissions …

Text truncated - open the document above for the full version.

Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 351 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com BAND: 5250 – 5350 MHz: 802.11n HT-20 IMG Frequency M Hz Raw dBuV Cable Loss AF dB Level dBuV Measurement Type Pol Hgt cm Azt Deg Li mi t dBuV Margin dB Pass /Fail C o mme nt s 5258.51762.54.6-9.557.7Peak [Scan] V--------n/aFUND 17591.18241.48.81.151.3Peak [Scan] H150054.0-2.7PassNRB Legend: Engine e r SB Formally measured emission peaks Power Setting Test Notes 1 Test Notes 2 P r e ss. (m Ba r s) Antenna Test Freq. 5260 MHz 24 33 998 100 802.11n; HT-20; 6.5 MCS 1000 MHz - 18000 MHz 18 Re l. Hum.(%) Variant 1TLP3 / 901167-2 Rev D Duty Cycle (%) NRB = Non-Restricted Band. Limit = 68.23 dBuV/m; RB = Restricted Band. Limits per 15.205 TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; W B = W ideband Emission Freq. Range Temp (ºC) Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 352 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG Frequency M Hz Raw dBuV Cable Loss AF dB Level dBuV Measurement Type Pol Hgt cm Azt Deg Li mi t dBuV Margin dB Pass /Fail C o mme nt s 5292.58557.44.6-9.552.5Peak [Scan] V--------n/aFUND 16841.68340.78.61.851.0Peak [Scan] V200054.0-3.0PassNRB Legend: Test Freq. 5300 MHz Engine e r SB Freq. Range 1000 MHz - 18000 MHz Re l. Hum.(%) 33 Variant 802.11n; HT-20; 6.5 MCS Temp (ºC) 24 Antenna 1TLP3 / 901167-2 Rev D Duty Cycle (%) 100 Power Setting 18 P r e ss. (m Ba r s) 998 Test Notes 1 Test Notes 2 Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; W B = W ideband Emission NRB = Non-Restricted Band. Limit = 68.23 dBuV/m; RB = Restricted Band. Limits per 15.205 Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 353 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG Frequency M Hz Raw dBuV Cable Loss AF dB Level dBuV Measurement Type Pol Hgt cm Azt Deg Li mi t dBuV Margin dB Pass /Fail C o mme nt s 16841.68340.58.61.850.8Peak [Scan] V150054.0-3.2PassNRB Legend: Test Freq. 5320 MHz Engine e r SB Freq. Range 1000 MHz - 18000 MHz Re l. Hum.(%) 33 Variant 802.11n; HT-20; 6.5 MCS Temp (ºC) 24 Antenna 1TLP3 / 901167-2 Rev D Duty Cycle (%) 100 Power Setting 18 P r e ss. (m Ba r s) 998 Test Notes 1 Test Notes 2 TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; W B = W ideband Emission NRB = Non-Restricted Band. Limit = 68.23 dBuV/m; RB = Restricted Band. Limits per 15.205 Formally measured emission peaks Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 354 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com BAND: 5250 – 5350 MHz: 802.11n HT-40 IMG Frequency M Hz Raw dBuV Cable Loss AF dB Level dBuV Measurement Type Pol Hgt cm Azt Deg Li mi t dBuV Margin dB Pass /Fail C o mme nt s 5258.51758.34.6-9.553.4Peak [Scan] V--------n/aFUND 16739.47941.18.71.551.3Peak [Scan] V100054.0-2.7PassNRB Legend: 24 33 998 100 Test Notes 1 Test Notes 2 Antenna 1TLP3 / 901167-2 Rev D Duty Cycle (%) Test Freq. 5270 MHz Power Setting Re l. Hum.(%) Variant Freq. Range Temp (ºC) 802.11n; HT-40; 13.5 MCS 1000 MHz - 18000 MHz 17 P r e ss. (m Ba r s) Engine e r SB Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; W B = W ideband Emission NRB = Non-Restricted Band. Limit = 68.23 dBuV/m; RB = Restricted Band. Limits per 15.205 Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 355 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG Frequency M Hz Raw dBuV Cable Loss AF dB Level dBuV Measurement Type Pol Hgt cm Azt Deg Li mi t dBuV Margin dB Pass /Fail C o mme nt s 16841.68340.58.61.850.9Peak [Scan] H150054.0-3.1PassNRB 5292.5851753.34.6-9.548.4Peak [Scan] H--------n/aFUND Legend: 1TLP3 / 901167-2 Rev D Duty Cycle (%) 100 Antenna Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; W B = W ideband Emission NRB = Non-Restricted Band. Limit = 68.23 dBuV/m; RB = Restricted Band. Limits per 15.205 Test Notes 1 Test Notes 2 998 Freq. Range 1000 MHz - 18000 MHz Re l. Hum.(%) 33 Power Setting 17 24 Test Freq. Engineer P r e ss. (m Ba r s) Variant 802.11n; HT-40; 13.5 MCS Temp (ºC) SB5310 MHz Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC…

Text truncated - open the document above for the full version.

Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 421 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 8.1.6. Test Set Up: Block Diagram(s) of Test Setup Setup for Conducted Measurements where the EUT is the Master with injection of Radar Test Waveforms at the Master. Support Equipment Configuration Ethernet Ethernet Miltope nMAP 802.11a/b/g/n Access Point FCC MPEG Source Coupling Network Master Client Radar Test Signal Generator PXI 802.11 a/b/g/n Client Device Support Equipment - Controller with Miltope OS Coupling Network Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 422 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Declared minimum antenna gain 0 dBi. Radar receive signal level = -62 dBm + minimum antenna gain + 1 dB = -61 dBm = -62 + 0 + 1 Radar receive signal level = -61 dBm Measurement Results - Dynamic Frequency Selection (DFS) Ambient conditions. Temperature: 17 to 23 °C Relative humidity: 31 to 57% Pressure: 999 to 1012 mbar Radio parameters. Test methodology: Conducted Device Type : Master Transmit Power: Maximum Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 423 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 8.2. Dynamic Frequency Selection (DFS) Test Results 8.2.1. UNII Detection Bandwidth: All UNII channels for this device have identical channel bandwidths and DFS testing was completed on channel 5,500 MHz (802.11a) and 5510MHz (HT40). The generating equipment is configured as shown in the Conducted Test Setup above. A single Burst of the short pulse radar Type 1 through 6 was produced at 5500 MHz (802.11a) and 5510 MHz (HT40) at a level of -61 dBm. The EUT is set up as a standalone device (no associated Client and no traffic). A single radar Burst is generated for a minimum of 10 trials, and the response of the EUT is noted. The EUT must detect the Radar Waveform 90% or more of the time. The radar frequency is increased in 1 MHz steps, repeating the above test sequence, until the detection rate falls below 90%. The highest frequency at which detection is greater than or equal to 90% is denoted as F H . The radar frequency is decreased in 1 MHz steps, repeating the above test sequence, until the detection rate falls below 90%. The lowest frequency at which detection is greater than or equal to 90% is denoted as F L . The U-NII Detection Bandwidth is calculated as follows: U-NII Detection Bandwidth = F H – F L The U-NII Detection Bandwidth must be at least 80% of the EUT transmitter 99% power Table of results are continued on the next page. Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 424 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com EUT Frequency= 5500 MHz Detection Bandwidth results for EUT in 11a mode (Detection = , No Detection = 0) Radar Frequency (MHz) 1 2 3 45678910 Detection Rate (%) -17 % -16 % -15 % -14 % -13 % -12 % -11 0 0 0% -10           100% -9           100% -8           100% -7           100% -6           100% -5           100% -4           100% -3           100% -2           100% -1           100% F0     100% +1           100% +2           100% +3           100% +4           100% +5           100% +6           100% +7           100% +8           100% +9           100% +10           100% +11 0 0 0% +12 % +13 % +14 % +15 % +16 % +17 % Detection Bandwidth = F H -F L = 5590-5510 = 21 MHz EUT 99% Bandwidth = 16.733 MHz (ref. bandwidth channel 5500 MHz) 16.733 MHz *80% = 13.3864MHz For each frequency step the minimum percentage detection is 90% Title: Miltope Corporation nMAP To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.407 & IC RSS-210 MLTP04-U2 Rev A 17 th December 2010 425 of 465 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com HT-40 Detection Bandwidth results for EUT in HT-40 mode (Part 1 of 2) EUT Frequency= 5510 MHz HT40 (Detection = , No Detection = 0) Radar Frequency (MHz) 1 2 3 45678910 Detection Rate (%) -22 -21   0  0 -20           100% -19           100% -18           100% -17           100% -16           100% -15           100% -14           100% -13           100% -12           100% -11  …

Text truncated - open the document above for the full version.

the wireless lab 16 December 2010 Test Setup Photographs VT Miltope Corporation nMAP Environmental Test Set-up MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Test Instrumentation Page 2 of 5 the wireless lab Radiated Emission Testing Page 3 of 5 the wireless lab Dynamic Frequency Selection Test Set-Up Page 4 of 5 the wireless lab DFS Test Equipment Page 5 of 5
