5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Installation and Operators Guide

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP System Block Diagram Block diagram description of the Lucent WaveLAN PC Card 2.4GHz, High Speed 1 WaveLAN PC Card 2.4 GHz High Speed DESCRIPTION OF THE BLOCK DIAGRAM The various parts of the Block diagram are numbered and an explanation is given of these blocks. First the transmitter will be described: A) Digital Signal Processor. (22) Function : Generate spreaded signal with an Barker sequence of 11, the original raw data rate of 1, 2, 5.5 or 11 Megabits is transformed to a symbol rate of one MegaBaud and multiplied with eleven and modulated with a DQPSK ( Differential Quadrature Phase Shift Keying ) Modulation for 1 and 2 Mbps or DQPSKCCK (CCK = Complementary Code Keying) for 5.5 and 11 Mbps. The unfiltered data comes out of I and Q and goes to the up/down mixer (6) B) The above signals are mixed in (6) in a so called quadrature modulator with the Intermediate Frequency ( IF) of 352 MHz. C) The upmixer is fed by the VCO of 704 MHz, which is divided by 2 to 352 MHz. D) The SAW ( 8 ) filters all unwanted mixing products, such that only the 352 MHz band remains. E) This signal goes into the RF upmixer ( 9) SA2420 were it is mixed with the RF VCO with a range of 2050 to 2150 MHz. F) The Rx/Tx switch (17) brings the signal to the variable attenuator (10 ), where the output level is controlled. G) The signal is fed through a 2.4- 2.5 GHz bandpass filter (11) to remove all unwanted mixer products, and thus to get a clean signal for further processing. H) The signal is amplified in (12), with approx 23 dB to an output level of approx. 15 dBm I) This signal goes to the RX/TX antenna (23/24) via the special connector with a switch inside to disable the antenna. J) The output power is controlled with a so called power feed back loop (15) in which the output power is compared with a DAC value from (10) Receiver functions. K) The receive signal enters the antenna passes the RX/TX switch (14) and (13) this is set to RX mode. L) The signal goes through the 2.4 GHz filter (16) to remove all unwanted spectral components in order to deliver a clean signal for the receiver. M) A Low Noise Amplifiers (LNA) (in 9) is used to amplify the weak signal to a level fitted for down mixing. N) The AGC (27) can amplify or attenuate the signal according to the Digital signal processor required input with a step size of 26 dB. O) Again the Rx/Tx switch in the Rx mode is passed and also the same filter as in transmit mode ( 18). P) The down mixer (9) mixes the 2.4 GHz with the 2.1 GHz to the 352 MHz IF. Q) The signal of 352 MHz is amplified again (9) and filtered by a SAW filter (19) to give a clean signal for the second mixer. Block diagram description of the Lucent WaveLAN PC Card 2.4GHz, High Speed 2 R) The Downmixer (6) mixes the 352 MHz signal down to the I and Q signals, also the auto gain control can increase the level to the required level via line 20. S) The very low amplitude baseband I and Q signal is amplified in the AMPs (6) to a level fitted for the Analog to Digital converters (22), which make it a proper signal for the digital signal processor. T) The digital signal processor (22) removes the spreading as present on the signal with a so called autocorrelation function. The resulting output of the processor is a received data rate of 1, 2, 5.5 or 11 Megabits. VCO , PLL and OSC. U) These three form one entity to generate a single tone signal for down mixing. There are two of these blocks available, one for the IF LO (7 and 6 ) (352MHz ) and one for the RF LO (25 and 26) of 2050 to 2150 MHz. V) All the PLL’s and the processor (2) have one reference Crystal of 22 MHz (4) with an accuracy of 25 ppm. General circuits: W) Antenna Diversity. This functin may be placed on the radio board or on extended board (as part of external antenna. Depending on the signal strength and signal quality the Digital processor (22) can choose between the two antenna’s (23) and (24) which gives the best signal. This is done initial during the training sequence in the received signal. X) Automatic Gain control. Depending on the signal strength and signal quality the Digital processor (22) can choose to increase or decrease the signal level at the digital input, this is done by reducing or increasing the gain in the receiver via the LNA-AGC (in 9). Y) The Signal processor (22) can read via the MAC (2) the registers for programming all parameters for transmit/receive functions Z) The MAC is used to do the handshaking with the PCMCIA bus (1 ) and handling the IEEE protocol. Also used to load the PLL frequencies and dividers, also used to interface to the FlashROM which contains all parameters for the PLL’s and the Callcode. AA) Not shown is the regulator to supply the 3.3 Volt out of the 5 Volt out of the PCMCIA Bus (1) Guus Jansen Rev. A 12Apr99/BVos Block diagram description of the Lucent WaveLAN PC Card 2.4GHz, High Speed 3 INDICATION MAIN PARTS Rev. A 12Apr99/BVos 2: HERMES 3. AT29C010 4 CDFDCJ2 5. KM68V1000 6. SA1630 7. MQE 901-704 8 + 19. L545D 9. SA2420 11 + 18. LFSN30N17C2450B 12. BFP420 + BFP450 13 + 17. BAR63 14. BAR80 16. LFJ30-07B2450 22. THESEUS-HS (High Sped) 25. MQG101-2098 26. UMA1021

3800 Richardson Road South, Hope Hull, Al 36043 USA – Voice: Tel: 334-284-8665 Fax: 334-613-6302 September 28, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, Dear Sir or Madam: We hereby respectfully request that under the provision of 47 CFR 0.459, the document listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of operation • Parts list (BOM) The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, John Fischer Project Manager

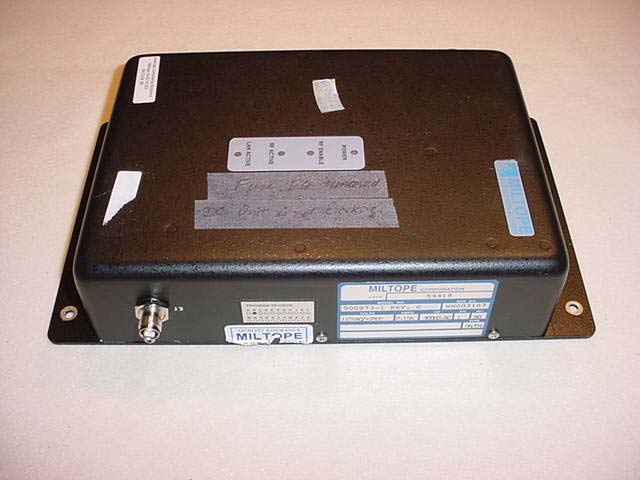

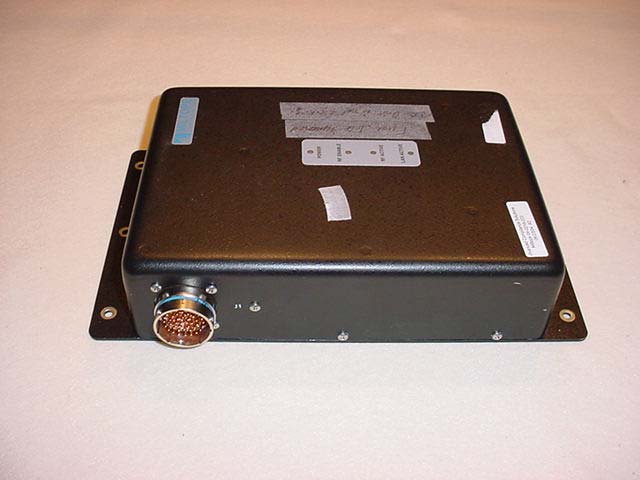

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP External Photographs Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External – Top View (RF Port Side) Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – Top View (Power/IO Connector Side) Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External – Bottom View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Label Information 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Label 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Industry Canada Label

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Internal Photographs Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – Cover Removed Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – RF Board (Top View) Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – RF Board (Bottom View) Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – Power Supply Board (Top View) Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Internal – Power Supply Board (Bottom View)

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP RF Exposure Information Model: WASP Advanced Compliance Solutions FCC ID: SH5-WASP 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 General Information: Applicant: Miltope Corporation ACS Project: 04-0219 FCC ID: SH5-WASP Device Category: Wireless LAN Environment: Fixed Mount on Aircraft Technical Information: Antenna Type: Patch Antenna Gain: 4dBi Transmitter Conducted Power: 19.72dBm Maximum System EIRP: 23.72dBm Operating Configuration: Mobile Exposure Conditions: >20cm MPE Calculation The minimum separation distance is calculated as follows: E(V/m) = xPxG30 Power Density: P d =(mW/cm 2 ) = d MPE Distance MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* Transmit Freq. (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (W) Antenna Gain (dBi) Antenna Gain (mW eq.) E (V/m) MPE Distance (cm) 2462 19.57 1.00 0.09057 4 2.51 61.40 4.2549 Installation Guidelines The installation manual contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: “RF Exposure (Intentional Radiators Only) This equipment complies with the FCC RF radiation requirements for uncontrolled environments. To maintain compliance with these requirements, the antenna and any radiating elements should be installed to ensure that a minimum separation distance of 20 cm is maintained from the general population. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population. E 2 3770

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Bandedge Plots 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 107.00 dB uV Marker 46.87 dB uV 2.49363 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 100.0 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 Start 2.4535 GHz Span 60 MHz Center 2.4835 GHz Sweep 20 ms Stop 2.5135 GHz F1 Figure 1: Peak Bandedge Plot Ref.Lvl 107.00 dB uV Marker 34.66 dB uV 2.48803 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 100.0 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 Start 2.4535 GHz Span 60 MHz Center 2.4835 GHz Sweep 28 s Stop 2.5135 GHz F1 Figure 2: Average Bandedge Plot Frequency (GHz) Level (dBuV) Detector (P/A) Antenna Polarity (H/V) Antenna Height (cm) Turntable Position (o) Correction Factors (dB) Corrected Level (dBuV) Limit (dBuV) Margin (dB) 2.4835 46.87 p v 111.00 57.00 0.03 46.90 74.00 27.10 2.4835 34.66 a v 111.00 57.00 0.03 34.69 54.00 19.31

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Conducted Spurious Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Bandedges 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 A Unit dBm RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Center 2.4 GHzSpan 50 MHz5 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 40 dB 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -38.84 dBm 2.40000000 GHz D1 3.37 dBm D2 -16.63 dBm Date: 21.SEP.2004 23:06:39 Figure 1: Lower Bandedge 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 A Unit dBm RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Center 2.4835 GHzSpan 50 MHz5 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 40 dB 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -47.84 dBm 2.48350000 GHz D1 3.77 dBm D2 -16.32 dBm Date: 21.SEP.2004 23:03:33 Figure 2: Upper Banedge 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Low Channel Conducted Spurious Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 A Unit dBm Start 30 MHzStop 2.5 GHz247 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 620 ms RF Att 30 dB IN1 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] 1.95 dBm 2.41585170 GHz D1 -18.1 dBm Date: 16.SEP.2004 03:30:16 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 640 ms RF Att 30 dB A IN1 Unit dBm Start 2.5 GHzStop 5 GHz250 MHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -54.03 dBm 2.81563126 GHz D1 -18.1 dBm Date: 16.SEP.2004 03:31:10 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 2.5 s RF Att 30 dB A IN1 Unit dBm Start 5 GHzStop 15 GHz1 GHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -51.65 dBm 6.96392786 GHz D1 -18.1 dBm Date: 16.SEP.2004 03:35:01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 2.5 s RF Att 30 dB A IN1 Unit dBm Start 15 GHzStop 25 GHz1 GHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -50.21 dBm 22.67535070 GHz D1 -18.1 dBm Date: 16.SEP.2004 03:36:01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Mid Channel Conducted Spurious Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 A Unit dBm SWT 620 ms Start 30 MHzStop 2.5 GHz247 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz RF Att 30 dB IN1 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] 2.14 dBm 2.44060120 GHz D1 -17.9 dBm Date: 16.SEP.2004 03:21:52 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 640 ms RF Att 30 dB A IN1 Unit dBm Start 2.5 GHzStop 5 GHz250 MHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -54.09 dBm 3.21142285 GHz D1 -17.9 dBm Date: 16.SEP.2004 03:23:49 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 2.5 s RF Att 30 dB A IN1 Unit dBm Start 5 GHzStop 15 GHz1 GHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -52.34 dBm 6.94388778 GHz D1 -17.9 dBm Date: 16.SEP.2004 03:25:19 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 2.5 s RF Att 30 dB A IN1 Unit dBm Start 15 GHzStop 25 GHz1 GHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -49.61 dBm 22.67535070 GHz D1 -17.9 dBm Date: 16.SEP.2004 03:26:37 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 High Channel Conducted Spurious Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 A Unit dBm SWT 620 ms Start 30 MHzStop 2.5 GHz247 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz RF Att 30 dB IN1 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 Marker 2 [T1] -49.34 dBm 1.17342685 GHz D1 -18.4 dBm Date: 16.SEP.2004 03:57:38 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 640 ms RF Att 30 dB A IN1 Unit dBm Start 2.5 GHzStop 5 GHz250 MHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -53.97 dBm 2.82064128 GHz D1 -18.4 dBm Date: 16.SEP.2004 03:58:22 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 2.5 s RF Att 30 dB A IN1 Unit dBm Start 5 GHzStop 15 GHz1 GHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -51.39 dBm 6.98396794 GHz D1 -18.4 dBm Date: 16.SEP.2004 03:59:08 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 2.5 s RF Att 30 dB A IN1 Unit dBm Start 15 GHzStop 25 GHz1 GHz/ 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -49.96 dBm 22.37474950 GHz D1 -18.4 dBm Date: 16.SEP.2004 04:00:07

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Radiated Spurious Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 44.01 dB uV 4.82356 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.412 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8165 GHz Span 15 MHz Center 4.824 GHz Sweep 20 ms Stop 4.8315 GHz Ref.Lvl 97.00 dB uV Marker 33.55 dB uV 4.82396 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.412 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8165 GHz Span 15 MHz Center 4.824 GHz Sweep 15.0 s Stop 4.8315 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 47.39 dB uV 4.82365 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.412 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8165 GHz Span 15 MHz Center 4.824 GHz Sweep 20 ms Stop 4.8315 GHz Ref.Lvl 97.00 dB uV Marker 36.70 dB uV 4.82405 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.412 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8165 GHz Span 15 MHz Center 4.824 GHz Sweep 15.0 s Stop 4.8315 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 48.48 dB uV 4.87408 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8665 GHz Span 15 MHz Center 4.874 GHz Sweep 20 ms Stop 4.8815 GHz Ref.Lvl 97.00 dB uV Marker 38.73 dB uV 4.87406 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8665 GHz Span 15 MHz Center 4.874 GHz Sweep 15.0 s Stop 4.8815 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 50.26 dB uV 4.87366 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8665 GHz Span 15 MHz Center 4.874 GHz Sweep 20 ms Stop 4.8815 GHz Ref.Lvl 97.00 dB uV Marker 41.75 dB uV 4.87410 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.8665 GHz Span 15 MHz Center 4.874 GHz Sweep 15.0 s Stop 4.8815 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 36.90 dB uV 7.30350 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 7.3035 GHz Span 15 MHz Center 7.311 GHz Sweep 20 ms Stop 7.3185 GHz Ref.Lvl 97.00 dB uV Marker 26.87 dB uV 7.30350 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.437 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 7.3035 GHz Span 15 MHz Center 7.311 GHz Sweep 15.0 s Stop 7.3185 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 46.93 dB uV 4.92381 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.462 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.9165 GHz Span 15 MHz Center 4.924 GHz Sweep 20 ms Stop 4.9315 GHz Ref.Lvl 97.00 dB uV Marker 35.20 dB uV 4.92406 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.462 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.9165 GHz Span 15 MHz Center 4.924 GHz Sweep 15.0 s Stop 4.9315 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 49.09 dB uV 4.92375 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.462 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.9165 GHz Span 15 MHz Center 4.924 GHz Sweep 20 ms Stop 4.9315 GHz Ref.Lvl 97.00 dB uV Marker 40.15 dB uV 4.92411 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.462 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 4.9165 GHz Span 15 MHz Center 4.924 GHz Sweep 15.0 s Stop 4.9315 GHz 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 42.15 dB uV 7.38343 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.462 GHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 7.3785 GHz Span 15 MHz Center 7.386 GHz Sweep 20 ms Stop 7.3935 GHz Ref.Lvl 97.00 dB uV Marker 26.84 dB uV 7.38343 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 2.462 GHz Vid.Bw 10 Hz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 7.3785 GHz Span 15 MHz Center 7.386 GHz Sweep 15.0 s Stop 7.3935 GHz

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: SH5-WASP FCC Rule Part: 15.247 ACS Report Number: 04-0219-15C Manufacturer: Miltope Corporation Equipment Type: Wireless LAN System Model: WASP Test Setup Photographs 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Model: ABC Advanced Compliance Solutions FCC ID: XXX-XXXXXX 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 INSERT REAR VIEW PHOTO Figure 1: Radiated Emissions – Thermostat Rear View INSERT FRONT VIEW PHOTO Figure 2: Radiated Emissions – Thermostat Front View Model: ABC Advanced Compliance Solutions FCC ID: XXX-XXXXXX 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 INSERT FIGURE 3 PHOTO Figure 3: Radiated Emissions – Door Switch Rear View INSERT FIGURE 4 PHOTO Figure 4: Radiated Emissions – Door Switch Front View Model: ABC Advanced Compliance Solutions FCC ID: XXX-XXXXXX 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 INSERT FIGURE 5 PHOTO Figure 5: Radiated Emissions – Motion Sensor Rear View INSERT FIGURE 6 PHOTO Figure 6: Radiated Emissions – Motion Sensor Front View
