SHI-A39MIDTSport Performance Monitor

A39MIDT Strap & Module• User Manual 2 TABLE OF CONTENTS What Is Armour39™? 4 How Does Armour39™ Work? 5 What Does Armour39™ Measure? 6 System Requirements 8 In The Box 9 Getting Started 10 Armour39™ Chest Strap Information 12 Armour39™ Module Information 14 Use of Armour39™ Chest Strap & Module 16 Wearing Armour39™ Chest Strap 17 Inserting Armour39™ Module 18 Armour39™ Module: LED Pulsing & Colors 20 Storage 21 Caring for the Armour39™ Chest Strap 22 Caring for the Armour39™ Module 23 Replacing the Battery 24 Water Resistance 25 Specifications 26 Precautions 27 Armour39 File Transfer/Bluetooth® 29 3 Armour39™ Mobile App Basics 30 Armour39™ Watch Basics 31 About Under Armour® 32 Limited Warranty 33 FCC/IC- Statement 35 4 WHAT IS Armour39™? Armour39™ is the sports performance monitoring system engineered to empower athletes. The system captures and displays critical information athletes need to discover their true potential. Armour39™ is the first system that detects and responds to every move athletes make – any direction, any motion, any position. So every athlete—regardless of sport or workout activity—has precise information about their performance. Athletes can measure, track, and analyze what matters most—in the moment and over time—to improve. Armour39™ measures heart rate, calorie burn, real-time intensity and WILLpower™, Under Armour®’s unique measure that reflects overall workout difficulty in a single score. YOUR PERFORMANCE. YOUR WILLPOWER™. DISCOVERED. 5 HOW DOES Armour39™ WORK? The Armour39™ chest strap, made from the same comfortable, moisture-wicking material that Under Armour® is famous for, collects athletes’ information and transfers it to the Armour39™ module in the strap. The module automatically transmits this information in real-time to a Bluetooth® Smart display device, the Armour39™ mobile app or the Armour39™ watch. The Armour39™ module is the first sensor designed to store information, allowing athletes to work out with or without the display device. 6 With Armour39™, athletes of all sports can measure, track, and analyze the data that matters most. Armour39™ measures heart rate, calorie burn, real-time intensity and WILLpower™, Under Armour®’s unique measure that reflects overall workout difficulty in a single score. WHAT DOES Armour39™ MEASURE? HEART RATEA highly responsive, precise measurement of heart beats per minute. CALORIESAn advanced algorithm that captures calories burned with a high degree of accuracy. It takes into account nuances like changes in heart rate and body position that impact how hard your body is working. This real-time measurement captures how hard an athlete is working by measuring current heart rate as a percentage of the athlete’s max heart rate. It’s proof of how hard you’re working relative to your peak ability. INTENSITY 7 IMPORTANT: Armour39™ is optimized by completion of the Armour39™ Assessment workout. The Assessment captures an athlete’s baseline data and informs all other Armour39™ measures, customizing the system specifically to the athlete. A user should perform the Assessment regularly, about once a month, to ensure the system takes into account an athlete’s current specifications. WILLPOWER™The true measure of an athlete, it is a single score that reflects overall workout difficulty on a scale of 0.0-10.0. This innovative measure combines a range of dynamic inputs including workout duration, body position, user profile, and key heart rate measures like ventilatory threshold and recovery into a proprietary algorithm. With WILLpower™, athletes can—for the first time—objectively measure a hard day versus a light day, to ensure they are training effectively to meet their goals. 8 SYSTEM REQUIREMENTS The Armour39™ Module is a Bluetooth® Smart device that is currently compatible with iOS Bluetooth® Smart Ready mobile devices and the Armour39™ Bluetooth® Smart Watch. To use the Armour39™ Module and Armour39™ Chest Strap you will need at least ONE of the following: NOTE: The Armour39™ Module can only connect to the Armour39™ Watch and Armour39™ Mobile App indepently. (i.e. You cannot use both the Armour39™ Watch and Armour39™ Mobile App as a display during a workout.) Armour39 Module 186 45 % 298 5.1 29:31 Armour39 Mobile App* Armour39™ Mobile App Armour39™ Watch 9 IN THE BOX Your Armour39™ watch package should include the following items: t
1X A39M01 Armour39™ Module t
1X A39M01 Armour39™ Chest Strap t
1X CR2032 3V Battery (pre-installed in the Armour39™ Module) t
1X Under Armour® Warranty Card t
1X User Manual NOTE: Armour39™ is an application-based system. As such any or all software updates that affect the use of the Armour39™ Module may not be reflected in this printed manual. For more information or to access the latest manual for your Armour39™ Module and current software compatibility, please visit http:/ /www.armour39.com/module. 10 GETTING STARTED 1] Using the Armour39™ Chest Strap & Module. Your Armour39™ Chest Strap and Module must be used in conjunction with either the Armour39™ Mobile App or the Armour39™ Watch. NOTE: The Armour39™ App can be downloaded from the app store onto your mobile device. 2] Wear your Armour39™ chest strap. See page 17 for details on how to properly wear your Armour39™ chest strap. Armour39 Module 186 45 % 298 5.1 29:31 Armour39 Mobile App* 3] Insert your Armour39™ Module. See page 18 for details on how to properly insert your Armour39™ Module into your Armour39™ Chest Strap. 4] Moisten Armour39™ Chest Strap sensor pads. It is highly recommended that you moisten your chest strap 11 5A] Pair the Armour39™ Module with the Armour39™ Mobile App. Launch the Armour39™ Mobile App on your phone. Follow the set-up instructions to create your profile and pair your Armour39™ Module for the first time. NOTE: If you have already completed initial set-up on the Armour39™ App, a new Armour39™ Module can be paired from the workout or assessment sections of the Armour39™ App. 5B] Pair the Armour39™ Module wit…

Text truncated - open the document above for the full version.

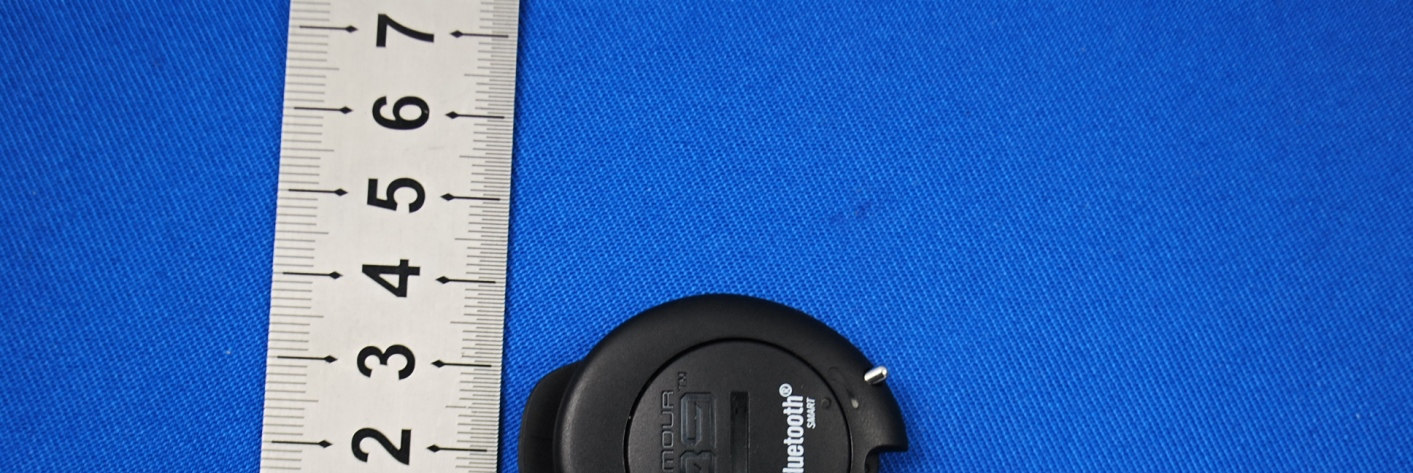

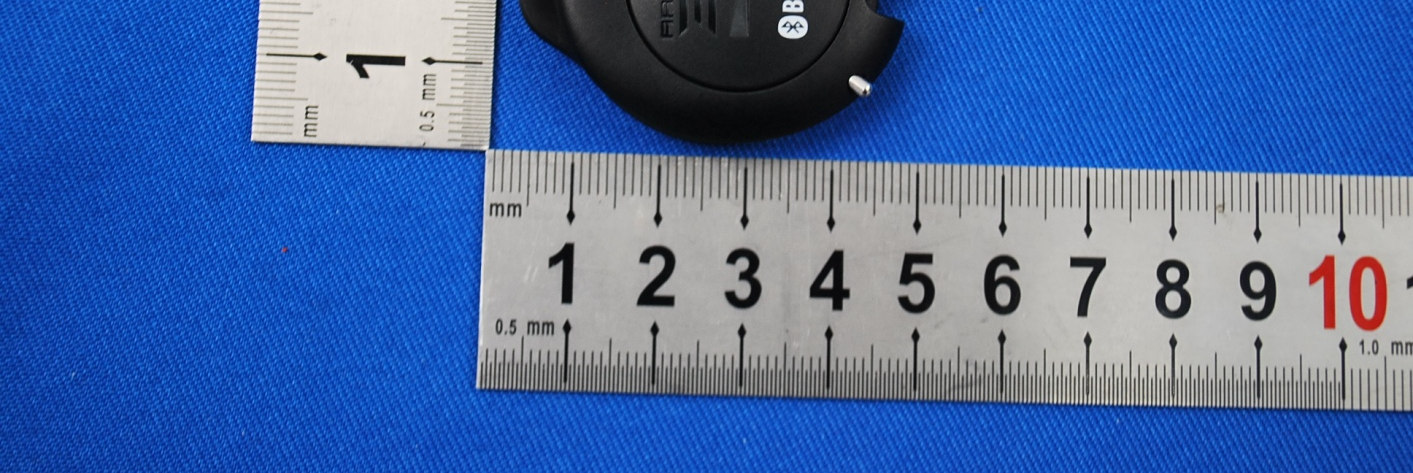

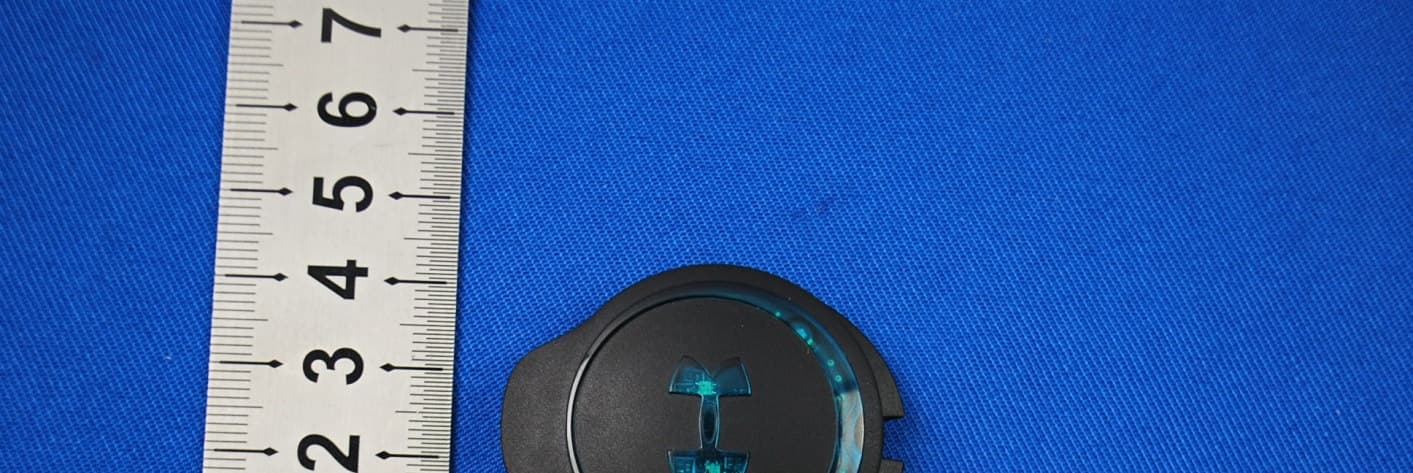

1 Photographs - EUT Constructional Details Test Model No.: A39MIDT

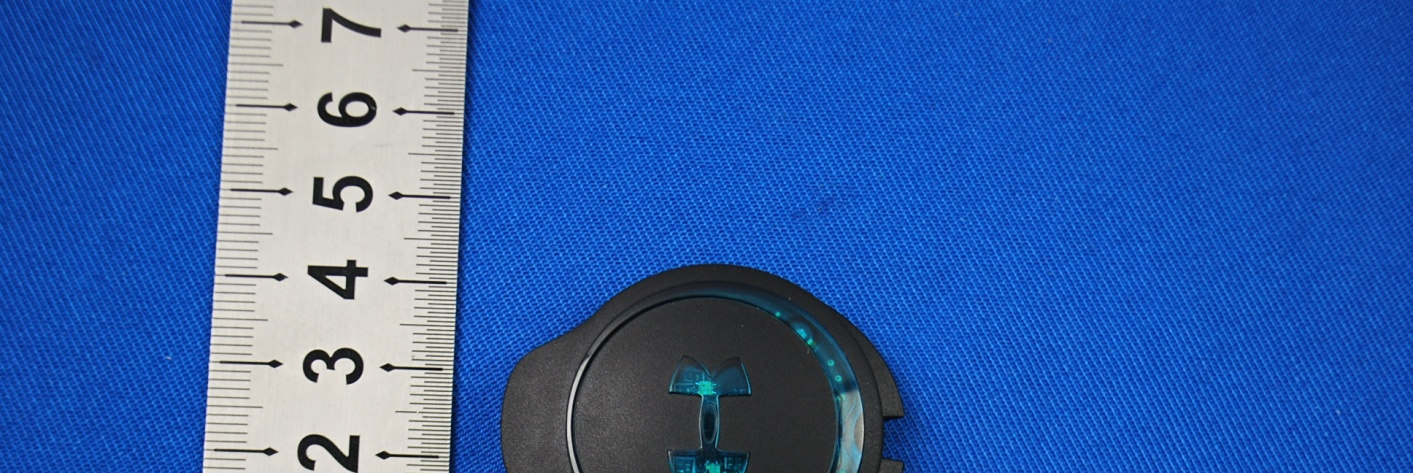

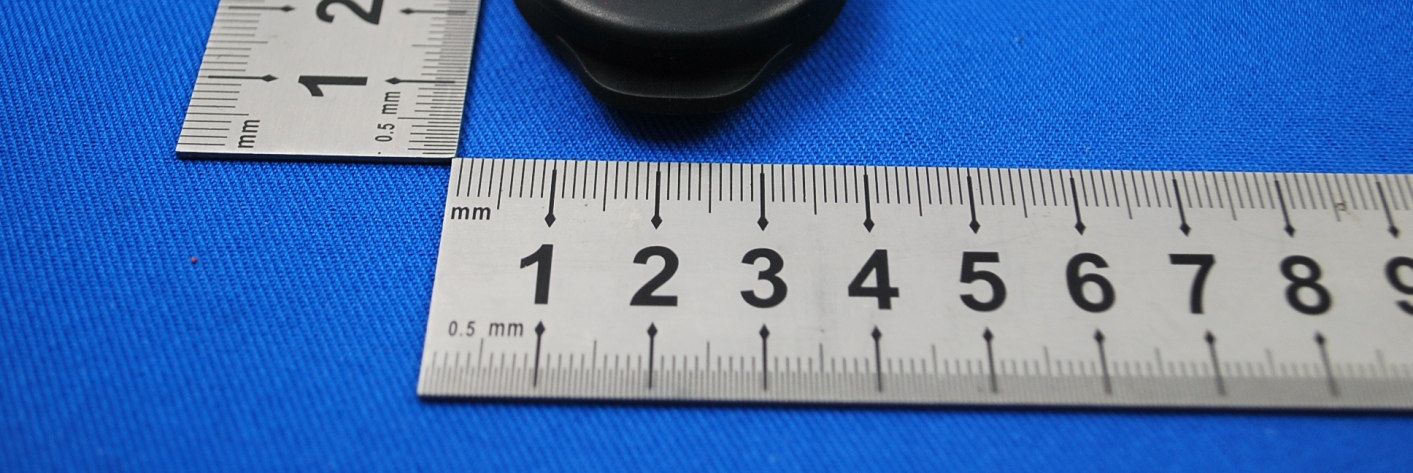

1 Photographs - EUT Constructional Details Test Model No.: A39MIDT

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM121100648201 Page: 1 of 38 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No.: SZEM1211006482RF Applicant: UNDER ARMOUR INC. Manufacturer: IDT Technology limited Factory: IDT Technology limited Product Name: Sport Performance Monitor Model No.(EUT): A39MIDT FCC ID: SHI-A39MIDT Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-12-04 Date of Test: 2012-12-06 to 2012-12-15 Date of Issue: 2013-03-20 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM121100648201 Page: 2 of 38 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2009 PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) KDB558074 D01 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) KDB558074 D01 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) KDB558074 D01 PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS Remark: There is no need for Conducted Emissions test to be performed on this product in accordance with FCC Part 15 because the EUT is a battery powered. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM121100648201 Page: 3 of 38 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits o…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: A39MIDT) 1.1 Radiated Emission 1.2 Radiated Spurious Emission
