SHI-A39W01Platform Big watch

Armour39™ Watch User Manual Model: A39W01 2 TABLE OF CONTENTS What Is Armour39™? 4 How Does Armour39™Work? 5 What Does Armour39™ Measure? 6 System Requirements 8 In The Box 9 Control Buttons 11 Main Navigation Flow 12 Getting Started: Initial Set-Up 13 Date/ Time Set-Up 14 Device Set-Up 23 Profile Set-Up 24 Starting A Workout 26 Workout Screens 27 Calender (MEM): Accessing Past Workouts 28 Calendar (MEM): Workout Data 29 Connect To App 30 Alerts 33 Water Resistance 36 Watch Backlight/ Screen Icon Display 37 Replace Watch Battery 38 3 Specifications 39 Precautions 41 About Under Armour® 43 Limited Warranty 44 EU- Declaration Of Conformity 46 FCC/IC- Statement 47 4 WHAT IS Armour39™? Armour39™ is the sports performance monitoring system engineered to empower athletes. Built using state-of-the-art technology, the system captures and displays critical information athletes need to discover their true potential. Armour39™ is the first system that detects and responds to every move athletes make – any direction, any speed, any position. So every athlete—regardless of sport or workout activity—has precise information about their performance. Athletes can measure, track, and analyze what matters most—in the moment and over time—to improve. Armour39™ measures heart rate, calorie burn, real-time intensity and WILLpower™, Under Armour®’s unique measure that reflects overall workout difficulty in a single score. YOUR PERFORMANCE. YOUR WILLPOWER™. DISCOVERED. 5 HOW DOES Armour39™ WORK? The Armour39™ chest strap, made from the same comfortable, moisture-wicking material that Under Armour® is famous for, collects athletes’ information and transfers it to the Armour39™ module in the strap. The module automatically transmits this information in real-time to a Bluetooth® Smart display device, the Armour39™ mobile app or the Armour39™ watch. The Armour39™ module is the first sensor designed to store information, allowing athletes to work out with or without the display device while still keeping tabs on their workout data. 6 With Armour39™, athletes of all sports can measure, track, and analyze the data that matters most. Armour39™ measures heart rate, calorie burn, real-time intensity and WILLpower™, Under Armour®’s unique measure that reflects overall workout difficulty in a single score. WHAT DOES Armour39™ MEASURE? HEART RATEA highly responsive, precise measurement of heart beats per minute. CALORIESAn advanced algorithm that captures calories burned with a high degree of accuracy. It takes into account nuances like changes in heart rate and body position that impact how hard your body is working. This real-time measurement captures how hard an athlete is working by measuring current heart rate as a percentage of the athlete’s max heart rate. It’s proof of how hard you’re working relative to your peak ability. INTENSITY 7 IMPORTANT: Armour39™ is optimized by completion of the Armour39™ Assessment workout. The Assessment captures an athlete’s baseline data and informs all other Armour39™ measures, customizing the system specifically to the athlete. A user should perform the Assessment regularly, about once a month, to ensure the system takes into account an athlete’s current specifications. WILLPOWER™The true measure of an athlete, it is a single score that reflects overall workout difficulty on a scale of 0.0-10.0. This innovative measure combines a range of dynamic inputs including workout duration, body position, user profile, and key heart rate measures like ventilatory threshold and recovery into a proprietary algorithm. With WILLpower™, athletes can—for the first time—objectively measure a hard day versus a light day, to ensure they are training effectively to meet their goals. 8 SYSTEM REQUIREMENTS The Armour39™ module and watch are Bluetooth® Smart devices currently compatible with iOS mobile devices that are Bluetooth® Smart Ready. To use the Armour39™ watch system you will need: NOTE: The Armour39™ Module can only connect to the Armour39™ Watch and Armour39™ Mobile App indepently. (i.e. You cannot use both the Armour39™ Watch and Armour39™ Mobile App as a display during a workout.) Armour39 Module Armour39™ Module (Captures biometric workout data) Armour39™ Chest Strap (Houses the Armour39™ Module) Armour39 Module 186 45 % 298 5.1 29:31 Armour39 Mobile App* Armour39™ Mobile App (Optional) (Enhanced display and extended calendar of past workouts) 9 IN THE BOX Your Armour39™ watch package should include the following items: t
1X A39W01 Armour39™ Watch t
1X CR2032 3V Battery (pre-installed in the watch) t
1X Under Armour® Warranty Card t
1X User Manual NOTE: Armour39™ is an application-based system. As such any or all software updates may not be reflected in this printed manual. For more information or to access the latest manual for your watch and current software, please visit http:/ /www.armour39.com/watch/help. 10 11 CONTROL BUTTONS 1] Top (A) Button: Pause workout, Enter sub-screen, Confirm settings. 2] Middle (B) Button: Toggle between displays, Toggle through data. 3] Bottom (C) Button: Exit current display, Return to previous screen, Trigger workout flag. 4] Touch (D): Tap on lens to activate backlight (only viewable at nighttime). A B C D 12 MAIN NAVIGATION FLOW 1B 3A 222 222 1A 1A1A1A 3B 1A] Top (A) Button: Enter current subsection. 1B] Top (A) Button: Start workout. 2] Middle (B) Button: Toggle between displays. 3A] Bottom (C) Button: Toggle between date and secondary time. 3B] Bottom (C) Button: Enter past workouts calendar (MEM). 13 GETTING STARTED: INITIAL SET-UP 1] Power ON Watch. After removing watch from its packaging, press and hold Top (A) Button until the screen shows a TIME display. 1A 2] Time Set-Up. Complete TIME Set-Up. See page 14 for details. 3] Profile Set-Up Complete PROFILE Set-Up. (Skip if you have previously connected with the Armour39™ mobile app.) See page 24 for details. 4] Device Set-Up Complete DEVICE Set-Up to pair your module with the watch. See page 23 for de…

Text truncated - open the document above for the full version.

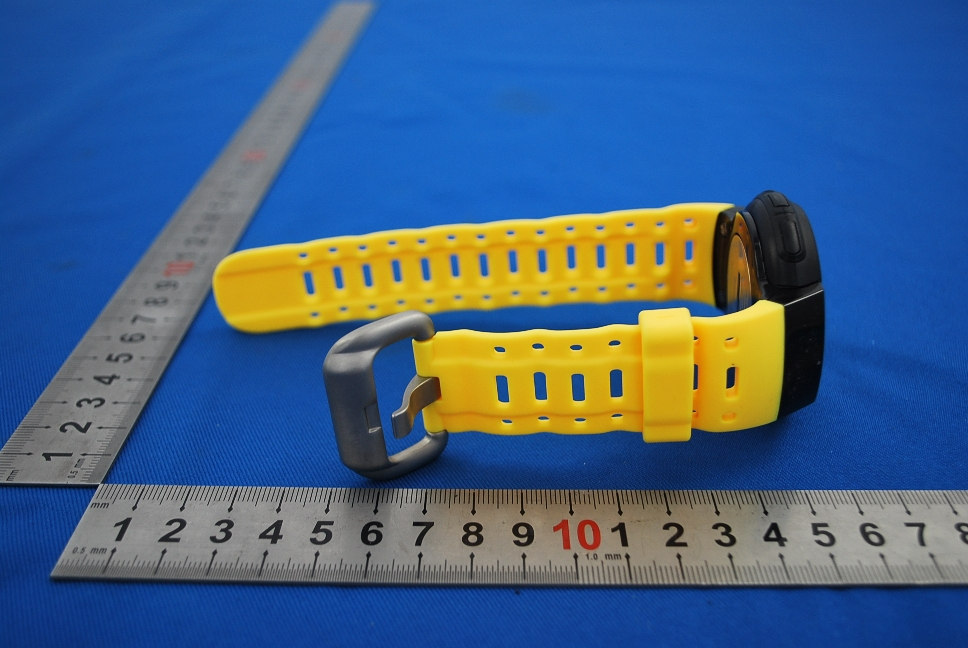

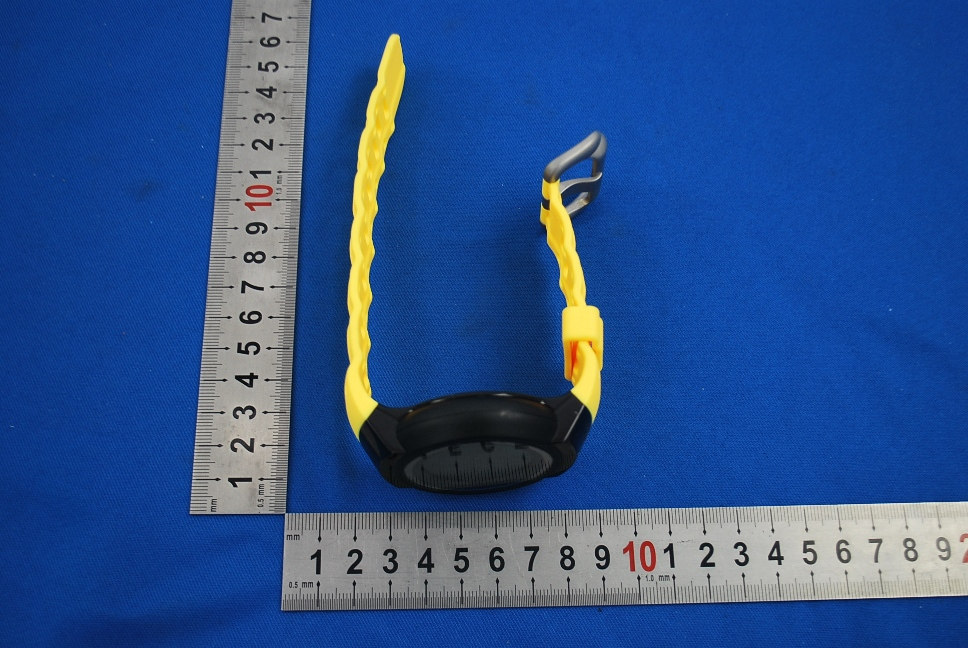

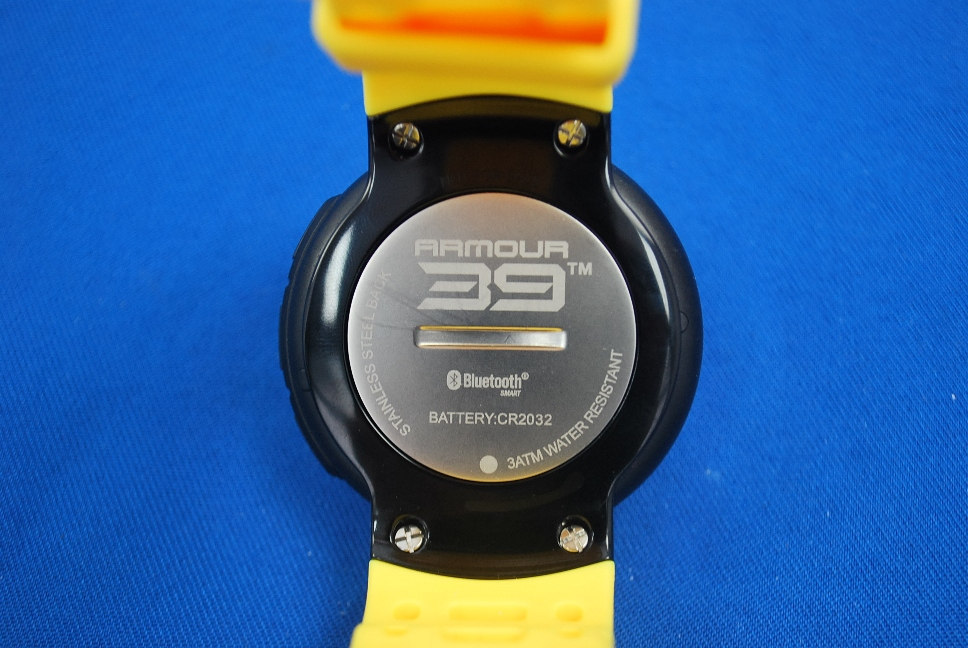

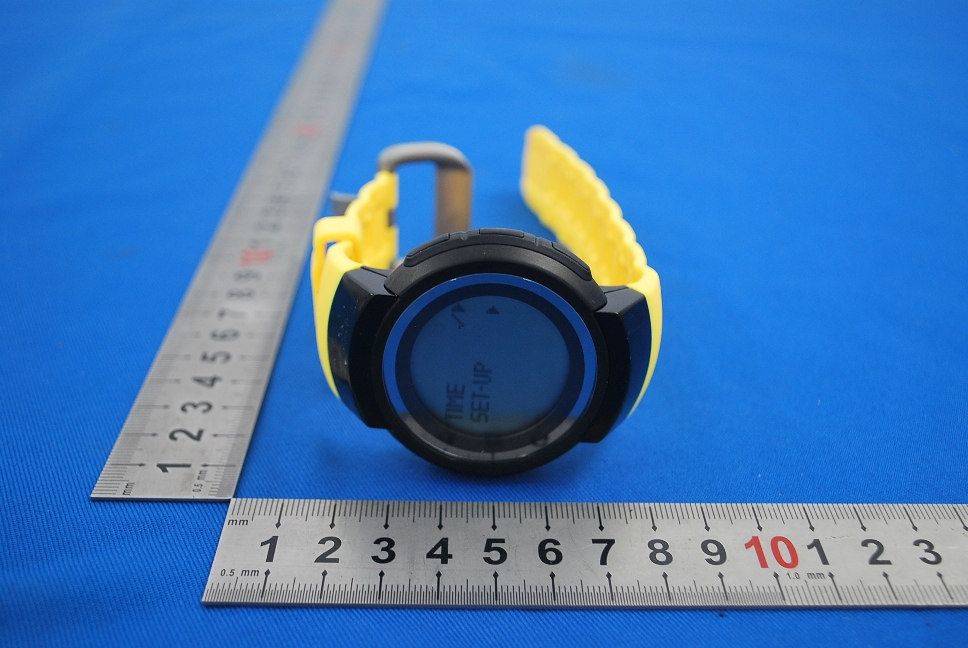

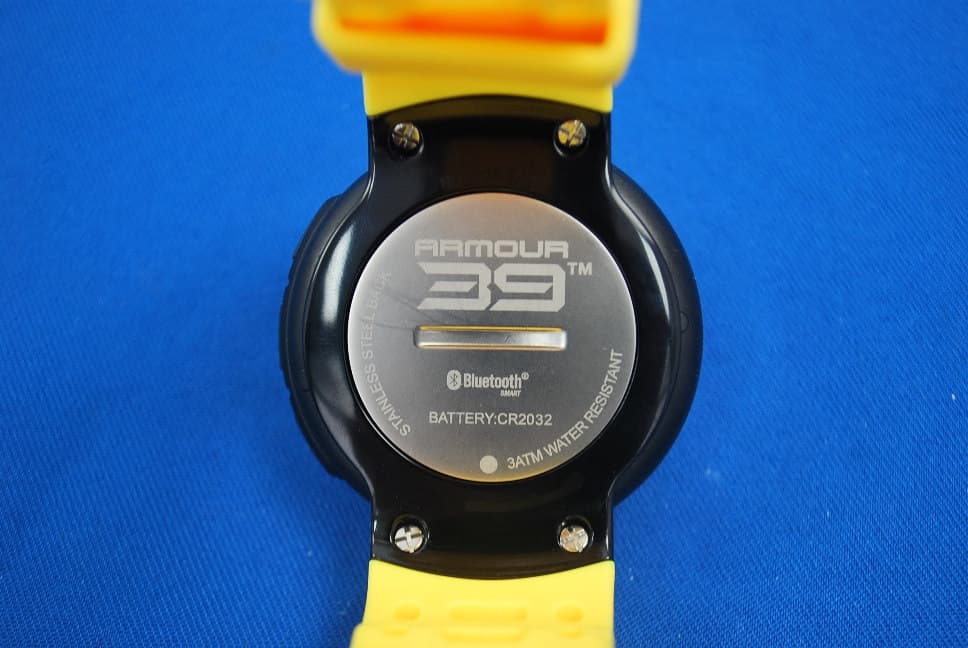

1 Photographs - EUT Constructional Details Test Model No.: A39W01

1 Photographs - EUT Constructional Details Test Model No.: A39W01

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130100026901 Page: 1 of 42 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No.: SZEM1301000269RF Applicant: UNDER ARMOUR INC. Manufacturer: IDT Technology limited Factory: IDT Technology limited Product Name: Platform Big watch Model No.(EUT): A39W01 FCC ID: SHI-A39W01 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2013-01-18 Date of Test: 2013-01-23 to 2013-01-30 Date of Issue: 2013-04-09 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100026901 Page: 2 of 42 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2009 PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 2009 N/A Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) KDB558074 D01 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) KDB558074 D01 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) KDB558074 D01 PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS N/A: In this while report not applicable Note: Due to the EUT is powered by the battery only, the AC Conducted Emission measurement is not applicable. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100026901 Page: 3 of 42 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects t…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: A39W01) 1.1 Radiated Emission
