SI3JET-SPEEDPROSSD (SOLID STATE DISK)

Jet-Speed TM User manual For windows and Linux users Copy Rights Jet-Speed™is registered trademark of Taejin InfoTech Co., Ltd and all rights are reserved by Taejin InfoTech. Thank you for purchasing Jet-Speed™ product. We will put all our efforts to applying latest technology to improve functionalities of our products and minimize any inconvenience for users. ƒAll copy rights are reserved by Taejin Infotech Co., Ltd (Hereinafter, referred as Taejin Infotech). All and partial contents of this document should not be distributed, reproduced or transmitted by using electronic, mechanical or audio devices without legal agreement of Taejin Infotech. ƒThis manual may include different contents or can be modified because of upgrade version of product release or as new operating systems are supported. ƒImages used in the “Windows Driver Installation and Setup environment” chapter of this manual is based on Window 2000 operating system ƒThis manual provides system setup and software installation instruction step by step. Please read carefully before installation ƒFor improvement and upgrade of Jet-Speed™, contents of this manual or contents of CD may change without prior notification or agreement ƒTaejin Infotech is not legally responsible for any mishap and loss of data. It is strongly recommended that you backup important data prior to installation or be careful not to loss a data. ƒUpgraded contents or latest drivers can be downloaded from home page of Taejin InfoTech. ƒThis manual can not be copied partially or whole without agreement of Taejin InfoTech ƒProvided values of parameters used in this manual are measured by research center of Taejin InfoTech however values were measured based on publicly well known documents. ƒIncluded battery-pack is not manufactured by Taejin Infotech. There will be no guarantee from Taejin InfoTech. Cautions before installation of Jet-Speed TM ƒTurn off power prior to performing installation process. Any task performed while power is turned on may cause damage to the product ƒMake sure that there is no static electricity on your body. It is one of critical cause of damage to memory ƒUse anti static electricity pack provided all the time while maintaining the product. Product may exposed to static electricity while not operated. ƒPerform installation task on safe flat ground surface. Be cautious of any shock from external environment. It may cause damage to products ƒDo not touch bottom side of Jet-Speed™board. It may cause damage to the board. ƒBe cautious to keep loading order of memory to Jet-Speed™. Please refer to loading order of memory provided below ƒLoad even number of memory for standard and Pro products. Load more than 2 even numbers of memory on both sides for correct operation. ! Symbol Please read note item carefully since it provides important information, recommendation and suggestion. Caution item indicates element that might affect your system. Please be cautious about caution all times Warning item emphasizes element that might damage your system when warning is not observed Cautions during installation and operation ! ! ! ! 2 Jet-Speed TM User’s Guide ƒPlease read descriptions carefully provided in battery pack about handling caution of battery Caution while loading memory Handling cautions of battery Loading order of memory for Jet-Speed™Lite ƒFollow order provided below when less than 4 memory chips are loaded for Lite product.(Lite Product uses non buffered non ECC type Memory) 1 2 3 4 3 Caution ƒJet-Speed™board is optimized for DDR SDRAM PC2700 •Follow order provided below when less than 8 memory chips are loaded for Standard and Pro products. (Standards and Pro uses Buffered ECC type memory) Loading order of memory for Jet-Speed™Standard and Pro Make sure that even numbers of memories are loaded on the product. Product may not operate correctly when odd number of memory is loaded. 7 5 3 1 8 6 4 2 Contents Chapter 2 Hardware Installation Load Jet-Speed™into your system 12 Connect Jet-Speed™battery 17 11 Jet-Speed™Product Lines Product specification 10 Chapter 1 Introduction to Jet-Speed Comparison of Jet-Speed™and HDD 9 What is Jet-Speed™? 8 Benefits of Jet-Speed™ 8 50 53 Jet-Speed TM User’s Guide Chapter 4 Install Linux Driver and Configuration 48 Jet-Speed™initialization Chapter 3 Install Windows Driver and Configuration 27 18 Jet-Speed™single configuration format 31 Jet-Speed™Raid configuration format 36 Check installation status of Jet-Speed™ 25 Install Jet-Speed™Driver 41 Jet-Speed™Single configuration format Kernel 2.4 Chapter 5 Battery Pack User Manual Chapter 6 Q&A Chapter 7 Technical supports 4 45 Jet-Speed™Single configuration format Kernel 2.6 Jet-Speed™ •Jet-Speed™PCI board (Lite, Standard or Pro depending on the model) •User manual •Installation CD •Battery pack (Optional) •Install driver (Windows 2000, Windows XP, Windows 2003, Windows servers, Linux (kernel 2.4x, 2.6x), Unix (Planned to be released)) •User manual (User’s Guide) •Backup software (Optional) Jet-Speed™components Jet-Speed™install CD components Components 5 Figure 1. Jet-Speed™PCI board (Images can be different to real product depending on the model types) Jet-Speed™component category Figure 2. Battery (Purchase separately or included in the product package) Jet-Speed TM User’s Guide 6 Figure 3. Battery connection cable (Purchase separately or included in the product package) Figure 4. Adapter (Purchase separately or included in the product package) Figure 5. Memory 7 Components Chapter 1 Introduction to Jet-Speed™ Jet-Speed™is a storage device using solid state semiconductor. Unlike to the current hard disk drive (Hereinafter, referred as HDD) Jet-Speed™improved performance and speed of system dramatically by using DDR-SDRAM and regarded as next generation storage device. What is Jet-Speed™? •Transfer rate per second has improved dramatically compared to current HDD device. (Lite,: 132MB Standard: 256MB, Pro: 528MB). •Gigabyte transfer speed can be achieved wh…

Text truncated - open the document above for the full version.

64bit / 66MHz 40 M

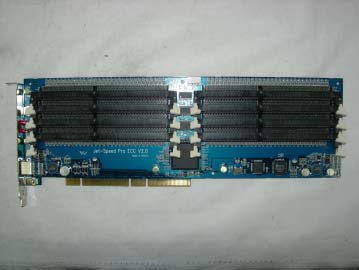

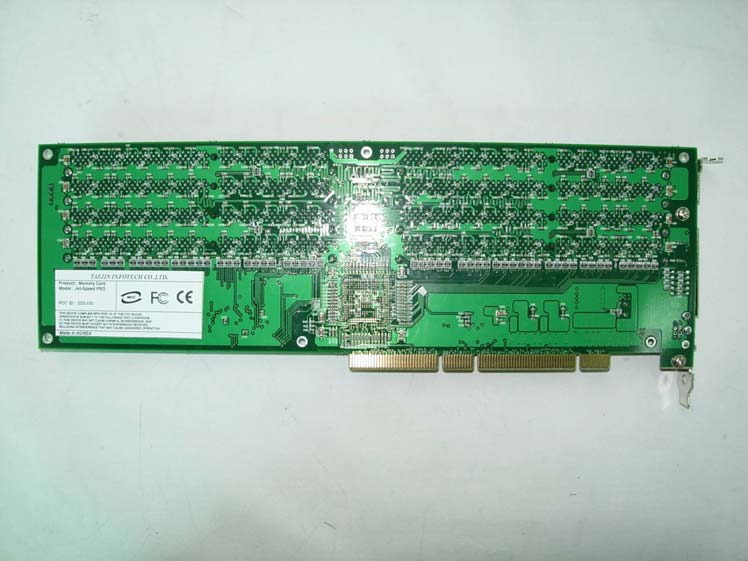

Page: 18 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 6.3 Photographs of EUT Front View Page: 19 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] Rear View

Page: 15 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 6. Attachments 6.1 Sample Label Labeling Requirements per section 2.925 & 15.19 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

GGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGPage: 15 of 23 .. G G Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 6. Attachments 6.1 Sample Label Labeling Requirements per section 2.925 & 15.19 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

Product : SSD(Solid State Disk) Model : Jet-Speed Pro FCC ID : SI3JET-SPEEDPRO THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION Made In Korea

Page: 20 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] InSide View

Page: 2 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] Contents 1. General information 1.1 Product information 1.2 Client information 2. Information of EMC Laboratory 3. Procedure of measurement 3.1 Conducted emission 3.1.1 Configuration of measurement 3.1.2 Detector function selection and bandwidth 3.1.3 Frequency range to be scanned 3.1.4 Line impedance stabilization network (LISN) 3.2 Radiated emission 3.2.1 Configuration of measurement 3.2.2 Detector function selection and bandwidth 3.3 Method of calculation 4. Environment of measurement 4.1 Condition of environment 4.2 Measurement uncertainty 4.3 List of Test equipments 4.4 List of peripherals and cables 4.5 Configuration of EUT 4.6 Rating and Physical Characteristics 5. Result of measurement 5.1 Conducted emission 5.1.1 Test data 5.1.2 Result 5.2 Radiated emission 5.2.1 Test data 5.2.2 Result Page: 3 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 6. Attachment 6.1 Sample Label 6.2 Photographs of Set-up 6.3 Photographs of EUT 6.4 Conducted emission data 6.5 Block Diagram/Circuit 6.6 User’s Manual Page: 4 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 1. General Information 1.1 Product information Description of EUT : SSD(Solid State Disk) Model number : Jet-Speed Pro Specification : 120-240Va.c, 50/60Hz, 25Watts Output : 12V, 5V, 3.3V, 2.5V – PC Power Applied Standard : FCC Part 15 subpart B (Class B) Test method : ANSI C63.4 - 2003 1.2 Client information Applicant : TAEJIN INFOTECH CO., LTD. Address : 6F, Woolim e-BIZ Center, 170-5, Guro-Dong, Guro-Ku Seoul, Korea Phone No. : +82-2-851-2662 Fax. No. : +82-2-851-2655 Contact person : J.S. Park / Manager / [email protected] Manufacturer : TAEJIN INFOTECH CO., LTD. Address : 6F, Woolim e-BIZ Center, 170-5, Guro-Dong, Guro-Ku Seoul, Korea Phone No.: +82-2-851-2662 Fax. No.: +82-2-851-2655 Page: 5 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 2. Information of EMC Laboratory Name of test laboratory Standard Engineering Co., Ltd. Location 377-11 Sinjang-Ri, Eumam-Myeon, Seosan-Si Chungnam, Korea Phone No. : +82-41-663-9436~7 Fax. No. : +82-41-663-9434 FCC Filing Number : 624439 Environment of Laboratory This location can keep accuracy in measuring more than anywhere because surrounding noise ambient is low and silent excellently to be suitable in EMI's measuring. Map Page: 6 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 3. Procedure of measurement 3.1 Conducted emissions 3.1.1 Configuration of measurement This measurement executed in shield-room and EUT was tested on 0.8m height wooden table located on the floor with 0.1m distance from the reference ground plane. EUT's rear part had a distance from VCP(Vertical Conducted Plane) with 0.4m length and LISN placed on the grounded plane with 1m distance from EUT's side part . Excess power cord and cables fixed in bundle style of 30~40cm length with non-inductive material, and power line was connected to power source through LISN to detect maximum EMI without external RFI from aux. instruments. Measuring equipments and EUT confirmed that warming-up was performed during enough time and calibration of antenna as well as calibration of measuring equipment also completed beforehand. This measurement was performed on condition of worst-case emission. 3.1.2 Detector function selection and bandwidth During conducted emission measurement, a radio noise meter that has a CISPR quasi-peak detector with 10 kHz IF bandwidth of 6 dB was utilized. 3.1.3 Frequency range to be scanned For conducted emissions measurement, frequency range of 150 kHz to 30 MHz included, was investigated. 3.1.4 Line impedance stabilization network (LISN) A LISN with characteristics that conform to the requirements of ANSI C63.4-2003 was used for the measurement of conducted power-line radio noise; (50 micro-henries / 50 ohms). Chassis and earth-points for grounding of the LISN were earth-grounded. Page: 7 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 3.2 Radiated Emissions 3.2.1 Configuration of measurement Preliminary measurement was performed in 3 meter semi-anechoic chamber to detect correct EMI frequency. For detecting the EMI frequency in semi-anechoic chamber, TRILOG antenna used on 30-1000MHz band. Final measurement was executed at 3 meters OATS(Open Area Test Site) using Quasi- peak detector and TRILOG antenna. EUT was placed on 0.8m height wooden table located on the floor with 0.1m distance from the reference ground plane. Excess power cord and other excess cables fixed in bundle style of 30~40cm length with non-inductive material to detect maximum EMI emission from EUT. Measuring equipments and EUT confirmed that warming-up was performed during enough time and calibration of antenna as well as calibration of measuring equipment also completed beforehand. Measurement antenna height was varied 1 to 4 m…

Text truncated - open the document above for the full version.

Page: 11 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 4.5 Configuration of EUT Used Peripherals Descriptions Maker Type S/No. Remarks EUT TAEJIN INFOTECH CO., LTD. Jet-SpeedPro N/A Personal Computer DELL Dimension4600 D39Z81S Mouse Microsoft 1043 X802035-003 Key-board SAMSUNG KB3T082SPXAB 98005138 Monitor ITECHVISION INC. 104QT I066CBKD000904 EUT Operation Read/Write Mode. 120Va.c. 60Hz CVCF Keyboard Mouse RCVR 3 meters PC EUT Monitor 220Va.c. 60Hz Page: 16 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 6.2 Photographs of Set-up Conducted emission test (Front) Conducted emission test (Rear) Page: 17 of 23 . . Report No.: STD-FCC-07008 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] Radiated Emission (Front) Radiated Emission (Rear)
