SIP-5581-VMARVEL 5.5 INCH SPIDERMAN RC VEHICLE DELUXE CONTROLLER

2020-07-21 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with MegaGain International Ltd. / Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Agency agreement expiration date: Jul. 20, 2021 By: Gloria Lee Signature Printed Title: Sale Manager On behalf of : MegaGain International Ltd. Telephone: 852 2311 0886

2020-07-21 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: SIP-5581-V Product Name: MARVEL 5.5" SPIDERMAN RC VEHICLE DELUXE CONTROLLER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Gloria Lee Signature Printed Title: Sale Manager On behalf of : MegaGain International Ltd. Telephone: 852 2311 0886

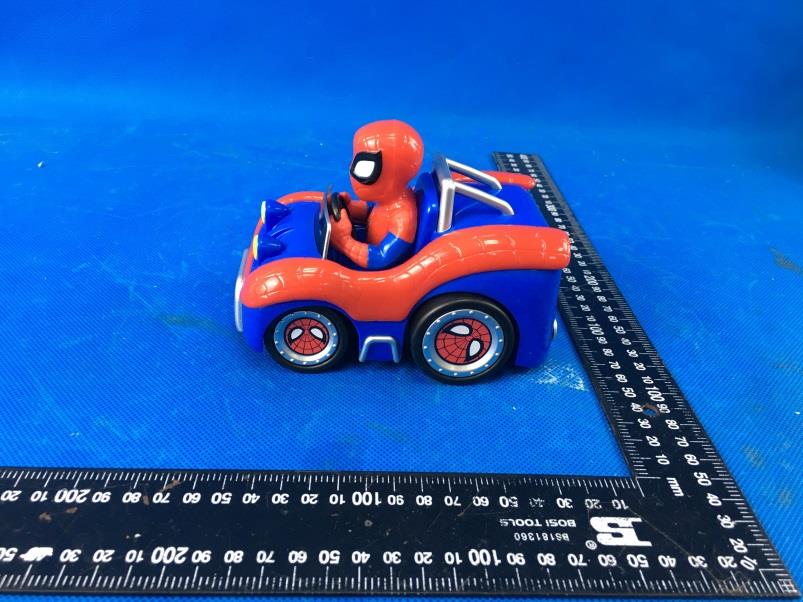

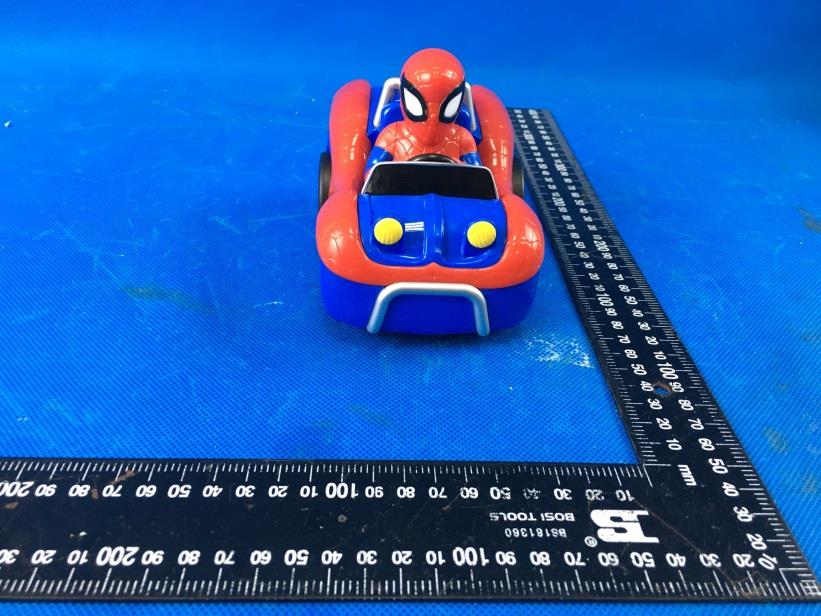

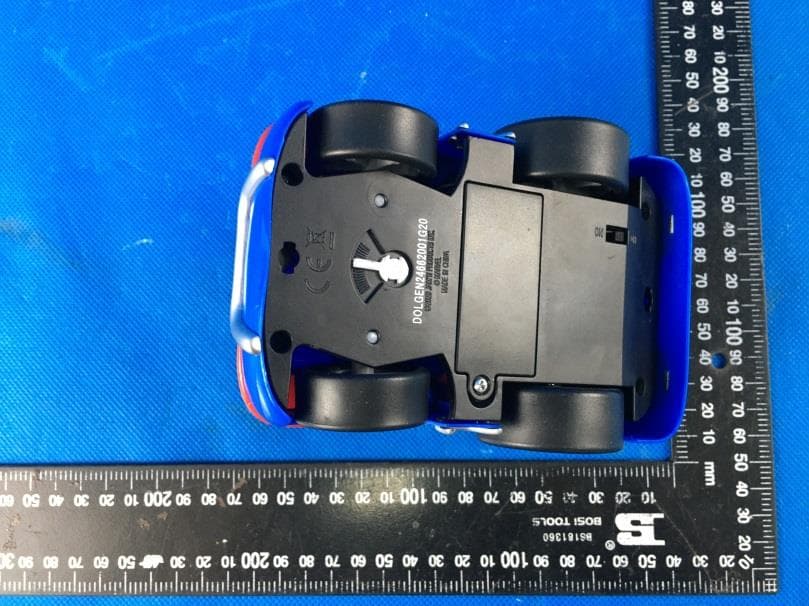

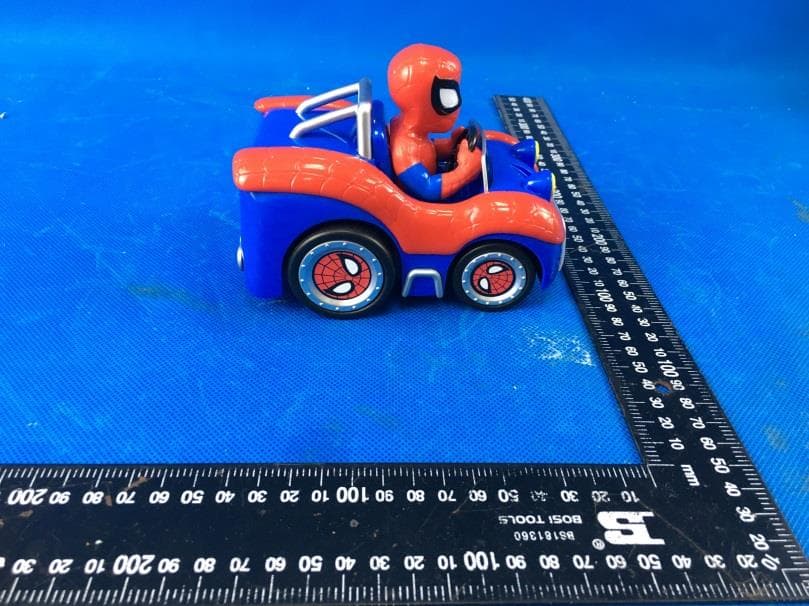

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External Photos M odel:5788-W

Company: MegaGain International Ltd. Address: Rm 1908, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East, Kowloon. H.K. Tel. : 852 2311 0886 Fax: 852 2312 6292 E-mail：[email protected] Contact Person: Gloria Lee Position: Sale Manager Model No: 5788-W Sample Description: MARVEL 5.5" SPIDERMAN RC VEHICLE DELUXE CONTROLLER TX Frequency: 2.4GHz FRN# 0011495686 Vehicle, FCC ID: SIP-5581-V Function 1. This McQueen is used for full function remote control，the control distance is 10M minimum. 2. The McQueen is used to 3xAAA type battery. Remote control is used to 1x9V battery. 3. When the remote control had switch on and push the car switch form off to on. 4. According to the point 3，press the up arrow button on the left hand side of the controller, the car will go forward, release the button and the car will sotp. 5. According to the point 3，press the down arrow button on the left hand side of the controller, the car will back up, release the button and the car will stop. 6. According to the point 3，press the right arrow button on the right side of the controller, the car can turn to the right, release the button and the car will stop. 7. According to the point 3，press the left arrow button on the right side of the controller, the car can turn left, release the button and the car will stop. The Label Location: 50mm 13mm FCC ID: SIP-5581-V THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Internal Photos Model:5788-W

FCC ID: SIP-5581-V RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable FCC ID: SIP-5581-V Frequency(MHz) Field strength of fundamental(dBμV/m) Maximum conducted output power(dBm) Power Density (mW/cm2) Limit (mW/cm2) Result 2420-2462 60.47 -34.73 0.002 1.0000 Pass Note: 1) The maximum antenna gain is 0dBi 2) The exposure safety distance is less than 20cm. 3) EIRP(dBm)=E(dBuV/m)+20log(d)-104.77=E(dBuV/m)-95.2

Page: 1 of 24 TEST REPORT Report No. ...................................... : CHTEW20070145 Report Verification : Project No.................................: SHT2007059001EW FCC ID ............................................. : SIP-5581-V Applicant’s name ........................... : MegaGain International Ltd. Address ............................................. : Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Manufacturer....................................: MegaGain International Ltd. Address ............................................. : Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Test item description .................... : MARVEL 5.5" SPIDERMAN RC VEHICLE DELUXE CONTROLLER Trade Mark ....................................... : - Model/Type reference ....................... : 5788-W Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of receipt of test sample..........: Jul. 15, 2020 Date of testing..............................: Jul. 16, 2020- Jul. 16, 2020 Date of issue................................: Jul. 17, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators Silvia Li Supervised by (position+printedname+signature) .... : Project Engineer Approved by (position+printedname+signature) .... : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No : CHTEW20070145 Page 2 of 24 Issued: 2020-07-17 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) Contents 1. TEST STANDARDS AND REPORT VERSION 3 1.1. Test Standards 3 1.2. Report version information 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Testing Laboratory Information 5 4. TEST CONFIGURATION 6 4.1. Test frequency list 6 4.2. Test mode 6 4.3. Support unit used in test configuration and system 6 4.4. Testing environmental condition 7 4.5. Measurement uncertainty 7 4.6. Equipments Used during the Test 8 5. TEST CONDITIONS AND RESULTS 9 5.1. Antenna requirement 9 5.2. AC Power Conducted Emissions 10 5.3. 20 dB Occupied Bandwidth 11 5.4. Radiated field strength of the fundamental signal 13 5.5. Radiated Spurious Emissions and Bandedge Emission 15 6. TEST SETUP PHOTOS OF THE EUT 20 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 21 Report No : CHTEW20070145 Page 3 of 24 Issued: 2020-07-17 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Report version information Revision No. Date of issue Description N/A 2020-07-17 Original Report No : CHTEW20070145 Page 4 of 24 Issued: 2020-07-17 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 2. TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Antenna requirement 15.203 PASS Jiongsheng Feng AC Power Line Conducted Emissions 15.207 N/A N/A 20dB Occupied Bandwidth 15.215/15.249 PASS Jiongsheng Feng Field strength of the Fundamental signal 15.249(a) PASS Jiongsheng Feng Spurious Emissions 15.249(a)15.205/15.209 PASS Pan Xie Band edge Emissions 15.249(d)15.205/15.209 PASS Pan Xie Remark: The measurement uncertainty is not included in the test result. Report No : CHTEW20070145 Page 5 of 24 Issued: 2020-07-17 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 3. SUMMARY 3.1. Client Information Applicant: MegaGain International Ltd. Address: Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Manufacturer: MegaGain International Ltd. Address: Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong 3.2. Product Description Name of EUT: MARVEL 5.5" SPIDERMAN RC VEHICLE DELUXE CONTROLLER Trade Mark: - Model No.: 5788-W Listed Model(s): - Power supply: 1.5V*3 Adapter information: - Hardware Version: V1 Software Version:l V1 RF Specification Operation frequency: 2420~2462MHz Channel number: 1MHz Modulation Type: GFSK Antenna type: Monopole Antenna Antenna gain: 0dBi 3.3. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Qualifications Type Accreditation Number CNAS L1225 A2LA 3902.01 FCC 762235 Canada 5377A Report No : CHTEW20070145 Page 6 of 24 Issued: 2020-07-17 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 4. TEST CONFIGURATION 4.1. Test frequency list According to section 15.31(m), regards to the operating frequency range over 10 MHz, must select three channels which were tested. The…

Text truncated - open the document above for the full version.

6.TEST SETUP PHOTOS OF THE EUT Radiated Emissions M odel:5788-W
