SIP-5695-CCARS STRM RC BSTR PK S20

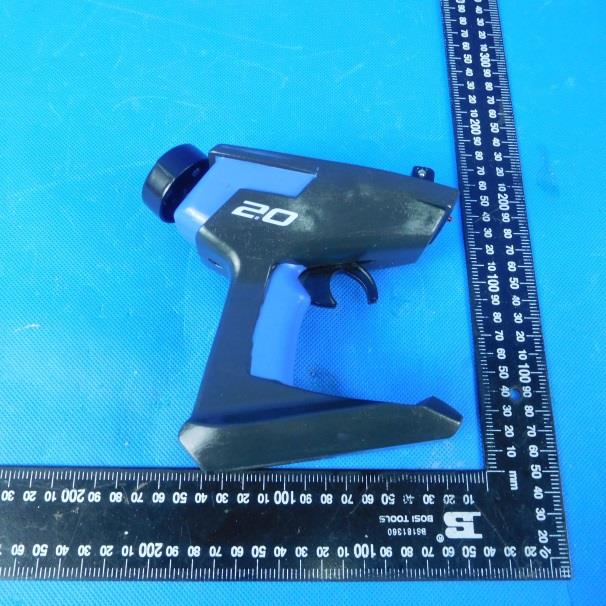

External Photos

The Label Location: 14m m 60m m FCC ID: SIP -56 95 -C THIS DE VICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, IN CLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Internal Photos

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd)2/30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10((dBuV/m)/20)/106 d = measurement distance in meters (m)---3m Sopt = (EXd)2/30 x gt Ant gain= 1 dBi ; so Ant numeric gain= 1.26 Field strength =91.89 dBμV/m @3m So Pt={ [10^(91.89 /20)/10^6 x3]^2/30 x1.26 }x1000 mW = 0.3 7 mW So (0.37mW/5mm)x √2.462 GHz = 0.12 < 3 Then SAR evaluation is not required

Page: 1 of 29 TEST REPORT Report No. ...................................... : CHTEW19120128 Report Verification : Project No.................................: SHT1912027502EW FCC ID ............................................. : SIP-5695-C Applicant’s name ........................... : MegaGain International Ltd. Address ............................................. : Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Manufacturer....................................: MegaGain International Ltd. Address ............................................. : Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Test item description .................... : CARS STRM RC BSTR PK S20 Trade Mark ....................................... : Disney Model/Type reference ....................... : 5695-C Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of receipt of test sample..........: Dec.11, 2019 Date of testing..............................: Dec.11, 2019 - Dec.19, 2019 Date of issue................................: Dec.20, 2019 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators Yueming Li Supervised by (position+printedname+signature) .... : Project Engineer Kiki Kong Approved by (position+printedname+signature) .... : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No : CHTEW19120128 Page 2 of 29 Issued: 2019-12-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST STANDARDS AND REPORT VERSION 3 1.1. Test Standards 3 1.2. Report version information 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 5 4. TEST CONFIGURATION 6 4.1. Test frequency list 6 4.2. Test mode 6 4.3. Support unit used in test configuration and system 6 4.4. Testing environmental condition 7 4.5. Measurement uncertainty 7 4.6. Equipment Used during the Test 8 5. TEST CONDITIONS AND RESULTS 10 5.1. Antenna requirement 10 5.2. AC Conducted Emissions 11 5.3. 20 dB bandwidth 12 5.4. Radiated field strength of the fundamental signal 14 5.5. Radiated Band edge Emission 17 5.6. Radiated Spurious Emission 20 6. TEST SETUP PHOTOS OF THE EUT 25 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 26 Report No : CHTEW19120128 Page 3 of 29 Issued: 2019-12-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Report version information Revision No. Date of issue Description N/A 2019-12-20 Original Report No : CHTEW19120128 Page 4 of 29 Issued: 2019-12-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Note: ‒ The measurement uncertainty is not included in the test result. Report clause Test Item Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203 PASS Jiongsheng Feng 5.2 AC Conducted Emission 15.207 N/A N/A 5.3 20dB Bandwidth 15.215/15.249 PASS Jiongsheng Feng 5.4 Field strength of the Fundamental signal 15.249(a) PASS Jiongsheng Feng 5.5 Radiated Band Edge Emission 15.249(a)15.205/15.209 PASS Pan Xie 5.6 Radiated Spurious Emission 15.249(d)15.205/15.209 PASS Pan Xie Report No : CHTEW19120128 Page 5 of 29 Issued: 2019-12-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: MegaGain International Ltd. Address: Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong Manufacturer: MegaGain International Ltd. Address: Rm 904-905, Greenfield Tower, Concordia Plaza,1 Science Museum Road, T.S.T. East. Kowloon. HongKong 3.2. Product Description Name of EUT: CARS STRM RC BSTR PK S20 Trade Mark: Disney Model No.: 5695-C Listed Model(s): - Power supply: DC 6.0V Adapter information: - Hardware Version: V1 Software Version:l V1 3.3. Radio Specification Description Operation frequency: 2420~2462MHz Channel number: 21 Modulation Type: GFSK Antenna type: Monopole antenna Antenna gain: 0dBi 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Qualifications Type Accreditation Number CNAS L1225 A2LA 3902.01 FCC 762235 Canada 5377A Report No : CHTEW19120128 Page 6 of 29 Issued: 2019-12-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 4. TEST CONFIGURATION 4.1. Test frequency list According to section 15.31(m), regards to the operating frequency range ove…

Text truncated - open the document above for the full version.

Radiated Emissions
