SJ6W6110RFBLUETOOTH WIERLESS KEYBOARD

W6110 Working Instructions 1. System requirements Hardware requirements: built-in bluetooth or IBM PC with the USB interface which can plug bluetooth adapter and permit machine, laptop,Apple computer and so on. Operating System Requirements: Windows 2000/ xp/vista/WIN7,MAC,IOS. 2.Computer System Prepartions Check your computer whether has bulit-in bluetooth device or not, if there doesn’t have ,you need to buy a USB bluetooth adapter and install the corresponding driver for it, so that it can work properly. 3.Keyboard Prepartion Work 3.1 Put a pair of AAA battery into the keyboard and push the power switch to “ON” position. 3.2 When press the CONNECT key, the indicator light shines, it means the keyboard in the pairing condition, If the indicator light isn’t shining, please check the battery install well or not or in good condition. if the keyboard doesn’t matching successfully within two minutes, the indicator light will turn off and the kyboard will into power saving mode in order to extend the life of the battery, If you want to repeat the matching process, please press “CONNECT” again. If the indicator light isn’t shining, please check the battery install well or not or in good condition. 3.3 Click the bluetooth applications in your computer, according to the bluetooth application requirement, processing search equipment by steps, matching and connecting the keyboard.If the system requires you to input the password,please enter the password following the tips on the screen and press the “ENTER” key. If you are using IPAD,please open the wireless keyboard first, under the condition of pairing, choose the “SETTING” on the desktop menu, then click the “ CONVENTIONAL” option, then click “BLUETOOTH” option, put the bluetooth on your screen. The keyboard will appear on the “DEVICE” of bluetooth menu. Choose the appeared keyboard and start pairing process. A four digits will come out on the screen, please input the password according to the prompt on the screen, then press the “ENTER”key finished the pairing connection. 3.5 After the pairing connection, the system will complete the related installation automatically, then you can use the keyboard. Warnings: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. After contious using about 30 minutes, you should stop the operation temporarily and do some proper hand rest. Long time and continuous use can easily do temporary or permanent damage to your wrist and other related body parts.

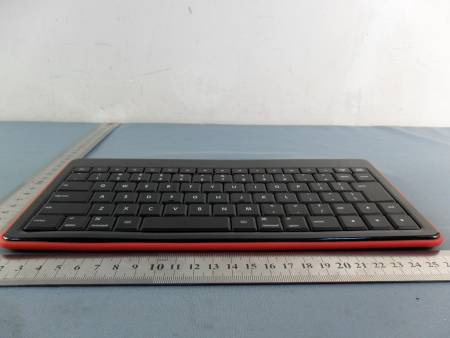

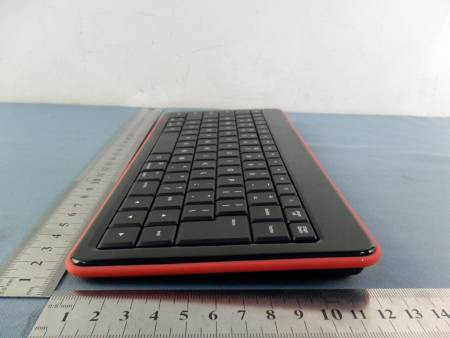

1 Photographs - EUT Constructional Details

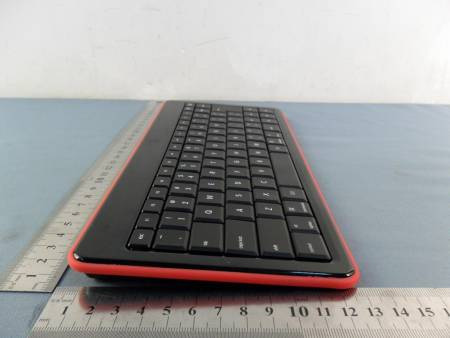

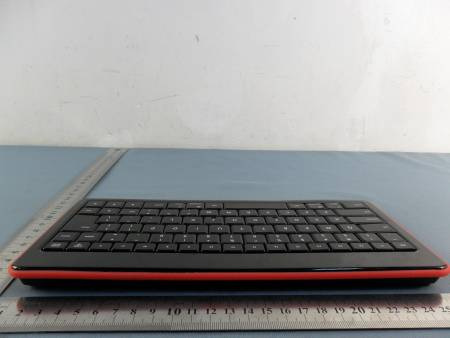

1 Photographs - EUT Constructional Details

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle Section, Science & Technology Park, District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: SJ6W6110RF “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is -0.38dBm (0.916mW) at the lowest channel; The best case gain of the antenna is 1.87dBi. 1.87dBi corresponds to linear antenna gain : 1.54 According to the formula, the calculation the EIRP test result: EIRP= P x G = 0.916 mW x 1.54= 1.411mW ① SAR requirement: S= 60 / f(GHz) = 60/2.402 = 24.98mW ② ; ① < ②. So the SAR measurement is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEMO11040163101 Page : 1 of 45 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEMO110401631RF Applicant/Manufacturer/ Factory: SHENZHEN WEIJIAN PLASTIC PRODUCT CO., LTD. Product Name: BLUETOOTH WIRELESS KEYBOARD Operation Frequency: 2402MHz to 2480MHz FCC ID: SJ6W6110RF Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2009 Date of Receipt: 2011-04-12 Date of Test: 2011-04-18 to 2011-05-09 Date of Issue: 2011-05-31 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO11040163101 Page : 2 of 45 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.................................................................................................................................................. 1 2 CONTENTS....................................................................................................................................................... 2 3 TEST SUMMARY............................................................................................................................................. 3 4 GENERAL INFORMATION............................................................................................................................. 4 4.1 CLIENT INFORMATION................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 E.U.T OPERATION MODE............................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 6 4.5 TEST FACILITY.............................................................................................................................................. 7 4.6 TEST LOCATION............................................................................................................................................ 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................... 7 4.8 TEST INSTRUMENTS LIST.....................................…

Text truncated - open the document above for the full version.

1 Photographs-test setup photo (Test Model No.: W6110) Radiated Emission
