SJ6W9824RFWireless Keyboard

1 Introduction TheWireless Multi-Touchpad Mini Keyboard offers performance, value and convenience of wireless connectivity. Features and Benefits •Plug and play - no additional drivers needed •Slim, light weight 88-key wireless keyboard - extremely portable •Multi-touch touchpad with 3-button mouse function, including tapping, scrolling •Low profile tactile keys for comfort, precise and quiet typing •8 hot keys for internet, e-mail and multimedia functions Package Contents •Wireless Multi-Touchpad Mini Keyboard •USB wireless receiver •2 AAA batteries •Installation guide System Requirements •PC computer with an available USB port •Windows ® 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 04-0620C Wireless Multi-Touchpad Mini Keyboard Installation Guide 2 Specifications Keyboard •LED: Low battery indicator •Batteries: 2 AAA •Pairing button •Key press force: 61g ± 9g •Key switch life: ~ 10 million cycles •Number of keys: 88 + 8 hot keys •Operating distance: up to 33ft/10m (max) •Operating frequency: 2.4 GHz •Operating mode current consumption: 8mA (max) •Sleep mode current consumption: 15uA •Sleep mode: After 8-10 minutes of inactivity •Two snap open legs for tilt and height adjustment •Dimensions: 12 1/4" x 8 11/16" x 3/4" Touchpad •Multi-finger touch technology touchpad •Supports 3-button mouse with tap and scroll •Built-in left and right mouse button below touchpad USB Wireless Receiver •Input voltage: 5V DC •Connection interface: USB •Pairing button 3 Keyboard Layout Figure 1: Top Layout 13 14 10 11 8 9 12 5 64 7 23 1 Figure 2: Bottom Layout 16 15 17 18 19 4 Keyboard Buttons 1Home- Starts the default Web browser and loads your home page - when web browser is already running your home page will load 2Search - Opens Windows search feature 3Favorites - Opens your list of favorite websites 4Email - Starts the default email program 5Volume down - Decreases the system sound 6Volume up - Increases the system sound 7Stop - Stops playing the current media track (Windows Media Player only) 8Play/Pause - Switch between playing and pausing the current media track (Windows Media Player only) 9Num Lock - Enables or disables Num Lock 10Low battery LED - Replace the batteries as soon as possible when LED flashes 11Fn (function key) - Works in conjunction with the Num Lock key to temporarily override the intergrated numeric keypad in order to type the letter on the corresponding key 12Multi-touch touchpad - Controls cursor and various mouse functions 13Left click button 14Right click button 15This key functions as right-click button 16Snap open legs for tilt/height adjustment 17Pairing button - When the wireless keyboard is not working correctly, press to put into pairing mode with the USB wireless receiver 18Battery compartment - 2 AAA batteries 19Storage compartment for the USB wireless receiver FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

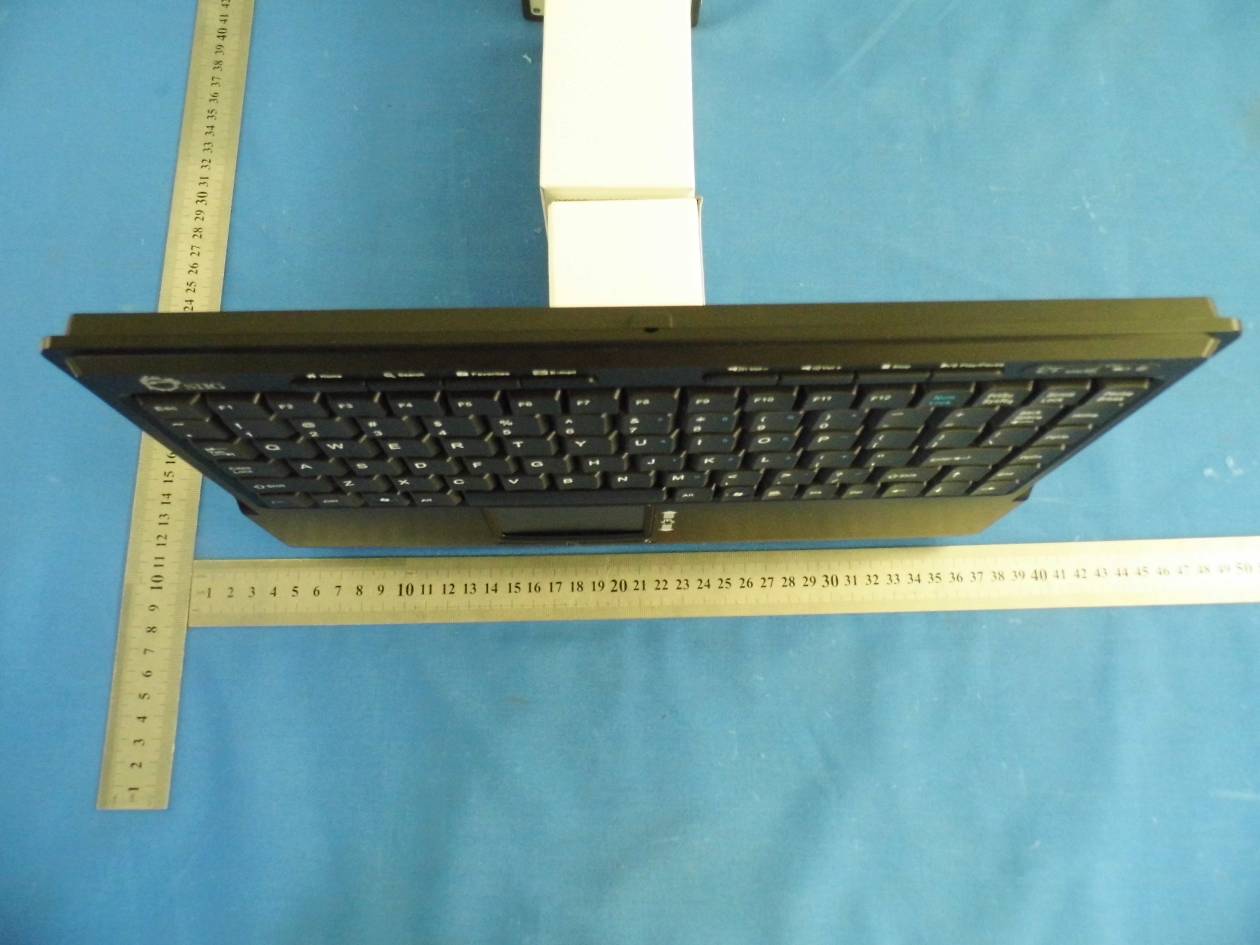

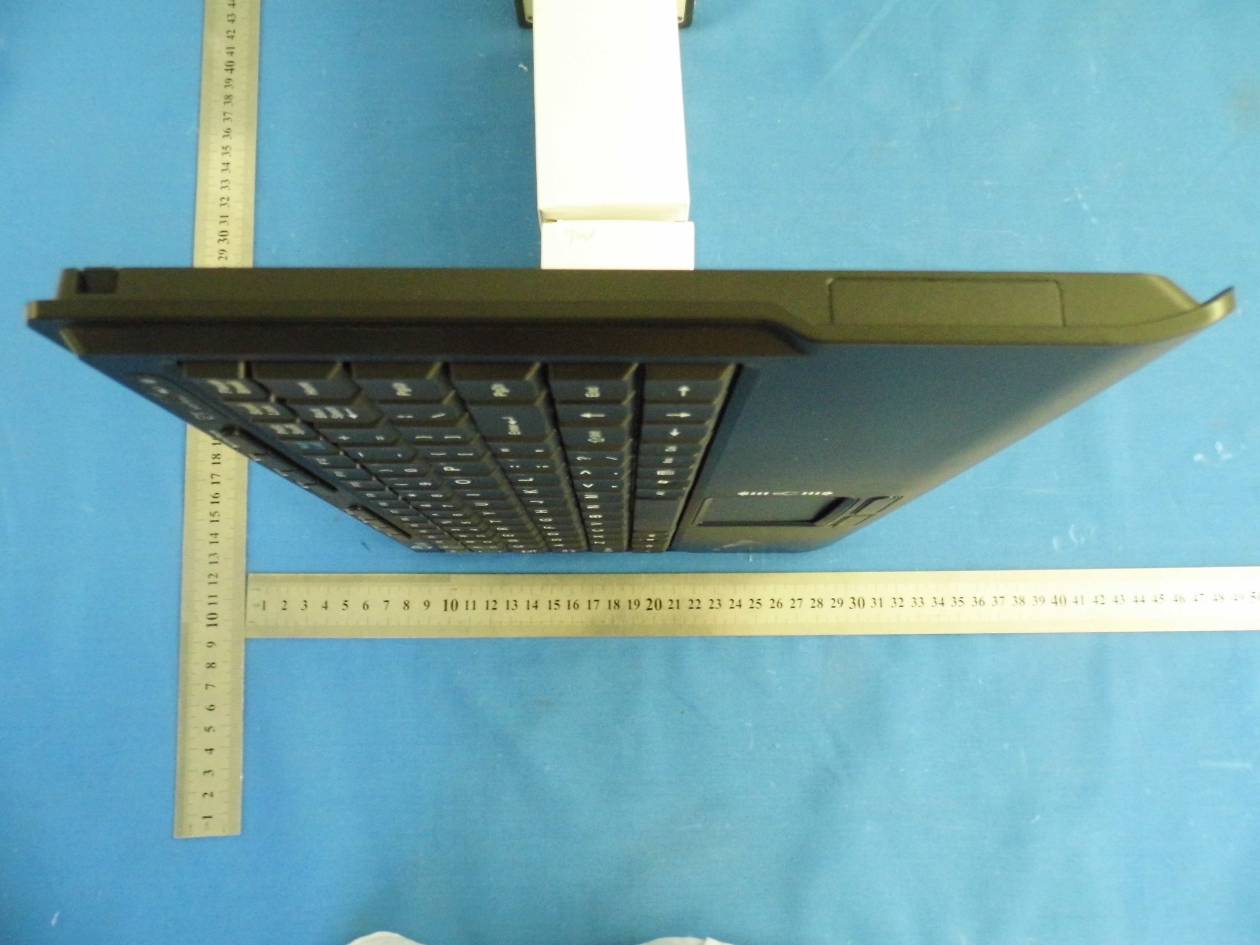

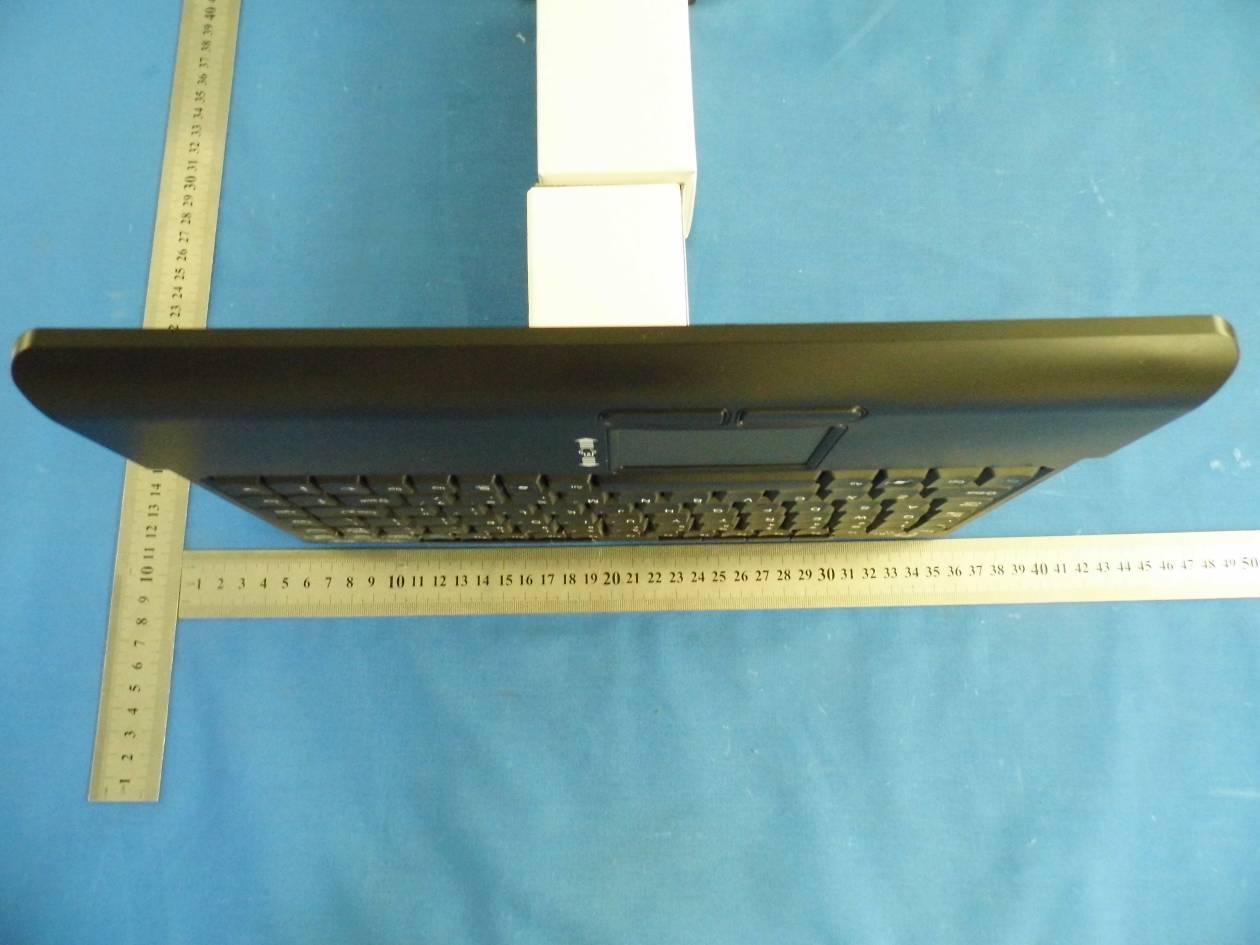

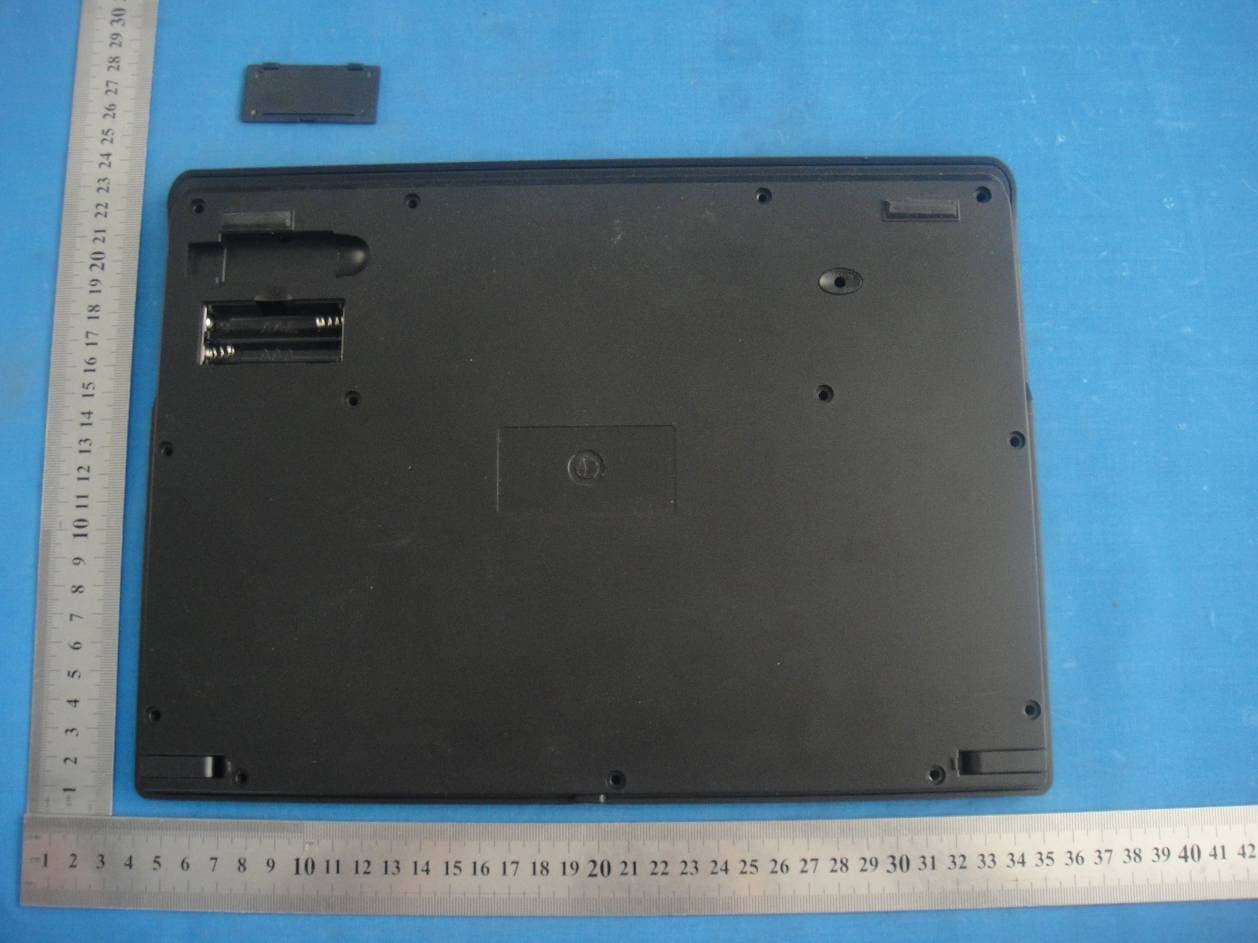

External Photo

FCC Certification Label FCC ID: SJ6W9824RF label size:high 1.5cm, Wide:3cm Label Location on EUT EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen Weijian Plastics Co., Ltd. Shangpai Industrial Park, Shiyan Township,Baoan District,Shenzhen,China FCC ID: SJ6W9824RF October 22, 2014 This Report Concerns: Original Report Equipment Type: Wireless Keyboard Test Engineer: Lisa Chen Report No.: BSL14060144J-6 Receive EUT Date/Test Date: October 16, 2014 / October 16- October 22, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: SJ6W9824RF Page 2/24 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID: SJ6W9824RF Page 3/24 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not u…
