SJP-BGP100JBluetooth Gamepad

BGP100- Bluetooth GamePad (Beta) User Manual For Symbian Series 60 Mobile Devices Supports Symbian Series 60 Smartphone Nokia 3650 6260 6600 6670 7610 7650 N-Gage N-GageQD 6630 Sendo X Siemens SX1 Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owner. 2 Table of Contents Manufacturer’s Disclaimer Statement ................................................ 2 Introducing BGP100- Your Bluetooth GamePad................................... 4 ¾ BGP100 “Bluetooth GamePad” Features .................................................. 4 ¾ Setting Up BGP100 ................................................................................ 5 BGP100 Bluetooth GamePad Driver Installation ............................... 6 ¾ Before Use ......................................................................................... 6 ¾ System Requirements .................................................................................. 6 ¾ Installing/Uninstalling/Upgrading your Bluetooth GamePad Driver.................. 7 ¾ Installation.......................................................................................... 7 ¾ Installing the Application in Series 60 Smartphones by Auto Run CD-ROM....... 7 ¾ Installing the Application in Series 60 Smartphones by “Application Installer” of PC Suite.......................................................................................... 8 ¾ Installing the Application in Series 60 Smartphones using Infrared OR Bluetooth File Transfer.......................................................................... 9 ¾ Uninstalling Bluetooth GamePad Driver.................................................... 10 ¾ Upgrading Bluetooth GamePad Driver.................................................... 10 Configuring BGP100 Bluetooth Gamepad ........................................ 11 The Illustration of “ Config ” Page ...................................................... 12 ¾ Active gamepad .................................................................................. 12-13 ¾ Reconnection .......................................................................................... 13 ¾ Power Saving Mode ................................................................................ 13 ¾ The “About” Page................................................................................. 14 ¾ Defining “Up/Down” Arrow Keys, “Left/Right” Arrows, “Left/Right” Soft Keys, and “Start” Key.................................................................................... 14-18 ¾ Defining “A”, “B”, “C”, and “D” Buttons ............................................................ 19-20 Appendices .......................................................................................... 21 ¾ Appendix 1: LED....................... 21 ¾ Appendix 2: Product & Technical Specifications .......................................... 22 ¾ Appendix 3: Troubleshooting................................................................... 23 3 Introducing BGP100- your Bluetooth GamePad z GamePad Features 4 z Setting Up BGP100 Step 1: Turn on the power switch located on the top boarder of the right wing. Check the status of LED (Flashing red & blue indicates “power on”) Step 2: The left and right wings move approximately 64 degrees upward and downward respectively. Both wings can be adjusted to fit the size of your Smartphone device. Step 3: Place your Smartphone at the center of your GamePad. The 2 adjustable sliding rubber strips on the inner edges of both wings will help secure your device. 5 BGP100 Bluetooth GamePad Driver Installation z Before Use — Check the battery status of your Bluetooth GamePad- when power is on, blue and red will flash at the same time. — Disable or remove other previously installed applications which require the use of Bluetooth on your Smartphone (Note: may vary with different Smartphone device) z System Requirements — Symbian Series 60 Smartphones — Minimum of 100KB free memory built-in memory — PCs with Microsoft Windows 2000/XP operating system — PC suite (available on one of the CDs delivered with your phone) 6 z Installing/Uninstalling/Upgrading your Bluetooth GamePad Driver Installation The driver can be installed by AutoRun CD-ROM, PC Suite, Cable or Wireless file transfer (Infrared/Bluetooth) for Symbian Series 60 OS. (Please note: when the file is transferred to your Smartphone, a message with file “GamePad” will be shown on the screen. Click “View”. A warning message will appear: “Application is untrusted and may have problems. Install only if you trust provider”. Click “Yes”, then click “Install”) ¾ Installing the Application in Series 60 OS Smartphones by AutoRun CD-ROM 1. Ensure that a connection between your PC and Smartphone is established. 2. Insert BGP100 Bluetooth GamePad CD into the CD-ROM drive of your PC. 3. Follo…

Text truncated - open the document above for the full version.

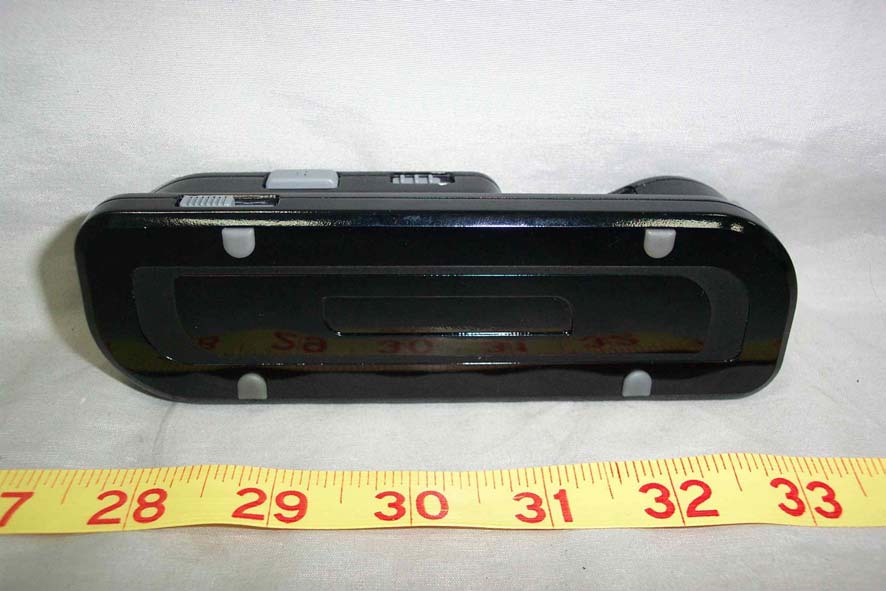

Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 1 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 3 Total Page: 10 Rev. 00 Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 4 Rev. 00 Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 5 Rev. 00

Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 7 Rev. 00 Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 8 Rev. 00 Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 9 Rev. 00 Compliance Certification Services Inc. Report No: 50315004 Date of Issue: April 11, 2005 Page 10 Rev. 00

MULTILAYER CERAMIC ANTENNA FOR BLUETOOTH & WLAN IEEE 802.11b (2.45G Hz ISM Band) (Long Shape) Product Specification 1 QUICK REFERENCE DATA Dimension 7.8* 3.6 * 0.9 mm Central Frequency* 2.45 GHz Bandwidth >100 MHz Gain 2.5 dBi max VSWR 2.0 max Polarization Linear Azimuth Omni-directional Impedance 50Ω Operating Temperature -55~125 o C Termination Ni/Sn (Environmentally-Friendly Leadless) Resistance to soldering heats 260 o C, 10 sec. Maximum Power 1W * Three types of antenna are available for central frequency adjustment (type 245, type 260, type 270) Special Environmental Concerns- Green Products Design: The foil making process is using environmentally-friendly aqueous solvent technology. Termination is lead free (Pb free) and packing materials can be re-cycled HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 1 All the technical data and information contained herein are subject to change without prior notice Grant Lin/Cliff 2002-04-24 Page 1 sheet 190-1 A4 spec.doc Phycomp Taiwan Ltd. APPLICATION Suggested Layout I. HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 50Ohm Transmission Line (by Microstrip Line or Coplanar Waveguide) Suggested Layout II. 6mm No ground plane backside 50 ohm transmission line 5 mm(to ground) 6mm Ground plane(back side) Antenn 2mm 8mm Cleanance Cleanance Bluetooth module or other RF Module Grant Lin/Cliff 2002-04-24 Page 2 sheet 190-2 A4 spec.doc Phycomp Taiwan Ltd. DIMENSIONAL DATA Figure Dimension Port L W T F s1 C C F s1 L W T F s1 C C F s1 s2 C L W T F s1 C C F s1 L W T F s1 C C F s1 F s1 s2 C L W T F C S1 S2 7.8±0.25 mm 3.6±0.2 mm 0.9±0.2 mm 1.25±0.25 mm 0.4±0.2 mm 1.25±0.25 mm 1.40 ±0.25 mm - - - Feed Termination - NC Solder Termination Only Optional NC Solder Termination Only SOLDER LAND PATTERN Figure Dimensions Remark L W F C S1 S2 9 ± 0.10 mm 4.4 ± 0.20 mm 1.40 ± 0.25 mm 0.80 ± 0.20 mm 1.40 ± 0.25 mm 1.60 ± 0.25 mm Feed Pad NC Mount Pad Only Optional NC Mount Pad Only HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 Grant Lin/Cliff 2002-04-24 Page 3 sheet 190-3 A4 spec.doc Phycomp Taiwan Ltd. Radiation Pattern Polar Plot (Based on Suggested Layout) -90 -45 0 45 90 135 180 225 H-Plane -90 -45 0 45 90 135 180 225 E-Plane HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 Grant Lin/Cliff 2002-04-24 Page 4 sheet 190-4 A4 spec.doc Phycomp Taiwan Ltd. STANDARD TEST BOARD FOR SWR HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 10 mm 50 ohm transmission line 17 mm Material:FR4 PCB 0.8 mm 1.2 mm 30 mm 5mm SMA Grant Lin/Cliff 2002-04-24 Page 5 sheet 190-5 A4 spec.doc Phycomp Taiwan Ltd. RELIABILITY DATA (Reference to IEC Specification) IEC 384-10/ CECC 32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.4 Mounting The antenna can be mounted on printed- circuit boards or ceramic substrates by applying wave soldering, reflow soldering (including vapour phase soldering) or conductive adhesive No visible damage 4.5 Visual inspection and dimension check Any applicable method using × 10 magnification In accordance with specification (chip off 4mm) 4.6.1 Antenna Central Frequency at 20 o C Standard test board in page 4 4.8 Adhesion A force of 3 N applied for 10 s to the line joining the terminations and in a plane parallel to the substrate No visible damage Bond strength of plating on end face Mounted in accordance with CECC 32 100, paragraph 4.4 No visible damage 4.9 Conditions: bending 0.5 mm at a rate of 1mm/s, radius jig. 340 mm, 2mm warp on FR4 board of 90 mm length No visible damage HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 Grant Lin/Cliff 2002-04-24 Page 6 sheet 190-6 A4 spec.doc Phycomp Taiwan Ltd. IEC 384-10/ CECC 32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.10 20(Tb) Resistance to soldering heat 260 ± 5 °C for 10 ± 0.5 s in a static solder bath The terminations shall be well tinned after recovery and Central Freq. Change ± 6% Resistance to leaching 260 ± 5 °C for 30 ± 1 s in a static solder bath Using visual enlargement of × 10, dissolution of the termination shall not exceed 10% 4.11 20(Ta) Solderability Zero hour test, and test after storage (20 to 24 months) in original atmosphere; un-mounted chips completely immersed for 2 ± 0.5 s in 235 ± 5°C. The termination must be well tinned, at least 75% is well tinned at termination 4.12 4(Na) Rapid change of temperature -55 °C (30 minutes) to +125 °C (30 minutes); 100 cycles No visible damage Central Freq. Change ± 6% 4.14 3(Ca) Damp heat 500 ± 12 hours at 60 °C; 90 to 95 % RH No visible damage 2 hours recovery Central Freq. Change ± 6% 4.15 Endurance 500 ± 12 hours at 125 °C; No visible damage 2 hours recovery Central Freq. Change ± 6% HF R&D Print date 04/02/04 Preliminary internal use only Long Shape Mar. 26, 02 Multilayer Ceramic Antenna for Bluetooth (ISM Band 2.45GHz) CAN431111500245/260/2701K Apr. 24, 02 Grant Lin/Cliff 2002-04-24 Page 7 sheet 190-7 A4 spec.doc Phycomp Taiwan Ltd. ORDERING INFORMATION: The antennas may be ordered by using the Yageo ordering code. These code numbers can be determined by the following rules: CAN 43 11 1 15 00 245 1K CAN = Yageo Part No. for Antenna F. Family Code 43 = Antenna C. Packing Type Code 11 = 180 mm/ 7" blister (1000pcs) , 12 = 330 mm/13" blister (4000 pcs) 13 =…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50315004-RP1 FCC ID: SJP-BGP100J Date of Issue: March 31, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 43 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Gamepad Model: BGP100 Trade Name: CHAINPUS Issued to Chainpus Technology Co., Ltd. No. 2-5, Shanzibian, Danshui Town, Taipei County, Taiwan 251, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50315004-RP1 FCC ID: SJP-BGP100J Date of Issue: March 31, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION.....................................................................................................7 5. FACILITIES AND ACCREDITATIONS .......................................................................................8 5.1 FACILITIES ..... ................................................................................................................................8 5.2 EQUIPMENT.....................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS..........................................................................................11 7.1 PEAK POWER.................................................................................................................................11 7.2 BAND EDGES MEASUREMENT .............................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................17 7.4 FREQUENCY SEPARATION....................................................................................................20 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................22 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................24 7.7 RADIO FREQUENCY EXPOSURE.....................................................................................................31 7.8 SPURIOUS EMISSIONS .............................................................................................................32 7.9 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ...........................................................................43 Compliance Certification Services Inc. Report No.: 50315004-RP1 FCC ID: SJP-BGP100J Date of Issue: March 31, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Chainpus Technology Co., Ltd. No. 2-5, Shanzibian, Danshui Town, Taipei County, Taiwan 251, R.O.C. Equipment Under Test: Bluetooth Gamepad Model: BGP100 Trade Name: CHAINPUS Date of Test: March 18 ~ 23, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Harris W. Lai Gavin Lim Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 50315004-RP1 FCC ID: SJP-BGP100J Date of Issue: March 31, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product Bluetooth Gamepad Trade Name CHAINPUS Model Number BGP100 Model Discrepancy The above model come…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50315004-RP1 FCC ID: SJP-BGP100J Date of Issue: March 31, 2005 Page 43 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
