SK22400DK2.4GHz Digital Wireless A / V / Data Transceiver Module

ʳʳʳ Date: 2011/5/16 Preliminarydatasubjectstochangewithoutnotice 1 MDD-24R2001 2.4GHz Digital Audio Video Modules A. Features Operating frequency range from 2403 to 2475 MHz Maximum 25 hopping channels Maximum data rate 12 Mbps (@16QAM) 4-wire SPI interface support max. 30MHz clock rate Modulation scheme : 16QAM,QPSK The 16-bit CRC checking Hardware retransmission for packets Power supply range: 2.7 ~ 3.3V Transmission range: 250 m (Line of sight) Outline: 20.40 x 27.65 x 4.4 mm CE & FCC compliance B. Applications Digital AV Sender Digital Baby Monitor Wireless Video Door phone Security Camera Portable Video Recorder MDD-24R2001 ʳʳʳ Date: 2011/5/16 Preliminarydatasubjectstochangewithoutnotice 2 MDD-24R2001 2.4GHz Digital Audio Video Modules C: Specification ParameterMin.Typ.Max.Unit Electrical Section Supply Voltage 4.9 5.0 5.1 V Supply current in TX mode 200 mA Supply current in RX mode 65mA RF Section Modulation Mode QPSK,16QAM Operating Frequency 2403 ~ 2475 MHz Channel Bandwidth 3 MHz Channel 25 channels Data Rate 3M ~ 12M bps Transmitter Section Transmission Power +14 @16QAM +18 @QPSK dBm Power control range 40 dB Power control resolution 1 1 3 dB Receiver Section Overlay channel spacing 1 MHz Sensitivity -78 @ 16QAM -86 @ QPSK dBm Operation Operating Temperature -10 ~ +60 к Storage Temperature -20 ~ +70 к ʳʳʳ Date: 2011/5/16 Preliminarydatasubjectstochangewithoutnotice 3 MDD-24R2001 2.4GHz Digital Audio Video Modules D: Pin Assignment No.MarksFunction 1 VCC Power Supply 2 GND Ground 3 CLK12M 12MHz clock output 4 IRQ_N Interrupt indication for external MCU 5 CS_N Chip Selection 6 SDO Serial data output 7 SDI Serial data input 8 SCK Serial clock input 9 RST_N Negative active reset input 10 CLK32K 32KHz clock output Model: MDD-24R2001 ʳʳʳ Date: 2011/5/16 Preliminarydatasubjectstochangewithoutnotice 4 MDD-24R2001 2.4GHz Digital Audio Video Modules E: Mechanical Dimension ʳʳʳ Date: 2011/5/16 Preliminarydatasubjectstochangewithoutnotice 5 MDD-24R2001 2.4GHz Digital Audio Video Modules Module User Manual The purpose of this manual is to explain correct way how to integrate module MDD-24R2001 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Note that any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Integration The RF module, model MDD-24R2001 has to be installed and used in accordance with the technical installation instructions provided by the manufacturer. For detail information concerning type approval of this module please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. USA-Federal Communications Commission (FCC) This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Labeling The RF module MDD-24R002 for controller labeled as below. The label that is placed on the module is too small to hold the required FCC information, then that information appear in the user manual for this device. In addition, the” Contains FCC ID : O6L-MDD24R2001” label also must be placed on the outside of the end product system.
             ʳʳʳ Date: 2011/5/16 Preliminarydatasubjectstochangewithoutnotice 6 MDD-24R2001 2.4GHz Digital Audio Video Modules This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end-user has no manual instruction to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.

Declaration of Authorization We Name: COP security system corp. Address: 4-6F., No.5, Lane 130, Mincyuan Rd., Sindian Dist. City: 23141 New Taipei City Country: Taiwan, R.O.C. Declare that: Name Representative of agent: Gene Chang Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: 2.4GHz Digital Wireless A / V / Data Transceiver Module Type designation: 15-2400DK Module Trademark: COP Security FCC ID: SK2-2400DK on our behalf. Date: 2012/06/25 Signature: Ian Yang / Engineer COP Security System Corp. Tel: 886- 2-22180302#133 E-mail ： [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SK2-2400DK Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ian Yang / Engineer COP Security System Corp. Tel: 886- 2-22180302#133 E-mail ： [email protected]

Federal Communications Commission June 25, 2012 Authorization and Evaluation Division ATTESTATION FCC ID: SK2-2400DK Product:: 2.4GHz Digital Wireless A / V / Data Transceiver Module Model: MDD-24R2001 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. We also promise that the end user or installer will not be able to change countries. For United States only channels 0~24 will be available. Best Regards Ian Yang / Engineer COP Security System Corp. Tel: 886- 2-22180302#133 E-mail ： [email protected]

Attestation for FCC Declaration of Conformity FCC ID: SK2-2400DK Data: June 25, 2012 Please be notified that we, the undersigned, COP Security System CORP. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 124291R-RFUSP37V02 .Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Ian Yang / Senior Engineer COP Security System Corp. Tel: 886-2- 22180302 Fax:886-2- 22181628 E-mail: [email protected]

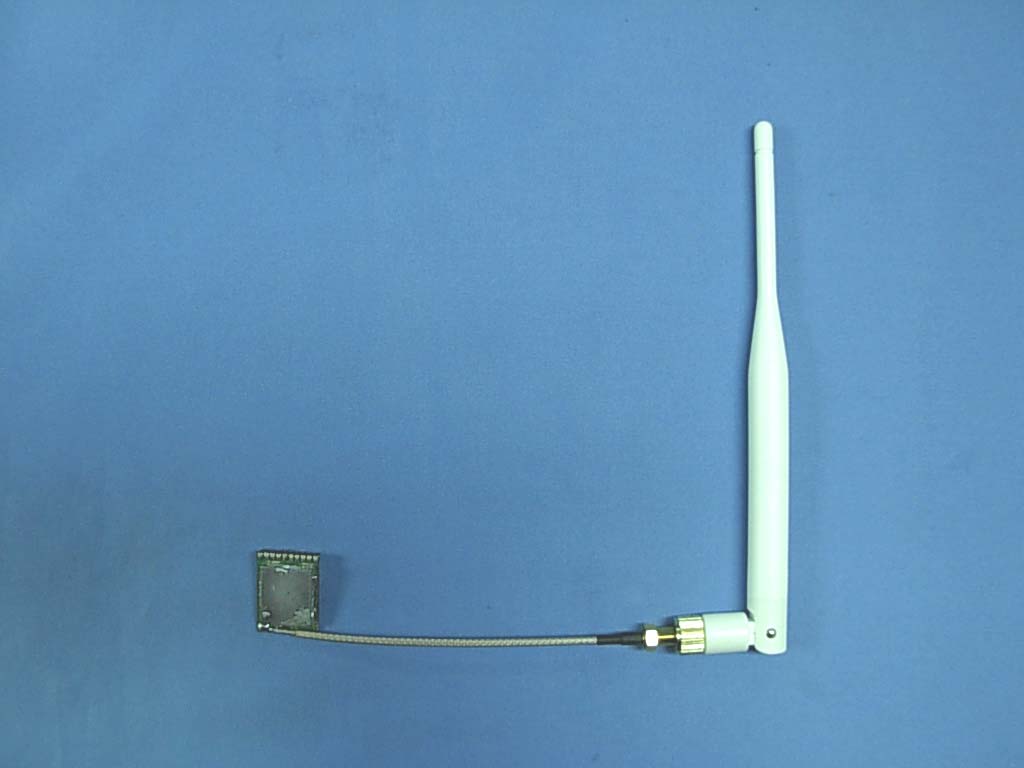

Report No：124291R-RFUSP43V01 Page: 122 of 126 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID : SK2-2400DK FCC ID Label The Label of FCC ID number will be placed on the RF module as shown in the photograph below: FCC ID : SK2-2400DK The FCC ID Label will be placed on the user manual as shown in the photograph below: 2.4GHz Digital Wireless A / V / Data Transceiver Module Model No.: 15-2400DK Module FCC ID : SK2-2400DK This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

FCC ID : SK2-2400DK FCC ID Label The Label of FCC ID number will be placed on the RF module as shown in the photograph below: FCC ID : SK2-2400DK The FCC ID Label will be placed on the user manual as shown in the photograph below: 2.4GHz Digital Wireless A / V / Data Transceiver Module Model No.: 15-2400DK Module FCC ID : SK2-2400DK This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No：124291R-RFUSP43V01 Page: 123 of 126 (3) EUT Photo (4) EUT Photo Report No：124291R-RFUSP43V01 Page: 124 of 126 (5) EUT Photo Report No：124291R-RFUSP43V01 Page: 125 of 126 (6) EUT Photo (7) EUT Photo Report No：124291R-RFUSP43V01 Page: 126 of 126 (8) EUT Photo (9) EUT Photo

Report No. 124291R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name ： 2.4GHz Digital Wireless A / V / Data Transceiver Module Model No. ： 15-2400DK Module FCC ID. ： SK2-2400DK Applicant : COP security system corp. Address : 4-6F., No.5, Lane 130, Mincyuan Rd., Sindian Dist., New Taipei City, Taiwan R.O.C. (23141) Date of Receipt : 2012/04/12 Date of Declaration : 2012/06/15 Report No. : 124291R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 124291R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 124291R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product 2.4GHz Digital Wireless A / V / Data Transceiver Module Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi or 3.16 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 00 2403 63.9735 0.04022 12 2439 79.6159 0.05005 24 2475 59.5662 0.03745 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No：124291R-RFUSP43V01 Page: 1 of 126 Test Report Product Name ： 2.4GHz Digital Wireless A / V / Data Transceiver Module Model No. ： 15-2400DK Module FCC ID. ： SK2-2400DK Applicant ：COP security system corp Address ：4-6F., No.5, Lane 130, Mincyuan Rd., Sindian Dist., New Taipei City, Taiwan R.O.C. (23141) Date of Receipt：2012/04/12 Issued Date ：2012/06/15 Report No. ：124291R-RFUSP43V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：124291R-RFUSP43V01 Page: 2 of 126 Test Report Certification Issued Date : 2011/06/15 Report No. : 124291R-RFUSP43V01 Product Name ： 2.4GHz Digital Wireless A / V / Data Transceiver Module Applicant ： COP security system corp. Address ： 4-6F., No.5, Lane 130, Mincyuan Rd., Sindian Dist., New Taipei City, Taiwan R.O.C. (23141) Manufacturer ： COP security system corp. Model No. ： 15-2400DK Module FCC ID. ： SK2-2400DK EUT Voltage : DC 12V Trade Name ： Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2011 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Holly Chang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：124291R-RFUSP43V01 Page: 3 of 126 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 7 1.3. Test Mode ..................................................................................................................... 14 1.4. Tested System Details .................................................................................................. 15 1.5. Configuration of tested System .................................................................................... 15 1.6. EUT Exercise Software ................................................................................................ 15 1.7. Test Facility...................................................................................................................16 2. Conducted Emission .................................................................................................... 18 2.1. Test Equipment............................................................................................................. 18 2.2. Test Setup .................................................................................................................... 18 2.3. Limits ............................................................................................................................ 19 2.4. Test Procedure ............................................................................................................. 19 2.5. Test Specification.......................................................................................................... 19 2.6. Uncertainty ................................................................................................................... 19 2.7. Test Result....................................................................................................................20 2.8. Test Photo .................................................................................................................... 24 3. Peak Power Output ...................................................................................................... 28 3.1. Test Equipment............................................................................................................. 28 3.2. Test Setup .................................................................................................................... 28 3.3. Test procedures ............................................................................................................ 28 3.4. Limits ............................................................................................................................ 28 3.5. Test Specification.......................................................................................................... 28 3.6. Test Result....................................................................................................................29 4. Radiated Emission ....................................................................................................... 35 4.1. Test Equipment............................................................................................................. 35 4.2. Test Setup .................................................................................................................... 35 4.3. Limits ............................................................................................................................ 36 4.4. Test Procedure ............................................................................................................. 36 4.5. Test Specification.......................................................................................................... 36 4.6. Test Result....................................................................................................................37 4.7. Test Photo .................................................................................................................... 53 5. RF antenna conducted test .......................................................................................... 61 5.1. Test Equipment.................................................................................…
