SKX-LC-72152.4G CCD

1 2 Table Of Contents SAFETY PRECAUTIONS.......................................................................4 1. PRODUCT FEATURES......................................................................5 1.1 PRODUCT INTRODUCTION...............................................................6 1.2 PRODUCT FEATURES.....................................................................7 2. DESCRIPTION OF THE FRONT/REAR VIEW.....................................9 2.1 FRONT PANEL AND REAR PANEL......................................................9 2.2 RS-232 PORT & ALARM I/O.......................................................10 2.3 FLANK PANEL..............................................................................11 3. UPDATING SYSTEM SOFTWARE...................................................12 4. NETWORK CONFIGURATION.........................................................13 4.1 USE A RS-232 CABLE TO INSTALL A WIRELESS SETTING IN A LANCAM.................................................................................13 4.2 WIRELESS CONNECTIONS............................................................15 4.3 CONFIGURE YOUR LAN CAMERA NETWORK SETTINGS..................17 4.4 TCP/IP COMMUNICATION SOFTWARE............................................19 4.5 TCP/IP INSTALLATION.................................................................20 4.6 TCP/IP CONFIGURATION SETTING.................................................21 4.7 CONNECTION TESTING................................................................22 5. OPERATING INSTRUCTIONS FOR IMAGE SOFTWARE AND NETWORK......................................................................................24 5.1 MICROSOFT INTERNET EXPLORER.................................................24 5.2 THE LAN CAMERA VIEWER........................................................49 3 6. SPECIFICATIONS...........................................................................71 7. Function of Client PC......................................................................72 APPENDIX 1. –SCANIP.......................................................................73 APPENDIX 2. –LAN CAMERA SD card Troubleshooting....................76 APPENDIX 3. –FAQ.............................................................................77 4 SAFETY PRECAUTIONS All the following safety and operational instructions to prevent harm or injury to the operator(s) or other persons should be read carefully before the unit is activated. WARNING l To prevent fire or shock hazard, avoid exposing this unit to rain or moisture. l Do not block ventilation openings. l Do not place anything on top of the unit that might spill or fall into it. l Do not attempt to service this unit yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Please refer all servicing to your distributor / retailer. l Do not use liquid cleaners or aerosols for cleaning. l To prevent fire or electric shock, do not overload wall outlets or extension cord. l This unit must be grounded to reduce the risk of electric shock hazard. 5 FCC Warning Statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help. Notice: (1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord by used. (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment Safety Information: In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 6 1. PRODUCT FEATURES 1.1 Product Introduction The WIRELESS LAN CAMERA is state-of-the-art equipment in its field. It combines many digital video capabilities with the internal functions of the network video camera. The user can immediately connect to a standard network, and the device can transmit the digital images to a remote browser. It connects to the wireless LAN rather than the USB or other communication port. Since the various types of Web Cameras must initially be connected and installed with a PC, the Web Camera is limited regarding some pract…

Text truncated - open the document above for the full version.

SKX-LC-7215

1 Helen Zhao Subject:FW: ??: FW: APPRO TECHNOLOGY INC, FCC ID: SKX-LC-7215, Assessment NO.: AN04T4256, Notice#1 LC-7215 Test Rpt Revised 1026.... LC-7215 OpDes_for RF chip.pdf LISN Calibration report.pdf -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of [email protected] Sent: Wednesday, October 27, 2004 12:17 AM To: Helen Zhao Cc: Application (CCS TW) (E-mail); Mike Kuo Subject: ??: FW: APPRO TECHNOLOGY INC, FCC ID: SKX-LC-7215, Assessment NO.: AN04T4256, Notice#1 Hi Helen, Please refer to the following for our replies. Thank you for your advice. Best regards, Ting From: Compliance Certification Services [mailto:[email protected]] Sent: Thu 10/14/2004 7:49 PM To: Helen Zhao Subject: APPRO TECHNOLOGY INC, FCC ID: SKX-LC-7215, Assessment NO.: AN04T4256, Notice#1 Question #1: The Specification in the user manual indicates that the device can be operated up to 14 channels in some country. Please provide detailed information to explain how the applicant prevents the end user from selecting the wrong country domain and operating the device at the channel that is not allowed in US. Ans #1: Though the channel may up to 14 but the user manual has indicated channel 1-11 is designed to be used in US; moreover, there are no information provided that user can select the frequency channel by themselves. So the information of user manual should be enough, please confirm. Question #2: The operational description provides very limited information. This device is using an ATMEL AT76C504A module and the reference design provided by ATMEL, please provide theory of operation of the 802.11b module . Ans #2: Please refer to the attached operational description of RF chip. Question #3: The test report indicates that the test was done during September 16-23, 2004, but page 41 of the test report shows the test equipment calibration was due on 7/25/2004. Please explain. Ans #3: Sorry, We forget to update the calibration date. Please refer to 2 the test report and the calibration report. (See attached file: LC-7215 Test Rpt Revised 1026.pdf)(See attached file: LC-7215 OpDes_for RF chip.pdf)(See attached file: LISN Calibration report.pdf) Best regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission, Thank you for your attention.

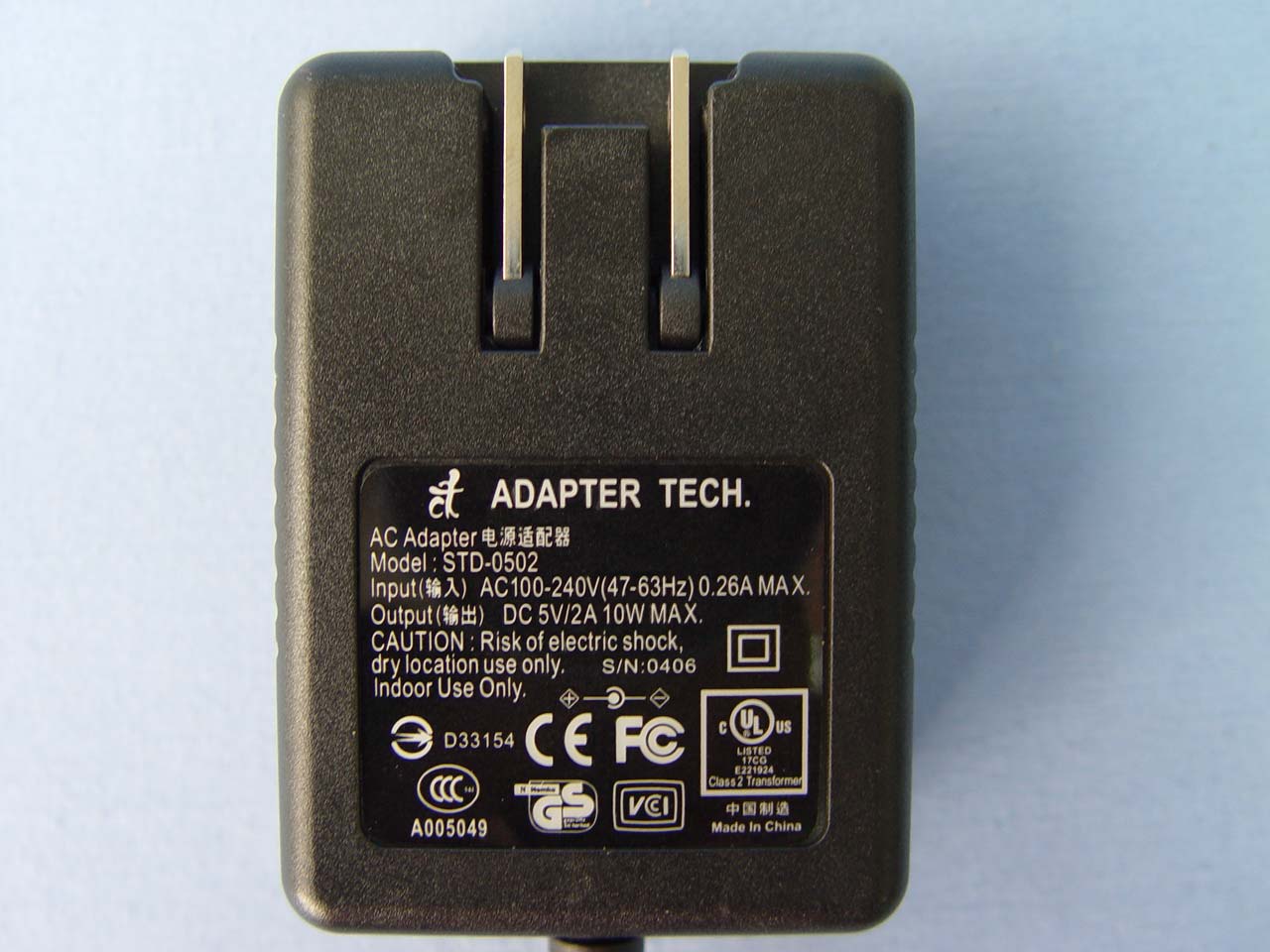

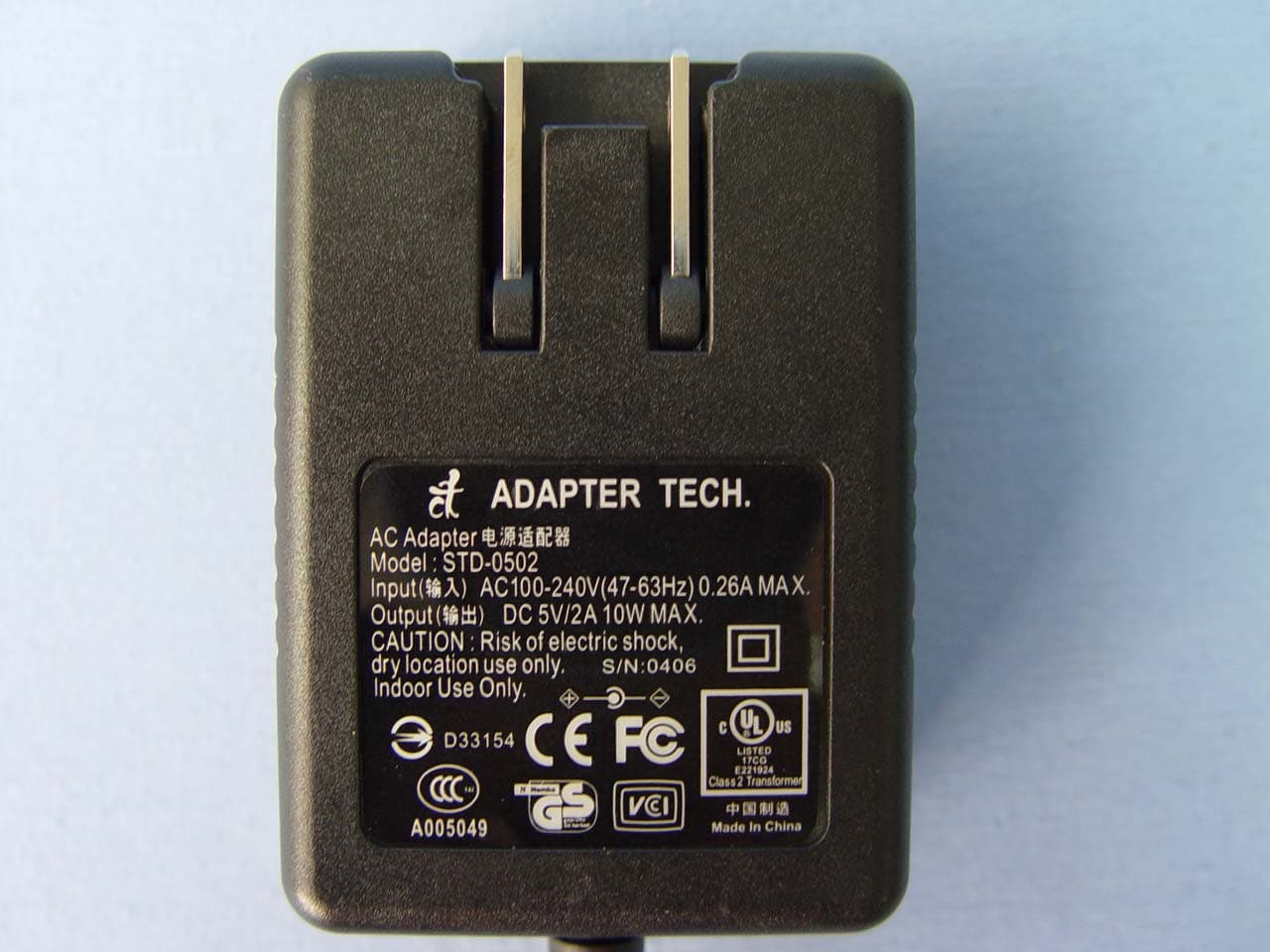

Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 1 of 11 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 2 Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 3 Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 4

Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 5 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 6 Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 7 Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 8 Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 9 Compliance Certification Services Inc. Report No: 40908002 Date of Issue: September 23, 2004 Page 10

Compliance Certification Services Inc. Report No: 40908002-RP FCC ID: SKX-LC-7215 Date of Issue: September 23, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 45 FCC 47 CFR PART 15 SUBPART C TEST REPORT For APPRO TECHNOLOGY INC. 2.4G CCD Model: LC-7215, IV-101LC-RT Trade Name: APPRO; IDEAVIEW Prepared for APPRO TECHNOLOGY INC. 13F, No.66, Chung-Cheng Rd, Hsin Chuang City, Taipei, Taiwan R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40908002-RP FCC ID: SKX-LC-7215 Date of Issue: September 23, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ................................................................................................................3 2. EUT DESCRIPTION........................................................................................................................................4 3. TEST METHODOLOGY ................................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................................5 3.2 EUT EXERCISE................................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.........................................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ....................................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................................6 4. INSTRUMENT CALIBRATION ....................................................................................................................7 5. FACILITIES AND ACCREDITATIONS ......................................................................................................8 5.1 FACILITIES ...................................................................................................................................................8 5.2 EQUIPMENT ...................................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................................10 6.1 SETUP CONFIGURATION OF EUT...................................................................................................................10 6.2 SUPPORT EQUIPMENT ..........................................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.........................................................................................................11 7.1 6 DB BANDWIDTH.........................................................................................................................................11 7.2 PEAK POWER................................................................................................................................................14 7.3 BAND EDGES MEASUREMENT............................................................................................................17 7.4 PEAK POWER SPECTRAL DENSITY.................................................................................................................22 7.5 RADIO FREQUENCY EXPOSURE.....................................................................................................................25 7.6 SPURIOUS EMISSIONS ............................................................................................................................28 7.7 POWERLINE CONDUCTED EMISSIONS...........................................................................................................41 APPENDIX 1 PHOTOGARPHS OF TEST SETUP ...........................................................................................44 Compliance Certification Services Inc. Report No: 40908002-RP FCC ID: SKX-LC-7215 Date of Issue: September 23, 2004 Page 4 2. EUT DESCRIPTION Product 2.4G CCD Trade Name LC-7215, IV-101LC-RT Model Number APPRO; IDEAVIEW Model Discrepancy All the above Models are same except the model designation, the detail description please refer as below: Trade / Model: APPRO / LC-7215 IDEAVIEW / IV-101LC-RT Power Supply M/N: STD-0502 I/P: AC 100-240V, (47-63Hz) 0.26A Max O/P: DC 5V/2A 10W Max Frequency Range 2412 ~ 2462 MHz Transmit Power 17.98 dBm Modulation Technique DSSS (CCK; DQPSK; DBPSK) Transmit Data Rate 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps Number of Channels 11 Channels Antenna Specification Swivel Antenna / Gain: 2 dBi (Max) Note: This submittal(s) (test report) is intended for FCC ID: SKX-LC-7215 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40908002-RP FCC ID: SKX-LC-7215 Date of Issue: September 23, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2001 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40908002-RP FCC ID: SKX-LC-7215 Date of Issue: September 23, 2004 Page 44 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40908002-RP FCC ID: SKX-LC-7215 Date of Issue: September 23, 2004 Page 45 Conducted Emission Set Up Photos
