SKX-RF1802.11bgn WLAN module

13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. TEL: 886-2-8992-1177 FAX: 886-2-8992-0077 Installation Instructions **End Product Labeling: The Final end product label must contain the following statement on the product label: “Contains FCC ID: SKX-RF1” ** End Product user’s manual: The end product user manual must contain the following statements; For Customers in the United States "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." A statement to caution the user that changes or modifications not expressly appproved by Appro could void the user’s authority to operate the equipment. (Reference FCC Title 47 Section 15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.” (Reference FCC Title 47 Section 15.105)

13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. TEL: 886-2-8992-1177 FAX: 886-2-8992-0077 Date: 8/12/2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA FCC ID: SKX-RF1 To whom it may concern: I, the undersigned, hereby authorize Mr. Stan Lin / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Stan Lin / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

Applicant/Grantee Appro Technology Inc. FCC ID: SKX-RF1 Section 15.212 Modular Transmitters Request for Modular Approval □ Request for Limited Modular Approval ■ Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Refer to external photos. This module doesn’t have shield cover. N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Refer to Schematics. Y 3 The modular transmitter must have its own power supply regulation. Internal 3.3V and 1.8V power regulator. Refer to schematics. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modula r approvals under paragraph (b) of this section. The antenna is integral to the device. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting The modular transmitter is not tested in a stand-alone configuration. The Module was tested with two web cameras (LC-6760 & LC-7762) Refer to test setup photos in test report. N equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Refer to label provided. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to manual Y

Report No: T140708J02 Page 1 / 13 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T140708J02 Page 2 Rev.00 LC-6760 Report No: T140708J02 Page 3 Rev.00 Report No: T140708J02 Page 4 Rev.00 Report No: T140708J02 Page 5 Rev.00 Report No: T140708J02 Page 6 Rev.00 LC-7762 Report No: T140708J02 Page 7 Rev.00 Report No: T140708J02 Page 8 Rev.00 Report No: T140708J02 Page 9 Rev.00 Report No: T140708J02 Page 10 Rev.00 AMS1-0501200FU Report No: T140708J02 Page 11 Rev.00

APPRO LC-6760 Label 項次 Model NO. System Code Note 1 LC-6760 NTSC 71752 2 LC-6760 PAL 71753 # 機台標籤 - RLB0100122 (27mm x 22mm 反銀龍) # S/N : APPRO 規則 . # MAC : APPRO 規則 . # Devicd ID : 14碼 (4前置碼 + 10亂碼). # QR CODE : 內容同 Device ID . 22mm 27mm Contains FCC ID : SKX-RF1 Made in Taiwan XX-XX-XX LC-6760 DC5V 1.2A NTSC S/N : XXXXXXXXXXXX MAC : XX-XX-XX-XX-XX-XX Device ID : XXXXXXXXXXXXXX 22mm 27mm LC-6760 DC5V 1.2A NTSC S/N : XXXXXXXXXXXX MAC : XX-XX-XX-XX-XX-XX Device ID : XXXXXXXXXXXXXX Contains FCC ID : SKX-RF1 Made in Taiwan XX-XX-XX # 內盒標籤 – Made in Taiwan XX-XX-XX 38mm 76mm Model : LC-6760 Voltage : DC5V 1.2A NTSC Serial : xxxxxxxxxx 38mm 76mm Model : LC-6760 Voltage : DC5V 1.2A NTSC Serial : xxxxxxxxxx APPRO TECH INC. Made in Taiwan XX-XX-XX # WiFi Module標籤 – (7x5mm) FCC ID : SKX-RF1

APPRO LC-6760 Label 項次 Model NO. System Code Note 1 LC-6760 NTSC 71752 2 LC-6760 PAL 71753 # 機台標籤 - RLB0100122 (27mm x 22mm 反銀龍) # S/N : APPRO 規則 . # MAC : APPRO 規則 . # Devicd ID : 14碼 (4前置碼 + 10亂碼). # QR CODE : 內容同 Device ID . 22mm 27mm Contains FCC ID : SKX-RF1 Made in Taiwan XX-XX-XX LC-6760 DC5V 1.2A NTSC S/N : XXXXXXXXXXXX MAC : XX-XX-XX-XX-XX-XX Device ID : XXXXXXXXXXXXXX 22mm 27mm LC-6760 DC5V 1.2A NTSC S/N : XXXXXXXXXXXX MAC : XX-XX-XX-XX-XX-XX Device ID : XXXXXXXXXXXXXX Contains FCC ID : SKX-RF1 Made in Taiwan XX-XX-XX # WiFi Module標籤 – (7x5mm) FCC ID : SKX-RF1 Label Location APPRO LC-6760 Label 項次 Model NO. System Code Note 1 LC-6760 NTSC 71752 2 LC-6760 PAL 71753 # 機台標籤 - RLB0100122 (27mm x 22mm 反銀龍) # WiFi Module標籤 – (7x5mm) FCC ID : SKX-RF1

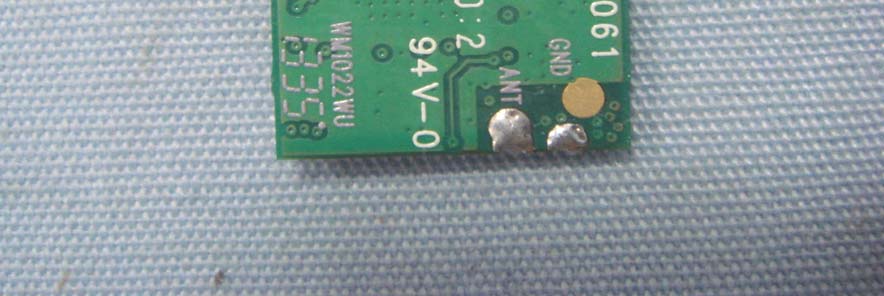

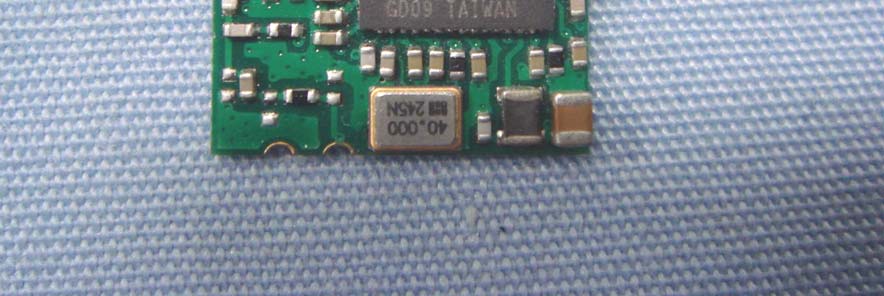

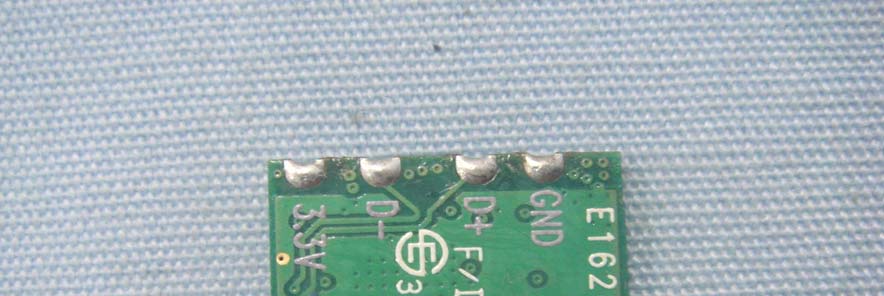

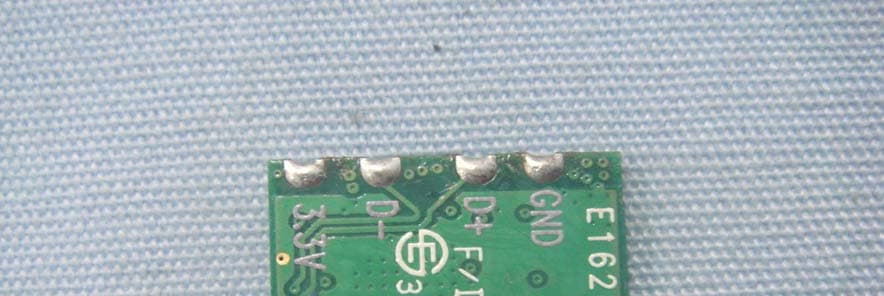

Report No: T140708J02 Page 12 Rev.00 INTERNAL PHOTOGRAPHS OF EUT LC-6760; LC-7762 Report No: T140708J02 Page 13 Rev.00 Antenna

Compliance Certification Services Inc. Report No.: T140708J02-MF Date of Issue: Spetember 3, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Module (Tested Inside of: 720P WIFI CUBE IP CAM) Model LC-6760, LC-7762 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :2.70 dBi (Numeric gain:1.86) Maximum Average output power IEEE 802.11b Mode: 18.84 dBm(76.560 mW) IEEE 802.11g Mode: 13.51 dBm(22.439 mW) IEEE 802.11n HT 20 Mode: 13.34 dBm(21.577 mW) IEEE 802.11n HT 40 Mode: 12.80 dBm(19.055 mW) Maximum Tune up Power IEEE 802.11b Mode: 20.00 dBm(100.000 mW) IEEE 802.11g Mode: 17.00 dBm(50.119 mW) IEEE 802.11n HT 20 Mode: 16.00 dBm(39.811 mW) IEEE 802.11n HT 40 Mode: 16.00 dBm(39.811 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140708J02-MF Date of Issue: Spetember 3, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/09/03 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Report No.: T140708J02-MF Date of Issue: Spetember 3, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140708J02-MF Date of Issue: Spetember 3, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 124121001.86200.03701 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243750.1191.86200.01861 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243739.8111.86200.01471 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243739.8111.86200.01471

Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 1 / 89 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11bgn WLAN module Model: AP-WM1022WU Trade Name: APPRO Issued to APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 7, 2014 Initial Issue All Iren Wang Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................11 5.1 FACILITIES........................................................................................................................11 5.2 LABORATORY ACCREDITATIONS AND LISTING ...........................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 13 6.1 SETUP CONFIGURATION OF EUT................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 FCC PART 15 REQUIREMENTS....................................................................................... 14 7.1 6DB BANDWIDTH............................................................................................................ 14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .......................................................................................................... 24 7.4 BAND EDGES MEASUREMENT ..................................................................................... 26 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 50 7.6 SPURIOUS EMISSIONS.................................................................................................. 58 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 82 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................. 85 9 APPENDIX II: PHOTOGRAPHS OF EUT.......................................................................... 89 Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Manufacturer: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Equipment Under Test: 802.11bgn WLAN module Trade Name: APPRO Model: AP-WM1022WU Date of Test: July 8 ~ 22, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manager Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 5 Rev.00 2 EUT DESCRIPTION Product 802.11b…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 85 Rev.00 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 86 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 87 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T140708J02-RP1 FCC ID: SKX-RF1 Date of Issue: August 7, 2014 Page 88 Rev.00 Powerline Conducted Emissions Setup Photos
