SKX-NVR-2028Wireless Network Video Recorder

1 SAFETY PRECAUTIONS All the following safety and operational instructions for the prevention of harm or damage to the operator and other persons should be read before the unit is operated. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not block ventilation openings. Do not place anything on top of the unit that might spill or fall into it. Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Please refer all servicing to qualified service personnel. Do not use liquid cleaners or aerosols for cleaning. This installation should be by a qualified service person and should conform to all local codes. To prevent fire or electric shock, do not overload wall outlets or extension cord. This unit must be grounded to reduce the risk of electric shock hazard. CAUTION Danger of explosion if the Lithium battery (RTC Battery) is incorrectly replaced. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Risk of explosion if replaced by an incorrect type. Dispose of used batteries according to the instructions. FCC B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more o f the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna o r transmitter. Notice: 1. A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential tha t only the supplied power cord by used. 2. Use only shielded cables to connect I/O devices to this equipment. 3. Changes or modifications not expressly approved by the party responsible fo r compliance could void the user’s authority to operate the equipment. 2 Table Of Contents 1. PRODUCT FEATURES .................................................................................................. 4 1.1 Product Introduction .................................................................................................................. 4 1.2 Product Features ........................................................................................................................ 4 2. DESCRIPTION OF THE FRONT/REAR VIEW............................................................... 6 2.1 Front View .................................................................................................................................. 6 2.2 Rear View ................................................................................................................................... 9 2.3 ALARM In/Out ......................................................................................................................... 10 3. INSTALLATION ............................................................................................................ 11 3.1 Basic Connection ..................................................................................................................... 11 3.2 Hard-Disk Drive Installation ................................................................................................... 13 3.3 System Information .................................................................................................................. 14 3.4 Updating System Software ....................................................................................................... 15 4. BASIC OPERATIONS .................................................................................................. 16 4.1 Configuring Recording Settings ............................................................................................... 16 4.2 Recording Operations .............................................................................................................. 17 4.3 Playback Operations................................................................................................................ 24 4.4 Search Operations.................................................................................................................... 26 4.5 Backup Operations................................................................................................................... 29 4.6 Key Lock Operation ..............................…

Text truncated - open the document above for the full version.

1 Helen Zhao Subject:FW: ??: FW: APPRO TECHNOLOGY INC, FCC ID: SKX-NVR-2028, Assessment NO.: AN05T4635, Notice#1 (revised) NVR-2028 Internal Pho Revised ... NVR-2028 Test Rpt Revised 0311... TCB Question - Bandedge plots.... TCB Question - Test Setup.pdf From: [email protected] Sent: Friday, March 11, 2005 1:00 AM To: Helen Zhao Cc: [email protected] Subject: ??: FW: APPRO TECHNOLOGY INC, FCC ID: SKX-NVR-2028, Assessment NO.: AN05T4635, Notice#1 (revised) Dear Helen, Please refer to below for our reply. Best Regards, Ting Question #1: Bandedge test plots on the test report do not show either the correct readings or correct frequencies of the mark, the display lines are shown incorrectly. Please refer to the attached "TCB Question - Bandedge plots.pdf" for details. Please resubmit test plots with correct setting (max hold), correct mark, correct display line. Ans #1: Please refer to attached revised test report. FYI: It's caused when converted the report from word file to pdf file. Question #2: There are two systems under the filing with different digital design. It is ususally criticle with bandedge testing. The test report includes one set of bandedge measurement (on NVR-2028) which is marginal. Please provide bandedge measurement on IV-810VS as well. Ans #2: The bandedge measurement on IV-810VS has been done and added in the test report. Please refer to it. Question #3: Please check page 47 of the test report to verify if 4824MHz is a typo to list as the 2nd harmonic frequency for mid channel. Ans #3: This is typo and page 55 of the test report was corrected. Please refer to the attached report. Question #4: Please provide solder side photos of control panel of NVR-2028 and IV-810VS. Ans #4: The internal photo has been added side photos of control panel of NVR-2028 and IV-810VS. Please refer to the attached. 2 Question #5: The setup photos show one more item on the turn table other than those listed on the report. Please refer to the attached "TCB Question - Test Setup.pdf" and explain what it is. Ans #5: It's a load for supporting test and has been listed in the revised test report. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

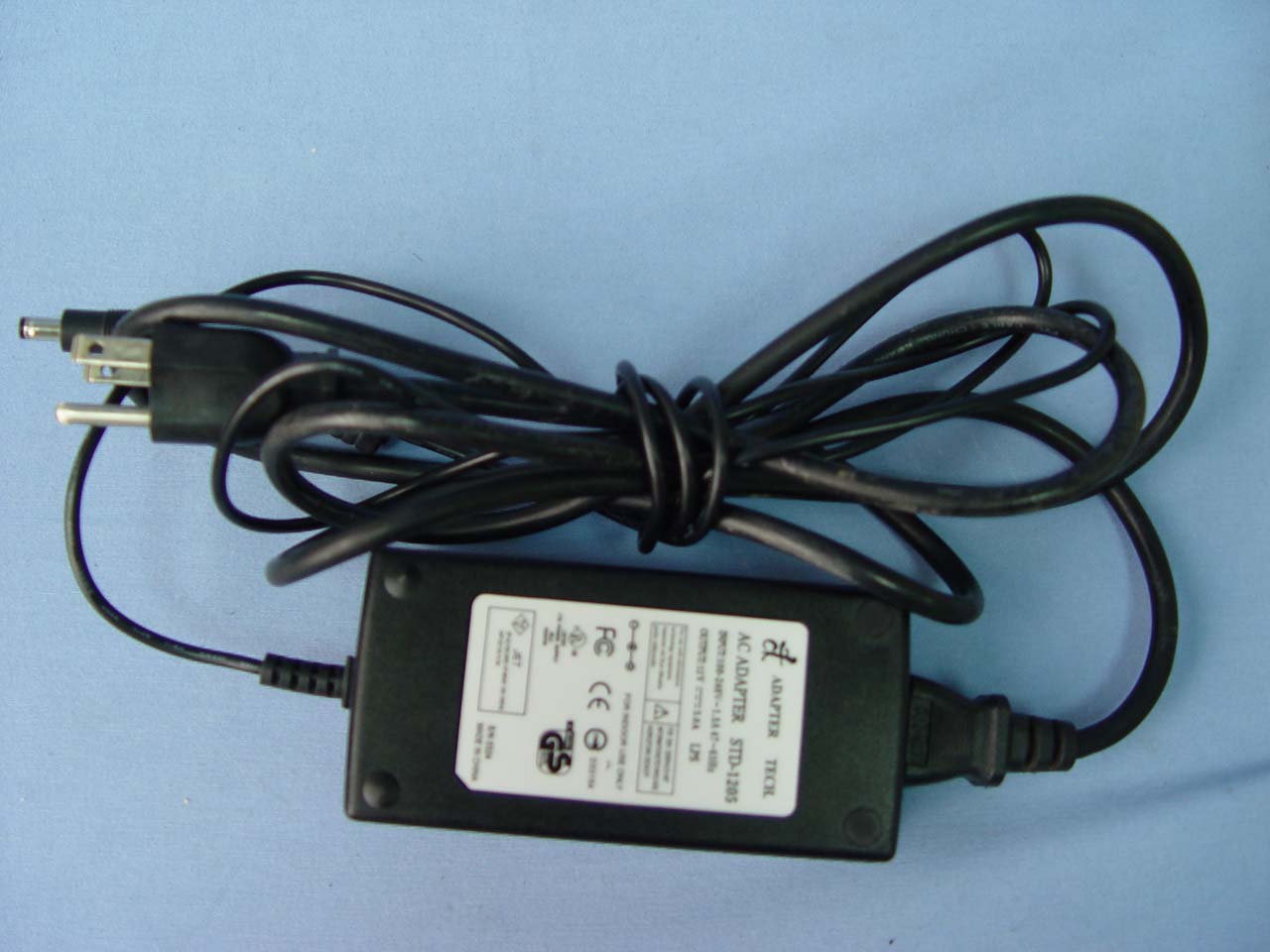

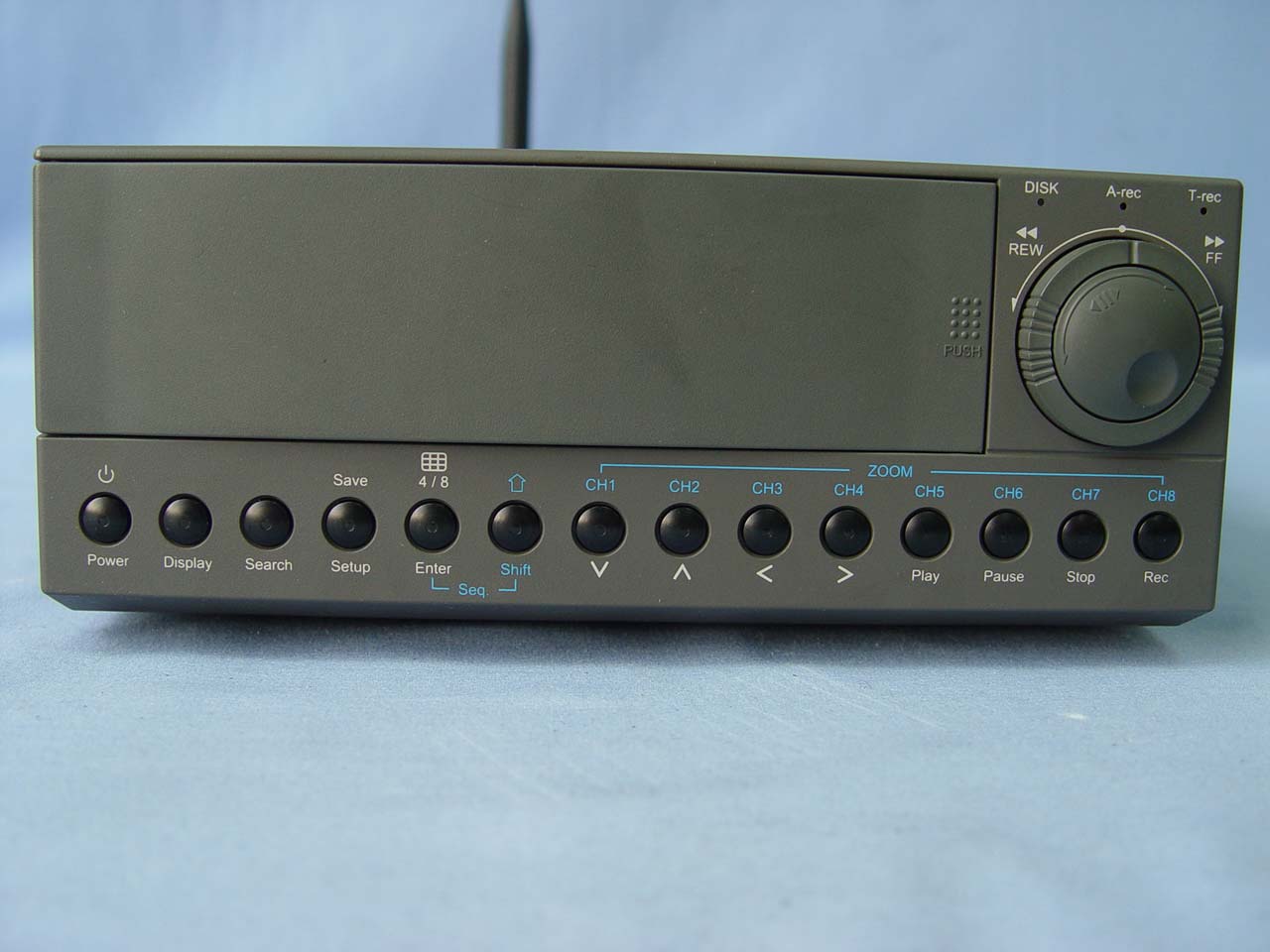

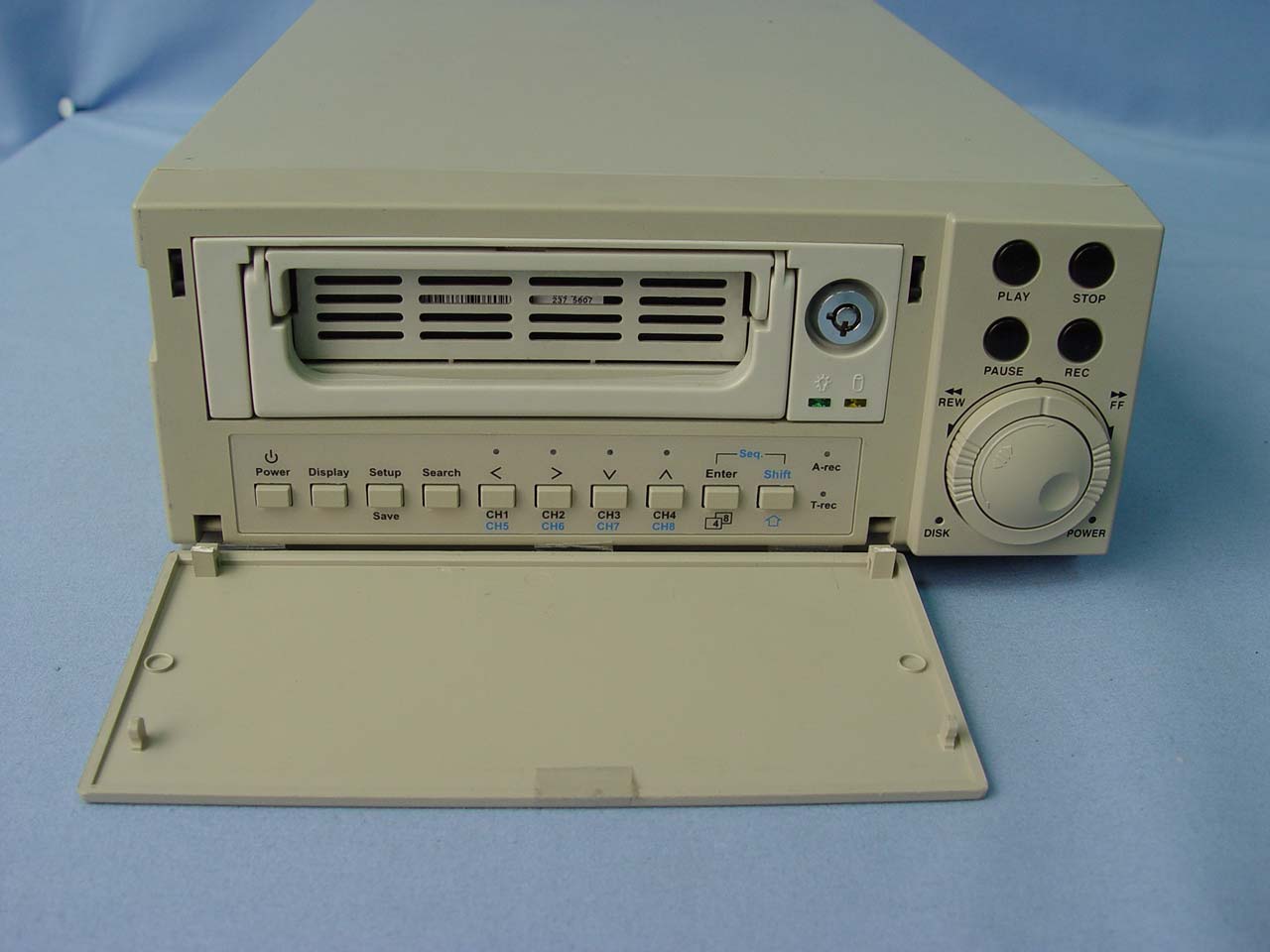

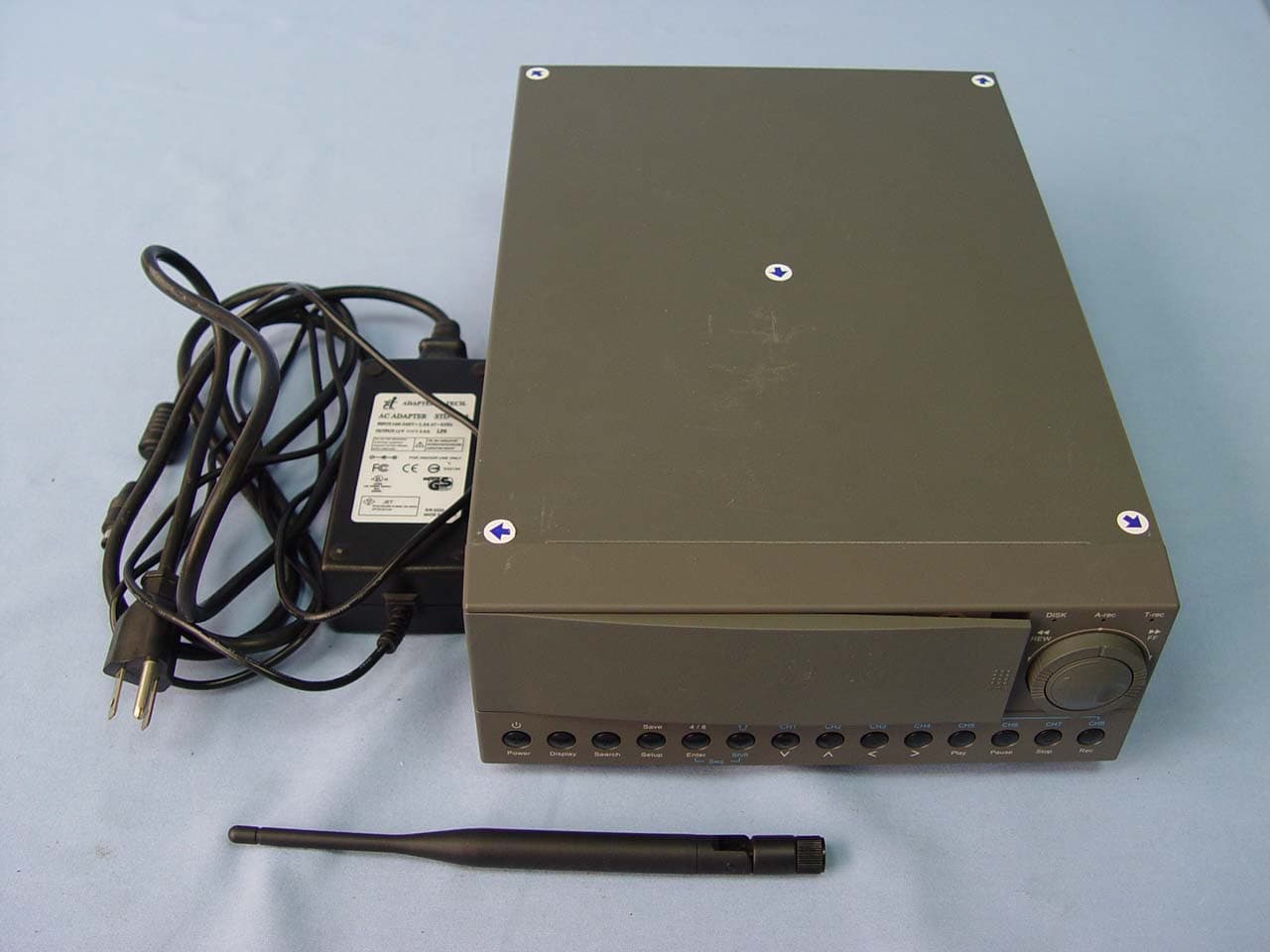

Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 1 Total Page: 12 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT NVR-2028 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 3 Rev. 00 IV-810VS Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 5 Rev.00

Model : NVR-2028 Voltage : DC12V 5.0A NTSC Serial : xxxxxxxxxx 80G FCC ID : SKX-NVR-2028 UPC-A Code-39 38mm 76mm Tested To Comply With FCC Standards FOR HOME OR OFFICE USE ！ APPRO TECHNOLOGY INC. Made in Taiwan XX-XX

Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT NVR-2028 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 10 Rev.00 IV-810VS Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 11 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 12 Rev.00

Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 13 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 14 Rev.00 NVR-2028 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 15 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 16 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 17 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 18 Rev.00 Compliance Certification Services Inc. Report No: 41028004 Date of Issue: February 18, 2005 Page 19 Rev.00

Compliance Certification Services Inc. Report No.: 41028004-RP1 FCC ID: SKX-NVR-2028 Date of Issue: March 11, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 64 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Network Video Recorder Trade Name / Model Number: APPRO / NVR-2028 IDVIEW / IV-810VS Issued to APPRO TECHNOLOGY INC 13F, No.66, Chung-Cheng Rd, Hsin Chuang City, Taipei, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 41028004-RP1 FCC ID: SKX-NVR-2028 Date of Issue: March 11, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 2 Total Page: 64 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION.....................................................................................................7 5. FACILITIES AND ACCREDITATIONS .......................................................................................8 5.1 FACILITIES .... .................................................................................................................................8 5.2 EQUIPMENT....................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS..........................................................................................11 7.1 6 DB BANDWIDTH..........................................................................................................................11 7.2 PEAK POWER.................................................................................................................................16 7.3 BAND EDGES MEASUREMENT .............................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY.................................................................................................38 7.5 RADIO FREQUENCY EXPOSURE.....................................................................................................43 7.6 SPURIOUS EMISSIONS .............................................................................................................46 7.7 POWERLINE CONDUCTED EMISSIONS............................................................................................60 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ...........................................................................63 Compliance Certification Services Inc. Report No.: 41028004-RP1 FCC ID: SKX-NVR-2028 Date of Issue: March 11, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: APPRO TECHNOLOGY INC 13F, No.66, Chung-Cheng Rd, Hsin Chuang City, Taipei, Taiwan, R.O.C. Equipment Under Test: Wireless Network Video Recorder Trade Name / Model Number: APPRO / NVR-2028 IDVIEW / IV-810VS Date of Test: December 15, 2004 ~ March 11, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Harris W. Lai Gavin Lim Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 41028004-RP1 FCC ID: SKX-NVR-2028 Date…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 41028004-RP1 FCC ID: SKX-NVR-2028 Date of Issue: February 18, 2005 Page 55 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: 41028004-RP1 FCC ID: SKX-NVR-2028 Date of Issue: February 18, 2005 Page 56 Rev. 00 Conducted Emission Set Up Photos
