SLC288040918Tot Rescue

Product Description The Tot Rescue device is a more advanced version of the standard Child Locator Decal that parents or family place on the window of a child’s room to notify emergency personal when they arrive at the residence what rooms children may be located in. The Tot Rescue device simply mounts to any window via suction cups. The device is NOT a smoke detector and cannot, by itself, sense any kind of smoke or fire. However, the device does work in conjunction with a Sound Driver (REV 4) and any standard smoke alarm(not voice alarm). The Sound Driver is placed near by any standard smoke alarm and senses the audible alarm given off by that smoke alarm. When the Sound Driver device senses this audible alarm it sends a radio frequency (RF) communication signal to the Tot Rescue device (REV 4). When the Tot Rescue device receives this RF signal it sounds its own audible alarm and the LEDs facing out the window begin to flash. There are 18 green LEDs and one blue LED in the middle that face the window. The blue LED can be turned on or off by a switch on the other side of the housing. The blue LED is used to indicate that a pet is in the room. Here are some of its excellent features: 1. Advanced version of the Standard Child Locator Decal 2. One Sound Driver can control many Tot Rescue 3. Button for registration for both Sound Driver and Tot Rescue 4. Low battery indicated 5. Brightness LEDs with reflector to increase the brightness and 85 dB Audible alarm to notify emergency personal 6. Easy to install 7. Self test to make sure the units are normal for home safety 8. Addition Pet indicated Blue LED 1 2 3 1. On/STBY/Off mode switch- The unit has three modes of operation, On, Standby and Off. The user can switch to On position to enter the test mode (recommend to do the test after the installation, please see “Installation and Operation Steps 9 Self Test”. Switch to “STBY” for Standby mode. Switch the mode switch to the OFF position to reset the device in the event of a false alarm or to simply shut off the device after an alarm has been signaled. (Twin 2) 2. Power indicator- If the device is turned off the LED will not blink. When is Standby mode, if the battery power is adequate the LED will flash once every 30 seconds. If the device sensor the firm alarm, the Red LED will flash really fast. For low battery indication the device will “chirp”(beep and the power indicator light will flash). (Twin 2) 3. Registration button- 4 5 6 7 4. Pet indicator On/Off- The unit has two modes of operation, On and Off. The user can switch to On position to turn on the Pet indicator Blue LED if you have Pet in your room. 5. Registration button 6. On/Standby/Off mode switch – The unit has three modes of operation, On, Standby, and Off. The user can manually trigger the alarm by switching it to the ON position. In Standby mode, when the device receives the RF signal from the Sound Driver (REV 4) it is triggered. Note that in the event of a fire alarm if the unit is switched off it will not signal an alarm. (REV 3 – added manual ON mode function). Switch the mode switch to the OFF position to reset the device in the event of a false alarm or to simply shut off the device after an alarm has been signaled 7. Power indicator – the unit has one red LED above the On/Standby/Off switch. If the device is turned off the LED will not blink. When in Standby mode, if the battery power is adequate the LED will flash once every 30 seconds. When an alarm is signaled or the unit is switched to the ON position, the LED will be flash really fast. For low battery indication the device will “chirp” (beep and the power indicator light will flash). (Twin 2) 8 9 10 8. Warning LEDs- A total of 18 (REV 4) Red LEDs on the front – facing out the window – LEDs are configured as indicated in concept 2.0 dated 03-23-04 - (4) 5mm LEDs on the longer reflector, and (2) 5mm LEDs on the shorter reflector, (6) total reflectors. 9. Pet Blue LED indicator light 10. Mounting – the device mounts to any window via 3 suction cup mounts Installation and Operation Steps: 1. Inset 4 AA batteries to both Sound Driver and Tot Rescue 2. Turn on the Sound Driver to STBY (Twin 2) position, the Red LED indicator light will flash 3 times and “Beep” 3 times. Then it will enter the standby mode. The Red LED indicator will flash once every 30 seconds. That means the device is in normal operation status. 3. Turn the Tot Rescue to the STBY mode, the Red LED indicator light will flash 3 times and “Beep” 3 times. Then it will flash once every 30 seconds. That means the device is in normal operation status. 4. Before mount the Tot Rescue to windows and Sound Driver to Wall, user must do the Registration for Tot Rescue and Sound Driver.- a. Press and Hold the registration button on the Tot Rescue b. Press hold the registration button on the Sound Driver. When you hear “Beep”, release both registration button. That means the registration is complete. Then it will enter standby mode. c. If you want to register other Tot Rescue with same Sound Driver, repeat step “a’ and “b” d. If you want to register other Sound Driver with same Tot Rescue, repeat step “a’ and “b’(Twin 2) Note: One Sound Driver can register with many Tot Rescue. However, one Tot Rescue only can register with 10 Sound Driver. When you register the 11 th Sound Driver, then the 1 st Sound Driver registration will automatic delete. 5. Clean the window before mount the Tot Rescue to any windows via 3 suction cup mounts. 6. Place the Sound Driver close to the Firm alarm, for better performance. 7. Mount the Sound Driver to wall or ceiling via double sided sticky tape 8. Between the Sound Driver and Tot Rescue, the maximum distance is 100 ft. Because this is the wireless device, the distance depends on the environment 9. Self test- a. Switch to STBY position on the Tot Rescue b. Switch to On position on the Sound Driver(Twin 2), the Red LED indicator light will flash really fast. Tot Rescue receives the RF s…

Text truncated - open the document above for the full version.

U1 MCU MDT2005 U3 ASK315TX ANT 315MHZ TEST CODE AUDIO-AMP A/D +VCC SOUND DIVER BLOCK DIAGRAM(315MHZ) CODE LED

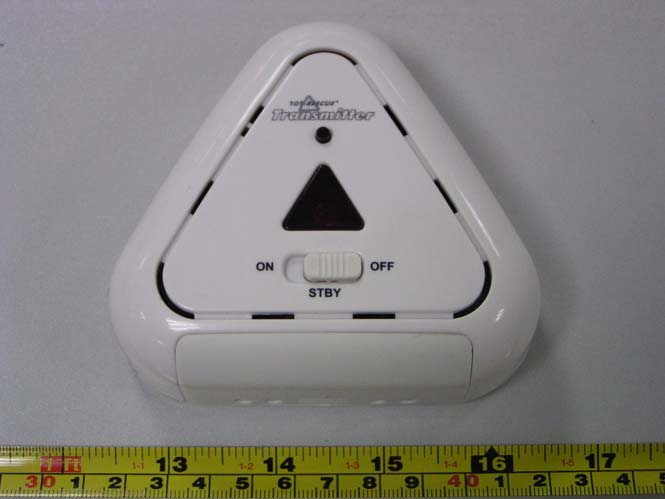

External Photos

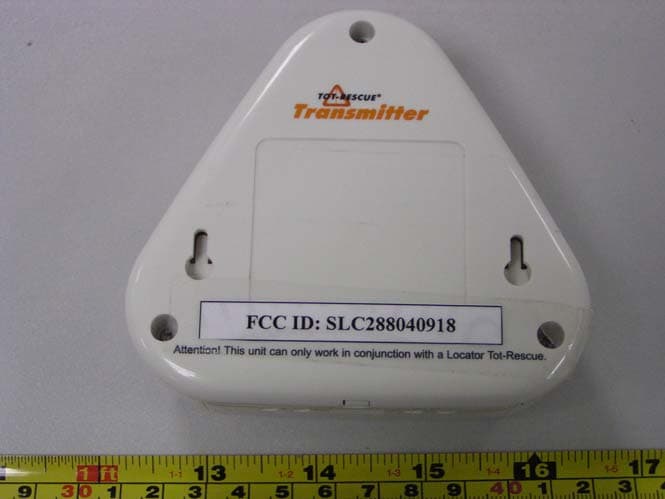

ID Label Label FCC ID: SLC288040918

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos

Diagram Description: When the fire alarm is in working status, it will has “B” sound. After the microphone sensor the fire alarm sound, from the Audio-AMP it will increase the audio. Then it will export to A/D. A/D will transfer the digital signal, then import to MCU. MC U will run, after it get confirm the signal. Then it will export the system code to U3 ASK315 transmit out. And also it will export the feature code to U3, then transmit out.

report.rep Bill Of Materials for SOUND.SCH on Wed Sep 22 10:05:25 2004 ----------------------------------------------------------------------------------------------------- Item Qty Reference VALUE VALUE1 VALU2 Part Name Manufacturer Description ----------------------------------------------------------------------------------------------------- 1 1 Q1 9014 2 1 Q2 9014 3 1 Q3 9015 4 1 X1 1MHZ 5 1 D21 1N4148 6 1 U2 24C01A 7 1 U3 ASK315TX 8 1 BATT1 3V BATT 9 1 U5 BUZZER 10 1 C2 10UF/1 C+1 0V 11 1 C8 10UF/1 C+1 0V 12 1 C1 47PF CAPSMD 13 1 C3 47PF CAPSMD 14 1 C4 104 CAPSMD 15 1 C5 102 CAPSMD 16 1 C6 104 CAPSMD 17 1 C7 104 CAPSMD 18 1 C9 104 CAPSMD 19 1 C10 104 CAPSMD 20 1 K1 CODE K-2 KEY 21 1 K2 TEST K-2 MODE 22 1 K3 POWER- K-2 SWITCH 23 1 D1 LED LIGHT EMITTING DIODE 24 1 U1 MDT2005 25 1 MIC1 MIC 26 1 R1 10K RESSMD 27 1 R2 10K RESSMD 28 1 R3 10K RESSMD 29 1 R4 10K RESSMD 30 1 R5 100K RESSMD 31 1 R6 680K RESSMD 32 1 R7 470K** RESSMD * 33 1 R8 220 RESSMD 34 1 R9 100K RESSMD 35 1 R10 1K RESSMD 36 1 R11 1M RESSMD 37 1 R12 10K RESSMD 38 1 R13 4.7K RESSMD 39 1 R14 1M RESSMD 40 1 R15 10K RESSMD 41 1 R16 10K RESSMD 42 1 R17 47K RESSMD 43 1 R18 1K RESSMD 第 1 页 PDF created with pdfFactory trial version www.pdffactory.com

TOT-TV2.SCH-1 - Tue Oct 12 21:37:33 2004 PDF created with pdfFactory trial version www.pdffactory.com

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For TwinPro International Holdings Limited Flat 2, Floor 15, Foo Tat Building, 50 Soy Street, Mongkok, Kowloon, Hong Kong FCC ID: SLC288040918 October 25, 2004 This Report Concerns: Original Report Equipment Type: Low Power transmitter Test Engineer: William Chen Report No.: RSZ04092301a Test Date: October 18-20, 2004 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. ShenZhen 6/F, the 3nd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: 86-755-33320018 Fax: 86-755-33320008 TwinPro International Holdings Limited FCC ID: SLC288040918 Report # RSZ04092301a.doc Page 2 of 12 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVEI8 ................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................4 SUMMARY OF TEST RESULTS ...............................................................................................................................5 §15.231 (A)- RADIATED EMISSION .........................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 SPECTRUM ANALYZER SETUP......................................................................................................................................6 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST DATA..................................................................................................................................................................8 §15.231(C) –20DB BANDWIDTH TESTING .............................................................................................................9 REQUIREMENT.............................................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 §15.231(A)-DEACTIVATION TESTING .................................................................................................................11 REQUIREMENT...........................................................................................................................................................11 EUT SETUP................................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TwinPro International Holdings Limited FCC ID: SLC288040918 Report # RSZ04092301a.doc Page 3 of 12 FCC Part 15.231 …

Text truncated - open the document above for the full version.

Test Setup Photos
