SLCTP256BHMWireless Rechargeable Speakers (Remote Controller)

Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled Environment

COMPANY: <QC By> <Released By> <Release Date> <Scale> 1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD ABCD DATE: 1 2 3 4 5 6 DCBA LTR ECO NO: APPROVED: GND 2032 Antenna433.92MHZ Q1(2SC3356) F1(SAW433.92MHZ) L1 Inductance Oscillate ASK Modulate DATA OUTPUT +VCC MCU U28BIT Interior Oscillate 4MHZ Battery 3V TP256-Remote Block Diagram LiangYongZhi 2007 433.92MHz Keyboard C2 C4 R3 C8 VOLUMEBASSTREBLEMUTELIGHTPRESET

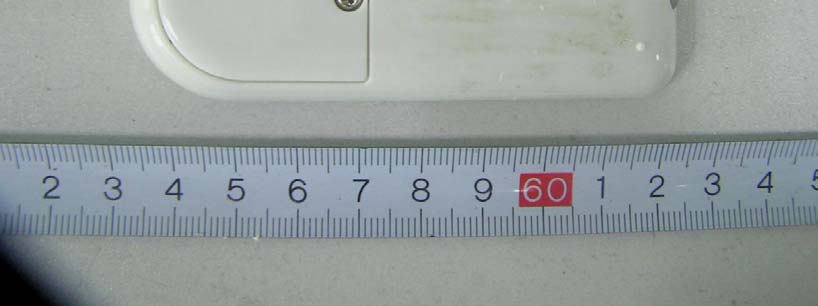

External Photos EUT – Front View EUT – Rear View

ID Label/Location FCC ID Label Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. ID Location: FCC ID: SLCTP256BHM

Internal Photos EUT – Battery Uncovered View EUT –Uncovered View EUT –Main Board Component View EUT –Main Board Circuit View

TP256 Remote circuit description This transmitting circuit mainly separate three main parts: a. Main control (IC) b. From Audion (Q1), Surface Acoustic Wave F1, Chip inductor L1, electrical capacitance C2, C4 and electrical resistance R3 combine to become UHF frequency 433.92 MHz. c. Use Q2 switch audion to become a ASK modulation. Circuit description The main control is an internal 4 MHz MCU, all coding and function is control by software. When MCU receives “HELP” comment, the GPO will export 400US/800US code. The codes is controlled though the High/Low translator, it combine with Q1 audion, F1 Surface acoustic, L1 Chip inductor, C2 electrical capacitance for 433.92 MHz circuit transmit and not transmit to achieve ASK modulation. Vibration signal is though electrical capacitance ANTO1 and C6, C7, L3 combine a filter, then transmit out thought the antenna.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen) This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. FCC PART 15.231 MEASUREMENT AND TEST REPORT For TwinPro International Holdings Limited Flat 2, Floor 15, Foo Tat Building, 50 Soy Street, Mongkok, Kowloon, Hong Kong FCC ID: SLCTP256BHM This Report Concerns: Original Report Equipment Type: Wireless Outdoor/Indoor Rechargeable Speakers (Remote Controller) Test Engineer: Andy Yan Report Number: RSZ07070306 Test Date: 2007-07-14 to 2007-07-27 Report Date: 2007-09-19 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 TwinPro International Holdings Limited FCC ID: SLCTP256BHM Report No.: RSZ 07070306 Page 2 of 20 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................8 §15.205, §15.209, §15.231 (B) - RADIATED EMISSIONS ........................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST DATA................................................................................................................................................................11 §15.231(C) - 20DB BANDWIDTH TESTING...........................................................................................................12 REQUIREMENT...........................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA......................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emissions - Front View, 30 MHz-1000 MHz Radiated Emissions - Rear View, 30 MHz-1000 MHz Radiated Emissions - Front View, Above 1 GHz Radiated Emissions - Rear View, Above 1 GHz
