SLFEF-B205Portable Mini Bluetooth Speaker

FCC ID: SLFEF-B205 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Maximum ouput power 3mW 't 't 't 't 't changed Do's and Do nots

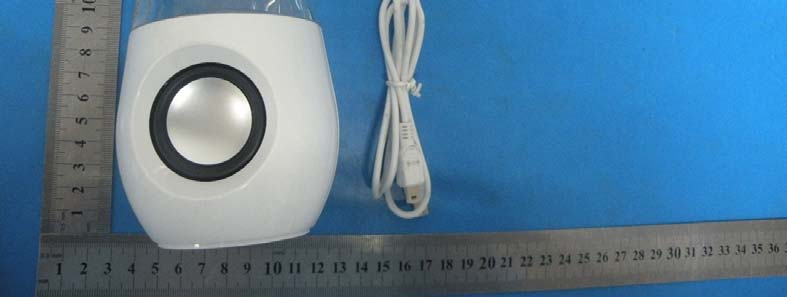

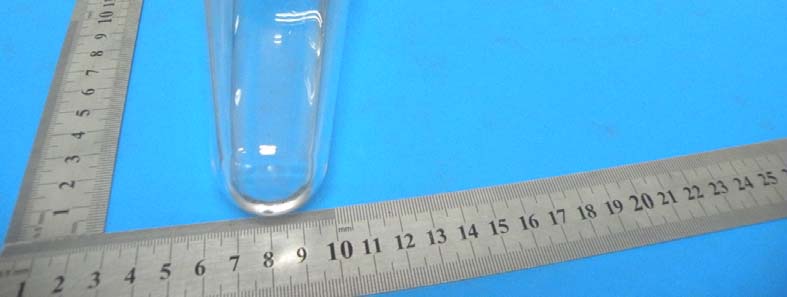

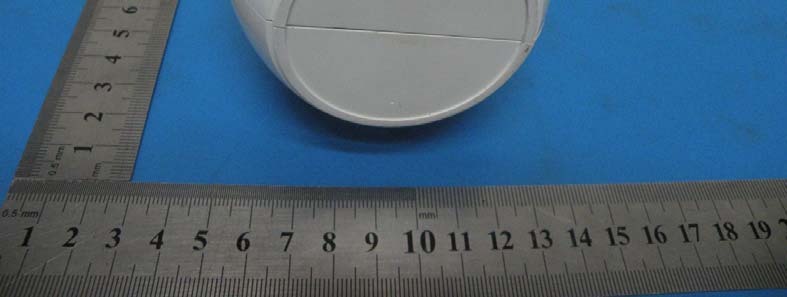

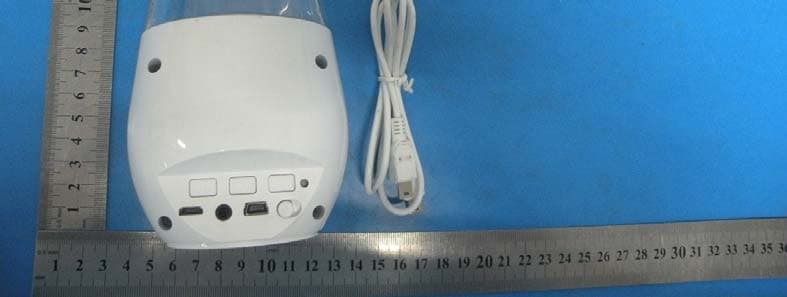

Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 71 of 78 13. Photos of EUT Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 72 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 73 of 78

Label and Location FCC ID: SLFEF-B205

Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 74 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 75 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 76 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 77 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 78 of 78 ---------END OF THE REPORT-------

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: SLFEF-B205 Page 1 of 78 TEST REPORT FCC ID: SLFEF-B205 Applicant : Shenzhen Wanfengda Electronics Co., Ltd. Address : 2F, Building 1, Hezhou Yuye Industrial Zone, Xixiang, Bao’ an, Shenzhen. Equipment Under Test (EUT): Name : Dancing Water Speakers Model : EF-B205 In Accordance with: FCC PART 15, SUBPART C : 2013 (Section 15.247) Report No : CST-TCB140325012 Date of Test : March 27, 2014 to April 07, 2014 Date of Issue : April 09, 2014 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 2 of 78 Contents 1. General Information............................................................................................................... 4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................4 1.3. Test Lab information ............................................................................................4 2. Summary of test ...................................................................................................................... 5 2.1. Summary of test result .........................................................................................5 2.2. Assistant equipment used for test.........................................................................5 2.3. Block Diagram .....................................................................................................6 2.4. Test mode .............................................................................................................6 2.5. Test Conditions.....................................................................................................7 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................7 2.7. Test Equipment.....................................................................................................8 3. Maximum Peak Output power .............................................................................................. 9 3.1. Limit .....................................................................................................................9 3.2. Test Procedure ......................................................................................................9 3.3. Test Setup .............................................................................................................9 3.4. Test Result ............................................................................................................9 4. Bandwidth ............................................................................................................................. 10 4.1. Limit ...................................................................................................................10 4.2. Test Procedure ....................................................................................................10 4.3. Test Result ..........................................................................................................10 5. Carrier Frequency Separation............................................................................................. 16 5.1. Limit ...................................................................................................................16 5.2. Test Procedure ....................................................................................................16 5.3. Test Result ..........................................................................................................16 6. Number Of Hopping Channel ............................................................................................. 22 6.1. Limit ...................................................................................................................22 6.2. Test Procedure ....................................................................................................22 6.3. Test Result ..........................................................................................................22 7. Dwell Time............................................................................................................................. 26 7.1. Test limit ............................................................................................................26 7.2. Test Procedure....................................................................................................26 7.3. Test Results ........................................................................................................26 8. Radiated emissions................................................................................................................ 32 8.1. Limit ...................................................................................................................32 8.2. Block Diagram of Test setup ...................................................................…

Text truncated - open the document above for the full version.

Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 51 of 78 Highest CH: Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 52 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 53 of 78 Hopping mode: Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 54 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 55 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 56 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 57 of 78 8-DPSK Lowest CH: Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 58 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 59 of 78 Highest CH: Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 60 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 61 of 78 Hopping mode: Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 62 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 63 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 64 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 65 of 78 10. Power Line Conducted Emissions 10.1. Block Diagram of Test Setup 10.2. Limit Maximum RF Line Voltage Frequency Quasi-Peak Level dB(μV) Average Level dB(μV) 150kHz ~ 500kHz 66 ~ 56* 56 ~ 46* 500kHz ~ 5MHz 56 46 5MHz ~ 30MHz 60 50 Notes: 1. * Decreasing linearly with logarithm of frequency. 2. The lower limit shall apply at the transition frequencies. 10.3. Test Procedure (1) The EUT was placed on a non-metallic table, 80cm above the ground plane. (2) Setup the EUT and simulator as shown in 10.1 (3) The EUT Power connected to the power mains through a power adapter and a line impedance stabilization network (L.I.S.N1). The other peripheral devices power cord connected to the power mains through a line impedance stabilization network (L.I.S.N2), this provided a 50-ohm coupling impedance for the EUT (Please refer to the block diagram of the test setup and photographs). Both sides of power line were checked for maximum conducted interference. In order to find the maximum emission, the relative positions of equipments and all of the interface cables were changed according to ANSI C63.4 2003 on conducted Emission test. (4) The bandwidth of test receiver is set at 10KHz. (5) The frequency range from 150 KHz to 30MHz is checked. 10.4. Test Result PASS. (See below detailed test data) EUT LISN LISN PC System 80cm Receiver :50Ω Terminat or 0.8m Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 66 of 78 Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 67 of 78 Note: If QP Result comply with AV limit, AV Result is deemed to comply with AV limit Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 68 of 78 11. Antenna Requirements Standard requirement: FCC Part15 C Section 15.203 /247(c) 15.203 requirement: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 15.247(c) (1)(i) requirement: (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. E.U.T Antenna: The antenna is PCB antenna, which permanently attached, and the best case gain of the antenna is 0 dBi. BT Antenna

Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 69 of 78 12. Test setup photo 12.1. Photos of Radiated emission Report No.: CST-TCB140325012 FCC ID: SLFEF-B205 Page 70 of 78 12.2. Photos of Conducted Emission test
