SLQ-E01903-ABK-1MINI WIRELESS OPTICAL MOUSE

PR10670_KeyPad_Mouse_Cover.indd 115/8/05 10:39:38 am Wireless Keypad & Calculator and Mini Optical Mouse SD-E01502-BBK-1 SD-E01903-ABK-1 3 Introduction Contents System Requirements Hardware Operating System Setup Installing the Batteries Optical Mouse Wireless Keypad Connecting the Receiver Identification Code Setting the Identification Code Optical Mouse Wireless Keypad Button Function Setup Instruction MULTI MEDIA BUTTON Instruction Key Functionality Calculator/Keypad Send Result Number Lock Specification Specification wireless keypad Specification wireless mouse FCC/CE Statement DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY Caution: Exposure to Radio Frequency Radiation Federal Communications Commission Notice Europe-European Union Notice Lifeti me Product Warranty TABLE OF CONTENTS PR10670_KeyPad_Mouse_en.indd 315/8/05 3:14:07 pm 4 Contents In addition to this user’s guide, this package contains: • Wireless Keypad • Wireless Mini Optical Mouse • USB Receiver • USB extension cable • 3xAAA batteries (2 for mouse, 1 for keypad) Introduction Con gratulations on your purchase of the wireless keypad & calculator & mini optical mouse. This set offers the latest technology for interference-free operation with 27MHz wireless connection and 4,096 Ids (2048 ID for the mouse) per channel. Both keypad and mouse feature on/off switch and auto power saving management for effective power conservation. This user’s guide describes how to connect the receiver to your computer, install default software drivers and set up the radio link. System Requirements To use the keypad and mouse, your computer must meet the following hardware requirements and run one of the operating systems listed below. Hardware • PC with an Intel® Pentium® processor or equivalent • USB 1.1 interface Operating System • Windows 95/Windows 98/WinNT /Windows me /WinXP /Windows 2000 • Driver required in Win95 /Win98 /WinNT INTRODUCTION PR10670_KeyPad_Mouse_en.indd 415/8/05 3:14:08 pm 5 Install drivers before plugging in the device Installing the Batteries Optical Mouse • Remove the battery cover from the top of the mouse by using release mechanism on the underside of the mouse. • Insert the supplied batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery housing. • Slide the battery cover back into position until it “clicks” firmly into place. • Turn on the mouse by sliding the on/off switch on the bottom of the mouse to the “on” position. • The optical sensor, located on the bottom of the mouse will glow red. SETUP PR10670_KeyPad_Mouse_en.indd 515/8/05 3:14:09 pm 6 Wireless Keypad • Remove the battery cover located on the bottom of the keypad. • Insert the supplied batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery housing. • Turn on the keypad by sliding the Power switch on the underside of the keypad to the “on” position. WARNINGS: When replacing the batteries, you may use alkaline or other heavy-duty NiMH batteries. Never combine an alkaline with a NiMH battery in a device. Avoid mixing new and used batteries in a device. Connecting the Receiver To connect the receiver: • Plug the USB receiver into an available USB port on your computer. • Follow any on-screen instructions to complete the default driver installation. • The “Lock LED” light turns on. • You are now ready to set the identification code to establish a communication link with the receiver. SETUP PR10670_KeyPad_Mouse_en.indd 615/8/05 3:14:11 pm 7 Setting the Identification Code After your computer detects the USB receiver and the driver software is installed, you must set the ID code between the receiver and the mouse as well as between the receiver and the keypad BEFORE you can use them. To do this, do the following: NOTE: Make sure that your computer is turned on and has detected the USB receiver before you set the ID code. Optical Mouse • Press and release the setup key on the receiver. The Lock LED light turns on. • Press the setup key on the bottom of the mouse. • When the LED on the receiver goes out, the mouse is set up with an ID and the receiver is locked. • You are now ready to use the mouse. Wireless Keypad • Press and release the setup key on the receiver again. • Press the setup key on the keypad. • When the LED on the receiver goes out, the keypad is set up with an ID and the receiver is locked. • You are now ready to use the keypad. Both the optical mouse and the wireless keypad/calculator are now ready to use and you should be able to work with them simultaneously via the receiver. Button Function Setup • Start the setup from the Control Panel or directly click on the icon at the bottom right corner of the screen. • You can apply different functions to your buttons by selecting your preferences from those displayed. • After the function is set up, press “Yes” to store the new setup. IDENTIFICATION CODE PR10670_KeyPad_Mouse_en.indd 715/8/05 3:14:12 pm PR10670_KeyPad_Mouse_en.indd 815/8/05 3:14:28 pm 9 SPECIFICATION Specification wireless keypad Keys17 Standard Keys 7 Multimedia Keys Key Stoke life time10,000,000 Cycles Contact methodMembrane Security Code4096 different security code RF Transmission mode1 channel FSK RF Transmission 27.045MHz channel bandwidth: 25KHZ Tx Emission Level60dBuV/m ≤ E3m≤ 80dBuV/m at 3m Batteries 1 x AAA Size Power consumptionKeyboard ≤ 10mA(Active) ≤ 50uA(Idle) Battery life240 hours at Active mode with Alkaline Batter y Operating Distance2m Storage temperature-40 °C ~55°C Working temperature 0°C ~40°C Operating humidity40%~90% Dimension155x80x19mm Low Battery Indicator2.1v KeypadCalculator Function PR10670_KeyPad_Mouse_en.indd 915/8/05 3:14:30 pm 10 SPECIFICATION Specification wireless mouse Keys3 Buttons 360 ° wheel Key Stoke life time Left/Right 1,000,000 Cycles Middle Key 100,000 Cycles Wheel Switch 100,000 Cycles Security Code2048 different…

Text truncated - open the document above for the full version.

11 22 33 44 55 66 D D C C B B A A D a t e : F i l e n a m e : D r a w n T I T L E : F8E825xxxUSB / F8E846xxBNDL / F8E959xx-Block Diagram A p p r o v e d C o n f i r m e d b y : b y : b y : V e r s i o n Key Input LeftRightMiddle Scroll Input UpDown Data output VCC Data out 12 Oscillator PowerAmplification ANT Tx Power control Tx Power control Connect key Sensor Detecting Movement ConnectMovement VCC DC/DCConvertor BATTERY Osc1 Memory Memory TX = 27.145 MHz 27.145MHz

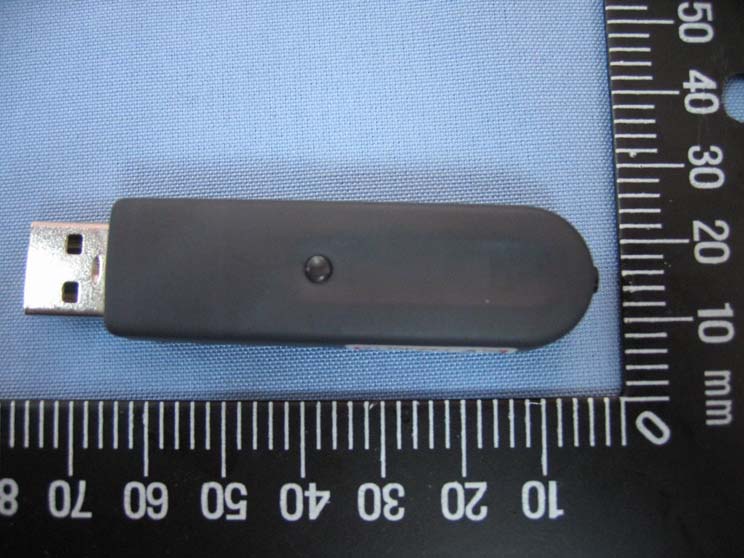

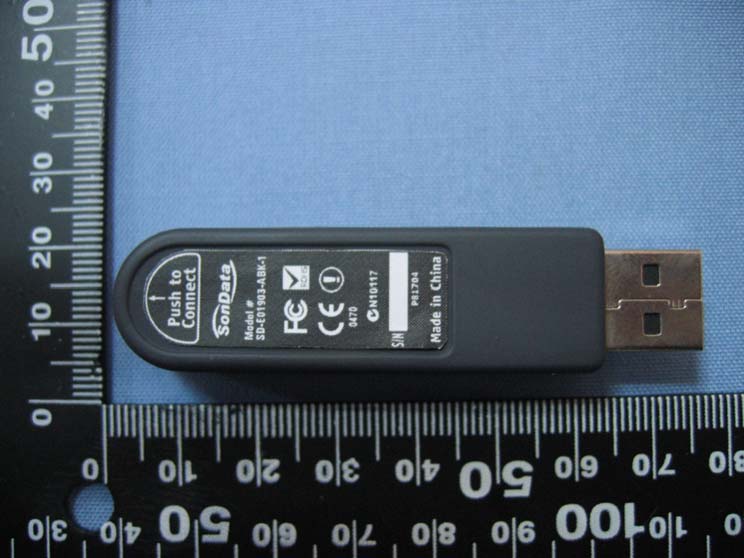

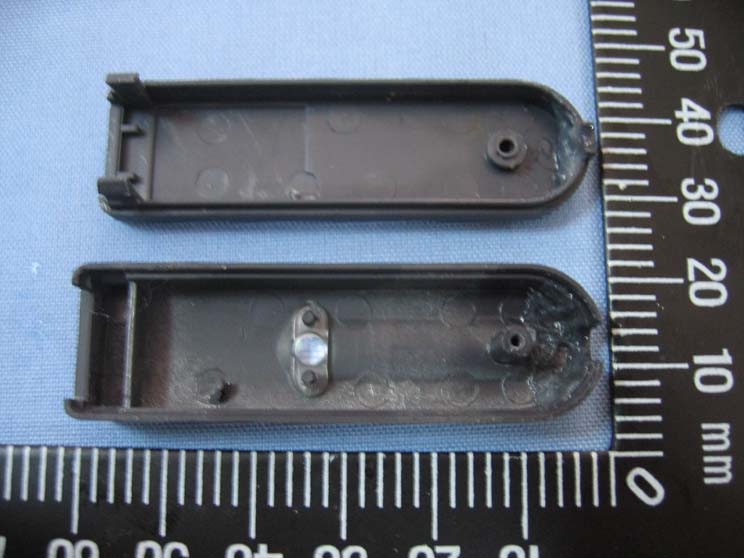

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 1 of 8 Part I: Transmitter EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》front and back side Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 3 of 8 EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》internal and external case Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 5 of 8 Part II: Receiver EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》front and back side Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 7 of 8 EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》internal and external case

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. . FCC ID: SLQ-E01903-ABK-1 Sample of DOC Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. . FCC

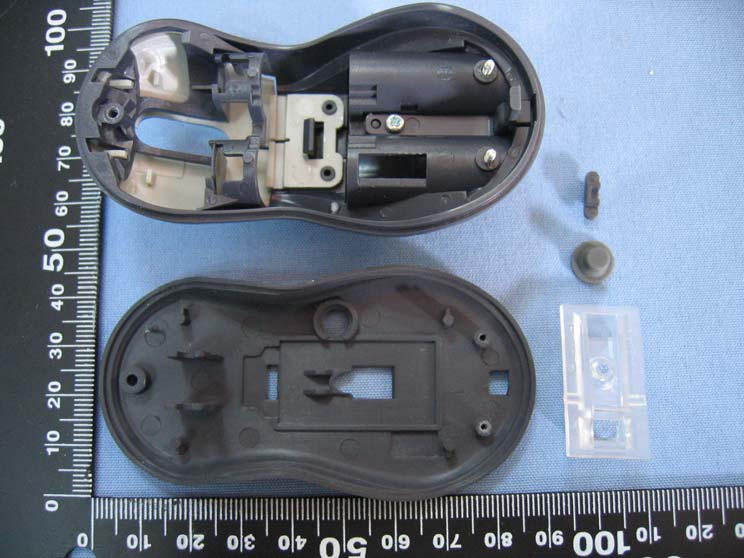

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 2 of 8 EUT 《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》 internal components Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 4 of 8 EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》pc board Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 6 of 8 EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》internal components Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 8 of 8 EUT《Model No.:SD-E01903-ABK-1, SD-E01502-BBK-1》pc board

Date: Nov. 13, 2006 FCC ID: SLQ-E01903-ABK-1 Operational Description of the equipment Installing the batteries and connecting the receiver, then, setting the keypad connect with your receiver. PRODUCT Mini Wireless Optical Mouse MODEL NO. SD-E01903-ABK-1, SD-E01502-BBK-1 POWER REQUIREMENTS DC 3.0V, 0.045A FREQUENCY BAND 27MHz CARRIER FREQUENCY 27.145 MHz CHANNEL SPACING 10KHz CHANNEL BANDWIDTH 10MHz RF OUTPUT POWER -17dBm~-37dBm MODULATION TYPE FSK DUTY CYCLE Up to 100% NUMBER OF CHANNEL 1 BIT RATE OF TRANSMISSION 2.5Kbps MODE OF OPERATION Simplex ANTENNA TYPE Loop Antenna

123456 A B C D 654321 D C B A Date:Filename: Drawn TITLE: F8E825xxxUSB / F8E846xxBNDL / F8E959xx-SCH Approved Confirmed by: by: by: Version V10 VCC 12 SW1 L 12 SW2 R 12 SW3 M VCC A C B SW4 SW WHEEL A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 S524A40X21-SCB0 C1 0.1uF R1 22k R2 22k C5 30pF VCC 1 2 3 X2 6.00MHZ C6 C7 R11 220K R12 220K PA4/VREF 1 PA5 2 PA6 3 PA7 4 VDD 5 OSC2 6 OSC1 7 PB0 8 RB1 9 PB2 10 PB3 11 CNTI 12 /RST 13 VSS 14 PA0 15 PA1 16 PA2 17 PA3 18 U3 JS5618 SDIO SCLKEPSCLK EPSCLK SDIO VCC VCC TXP TXD WELL1 WELL2 L_Key R_Key M_Key VCC L_Key R_Key M_Key WELL1 WELL2 R3 22K R4 22K R5 22K C10 0.1uF 12 SW5 Reset L1 PK0406-221K C13 22uF D1 1N5819 BATTERY LX 3 G N D 1 OUT 2 U4 RT9261-33CX T1 T2 C14 100pF C15 100pF C16 22uF VCC R6 22K R7 22K T7 T8 T9 T10 R15 10K C17 100pF C18 100pF R20 220R 1 2 3 Q1 2SC2223(QY) C19 120pF C20 120pF R8 22K R21 47K R23 47R C11 0.1uF R22 47K C21 1000pF C12 1uF L2 0.56uH L3 10uH C23 30pF 1 ANT1 ANT160mm TXD TXP C24 1 2 3 Q2 9014 X3 27.145M C25 39pF VCC C26 15pF C22 1000pF Q3 9014 R17 100K R9 22K R18 100K C27 1uF VCC Reset Reset T4 12 SW6 POWER 1 2 X1 18.432MHz LED2 ED80 SCLK SDIO C8 10uF C9 10uF R10 C2 0.1uF GND 6 SDIO 3 SCLK 4 REFA 8 OSC_OUT 2 OSC_IN 1 XY_LED 5 V D D 7 U1 PAN3101 1 2 3 Q4 R25 100 R27 000R R24 VCC R26 C3 0.1uF VCC C28C29 IDKEY IDKEY R13 22K T3 R14 1M VCC 2 G N D 3 OUT 1 U5 C4 BATTERY R19 LED1 PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A061031101 Report No.: FCCA061018101-01 Page:2 of 24 Date: Nov. 07, 2006 FCC ID: SLQSD-E01903-ABK-1 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................. 3 1.1 DOCUMENT POLICY......................................................................................... 3 1.2 TEST STATEMENT ............................................................................................ 3 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 4 2.3 DESCRIPTION OF TEST MODE ....................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................. 5 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 5 4. CONDUCTED EMISSION TEST ........................................................................ 6 4.1 CONDUCTED EMISSION LIMIT ........................................................................ 6 4.2 TEST EQUIPMENT ............................................................................................ 6 4.3 TEST SETUP..................................................................................................... 7 4.4 TEST PROCEDURE .......................................................................................... 7 4.5 EUT OPERATING CONDITION ......................................................................... 7 4.6 TEST RESULT ................................................................................................... 8 5. RADIATED EMISSION TEST ............................................................................. 9 5.1 RADIATED EMISSION LIMIT ............................................................................. 9 5.2 TEST EQUIPMENT .......................................................................................... 10 5.3 TEST SET-UP .................................................................................................. 11 5.4 TEST PROCEDURE ........................................................................................ 13 5.5 EUT OPERATING CONDITION ....................................................................... 13 5.6 RADIATED EMISSION TEST RESULT ............................................................ 14 6. BAND EDGE..................................................................................................... 18 6.1 BAND EDGE LIMIT .......................................................................................... 18 6.2 TEST EQUIPMENT .......................................................................................... 18 6.3 TEST SET-UP .................................................................................................. 18 6.4 TEST PROCEDURE ........................................................................................ 18 6.5 EUT OPERATING CONDITION ....................................................................... 18 6.6 BAND EDGE TEST RESULT ........................................................................... 19 7. PHOTOS OF TESTING .................................................................................... 20 8. TERMS OF ABBREVIATION ............................................................................ 24 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A061031101 Report No.: FCCA061018101-01 Page:3 of 24 Date: Nov. 07, 2006 FCC ID: SLQSD-E01903-ABK-1 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC (3V) from battery was used during the test for EUT transmitting part. - AC 230V /50 Hz from support units was used during the test for EUT receiving part. - Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A061031101 Report No.: FCCA061018101-01 Page:4 of 24 Date: Nov. 07, 2006 FCC ID: SLQSD-E01903-ABK-1 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Mini Wireless Optical Mouse MODEL NO. SD-E01903-ABK-1, SD-E01502-BBK-1 POWER REQUIREMENTS DC 3.0V, 0.045A FREQUENCY BAND 27MHz CARRIER FREQUENCY 27.145 MHz CHANNEL SPACING 10KHz CHANNEL BANDWIDTH 10MHz RF OUTPUT POWER -17dBm~-37dBm MODULATION TYPE FSK DUTY CYCLE Up to 100% NUMBER OF CHANNEL 1 BIT RATE OF TRANSMISSION 2.5Kbps MODE OF OPERATION Simplex ANTENNA TYPE Loop Antenna NOTE : 1. The difference of SD-E01903-ABK-1and SD-E01502-BBK-1 is in packing boxes. 2. The EUT has 2 model numbers with difference as below: (1) SD-E01903-ABK-1：wireless mini mouse + receiver。 (2) 2.SD-E01502-BBK-1：wireless mini mouse + wireless keypad + receiver For more detailed features, please refer to the manufacturer’s specification or User’s Manual. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE The EUT was tested with a Notebook PC under TX and Link collocation. So, we test conducted emission for mode 1, radiated emission for two modes below and band edge for mode 2. Mode EUT collocation 1 Link 2 TX Spectrum…
