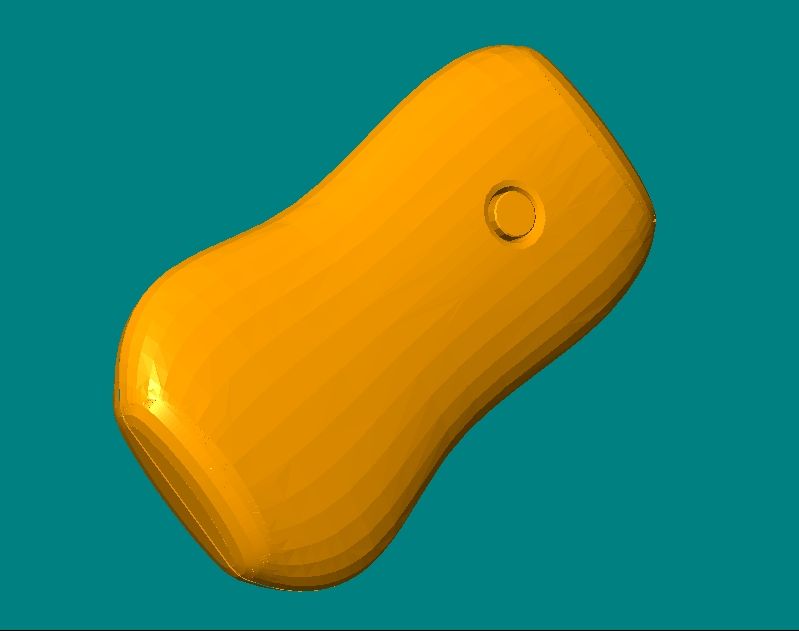

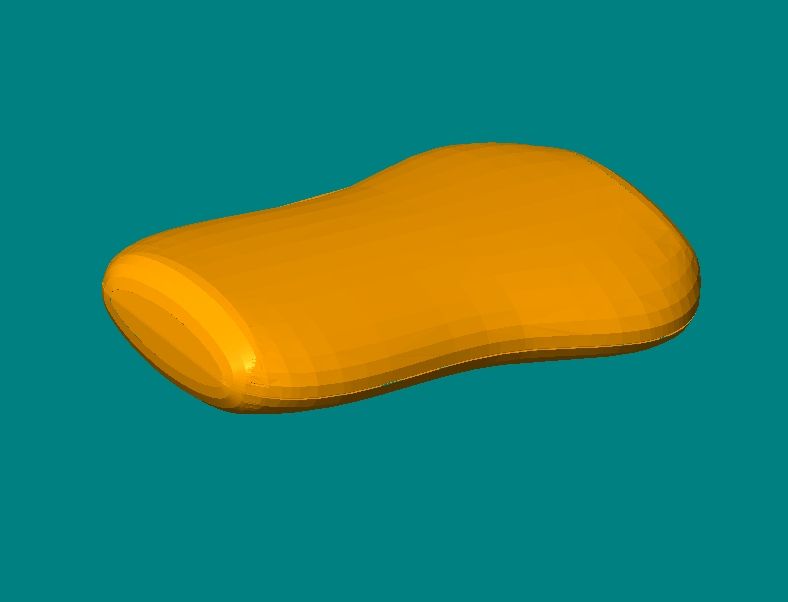

SMK011260KEYLESS ENTRY SYSTEM

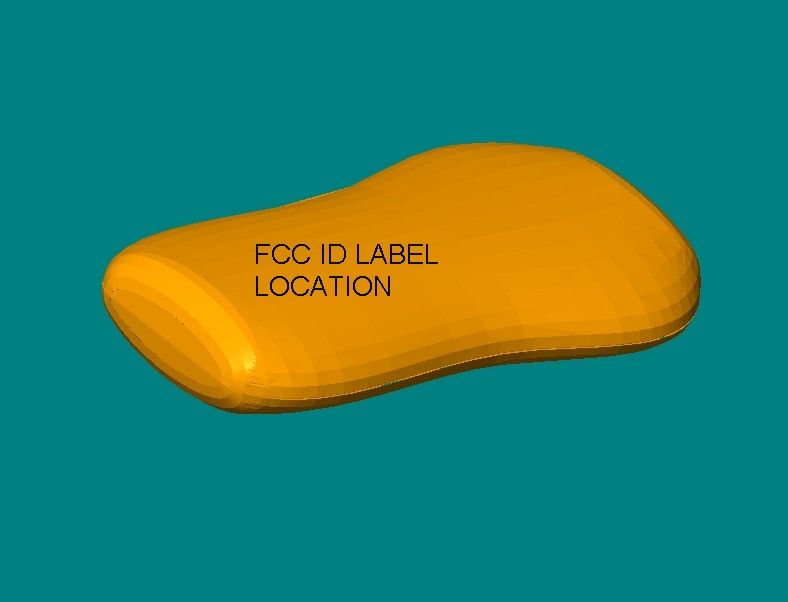

MR. BUTLER COMPANY FCC ID LABEL SAMPLE: FCC ID: SMK011260

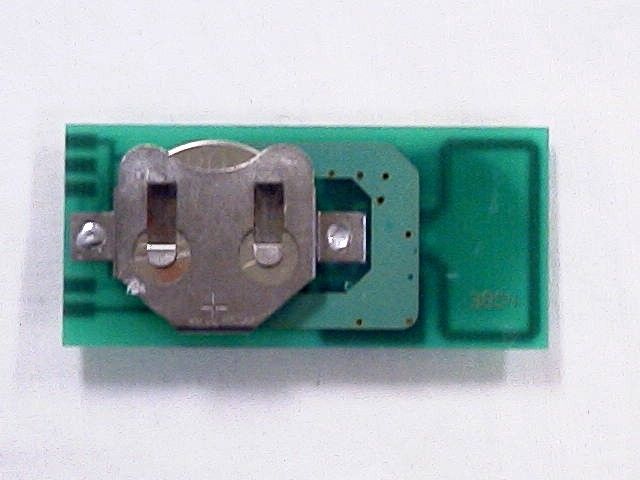

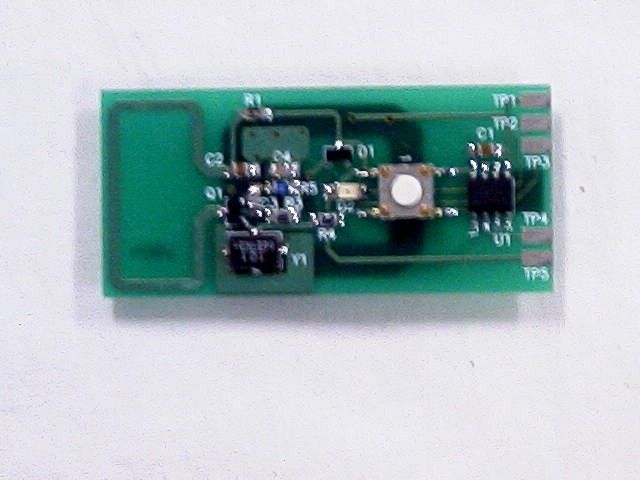

T:\M\Mr._Butler_Co\1686AT4\Operational Description Xmit.doc Rev. 1/1/03 Operational Description The Mr. Butler Remote is a handheld remote control transmitter used to activate a remote control deadbolt receiver, toggling the engagement of the deadbolt. After activation, an audible signal is produced by the receiver indicating the locked or unlocked state of the deadbolt. The unit is powered by a 3 volt lithium coin cell and has a single push-button for activation. Actuating the pushbutton signals the digital controller chip, a Microchip HCS361, to transmit an activation code block. The controller is configured to send a code via OOK, PWM modulation by turning on a biasing signal to the low power, single transistor Colpitts oscillator. Frequency stabilization is provided by a single port SAW resonator, placed in parallel with the base biasing circuit. The oscillator tank coil serves as an integral magnetic loop antenna minimizing grounding requirements. There are no provisions for external antennas or grounding connections. An indicator LED lights when the transmitter biasing is active indicating battery condition and operation. The code block sent is a bit-stream sent at approximately 2k bits per second modulated at 33% pulse width on for a digital 0 and 66% pulse width on for a digital 1 signal. The bit-stream contains a synchronization header and fixed and variable bit fields. The fixed bit field contains coding identifying the individual transmitter, while the variable field contains a coded sequence number, which can be incremented in a non-obvious manor. The combination of the proper ID code and a decoded sequence number which is after the last received sequence code number is interpreted by the receiver as a subsequent toggle request transmission. Transmissions of individual codes are less than 100ms long and are repeated at a 50% duty cycle as long as the pushbutton is activated for up to 20 seconds. If the pushbutton is released during the transmission of a code block, transmission of the block is completed. Each new transmission request causes the deadbolt activator to toggle the state of the deadbolt of the door on which it is installed.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 REPORT #: M\Mr._Butler_Co\1686AT4\1686AT4TestReport.doc COVER SHEET Test Report Product Name: KEYLESS ENTRY SYSTEM FCC ID: SMK011260 Applicant: MR. BUTLER COMPANY 2634 YORKTOWN # 392 HOUSTON TX 77056 Date Receipt: OCTOBER 15, 2004 Date Tested: OCTOBER 21, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 REPORT #: M\Mr._Butler_Co\1686AT4\1686AT4TestReport.doc TABLE OF CONTENTS APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE TEST DATA PAGE 6.............CALCULATION OF DUTY CYCLE PAGE 7-8...........DUTY CYCLE PLOTS PAGE 9.............OCCUPIED BANDWIDTH PAGE 10............OCCUPIED BANDWIDTH PLOT EXHIBIT INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 REPORT #: M\Mr._Butler_Co\1686AT4\1686AT4TestReport.doc Page 1 of 10 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 REPORT #: M\Mr._Butler_Co\1686AT4\1686AT4TestReport.doc Page 2 of 10 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 98.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 REPORT #: M\Mr._Butler_Co\1686AT4\1686AT4TestReport.doc Page 3 of 10 APPLICANT: MR. BUTLER COMPANY FCC ID: SMK011260 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY = 75.63 dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 55.63 dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54 dBuV/m OR 15.209. TEST DATA: X AXIS Emission Frequency MHz * Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Duty Cycle Factor dB Field Strength dBuV/m Margin dB 315.00 43.7 V 1.12 15.60 5.07 54.62 21.01 315.00 55.9 H 1.12 15.75 5.07 66.97 8.66 630.00 26.3 V 1.63 19.20 5.07 41.33 14.29 630.00 33.6 H 1.63 20.00 5.07 49.43 6.19 945.00 13.3 V 2.02 22.90 5.07 32.42 23.21 945.00 17.6 H 2.02 24.05 5.07 37.87 17.76 1,260.00 23.3 V 2.31 26.08 5.07 45.89 9.74 1,260.00 24…
