SMQIM3Bluetooth module

EDAN INSTRUMENTS, INC.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 06, 2026
Application Purpose: Original Equipment
Equipment Note: Bluetooth module
Frequency Range: 2402.00000000 - 2480.00000000
Company: EDAN INSTRUMENTS, INC.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 / 10 UBM2 User Guide Table of Contents 1. Introduction ........................................................................................................................................ 2 1.1 Module Features .................................................................................................................... 2 1.2 Interface Definition ................................................................................................................. 3 2. Test Setup Details .......................................................................................................................... 4 3. Application Usage ........................................................................................................................... 5 3.1 Tx Application Usage ......................................................................................................... 5 4. FCC Statement ................................................................................................................................ 8 5, Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01r01 ..................................................................................................................... 9 2 / 10 1. Introduction The purpose of this document is to provide the usage of the applications for transmit and receive tests to evaluate the RF performance of the UBM2 using a test driver in windows environment. The evaluation board provides the necessary connectors so that you can measure transmit, using Spectrum Analyzer and Signal Generator. In general, transmit performance of a radio can be analyzed in three steps. Maximum power: The user can observe the RF output power for a given maximum gain supported by the RF. The document contains three major sections. Section 3.1 describes the usage of the ‘BT transmit’ utility, which provides the options for setting various parameters to carry out transmit tests on the UBM2 device. This UBM2 module is a single-mode, low-cost BLE5.1 Bluetooth module. It features transparent transmission, active, passive, and master-slave integrated modes, and is suitable for most Bluetooth application scenarios. It is also compatible with on-board antennas and position antennas, and the actual application can be selected according to product requirements. Block diagram of the UBM2 system 1.1 Module Features Processor ● ARM Cortex-M4 32-bit processor. ● The maximum main frequency can reach up to 64MHz. Memory ● 512KB Flash: Support XIP to run code or save user data. ● 64KB Data SRAM: Code can be run or variables saved ● 8KB Code Cache: Used for Flash XIP code caching RF Performance 3 / 10 The module integrates a high-performance 2.4GHz RF transceiver that meets the requirements of Bluetooth RF. The features are as follows: ● Working frequency: 2.4G~2.4835GHz ● Modulation mode: GFSK ● Transmission rate: 1Mbps/2Mbps ● Transmission power: -20~9dBm Adjustable ● Receiving sensitivity: -95.5dBm@1Mbps/-93dBm@2Mbps ● Built-in Balun circuit, supporting single-ended RFIO output Power Consumption ● Power supply: 3.3V ● Transmission mode: 6.4mA@0dBm Tx power ● Receiving mode: 7.4mA ● Sleep mode: 6.3uA@32K RTC runs and all SRAM contents remain ● OFF mode: 0.8 uA Oscillator ● Support 32M XTAL Peripheral interface ● 2-way UART interface ● 2-way SPI interface ● PWM ● SWD debugging ● Size: L26.0±0.2mm *W13 ±0.2mm*H1.9±0.5mm MAX 1.2 Interface Definition Figure 2 Module pin diagram Pin number Pin name Type Pin function 1 P09/UART1_TX I/O UART_TXD 2 P10/UART1_RX I/O UART_RX 3 P20 I/O General input and output 4 P21 I/O General input and output 5 NC / Reserved 4 / 10 6 NC / Reserved 7 NC / Reserved 8 NC / Reserved 9 P11/Tran I/O General input and output 10 P12/Disc I/O General input and output 11 RST_N I/O Reset signal input, level valid 12 VDD33 I/O 3.3V power input 13 GND P Ground 14 P04/BOOT P Low level for Programming mode. 15 NC / Reserved 16 P00/SWCLK I/O SWD debug CLK input 17 P01/SWDIO I/O SWD debug data input 18 P05/UART0_TX O Output in programming mode. 19 P06/UART0_RX I Input pin in programming mode. 20 NC / Reserved 21 GND P Ground 22 GND P Ground 23 XTAL32K_OUT O 32.768KHz Crystal oscillator output 24 XTAL32K_IN I 32.768KHz Crystal oscillator input 25 P27 I/O General input and output 26 P26 I/O General input and output 27 P03 I/O General input and output 28 P25 I/O General input and output 29 P24 I/O General input and output 30 P07 I/O General input and output 31 P08 I/O General input and output 32 P23 I/O General input and output 33 P02 I/O General input and output 34 P22 I/O General input and output 35 GND P Ground 36 ANT I/O RF Port 2. Test Setup Details The diagram shown below, illustrates the test setup for transmit performance of UBM2 module. As shown in the test setup, the UBM2 evaluation board (EVB) is connect to pc via UART. The board is connected to a signal analyzer through a microwave coaxial cable to test the Tx or Rx performance. Figure 1: Based RF Evaluation Setup Interface Following diagram illustrates various software components involved in performing Tx and Rx tests using spectrum analyzer and signal generator respectively. 5 / 10 The ‘transmit ’ utility is a command line application to perform Tx tests. Before running the Tx tests, the user is expected to connect UBM2 module to a signal analyzer using the RF cable. The ‘receive’ utility is also a separate command line application that can be used for displaying statistics on the received packets while carrying out the receive sensitivity tests. 3. Application Usage 3.1 Tx Application Usage The application can be started in the following steps: plug UART EVB into the device and laptop, check the laptop’s UART number and set up the serial port tool Portland, send the command via UART tools. 1、 Singel tone test 6 / 10 Power on module 1. Select the COM port 2. Select chip ID 3. Rest Chip 4. Select TX Power (default is 0 dBm) 5. Select PHY rate 6. Selec…

Text truncated - open the document above for the full version.

Cover Letter(s)

EdanInstruments,Inc #15JinhuiRoad,JinshaCommunity,KengziSub-District,Pingshan District,518122ShenzhenP.R.China ModularApprovalLetter Date:Dec.10,2023 To: FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD Subjects:ModularApprovalLetter TheDevice,FCCID:SMQIM3,isseekingFCCauthorizationasamodulartransmitter.The EUTmeetstherequirementformodularapprovalasdetailedinFCCPublicNoticeDA00- 1407.Compliancetoeachoftherequirementisdescribedbelow: (a)Theradioelementsmusthavetheradiofrequencycircuitrybeshielded. Physical/discreteandtuningcapacitorsmaybelocatedexternaltotheshield,butmust beonthemoduleassembly. No,notshielded. (b)Themoduleshallhavebufferedmodulation/datainput(s)(ifsuchinputsareprovided)to ensurethatthemodulewillcomplywiththerequirementssetoutintheapplicableRSS standardunderconditionsofexcessivedataratesorover-modulation. Yes.TheEUThasitsbufferedmodulation.PleaseseetheSchematicDiagram. (c)Themoduleshallhaveitsownpowersupplyregulationonthemodule.Thisistoensure thatthemodulewillcomplywiththerequirementssetoutintheapplicablestandard regardlessofthedesignofthepowersupplyingcircuitryinthehostdevicewhichhouses themodule. Yes,ThemodularwithpowermanagementchipCHIPSEA92F45Kl. (d)Themoduleshallcomplywiththeprovisionsforexternalpoweramplifiersandantennas detailedinthisstandard.Theequipmentcertificationsubmissionshallcontainadetailed descriptionoftheconfigurationofallantennasthatwillbeusedwiththemodule. Yes,Allowedantennasgivenincertificationapplicationinformationandmanual (e)Themoduleshallbetestedforcompliancewiththeapplicablestandardinastand-alone configuration,i.e.themodulemustnotbeinsideanotherdeviceduringtesting. Yes,TheEUTwastestedwithatestboard,Pleaseseetestreportandsetupphoto. (f)ThemoduleshallcomplywiththeCategoryIequipmentlabelingrequirementsandCFR§ 15.212(a)(1)(vi). EdanInstruments,Inc #15JinhuiRoad,JinshaCommunity,KengziSub-District,Pingshan District,518122ShenzhenP.R.China Yes,PleaseseeexhibitionlabelsamplefortheFCCIDofthismodule.Andalsointhe exhibitionUsersmanual,thereareinstructionsgivetotheOEMonhowtolabeltheend product. (g)ThemoduleshallcomplywithanyapplicableFCCRFexposurerequirementwhichare basedontheintendeduse/configurations. Yes，themoduleisintendedtouseinprotable/mobileenvironment.FCCRFexposure requirementsatisfiedwith47CFR§2.1093. (h)ThemodulartransmittercomplieswithallapplicableFCCrules.Instructionsfor maintainingcompliancearegivenintheuserinstructions. Yes,TheEUTiscompliantwithallapplicableFCCrules.Detailsinstructionsformaintaining compliancearegiveintheUserManual. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow Sincerely, Name:HuanhuanXia Company:EdanInstruments,Inc Address: #15JinhuiRoad,JinshaCommunity,KengziSub-District,Pingshan District,518122ShenzhenP.R.China Phone:008675526682547 Fax:008675526882223 E-Mail:[email protected]

External Photos

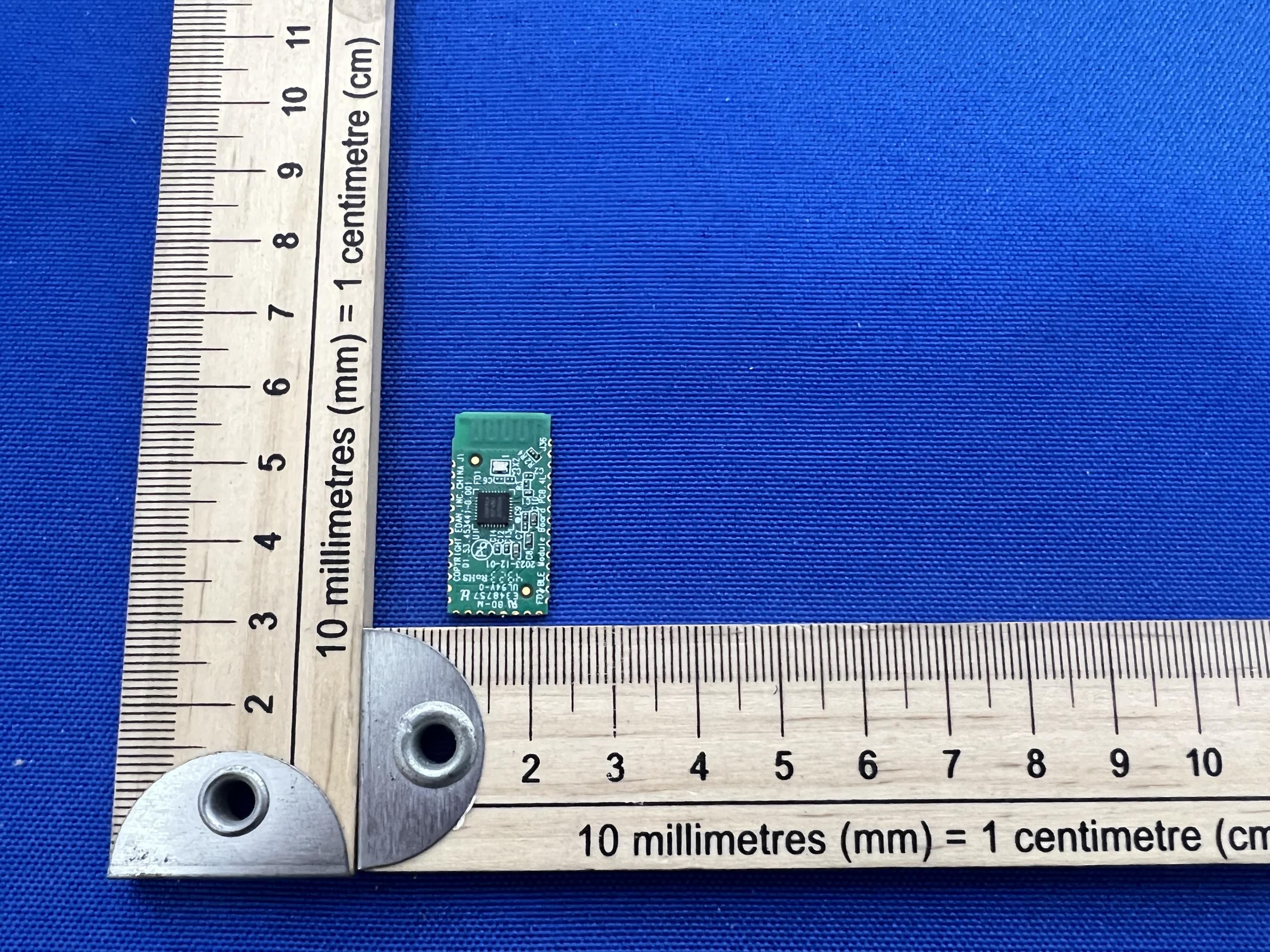

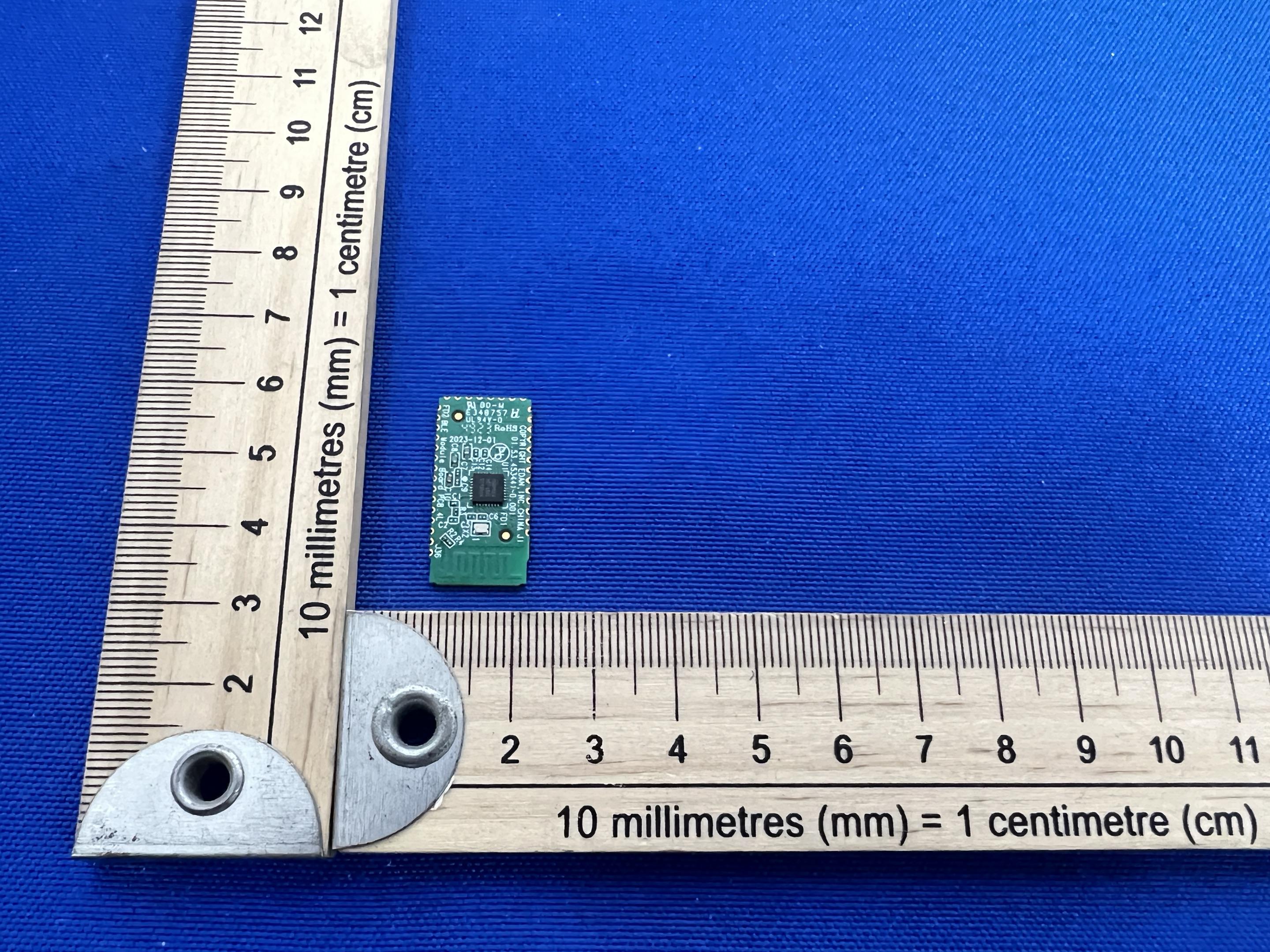

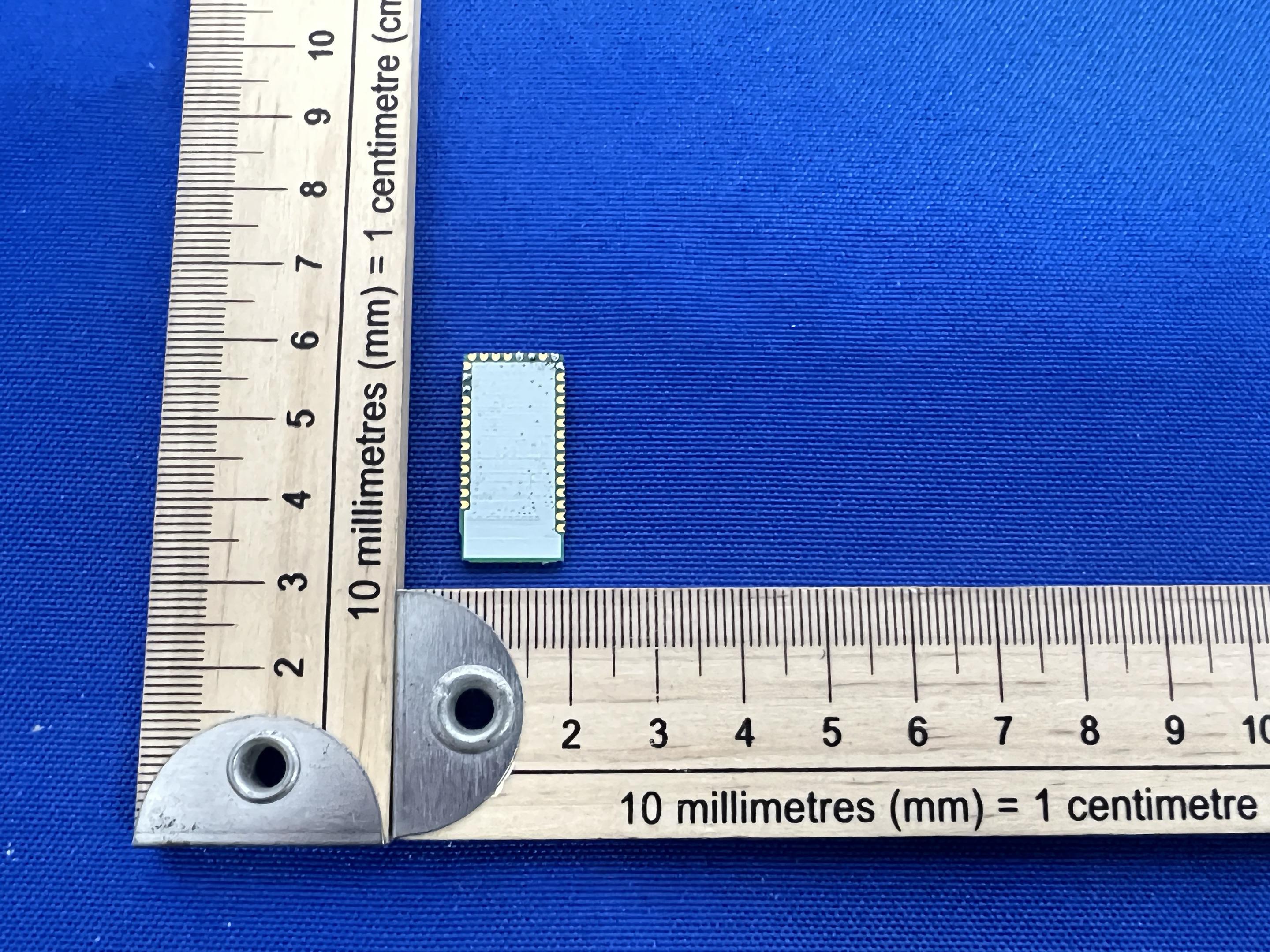

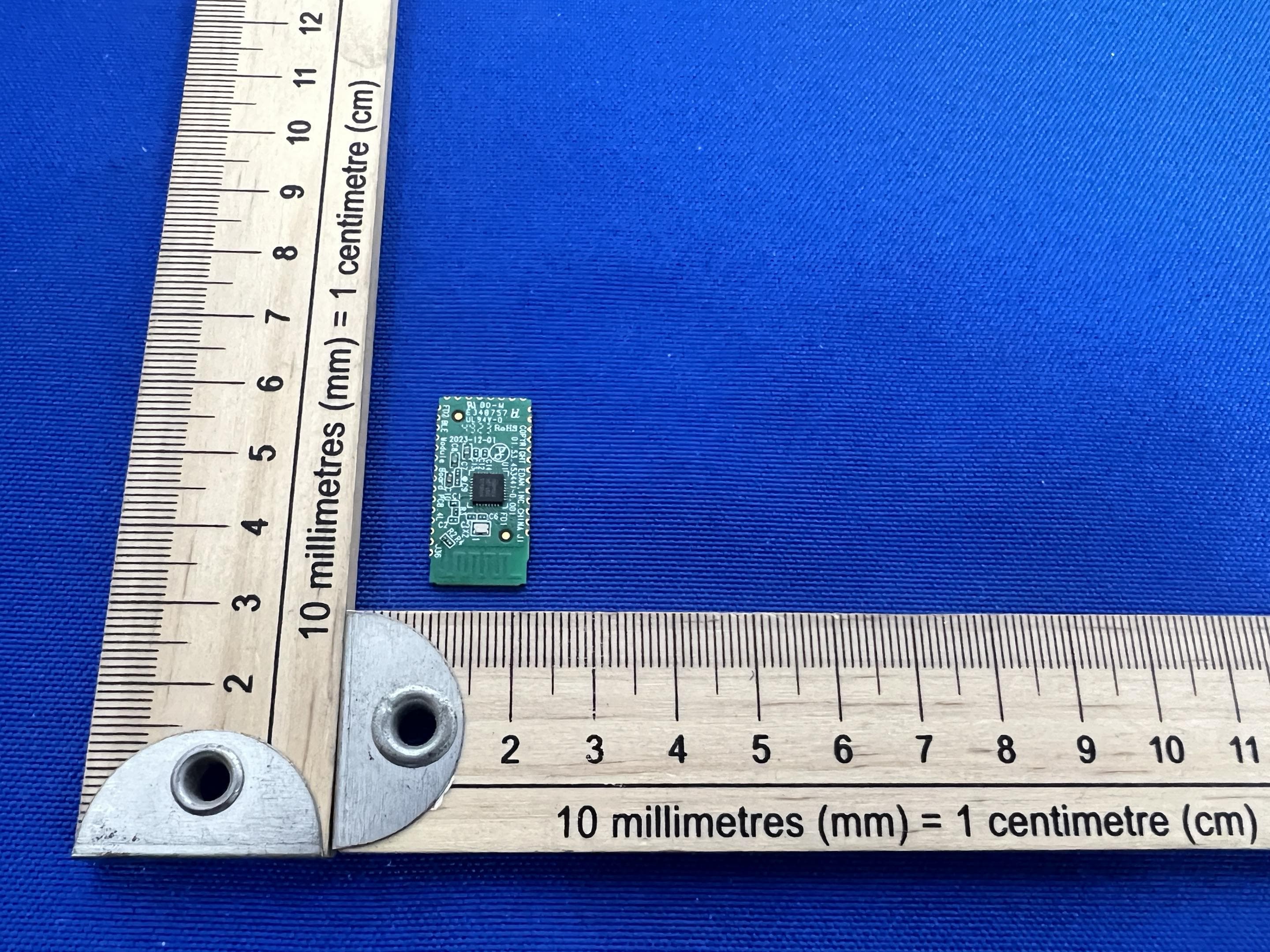

FCCID:SMQIM3Page 1 of 4 ReportNo.:CTL2510316041-WF ExternalPhotosofEUT FCCID:SMQIM3Page 2 of 4 ReportNo.:CTL2510316041-WF

External Photos

FCCID:SMQIM3Page 3 of 4 ReportNo.:CTL2510316041-WF FCCID:SMQIM3Page 4 of 4 ReportNo.:CTL2510316041-WF

ID Label/Location Info

FCCID:SMQIM3Page 1 of 1 ReportNo.:CTL2510316041-WF FCCIDLabelInformation Labellocation: FCCID:SMQIM3

Internal Photos

FCCID:SMQIM3Page 1 of 2 ReportNo.:CTL2510316041-WF InternalPhotosofEUT FCCID:SMQIM3Page 2 of 2 ReportNo.:CTL2510316041-WF BluetoothAntenna

RF Exposure Info

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-Mail:[email protected] RFExposureevaluation ReportReferenceNo.....................:CTL2510316041-WFH Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) LydiaOu (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName ................................. : Bluetoothmodule Model/Typereference .................... :iM3 ListModel(s) .................................... :N/A TradeMark ....................................... : EDAN FCCID...............................................: SMQIM3 Applicant’sname ........................... : EDANINSTRUMENTS,INC. Addressofapplicant ..................... : #15JinhuiRoad,JinshaCommunity,KengziSub-District, PingshanDistrict,518122ShenzhenP.R.China TestFirm...........................................: ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm.....................: Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification...........................: Standard ............................................ : 47CFR§1.1310 47CFR§2.1093 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2017-01 Dateofreceiptoftestitem .......... : Nov.03,2025 DateofTest....................................: Nov.03,2025-Nov.20,2025 DateofIssue....................................: Nov.21,2025 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of8ReportNo.:CTL2510316041-WFH TESTREPORT TestReportNo.:CTL2510316041-WFH Nov.21,2025 Dateofissue ProductName: Bluetoothmodule SampleNo:CTL251031604001 CTL251031604002 Model/Type: iM3 ListedModels : N/A Applicant: EDANINSTRUMENTS,INC. Address : #15JinhuiRoad,JinshaCommunity,Kengzi Sub-District,PingshanDistrict,518122Shenzhen P.R.China Manufacturer:EDANINSTRUMENTS,INC. Address : #15JinhuiRoad,JinshaCommunity,Kengzi Sub-District,PingshanDistrict,518122Shenzhen P.R.China Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of8ReportNo.:CTL2510316041-WFH **ModifiedHistory** RevisionDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportReleaseNov.21,2025CTL2510316041-WFHTracyQi V1.0Page4of8ReportNo.:CTL2510316041-WFH Contents 1GENERALINFORMATION ........................................................................................................................................................ 5 1.1ENVIRONMENTALCONDITIONS ................................................................................................................................................. 5 1.2PRODUCTDESCRIPTION .......................................................................................................................................................... 5 1.3TESTFACILITY ....................................................................................................................................................................... 6 1.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY ....................................................................................................................... 6 2METHODOFMEASUREMENT ................................................................................................................................................. 7 2.1APPLICABLESTANDARD .......................................................................................................................................................... 7 2.2EVALUATIONMETHODANDLIMIT ............................................................................................................................................ 7 3CONDUCTEDPOWERRESULTS ............................................................................................................................................... 8 4MANUFACTURINGTOLERANCE .............................................................................................................................................. 8 5EVALUATIONRESULTS ............................................................................................................................................................. 8 5.1STANDALONEEVALUATION ...................................................................................................................................................... 8 6CONCLUSION ........................................................................................................................................................................... 8 V1.0Page5of8ReportNo.:CTL2510316041-WFH 1GENERALINFORMATION 1.1Environmentalconditions Duringthemeasurementtheenvironmentalconditionswerewithinthelistedranges: NormalTemperature:25°C-35°C RelativeHumidity:35%-55% AirPressure:101KPa 1.2ProductDescription ProductName: Bluetoothmodule Model/Typereference:iM3 EUTRatedVoltage: DC5Vpowersupply TestVoltage:DC5Vpowersupply BluetoothLowEnergy Supportedtype:BluetoothLowEnergy Modulation:GFSK Operationfrequency: 2402MHzto2480MHz Channelnumber:40 Channelseparation: 2MHz Antennatype:PCBAntenna Antennagain:1.10dBi Note1:Formoredetails,refertotheuser’smanualoftheEUT. Note2:Antennagainandcablelossprovidedbytheapplicant. V1.0Page6of8ReportNo.:CTL2510316041-WFH 1.3TestFacility 1.3.1Addressofthetestlaboratory ShenzhenCTLTestingTechnologyCo.,Ltd. Floor1-A,BaishaTechnology…

Text truncated - open the document above for the full version.

Test Report

PolarizationHorizontal and Vertical 0.01 Antenna Specification Summary ITEMANT SPEC Model Name2.4 ANT Center Frequency Antenna Specification Impedance50 Ohm Antenna Length Manufacture EDAN INSTRUMENTS,INC. #15 Jinhui Road,Jinsha Community,Kengzi Sub-District,Pingshan District,shenzhen,China 518055 Gain 2400MHz2450MHz2500MHz 1.10.83 2400 MHz 2450MHz 2500MHz Power（dBm） Max:0 Min:-40 Scale:5/div

Test Report

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT 47CFRPart15,SubpartC15.247 ReportReferenceNo.....................:CTL2510316041-WF Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) LydiaOu (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: Bluetoothmodule Model/Typereference....................:iM3 ListModel(s)..................................:N/A TradeMark.......................................: EDAN FCCID ............................................... : SMQIM3 Applicant’sname...........................: EDANINSTRUMENTS,INC. Addressofapplicant.....................: #15JinhuiRoad,JinshaCommunity,KengziSub-District, PingshanDistrict,518122ShenzhenP.R.China TestFirm ........................................... : ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm ..................... : Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification ........................... : Standard............................................:47CFRPart15,SubpartC15.247:Operationwithinthebands 902-928MHz,2400-2483.5MHzand5725-5850MHz. TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF ....................................... :Dated2011-01 Dateofreceiptoftestitem .......... : Nov.03,2025 DateofTestDate............................: Nov.03,2025-Nov.20,2025 DateofIssue .................................... : Nov.21,2025 Result................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of29ReportNo.:CTL2510316041-WF TESTREPORT TestReportNo.:CTL2510316041-WF Nov.21,2025 Dateofissue EquipmentunderTest: Bluetoothmodule SampleNo:CTL251031604001 CTL251031604002 Model/Type: iM3 ListedModels : N/A Applicant: EDANINSTRUMENTS,INC. Address : #15JinhuiRoad,JinshaCommunity,Kengzi Sub-District,PingshanDistrict,518122Shenzhen P.R.China Manufacturer:EDANINSTRUMENTS,INC. Address : #15JinhuiRoad,JinshaCommunity,Kengzi Sub-District,PingshanDistrict,518122Shenzhen P.R.China TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of29ReportNo.:CTL2510316041-WF **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportReleaseNov.21,2025CTL2510316041-WFTracyQi V1.0Page4of29ReportNo.:CTL2510316041-WF TableofContentsPage 1.SUMMARY .............................................................................................................................................................................. 5 1.1.TESTSTANDARDS ............................................................................................................................................................ 5 1.2.TESTDESCRIPTION ............................................................................................................................................................... 5 1.3.TESTFACILITY ...................................................................................................................................................................... 6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY ...................................................................................................................... 6 2.GENERALINFORMATION ....................................................................................................................................................... 7 2.1.ENVIRONMENTALCONDITIONS ................................................................................................................................................ 7 2.2.GENERALDESCRIPTIONOFEUT ............................................................................................................................................. 7 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY ................................................................................................................ 8 2.4.EQUIPMENTSUSEDDURINGTHETEST .................................................................................................................................... 9 2.5.RELATEDSUBMITTAL(S)/GRANT(S) ....................................................................................................................................... 9 2.6.MODIFICATIONS ................................................................................................................................................................... 9 3.TESTCONDITIONSANDRESULTS ........................................................................................................................................ 10 3.1.CONDUCTEDEMISSIONSTEST .............................................................................................................................................. 10 3.2.RADIATEDEMISSIONSANDBANDEDGE ................................................................................................................................. 11 3.3.MAXIMUMCONDUCTEDOUTPUTPOWER .............................................................................................................................. 19 3.4.POWERSPECTRALDENSITY .................................................................................................................................................. 20 3.5.6DBBANDWID…

Text truncated - open the document above for the full version.

Test Report

V1.0Page26of29ReportNo.:CTL2510316041-WF 5.PhotosoftheEUT V1.0Page27of29ReportNo.:CTL2510316041-WF V1.0Page28of29ReportNo.:CTL2510316041-WF

Test Report

V1.0Page29of29ReportNo.:CTL2510316041-WF **********************EndofReport********************** BluetoothAntenna

Test Report

AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page1/25 ShenzhenCTLTestingTechnologyCo.,Ltd. Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad,NanshanDistrict,Shenzhen,China518055 Tel:+86-755-89486194E-mail:[email protected] AnnexforBluetoothLowEnergy TestReportNo.:CTL2510316041-WF TABLEOFCONTENTS 1.Bandwidth.............................................................................................................................................................2 2.MaximumConductedOutputPower ................................................................................................................. 9 3.MaximumPowerSpectralDensity..................................................................................................................13 4.UnwantedEmissionsInNon-restrictedFrequencyBands ......................................................................... 17 AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page2/25 1.Bandwidth 1.1TestResult 1.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 1MSISO 240211.038/Pass 244011.039/Pass 248011.041/Pass 2MSISO 240212.081/Pass 244012.091/Pass 248012.080/Pass 1.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.721>=0.5Pass 244010.724>=0.5Pass 248010.732>=0.5Pass 2MSISO 240211.386>=0.5Pass 244011.396>=0.5Pass 248011.390>=0.5Pass AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page3/25 1.2TestGraph 1.2.1OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page4/25 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page5/25 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page6/25 1.2.26dBBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page7/25 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page8/25 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page9/25 2.MaximumConductedOutputPower 2.1TestResult 2.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 24020.72<=30Pass 24401.06<=30Pass 24800.64<=30Pass 2MSISO 24020.93<=30Pass 24401.23<=30Pass 24800.69<=30Pass Note1:AntennaGain:Ant1:1.10dBi; AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page10/25 2.2TestGraph 2.2.1Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page11/25 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page12/25 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page13/25 3.MaximumPowerSpectralDensity 3.1TestResult 3.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD(dBm) Verdict ANT1Limit 1MSISO 2402-0.17<=8Pass 24400.14<=8Pass 2480-0.24<=8Pass 2MSISO 2402-2.08<=8Pass 2440-1.82<=8Pass 2480-2.30<=8Pass Note1:AntennaGain:Ant1:1.10dBi; AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page14/25 3.2TestGraph 3.2.1PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page15/25 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page16/25 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page17/25 4.UnwantedEmissionsInNon-restrictedFrequencyBands 4.1TestResult 4.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 24021-0.15 244010.15 24801-0.26 2MSISO 24021-2.14 24401-1.95 24801-2.27 Note1:RefertoFCCPart15.247(d)andANSIC63.10-2020,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencelevel. 4.1.2CSE Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) Limit (dBm) Verdict 1MSISO 240210.15-19.85Pass 244010.15-19.85Pass 248010.15-19.85Pass 2MSISO 24021-1.95-21.95Pass 24401-1.95-21.95Pass 24801-1.95-21.95Pass Note1:RefertoFCCPart15.247(d)andANSIC63.10-2020,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencelevel. AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page18/25 4.2TestGraph 4.2.1Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page19/25 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page20/25 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page21/25 4.2.2CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page22/25 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page23/25 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page24/25 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2510316041-WF FCCID:SMQIM3 Page25/25 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Test Setup Photos

FCCID:SMQIM3Page 1 of 2 ReportNo.:CTL2510316041-WF TestSetupPhotosoftheEUT FCCID:SMQIM3Page 2 of 2 ReportNo.:CTL2510316041-WF

Contact Information

Applicant

Huanhuan Xia

[email protected]Fax: 0086 755 26882223

Technical Contact

HOORAY INDUSTRY LLCCindy Wu

[email protected]

1408 Pinon Place Fullerton, · United States

Test Firm

Shenzhen CTL Testing Technology Co., Ltd.Tracy Qi

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.30 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. This module does not contain a shield and therefore is limited. Power output listed is peak conducted. The grantee is required to file a Class II permissive change for each specific host per the test plan defined in the module integration instructions. Compliance of this device in all final host configurations is the responsibility of the Grantee.
