SMUKT6899Remote Control Transmitter

working diagram for remote controller of model 6899 Button Electrify the circuit IC1 (2262) Coding Sound surface filter G1 (H10 ) working, producing the modulate d signal Antenna UHF Oscillator SH10 (433.92MHz)

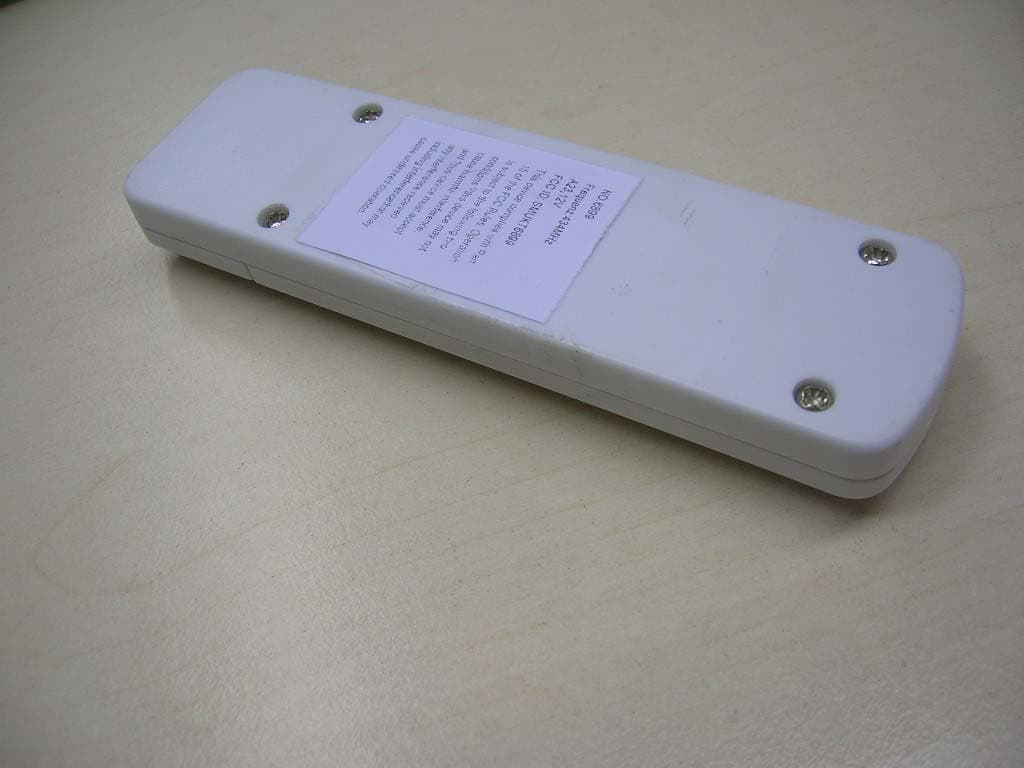

FCC ID: SMUKT6899 Page 1 of 2 External Picture FCC ID: SMUKT6899 Page 2 of 2

FCC ID: SMUKT6899 Page 1 of 2 FCC ID Label FCC ID: SMUKT6899 Page 2 of 2

FCC ID: SMUKT6899 Page 1 of 3 Internal Picture FCC ID: SMUKT6899 Page 2 of 3 FCC ID: SMUKT6899 Page 3 of 3

THE WORKING PRINCIPIUM OF NO. 6899 REMOTE CONTROLLER No.6899 remote controller is a mini remote sender which can realize short distance’s wireless controlling to the family-use electrical appliance (such as power supply socket, door chime, dimmer lamps, and so on.). The chart of its working principium is following: modulate Control button coding circuit UHF Oscillator filter antenna IC: PT 2262 SH 10 Pre-setting coding switch Sw:1-12 The working principium of each part: Control button: one remote controller has one or more control button. Pressing any button will offer the power supply to coding circuit and Oscillator circuit, and at the same time send this button’s control data information to coding circuit. Loosening the button will stop sending. It only takes several seconds to accomplish one sending. Pre-setting coding switch: the remote control have five to twelve dial-code switch which makes it possible for the users to pre-set the control receiver’s address code themselves and to control different receiver respectively. The number of cipher at most can reach five hundred and thirty one thousand four hundred and forty one (3 12 ), which can efficiently prevent from having the same cipher and being decoded. Coding circuit: PT2262 is the special coding IC. It connects the address information setted by the pre-setting coding switch with the controlling information transmitted by from the startup button with a special coding mode, and changes them into groups of serial figure pulse signal which can be recognized by the set. Finally it can modulate the high frequency and carrier frequency . Oscillator circuit: Super high frequency tube SH10 is the oscillator, modulating, and sending tube. It connects with the LC component into tapped-condencer-oscillator which is less in high-time harmonic. SAW insures the oscillator have high frequency and stabilization. The serial figure signal ,which is sent by coding circuit , modulates the carrier frequency with ASK manner. Filter sending circuit: LC filter makes adequate attenuation to the high-time harmonic in the adjusted carrier frequency, then the antenna which is inner sends the Hertzian waves to the space. After receiving the signal, the controlled receiver identifies the address code. And after affirmance, the receiver implements the transmitted instruction, accomplishing the wireless controlling.

Technical description 1. A voltage signal was produced and sent to IC1, when the button was pressed. 2. The voltage signal was encoding into the pulse code by IC1. 3. The sound surface filter J2 , transistor G1 and peripheral circuit produce the carrier signal, modulated the pulse code and filter the spurious signal. 4. The modulated signal was sent to the PCB antenna.

Test report no. JSH06010581-001 Page 1 of 14 EMC TEST REPORT No. JSH06010581-001 Applicant : Zhejiang Kangtai Electric Co., Ltd. NO.5, KANGTAI RD., HUANGHUA INDUSTRIAL DISTRICT, YUEQING, ZHEJIANG, P.R.CHINA Manufacturer : Zhejiang Kangtai Electric Co., Ltd. NO.5, KANGTAI RD., HUANGHUA INDUSTRIAL DISTRICT, YUEQING, ZHEJIANG, P.R.CHINA Equipment : Remote control transmitter Type/Model :No.6899 Summary The test report is to certify that the tested equipment properly complies with the requirements of: FCC Rules and Regulations: 47CFR Part 15: Radio Frequency Devices: 2005 ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Description The appliances were tested by Intertek Testing Services Limited Shanghai and found compliance with relevant requirements described in FCC Part 15: Radio Frequency Devices. Test results are contained in this test report and Intertek Testing Services Limited Shanghai is assumed full responsibility for the accuracy and completeness of these measurements. The test report shall not be reproduced in part without written approval of Intertek Testing Services Limited Shanghai. Date of issue: May 12, 2006 Prepared by: Approved by: Daniel Zhao( Project engineer) Steve Li (Reviewer) Test report no. JSH06010581-001 Page 2 of 14 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 Test report no. JSH06010581-001 Page 3 of 14 Content S UMMARY ............................................................................................................................................ 1 DESCRIPTION................................................................................................................................... 1 D ESCRIPTION OF T EST F ACILITY................................................................................ 2 C ONTENT............................................................................................................................................. 3 1.APPLICANT INFORMATION......................................................................................................................... 4 2.INFORMATION OF EQUIPMENT UNDER TEST (EUT) ................................................................................. 4 2.1 Identification of the EUT ............................................................................................................ 4 2.2 Technical specification ................................................................................................................ 4 2.3 Mode of operation during the test / Test peripherals used ................................................. 5 2.4 Related Grant and test Standard ................................................................................................ 5 2.5 Instrument list ................................................................................................................................. 5 3. TEST SUMMARY......................................................................................................................................... 7 4. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........................................................ 8 4.1 Limits ................................................................................................................................................ 8 4.2 Test Procedure: ...............................................................................................................................8 4.3 Test SET-UP (Block Diagram of Configuration) ................................................................ 8 4.4 Test Result: ...................................................................................................................................... 8 5. RADIATED EMISSION TEST........................................................................................................................ 9 5.1 Limits ................................................................................................................................................ 9 5.2 Test Procedure: ...............................................................................................................................9 5.3 Test SET-UP (Block Diagram of Configuration) ...............................................................10 5.4 Test result. ......................................................................................................................................11 6. EMISSION BANDWIDTH.............................................................................................................................13 6.1 Limits ...............................................................................................................................................13 6.2 Test Procedure ...............................................................................................................................13 6.3 Test Configuration ........................................................................................................................13 6.4 Test Results ....................................................................................................................................13 7. DUTY CYCLE MEASUREMENT..................................................................................................................14 7.1 Measurement Procedure .............................................................................................................14 7.2 Test SET-UP (Block Diagram of Configuration) ...............................................................14 7.3 Test results .................…

Text truncated - open the document above for the full version.

FCC ID: SMUKT6899 Page 1 of 7 Test Setup FCC ID: SMUKT6899 Page 2 of 7 1. Radiation emission EUT Axis: X FCC ID: SMUKT6899 Page 3 of 7 EUT Axis: X FCC ID: SMUKT6899 Page 4 of 7 EUT Axis: Y FCC ID: SMUKT6899 Page 5 of 7 EUT Axis: Y FCC ID: SMUKT6899 Page 6 of 7 EUT Axis: Z FCC ID: SMUKT6899 Page 7 of 7 EUT Axis: Z
