SNE-ROOM-001Wireless Indoor Sensor

C M Y CM MY CY CMY K ELO-EVE-15112-ROOM-QSG_vekRZ_150619_PrintX3.pdf 1 19.06.15 14:36 C M Y CM MY CY CMY K ELO-EVE-15112-ROOM-QSG_vekRZ_150619_PrintX3.pdf 2 19.06.15 14:36 C M Y CM MY CY CMY K ELO-EVE-15112-ROOM-QSG_vekRZ_150619_PrintX3.pdf 3 19.06.15 14:36 C M Y CM MY CY CMY K ELO-EVE-15112-ROOM-QSG_vekRZ_150619_PrintX3.pdf 4 19.06.15 14:36 C M Y CM MY CY CMY K ELO-EVE-15112-ROOM-QSG_vekRZ_150619_PrintX3.pdf 5 19.06.15 14:36 C M Y CM MY CY CMY K ELO-EVE-15112-ROOM-QSG_vekRZ_150619_PrintX3.pdf 6 19.06.15 14:36

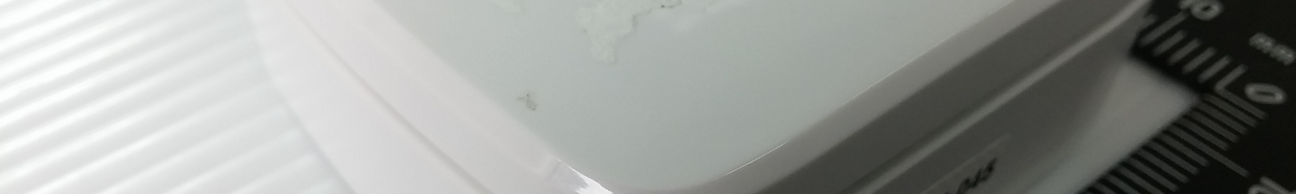

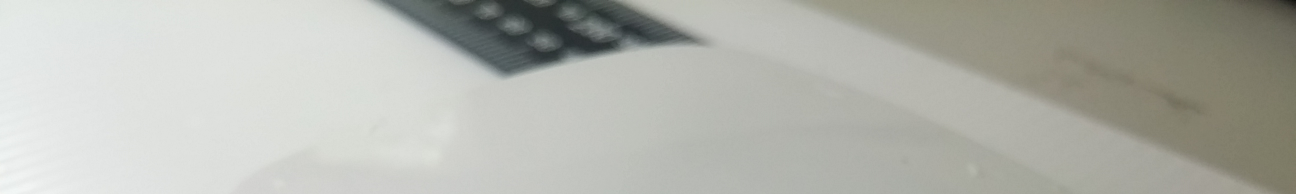

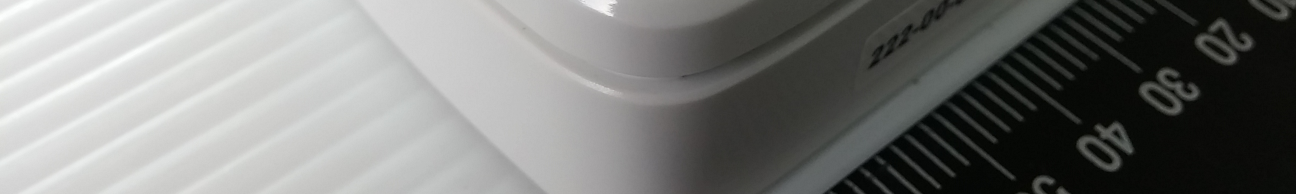

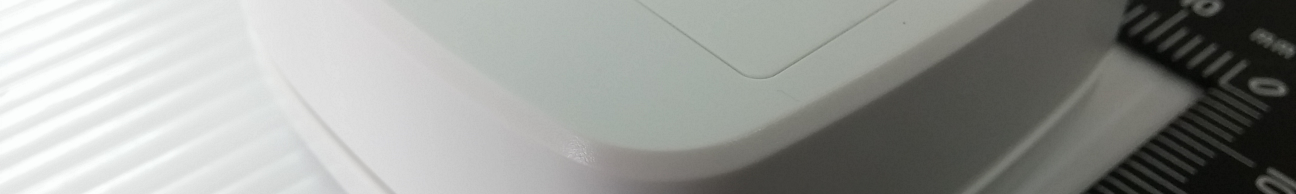

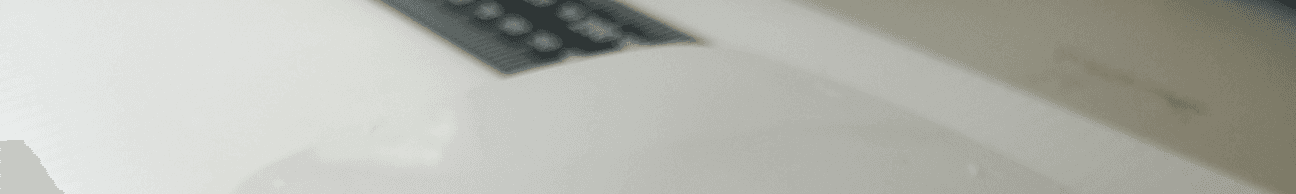

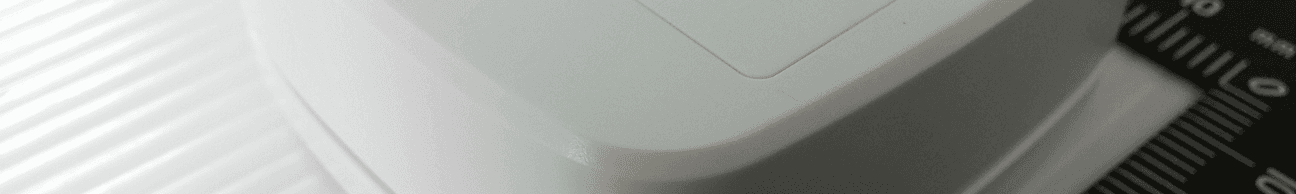

Appendix P Photo Documentation Page 1 of 1 10052341 001; 10052343 001; 10052344 001 Product: Eve Room Type Identification: 2ER309901000

Appendix P Photo Documentation Page 1 of 2 10052341 001; 10052343 001; 10052344 001 Product: Eve Room Type Identification: 2ER309901000 Appendix P Photo Documentation Page 2 of 2 10052341 001; 10052343 001; 10052344 001 Product: Eve Room Type Identification: 2ER309901000

Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 24 von 27 Page 24 of 27 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 D01 v05 The maximum peak output power of the transmitter is 0.0942 mW. Hence the EUT is excluded from SAR evaluation. Please also refer to FCC KDB publication 447498 D01 v05: Mobile Portable RF Exposure

Test Report No.10052341 001 Appendix D: Radiated Spurious Emission Data (File: 10052341AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ....................................................................................................... 6 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 12 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 18 Spurious Emissions, RX Mode, 1-18G .................................................................................................... 20 Spurious Emissions, RX Mode, 18-26G .................................................................................................. 26 Spurious Emissions, RX Mode, 30M-1G ................................................................................................. 32 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 6 Spurious Emissions, TX Mode, 1-18G Service No.: 114037741-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/6 17:54:29 Applicant: Elgato Systems GmbH Test Rating: DC 3V Product: Eve Room Temp.( °C °C°C °C)/Hum.(%): 20.1(°C °C°C °C)/50% Model No.: 2ER309901000 Test Engineer: Hugo Chang Test Mode: 2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.35 49.28 46.93 74.00 -27.07 peak 0 2 6066.000 4.34 46.15 50.49 74.00 -23.51 peak 100 352 3 7206.000 5.78 43.94 49.72 74.00 -24.28 peak 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 7 Service No.: 114037741-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/6 17:55:32 Applicant: Elgato Systems GmbH Test Rating: DC 3V Product: Eve Room Temp.(°C °C°C °C)/Hum.(%): 20.1(°C °C°C °C)/50% Model No.: 2ER309901000 Test Engineer: Hugo Chang Test Mode: 2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.35 48.76 46.41 74.00 -27.59 peak 2 6066.000 4.34 45.61 49.95 74.00 -24.05 peak 100 105 3 7206.000 5.78 44.31 50.09 74.00 -23.91 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 8 Service No.: 114037741-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/6 17:57:08 Applicant: Elgato Systems GmbH Test Rating: DC 3V Product: Eve Room Temp.(°C °C°C °C)/Hum.(%): 20.1(°C °C°C °C)/50% Model No.: 2ER309901000 Test Engineer: Hugo Chang Test Mode: 2440-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4880.000 -2.16 48.79 46.63 74.00 -27.37 peak 2 6015.000 4.14 46.33 50.47 74.00 -23.53 peak 100 0 3 7320.000 6.12 43.72 49.84 74.00 -24.16 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 9 Service No.: 114037741-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/6 17:58:11 Applicant: Elgato Systems GmbH Test Rating: DC 3V Product: Eve Room Temp.(°C °C°C °C)/Hum.(%): 20.1(°C °C°C °C)/50% Model No.: 2ER309901000 Test Engineer: Hugo Chang Test Mode: 2440-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4880.000 -2.16 49.53 47.37 74.00 -26.63 peak 2 5369.000 0.12 48.74 48.86 74.00 -25.14 peak 100 241 3 7320.000 6.12 43.66 49.78 74.00 -24.22 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 10 Service No.: 114037741-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/6 18:00:00 Applicant: Elgato Systems GmbH Test Rating: DC 3V Product: Eve Room Temp.(°C °C°C °C)/Hum.(%): 20.1(°C °C°C °C)/50% Model No.: 2ER309901000 Test Engineer: Hugo Chang Test Mode: 2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -1.97 48.57 46.60 74.00 -27.40 peak 2 6287.000 5.20 44.61 49.81 74.00 -24.19 peak 100 267 3 7440.000 6.47 43.00 49.47 74.00 -24.53 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114037741-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/6 18:01:04 Applicant: Elgato Systems GmbH Test Rating: DC 3V Product: Eve Room Temp.(°C °C°C °C)/Hum.(%): 20.1(°C °C°C °C)/50% Model No.: 2ER309901000 Test Engineer: Hugo Chang Test Mode: 2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -1.97 48.00 46.03 74.00 -27.97 peak 2 5369.000 0.12 48.94 49.06 74.00 -24.94 …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH RESULT: Passed 5.1.4 POWER DENSITY RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 3 von 27 Page 3 of 27 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST LABORATORY ................................................................................................ 5 2.2 TEST FACILITY ........................................................................................................ 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.4 TRACEABILITY ........................................................................................................ 7 2.5 CALIBRATION ......................................................................................................... 7 2.6 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS .............................................. 9 3.5 SUBMITTED DOCUMENTS ......................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 10 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 11 5. TEST RESULTS ..................................................................................................... 12 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 12 5.1.1 Antenna Requirement ................................................................................................................ 12 5.1.2 Peak Output Power .................................................................................................................... 13 5.1.3 6dB Bandwidth ........................................................................................................................... 16 5.1.4 Power Density ............................................................................................................................ 19 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 22 5.1.6 Spurious Emission ..................................................................................................................... 23 6. SAFETY HUMAN EXPOSURE ................................................................................... 24 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 24 6.1.1 Electromagnetic Fields ............................................................................................................... 24 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 25 Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 4 von 27 Page 4 of 27 8. LIST OF TABLES ................................................................................................... 27 9. LIST OF PHOTOGRAPHS......................................................................................... 27 1. General Remarks 1.1 Complementary Materials These attachments are integral parts of this test report: Appendix P: Photo Documentation internal view (File Name: 10052341APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10052341APPENDIX D) Test Specifications The following standards were applied. Table 1: Applied Standard and Test Levels Radio NCC Low-power Radio-frequency Devices Technical Regulations LP0002(2011)(100年6月28日) FCC CFR47 Part 15: Subpart C Section 15.247 RSS-247 Issue 1 May 2015 RSS-Gen, Issue 4, November 2014 ANSI C63.10:2013 KDB558074 D01 DTS Meas Guidance v02 Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 5 von 27 Page 5 of 27 2. Test Sites 2.1 Test Laboratory TUV Rheinland Taiwan Ltd. Taichung Branch Office No.9, Lane 36, Minsheng Rd., Sec. 3, Daya District, Taichung City 428 Taiwan (R.O.C.) 2.2 Test Facility TUV Rheinland Taiwan Ltd. Taipei Office 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC RegistrationNo.: 365730 IC Canada Registration No.: 9465A-1 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 6 von 27 P…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 25 von 27 Page 25 of 27 7. Photographs of the Test Set-Up Photograph 1: Set-up for Fundamental and Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10052341 001 Seite 26 von 27 Page 26 of 27 Photograph 2: Set-up for Fundamental and Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2)
