Welcome Willkommen Bienvenue Bienvenido Willkommen Benvenuto Legal Information This device complies with part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Ope- ration is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfe- rence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and receiver; consult the dealer or an experienced radio/TV technician for help • This Class B digital apparatus complies with Canadian ICES-003. Changes or modifi cations not expressly approved by Elgato Systems could void your authority to operate this device. Hereby, Elgato Systems declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouil- lage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. For questions about Elgato product compliance with FCC regulations, please contact: Compliance Offi cer, Elgato Systems, 900 Kearny St. #750, San Francisco, CA 94133. • 1SK109901000 Model: 2SK309901000 • Part: 2SK809904000 FCC ID: SNE-SMA-001 • IC ID: 11192A-SMA001 DC 3V www.elgato.com/smartkey/start Smart Key Operational guidelines for school official cites use Please download the APP “smart key” on Apple store 一：open the APP ,meanwhile press and hold the button on smart key until you hear a short melody. The led should be pulsing. Place it close to the I Phone .Searching for smart key ... tap cancel if you don’t want to add another smart key right now . tap “Help” if you have trouble setting up smart key. If No smart key found in range , tap “Try Again” and make sure to follow the instructions. Smart key needs to be close to this I Phone ` 二：When find the smart key, you can see this interface The smart key has connected with IOS device successfully Press the button , the buzzer will sound setting button You can choose the icon you want to track with smart key Record the device’s location on different status 三：Press them , you can see the device’s location on the map when connected . 四：Press the “setting” button , you can change the name and picture and set the sound and so on 五：Back To Previous Menu The help guide for operating smart key and APP 六：Choose the device you can see the details 七：Press “Add another Smart Key” button , will searching the new device.

Report No.:68.870.13.024.01F APPENDIX B – External of EUT Page 1 of 1 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China.

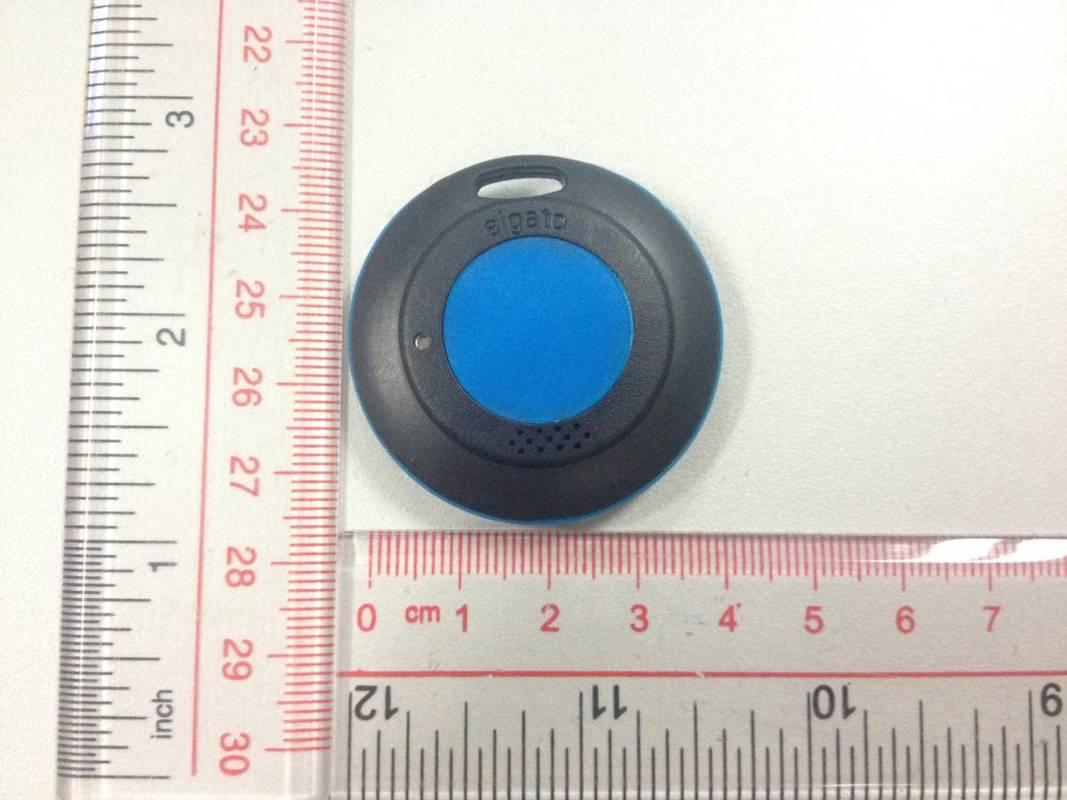

ID Label and Label location Remarks: Size: 34mm(W)x30mm(H)x0.2mm Material: PET transparent label with 3 m glue Color: transparent PET with black font or black and white label Requirements: Label position: rear view products Remarks: Size: 15mm(W)x6.5mm(H)x0.2mm(D) Material: PET Silver Label with 3M Glue Color: Silver label with Black Font or Black Label with White Font

Report No.:68.870.13.024.01F APPENDIX C – Internal of EUT Page 1 of 3 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.13.024.01F APPENDIX C – Internal of EUT Page 2 of 3 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.13.024.01F APPENDIX C – Internal of EUT Page 3 of 3 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China.

Report No.: 68.870.13.024.01F Page 26 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 1 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 KDB 447498v05 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a portable device according to OET Bulletin 65, Edition 01-01, As per user manual, distance to human body of min. 5mm is determined. Frequency Band:2.400GHz ~2.4835GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max Transmit Power0.31mW Antenna GaindBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Exempt SAR Evaluation MPE calculation: The maximum radiated power (EIRP) = the maximum output power+ antenna gain = -5.079dBm+0dBi =-5.079dBm =0.31mW According to KDB 447498 D01 V05 Clause 4.3.1 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ɰ f(GHz)] =0.31/5*1.55=0.10<3.0 So there is no need to perform the SAR testing. 5.0RF Exposure Compliance Requirement

TEST REPORT Date: 2013-07-09 Report No.: 68.870.13.024.01F Page 1 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Applicant: Elgato Systems LLC 900 Kearny St. #750, San Francisco, CA 94133 Description of Samples:Model name: Smart Key Brand name: Elgato Model no.:2SK309901000 FCCID:SNE-SMA-001 Date Samples Received:2013-06-20 Date Tested:2009-06-21 to 2009-07-08 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Jim HuangJohn Zhi Project EngineerProject Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 68.870.13.024.01F Page 2 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. CONTENT: Cover Page 1 of 27 Content Page 2-3 of 27 1.0General Details 1.1Test Laboratory Page 4 of 27 1.2Applicant Details Page 4 of 27 1.3Equipment Under Test [EUT] Page 5 of 27 1.4 Related Submittal(s) Grants Page 5 of 27 2.0Technical Details 2.1Investigations Requested Page 6 of 27 2.2Test Standards and Results Summary Page 6 of 27 3.0Test Methodology 3.1Radiated Emission Page 7 of 27 3.2Field Strength Calculation Page 7 of 27 3.3Conducted Emission Page 7 of 27 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 27 4.2 20dB Bandwidth Measurement Page 9-10 of 27 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 27 4.4 Average Time of Occupancy Page 12-14 of 27 4.5 Band Edge Measurement Page 15-16 of 27 4.6 Maximum Output Power Page 17-18 of 27 4.7 Out ofBand Emissionsand Emissions in Restricted Bands Page 19-24 of 27 4.8 Conducted Emission on AC Mains Page 25 of 27 5.0RF Exposure Compliance Requirement Page 26 of 27 6.0List of Measurement Equipments Page 27 of 27 Report No.: 68.870.13.024.01F Page 3 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 68.870.13.024.01F Page 4 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.0General Details 1.1Test Laboratory NTEK Testing Technology co., Ltd. Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P. R. China EMC Laboratoryregistered by FCC with FCCRegistration Number:238937 Tested by: Jason Chen 1.2Applicant Details Applicant Elgato Systems LLC 900 Kearny St. #750, San Francisco, CA 94133 Manufacturer Zhongshan E-Tek Co., Ltd. . No.8-10GuanChengroad,Xiaolan,ZhongShan, Guangdong, P.R.China Report No.: 68.870.13.024.01F Page 5 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.3Equipment Under Test [EUT] Description of EUT Product Description:Smart Key ModelNo.:2SK309901000 Brand Name: Elgato FCCID:SNE-SMA-001 Rating:DC 3.7V(Li-ion button cell) Antenna Type:Integral Operated Frequency:2400-2483.5MHz No. of Channel:79 Accessories and Auxiliary Equipments:IPhone 4S General Operation of EUT The EUT is a 2.4 GHz band FHSS device system. EUT named Smart Key operate with app control software. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. Report No.: 68.870.13.024.01F Page 6 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement S ection 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 : The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable Report No.: 68.870.13.024.01F Page 7 of 27 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on astandard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On a standard emission test site with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 607756. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System …

Text truncated - open the document above for the full version.

Report No.:68.870.13.024.01F APPENDIX A – Photos of Test Setup Page 1 of 1 TÜV SÜD China. 6thFloor, H Hall, Culture Creative Park, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Radiated Emission Above 1GHz Emission
