SNKHNET50BSWireless Power Usage Monitoring System

Page 1 of 6 ConectiSys H-Net? 5.0 Basestation Installation and Operations Manual Sections: I. FCC Warning, Compliance and Radio Frequency Exposure Statements II. Introduction and Basestation Description III. Basestation Mounting and Wiring. IV. Basestation Software Configuration. V. Reference Figures. I. FCC Warning, Compliance and Radio Frequency Exposure Statements FCC Warning The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance (ConectiSys) could void the user's authority to operate the equipment. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Exposure Statement The H-Net? 5.0 Base Station has been evaluated under FCC Bulletin OET 65 and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. The radiated output power of the H-Net? 5.0 Base Station is well below the FCC radio frequency exposure limits. Nevertheless, this device should be installed in such a manner that the potential for human contact during normal operation is minimized. To ensure RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antenna and the user should not be less than 20 cm. Page 2 of 6 II. Introduction and Basestation Description Introduction: The H-Net? radio system has been developed by ConectiSys Corp. as an Automatic Meter Reading (AMR) solution for residential and commercial energy markets. H-Net? utilizes a proprietary protocol for two-way communication using a wireless, tower-less network. The H-Net? 5.0 Single Channel Basestation is the controlling hub for an H-Net? 5.0 radio system network. The basestation provides a central point for data collection from individual meter units, synchronizing and communicating with individual meters in a TDMA scheme. The single channel basestation may only receive data from a single meter unit at any given time in the basestation’s receive sequence. The design provides a solid foundation for future iterations of basestations that will integrate additional receivers for simultaneous data reception from multiple meter units. The basestation consists of an H-Net? 5.0 radio, PC/104 computer, Compact Flash drive, AC/DC converter, DC/DC converter, battery back-up system and surge protectors. The power system is comprised of a 120VAC to 12VDC converter with a 12VDC-battery backup and a 12VDC to 5VDC/3.3VDC converter to power the PC/104 and radio respectively. The radio system is composed of two PCB assemblies (controller module and RF module) and an omnidirectional vertically mounted, horizontally polarized antenna. The controller and RF modules interface together via PCB mounted headers. The controller is interfaced to the PC/104 via RS232 serial lines. The antenna is weather sealed and mounted on the top of the basestation. The basestation is housed within an environmentally sealed enclosure meeting the following standards: UL 508 Type 3R, 4, 12 and 13 CSA Type 3R, 4, 12 and 13 Complies with ??NEMA Type 3R, 4, 12 and 13 ??JIC EGP-1-1967 unless marked¹ ??IEC 529, IP66 Page 3 of 6 III. Installation and wiring: WARNING: Failure to wire as instructed may cause damage to device or connected equipment or personal injury. To be installed or checked by an electrician or qualified person only. Note: ??Before basestation installation has begun, the basestation should checked to ensure the AC circuit breaker and battery backup switches are in the off position. (See Figure 1). ??All wiring devices must be installed and used in accordance with applicable listings, ratings, and codes. References to National Electrical Code are applicable to installations in the United States only. 1. Basestation Mounting: a. The H-Net? single-channel basestation comes configured to be mounted on a vertical 2 ¾ inch diameter pole. b. Mounting pole must be sturdy enough to support 50 pounds against maximum local wind conditions. c. Basestation mounting height will be determined by a qualified technician after a local site survey has been conducted. d. Basestation is mounted to pole by two 360° Clamping U-Bolts. (See Figure 2). 2. Basestation Wiring a. 120VAC and modem wiring are to be run through ½ inch flexible metallic conduit designed for such applications. b. Conduit is connected to bottom of basestation through two Liqua- Seal connectors. (See Figure 3). c. Modem cable should be run through left conduit and 120VAC through the right. d. Modem cable should be a standard RJ-11 telephone cord connected to a direct telephone line. e. Modem cable is plugged into topside of telephone line surge protector (See Figure 4). f. 120VAC wiring is connected circuit breaker and ground block. Wiring should be white wire (neutral) connected to circuit breaker left terminal, black wire (hot) connected to circuit breaker right terminal and green wire (ground) connected to the green and yellow DIN rail grounding block (See Figure 4). Page 4 of 6 IV. Software Configuration: H-Net? 5.0 Basestation software needs to be configured for each installation. 1. After the basestation has been properly installed connect a PS/2 mouse and keyboard to the indicated connectors in the basestation. 2. Connect a standard VGA PC monitor to the DB15 monitor connector. (See Figure 5). 3. Power up monitor. 4. Power up basestation by flipping the battery back up and circuit breaker switches to the on position. 5. After Windows has finished loading, the H-Net? software will launch automatically. Close this program by clicking exit. 6. Open hnetbase.ini (c…

Text truncated - open the document above for the full version.

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR FCC ID: SNKHNET50BS To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematics and block diagrams required to be submitted with this application be withheld from public review. The items are ConectiSys proprietary information for the product that should not be open to the public or competitors. Please contact me if there is any information you may need. Sincerely, C L Payne III (Agent for ConectiSys Corp) DNB Engineering Inc 5869 Robinson Avenue Riverside, CA 92503 (951) 637-2630 (951) 637-2704 (Fax) [email protected] www.dnbenginc.com

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 25, 2005 RE: FCC ID: SNKHNET50BS_ATCB002182 Attention: Les Payne I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the 731 frequency must be the the center of the lowest channel to the center of the highest channel. Please clearly identify these frequencies on the 731. 2. Please note that the report (Part 1 page 4) states the frequency range is between 900-928MHz and is a FHSS system. Please explain if this is supposed to be 902-928MHz. Please correct as necessary. 3. The description of the device in the report (part 1) and the operational description calls this a “single channel” device. Documentation presented calls this a FHSS system. Please explain. Is this a FHSS device or is this a single channel device? 4. Please note that your report states that the .0555sec pulse only repeats a frequency every 15 seconds. Please note that assuming equally spaced and distributed hops of 55.5ms each, and with 65 or 66 frequencies the repeat frequency time (dwell) of a single frequency would appear to be less than once every 3.5 or 4 seconds and not once every 15 seconds. This would mean that the channel hop sequence has a non transmitting time of about 170ms between hops (i.e. 55ms on + 170ms off between hops). Please explain where the 15 seconds comes from on page 10 of the report. Please recalculate the dwell time for the actual time each channel dwells during the allotted time frame. 5. Please note that power measurements for a FHSS device needs to be done with the hopping stopped. Also, a low mid and high frequency power measurement should be made. Please provide power measurements with the hopping stopped but with a modulated carrier (channel). 6. Please note that for power measurements of FHSS devices the resolution bandwidth used must be greater than the 20dB bandwidth of the emission. This would mean that the resolution bandwidth used to make power measurements in this situation would be at least 390kHz. Please provide power measurements using the proper resolution bandwidths. 7. Page 1 of part 3 of the test report states that the frequency range is 2.4 to 2.48GHz. Please note that this appears to be a 902-928MHz device. Please explain and please provide a corrected report stating the actual frequency range of the unit. 8. Please provide the required radiated spurious emissions data. Please pay attention to the restricted bands specified in Part 15. 9. Please note that this device is significantly large enough to have the 2-condition statement as required by 15.19. Please provide a sample label with this statement. 10. Please provide a sample of the pseudorandom hopping sequence. Please include all useable hopping frequencies in this pseudorandom list. Please provide some information on how the pseudorandom sequence is generated. 11. Please note that the statement “ HNET 5.0 Single Channel Base station was designed to be the controlling hub for the HNET 5.0 radio system” does not adequately explain what the device is. Please provide an operational description that more clearly describes what this device is. i.e. what is it used for, what is the HNET 5 radio system and how is it used? 12. Please address the required rf exposure requirements in the user manual. z Page 2 February 25, 2005 Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com ATCB 26 Feb 2005 6731 Whittier Avenue McLean, VA 22101 Attention: Dennis Ward RE: FCC ID: SNKHNET50BS_ATCB002182 The following is in response to your letter dated 25 Feb 2005: 1. Please note that the 731 frequency must be the the center of the lowest channel to the center of the highest channel. Please clearly identify these frequencies on the 731. New 731 has been submitted with correct channel frequencies. Reference file: RV58090-ATCB-Form-731R2 2. Please note that the report (Part 1 page 4) states the frequency range is between 900-928MHz and is a FHSS system. Please explain if this is supposed to be 902-928MHz. Please correct as necessary. Correction were made to the report: Reference in the report: Page 4 of 94 3. The description of the device in the report (part 1) and the operational description calls this a “single channel” device. Documentation presented calls this a FHSS system. Please explain. Is this a FHSS device or is this a single channel device? This is a base station which can only communicate to a single satellite at a time (single channel), it is a FHSS device which operates on 64 channels. The operational description has been updated an included in the report and as a separate attachment. Reference in the report: Page 12 of 94 Reference file:Op Description R2 4. Please note that your report states that the .0555sec pulse only repeats a frequency every 15seconds. Please note that assuming equally spaced and distributed hops of 55.5ms each, and with 65 or 66 frequencies the repeat frequency time (dwell) of a single frequency would appear to be less than once every 3.5 or 4 seconds and not once every 15 seconds. This would mean that the channel hop sequence has a non transmitting time of about 170ms between hops (i.e. 55ms on + 170ms off between hops). Please explain where the 15 seconds comes from on page 10 of the report. Please recalculate the dwell time for the actual time each channel dwells during the allotted time frame. The hopping characteristics have been expanded in the report pages 59-64. In particular page 62 explains the timing sequence in more detail. There is a lag in between hops set by software. Reference in the report:Pages 59-64 of 94 RE: FCC ID: SNKHNET50BS_ATCB002182 continued26 Feb 2005 5. Please note that power measurements for a FHSS device needs to be done with the hopping stopped. Also, a low mid and high frequency power measurement should be made. Please provide power measurements with the hopping stopped but with a modulated carrier (channel). Software does not allow for operating on a single channel. Power measurement were retaken on low, mid, and high channels by using video triggering. Plots are representative of the intent of the requirements. Reference in the report:Pages 66-68 of 94 6. Please note that for power measurements of FHSS devices the resolution bandwidth used must be greater than the 20dB bandwidth of the emission. This would mean that the resolution bandwidth used to make power measurements in this situation would be at least 390kHz. Please provide power measurements using the proper resolution bandwidths. Measurements were retaken with correct bandwidth and frequency span and are included in the report. Reference in the report:Pages 66-68 of 94 7. Page 1 of part 3 of the test report states that the frequency range is 2.4 to 2.48GHz. Please note that this appears to be a 902-928MHz device. Please explain and please provide a corrected report stating the actual frequency range of the unit. Typographical error, report has been corrected: Reference in the report:Page 70 of 94 8. Please provide the required radiated spurious emissions data. Please pay attention to the restricted bands specified in Part 15. Radiated spurious emissions in the restricted bands have been included in the report. Reference in the report:Pages 28-50 of 94 9.Please note that this device is significantly large enough to have the 2-condition statement as required by 15.19. Please provide a sample label with this statement. Label has been corrected as required. Report has been updated as has the label info doc. Reference in the report: Pages 5, 83-84 of 94 Reference file:Label Info R2 10. Please provide a sample of the pseudorandom hopping sequence. Please include all useable hopping frequencies in this pseudorandom list. Please provide some information on how the pseudorandom sequence is generated. Pseudorandom list has been included in the report. All usable hopping frequencies are included. Reference in the report:Pages 63-64 of 94 RE: FCC ID: SNKHNET50BS_ATCB002182 continued26 Feb 2005 11. Please note that the statement “HNET 5.0 Single Channel Base station was designed to be the controlling hub for the HNET 5.0 radio system” does not adequately explain what the device is. Please provide an operational description that more clearly describes what this device is. i.e. what is it used for, what is the HNET 5 radio system and how is it used? The operational description has been updated an included in the report and as a separate attachment. Reference in the report: Page 12 of 94 Reference file:Op Description R2 12. Please address the required rf exposure requirements in the user manual. The users manual has been updated an included in the report and as a separate attachment. Reference in the report: Page 6-11 of 94 Reference file:BaseStation User Manual RevA1 Because there have been some concerns in the past about supply supplemental data a new report has been generated in its entirety. Please do not use any portion of the previously submitted report, but use instead the revised report. The breakdown of report parts is as follows: RV58090A FCC Test Report Part 1 R2Pages 01-303.78MB RV58090A FCC Test Report Part 2 R2Pages 31-413.63MB RV58090A FCC Test Report Part 3 R2Pages 42-543.72MB RV58090A FCC Test Report Part 4 R2Pages 55-703.88MB RV58090A FCC Test Report Part 5 R2Pages …

Text truncated - open the document above for the full version.

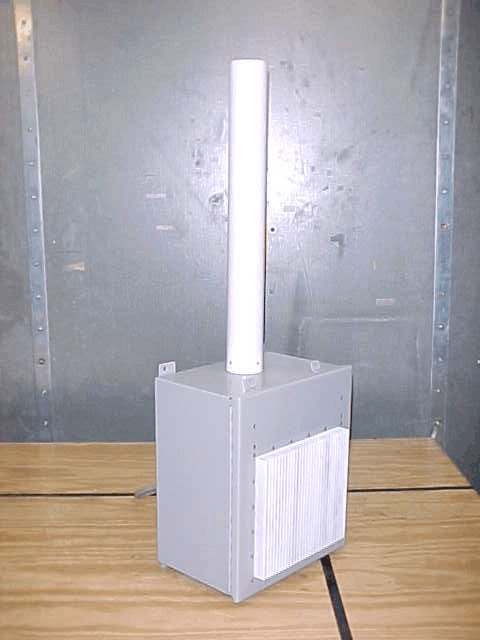

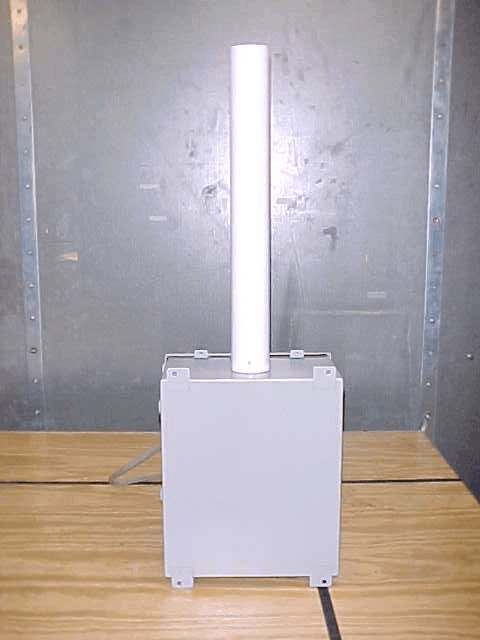

Page 60 of 64 Photo 14ExternalFront Page 61 of 64 Photo 15ExternalRear Page 62 of 64 Photo 16ExternalAngle

Page 5 of 94 2.1033 (b) (2)FCC Identifier FCC ID: SNKHNET50BS ConectiSys Corp. Model: H-NET™ 5.0-BS FCC ID: SNKHNET50BS S/N: 000000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 1 - Label Page 83 of 94 Photo 7InternalLabel Placement - Inside door Page 84 of 94 Photo 8InternalLabel Close Up

Page 47 of 64 Photo 1InternalRF Transmitter - Component Side Page 48 of 64 Photo 2InternalRF Transmitter - Solder Side Page 49 of 64 Photo 3InternalRF Transmitter - with shield mounted - view one Page 50 of 64 Photo 4InternalRF Transmitter - with shield mounted - view two Page 51 of 64 Photo 5 InternalController board - component side Page 52 of 64 Photo 6 InternalController board - circuit side Page 53 of 64 Photo 7InternalLabel Placement - Inside door Page 54 of 64 Photo 8InternalLabel Close Up Page 55 of 64 Photo 9InternalUnit with door open Page 56 of 64 Photo 10InternalSide 1 Page 57 of 64 Photo 11InternalSide 2 Page 58 of 64 Photo 12InternalSide 3 Page 59 of 64 Photo 13InternalSide 4

Page 12 of 94 2.1033 (b) (4)Brief Description of Circuit Function Introduction: The H-Net radio system has been developed by ConectiSys Corp. as an Automatic Meter Reading (AMR) solution for residential and commercial energy markets. H-Net utilizes a proprietary protocol for two-way communication using a wireless, tower-less network. The H-Net 5.0 Single Channel Basestation is the controlling hub for an H-Net 5.0 radio system network. The basestation provides a central point for data collection from individual meter units, synchronizing and communicating with individual meters in a TDMA scheme. The single channel basestation may only receive data from a single meter unit at any given time in the basestation’s receive sequence. The design provides a solid foundation for future iterations of basestations that will integrate additional receivers for simultaneous data reception from multiple meter units. The basestation consists of an H-Net 5.0 radio, PC/104 computer, Compact Flash drive, AC/DC converter, DC/DC converter, battery back-up system and surge protectors. The power system is comprised of a 120VAC to 12VDC converter with a 12VDC-battery backup and a 12VDC to 5VDC/3.3VDC converter to power the PC/104 and radio respectively. The radio system is composed of two PCB assemblies (controller module and RF module) and an omnidirectional vertically mounted, horizontally polarized antenna. The controller and RF modules interface together via PCB mounted headers. The controller is interfaced to the PC/104 via RS232 serial lines. The antenna is weather sealed and mounted on the top of the basestation. The basestation is housed within an environmentally sealed enclosure meeting the following standards: UL 508 Type 3R, 4, 12 and 13 CSA Type 3R, 4, 12 and 13 Complies with NEMA Type 3R, 4, 12 and 13 JIC EGP-1-1967 unless marked¹ IEC 529, IP66

Page 93 of 94 15.247 (2,b,5) RF Exposure Requirements Reference CFR 47 Part 1.1307(b)(1) RF Exposure – MPE Calculations (902 - 928 MHz Band) Transmitter Power: 209 mW Antenna Gain:6 dB Cable loss:1 dB Frequency range:902 - 928 MHz Assumptions 1. A single ¼ wavelength radiating antenna is assumed. 2. Closest exposure distance is assumed to be 20 cm Calculations The following results shall be assumed to be accurate for the far-field only. These predictions will over-estimate power density in the near–field. Based on the use of a ¼ wavelength radiator, a distance of 20 cm is considered to be in the far-field for all cases. S = PG/4*PI*R 2 P is 209 mW G is 5 dB (Antenna gain – loss) R is 20 cm S = 0.132 mW/cm 2 For Occupational/Controlled Exposure From 300 to 1500 MHz, power density limit is f/1500 mW/cm 2 @ 902 MHz, power density limit is 3.01 mW/cm 2 For General Population/Uncontrolled Exposure From 300 to 1500 MHz, power density limit is f/1500 mW/cm 2 @ 902 MHz, Power density limit is 0.60 mW/cm 2 Conclusion:Meets MPE limits

Application for Certification For a RF Transmitter ConectiSys Corp. 24730 Ave Tibbitts, Suite 130 Valencia, CA 91355 Wireless Power Usage Monitoring System M/N: HNET 5.0-BS FCC ID: SNKHNET50BS REPORT # RV58090A-003 This report was prepared in accordance with the requirements of the FCC Rules and Regulations Part 2, Subpart J, 2.1033, Part 15.247, and other applicable sections of the rules as indicated herein. Prepared By: DNB Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503 26 Feb 2005 Page 2 of 94 TABLE OF CONTENTS Paragraph numbers in this report follow the application section numbers found in the FEDERAL COMMUNICATIONS COMMISSION Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. TABLE OF CONTENTS...............................................................................................................2 1.0ADMINISTRATIVE DATA..............................................................................................3 1.1Certifications and Qualifications...........................................................................3 1.2Measurement Repeatability Information................................................................3 2.1033 (b) (1)Application for Certification..................................................................................4 2.1033 (b) (2)FCC Identifier........................................................................................................5 2.1033 (b) (3)Installation and Operating Instructions..................................................................6 2.1033 (b) (4)Brief Description of Circuit Function..................................................................12 2.1033 (b) (5)Block Diagram.....................................................................................................13 2.1033 (b) (6)Report of Measurements .....................................................................................14 15.207Conducted Emissions (General Provisions) ............................................15 15.209Radiated Emissions (General Provisions) ...............................................21 15.205 Transmitter Radiated Spurious - Restricted Bands..................................28 15.247 (a,1)Channel Separation..................................................................................51 15.247 (b,2)Maximum Peak Output Power (Conducted)............................................65 15.247 (c) Conducted Band Edge Measurements and Out of Band Emissions........70 2.1033 (b) (7)Equipment Photographs.......................................................................................76 15.247 (2,b,5) RF Exposure Requirements.................................................................................93 End of Report...............................................................................................................................94 Page 3 of 94 1.0ADMINISTRATIVE DATA 1.1Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. 1.2Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, Part 15. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. C. L. Payne III (Para. 1.1) Sr Engineering Manager Riverside Facility. DNB Engineering, Inc. Tel. (951) 637-2630 FAX (951) 637-2704 Page 4 of 94 2.1033 (b) (1)Application for Certification Name of Applicant:ConectiSys Corp. 24730 Ave Tibbitts, Suite 130 Valencia, CA 91355 FRN Number:0009559063 Applicant is:XManufacturer Vendor Licensee Prospective Licensee Other Name of ManufacturerConectiSys Corp. Description:Wireless Power Usage Monitoring System Part Number:HNET 5.0-BS Anticipated Production Quantity: Multiple Units Frequency Band:902.36-927.56 MHz Rated Power:209mW (23.2dBm) Type of Signal:FHSS Hopping Channels:64 minimum Max Data Rate:9.2 kbps Page 5 of 94 2.1033 (b) (2)FCC Identifier FCC ID: SNKHNET50BS ConectiSys Corp. Model: H-NET™ 5.0-BS FCC ID: SNKHNET50BS S/N: 000000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 1 - Label Page 6 of 94 2.1033 (b) (3)Installation and Operating Instructions Page 7 of 94 Page 8 of 94 Page 9 of 94 Page 10 of 94 Page 11 of 94 Page 12 of 94 2.1033 (b) (4)Brief Description of Circuit Function Introduction: The H-Net radio system has been developed by ConectiSys Corp. as an Automatic Meter Reading (AMR) solution for residential and commercial energy markets. H-Net utilizes a proprietary protocol for two-way communication using a wireless, tower-less network. The H-Net 5.0 Single Chann…

Text truncated - open the document above for the full version.

Page 30 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Horizontal - Average Page 31 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Vertical - Peak Page 32 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Vertical - Average Page 33 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Horizontal - Peak (Peak below average limit) Page 34 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Vertical - Peak (Peak below average limit) Page 35 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Horizontal - Peak (Peak below average limit) Page 36 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Vertical - Peak (Peak below average limit) Page 37 of 94 5969 Robinson Avenue Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 Spurious - Restricted Bands DNB Job Number:58090Date:24 Feb 2005Specification [X] 15.209 Customer:ConectiSys Corp. Model Number:HNET 5.0-BSSerial Number:Proto Description:Wireless Power Usage Monitoring System Horizontal - Peak (Peak below average limit) Page 38 …

Text truncated - open the document above for the full version.
