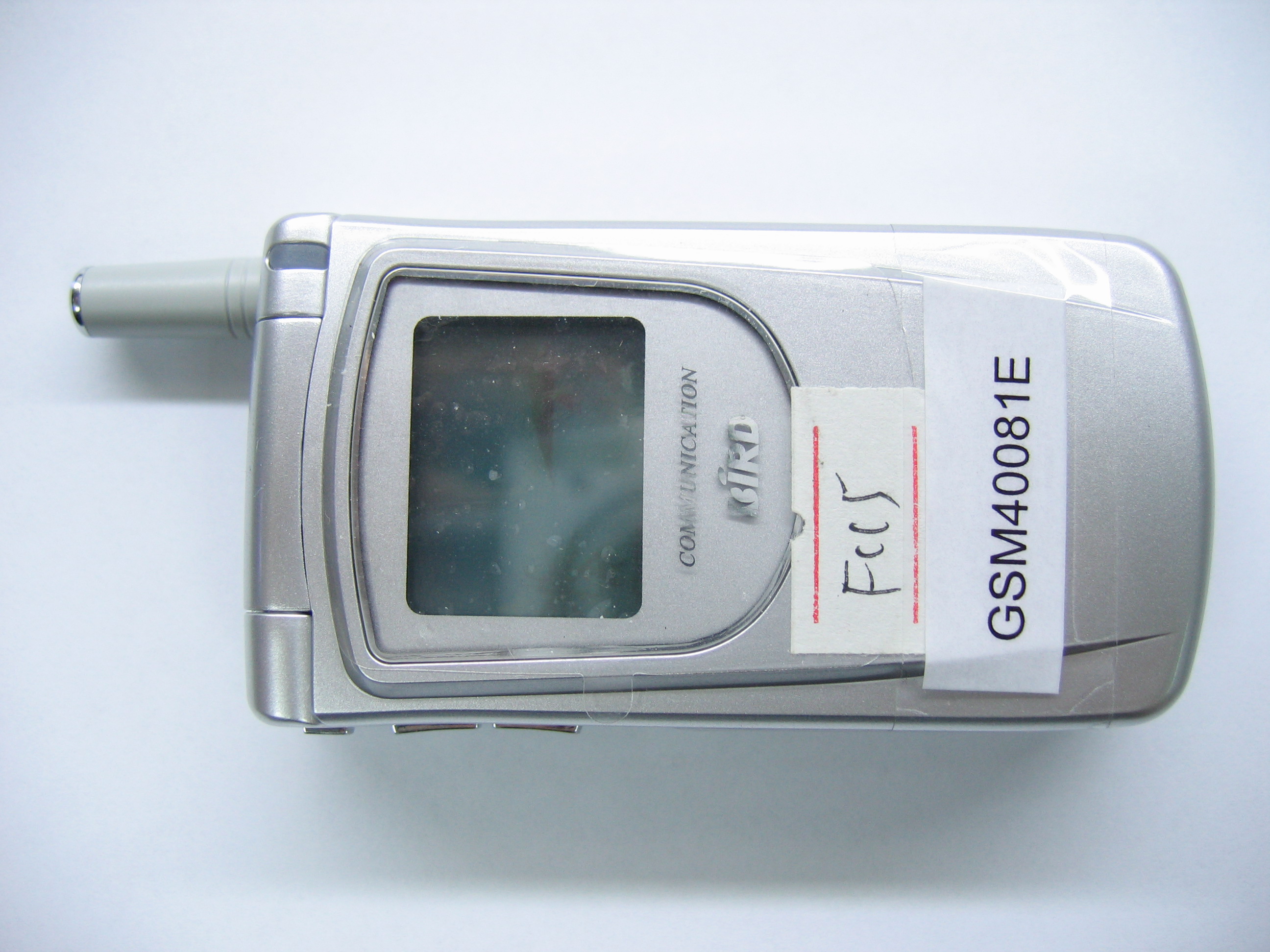

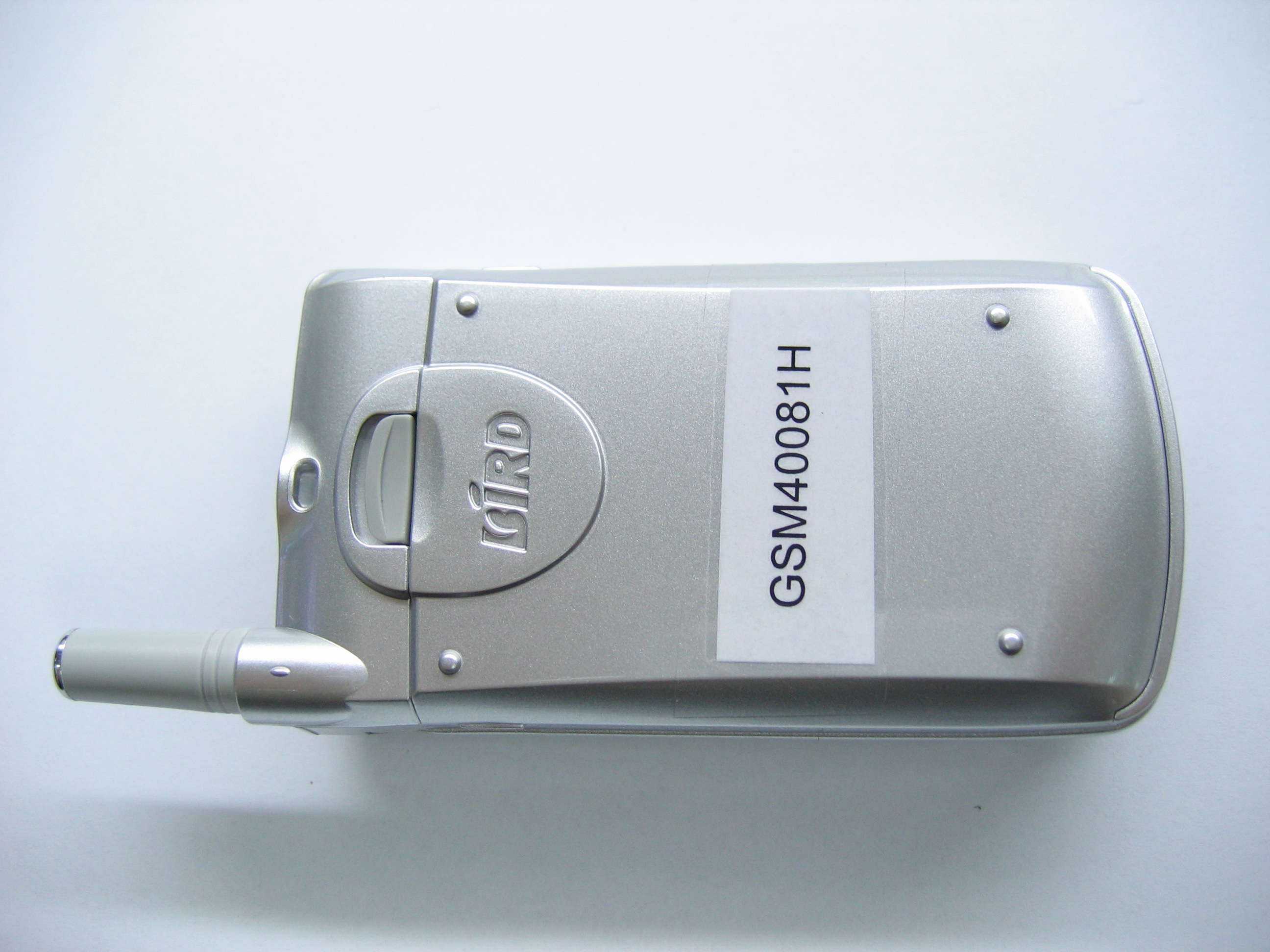

SNM-S1186Mobile Phone

Report No. : ES/2004/B0004 Page : 1 of 64 TEST REPORT Equipment Under Test : GSM Mobile Phone FCC ID : SNM-S1186 Model No. : S1186 Applicant : NINGBO BIRD CO.,LTD Address of Applicant : No.999 Dacheng East Road, Fenghua, Zhejiang, China, 315500 Date of Receipt : 2004.11.22 Date of Test(s) : 2004.11.23-2004.11.26 Date of Issue : 2004.12.01 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 IEEE 1528 2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2004.12.01 Approved by : Robert Chang Date : 2004.12.01 Report No. : ES/2004/B0004 Page : 2 of 64 Contents 1. General Information 1.1 Testing Laboratory 4 1.2 Details of Applicant 4 1.3 Description of EUT(s) 4 1.4 Test Environment 5 1.5 Operation description 5 1.6 The SAR Measurement System 5 1.7 System Components 7 1.8 SAR System Verification 8 1.9 Tissue Simulant Fluid for the Frequency Band 9 1.10 Test Standards and Limits 10 2. Summary of Results 12 3. Instruments List 14 4. Measurements 15 GSM 850MHz 4.1.1 Right-head, cheek, lowest channel 15 4.1.2 Right-head, cheek, middle channel 16 4.1.3 Right-head, cheek, highest channel 17 4.1.4 Left-head, cheek, lowest channel 18 4.1.5 Left-head, cheek, middle channel 19 4.1.6 Left-head, cheek, highest channel 20 4.1.7 Right head, tilt 15°, lowest channel 21 4.1.8 Right head, tilt 15°, middle channel 22 4.1.9 Right head, tilt 15°, highest channel 23 4.1.10 Left head, tilt 15°, lowest channel 24 4.1.11 Left head, tilt 15°, middle channel 25 4.1.12 Left head, tilt 15°, highest channel 26 4.1.13 Body-Worn , lowest channel 27 4.1.14 Body-Worn , middle channel 28 4.1.15 Body-Worn , highest channel 29 GSM 1900MHz 4.2.1 Right-head, cheek, lowest channel 30 4.2.2 Right-head, cheek, middle channel 31 4.2.3 Right-head, cheek, highest channel 32 4.2.4 Left-head, cheek, lowest channel 33 4.2.5 Left-head, cheek, middle channel 34 4.2.6 Left-head, cheek, highest channel 35 4.2.7 Right head, tilt 15°, lowest channel 36 4.2.8 Right head, tilt 15°, middle channel 37 4.2.9 Right head, tilt 15°, highest channel 38 4.2.10 Left head, tilt 15°, lowest channel 39 Report No. : ES/2004/B0004 Page : 3 of 64 4.2.11 Left head, tilt 15°, middle channel 40 4.2.12 Left head, tilt 15°, highest channel 41 4.2.13 Body-Worn , lowest channel 42 4.2.14 Body-Worn , middle channel 43 4.2.15 Body-Worn , highest channel 44 System Verification 4.3.1 System Verification of GSM 900MHz Head 45 4.3.2 System Verification of GSM 900MHz Muscle 46 4.3.3System Verification of GSM 1900MHz Head 47 4.3.4System Verification of GSM 1900MHz Muscle 48 APPENDIX 1. Photographs of Test Setup 49 2. Photographs of EUT 52 2. Photographs of the Battery 54 3. Probe Calibration certificate 55 4. Uncertainty Analysis 59 5. Phantom description 60 6. System Validation from Original equipment supplier 61 Report No. : ES/2004/B0004 Page : 4 of 64 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Name : NINGBO BIRD CO.,LTD Address : No.999 Dacheng East Road, Fenghua, Zhejiang, China, 315500 Contact Person : Changlong Chen Telephone : +86-574-88934752 E-mail : +86-574-88934754 1.3 Description of EUT(s) EUT Type GSM Mobile Phone Model S1186 Mode of Operation GSM 850/1900 MHz FCC ID SNM-S1186 Modulation Mode GMSK Maximum RF Conducted Power 29.48 dbm Duty Cycle 1/8.3(GSM) 850MHz 1900MHz TX Frequency range 824.2-848.8 MHz1850-1910 MHz Antenna Type Fixed Battery Type 3.7V Lithium-Ion Report No. : ES/2004/B0004 Page : 5 of 64 Exposure environment Uncontrolled exposure Max. SAR Measured (1g) 1.03 W/kg (at GSM 1900 MHz Right-Head Cheek Channel 512) 1.4 Test Environment Ambient temperature : 22.1° C Tissue Simulating Liquid : 21.6° C Relative Humidity : 60 % 1.5 Operation description The device was controlled by using a Universal Radio Communication Tester (CMU 200). Communication between the device and the tester was established by air link. Measurements were performed on the lowest, middle and highest channels of the operating band. The phone was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. 1.6 The SAR Measurement System A photograph of the SAR measurement System is given in Fig. a. This SAR Measurement System uses a Computer-controlled 3-D stepper motor system ( Speag Dasy 4 professional system ). A Model ET3DV6 1760E-field probe is used to determine the internal electric fields. The SAR can be obtained from the equation SAR= σ (|Ei| 2 )/ ρ where σ and ρ are the conductivity and mass density of the tissue-simulant. The DASY4 system for performing compliance tests consists of the following items: • A standard high precision 6-axis robot (Stabile RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE). • A dosimetric probe, i.e., an isotropic E-field probe optimiz…

Text truncated - open the document above for the full version.

Report No. : ES/2004/B0004 Page : 33 of 64 Left-Head Cheek CH512 Date/Time: 11/23/04 18:35:54 DUT: GSM MOBILE PHONE; Type: Flip; IMEI: 3539910006132201 Program: GSM 1900MHZ Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1900MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: • Probe: ET3DV6 - SN1760; ConvF(5.13, 5.13, 5.13); Calibrated: 2004/2/17 • Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) • Electronics: DAE3 Sn547; Calibrated: 2004/2/10 • Phantom: SAM 12; Type: SAM 4.0; Serial: TP:1150 • Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Left-Cheek/Area Scan (41x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.848 mW/g Left-Cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.9 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.759 mW/g; SAR(10 g) = 0.443 mW/g Maximum value of SAR (measured) = 0.832 mW/g 0 dB = 0.832mW/g Report No. : ES/2004/B0004 Page : 34 of 64 Left-Head Cheek CH661 Date/Time: 11/23/04 19:03:58 DUT: GSM MOBILE PHONE; Type: Flip; IMEI: 3539910006132201 Program: GSM 1900MHZ Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900MHz Medium parameters used (interpolated): f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: • Probe: ET3DV6 - SN1760; ConvF(5.13, 5.13, 5.13); Calibrated: 2004/2/17 • Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) • Electronics: DAE3 Sn547; Calibrated: 2004/2/10 • Phantom: SAM 12; Type: SAM 4.0; Serial: TP:1150 • Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Left-Cheek/Area Scan (41x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.807 mW/g Left-Cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.693 mW/g; SAR(10 g) = 0.410 mW/g Maximum value of SAR (measured) = 0.754 mW/g 0 dB = 0.754mW/g Report No. : ES/2004/B0004 Page : 35 of 64 Left-Head Cheek CH810 Date/Time: 11/23/04 19:33:58 DUT: GSM MOBILE PHONE; Type: Flip; IMEI: 3539910006132201 Program: GSM 1900MHZ Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Head 1900MHz Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.45 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: • Probe: ET3DV6 - SN1760; ConvF(5.1, 5.1, 5.1); Calibrated: 2004/2/17 • Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) • Electronics: DAE3 Sn547; Calibrated: 2004/2/10 • Phantom: SAM 12; Type: SAM 4.0; Serial: TP:1150 • Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Left-Cheek/Area Scan (41x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.731 mW/g Left-Cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.651 mW/g; SAR(10 g) = 0.382 mW/g Maximum value of SAR (measured) = 0.702 mW/g 0 dB = 0.702mW/g Report No. : ES/2004/B0004 Page : 36 of 64 Right-Head Tilt CH512 Date/Time: 11/23/04 18:01:08 DUT: GSM MOBILE PHONE; Type: Flip; IMEI: 3539910006132201 Program: GSM 1900MHZ Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1900MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: • Probe: ET3DV6 - SN1760; ConvF(5.13, 5.13, 5.13); Calibrated: 2004/2/17 • Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) • Electronics: DAE3 Sn547; Calibrated: 2004/2/10 • Phantom: SAM 12; Type: SAM 4.0; Serial: TP:1150 • Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Right-Tile/Area Scan (41x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.601 mW/g Right-Tile/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.3 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.846 W/kg SAR(1 g) = 0.478 mW/g; SAR(10 g) = 0.260 mW/g Maximum value of SAR (measured) = 0.527 mW/g 0 dB = 0.527mW/g Report No. : ES/2004/B0004 Page : 37 of 64 Right-Head Tilt CH661 Date/Time: 11/23/04 17:20:01 DUT: GSM MOBILE PHONE; Type: Flip; IMEI: 3539910006132201 Program: GSM 1900MHZ Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900MHz Medium parameters used (interpolated): f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: • Probe: ET3DV6 - SN1760; ConvF(5.13, 5.13, 5.13); Calibrated: 2004/2/17 • Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) • Electronics: DAE3 Sn547; Calibrated: 2004/2/10 • Phantom: SAM 12; Type: SAM 4.0; Serial: TP:1150 • Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Right-Tile/Area Scan (41x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.523 mW/g Right-Tile/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.728 W/kg SAR(1 g) = 0.414 mW/g; SAR(10 g) = 0.226 mW/g Maximum value of SAR (measured) = 0.457 mW/g 0 dB = 0.457mW/g Report No. : ES/2004/B0004 Page : 38 of 64 Right-Head Tilt CH810 Date/Time: 11/23/04 16:26:54 DUT: GSM MOBILE PHONE; Type: Flip; IMEI: 3539910006132201 Program: GSM 1900MHZ Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Head 1900MHz Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.45 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Phantom section: Right Se…

Text truncated - open the document above for the full version.

Report No.: EF/2004/B0001-01 ID: SNM-S1186 Issue Date: Dec. 02, 2004 Page: 1 of 64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 22 SUBPART H and PART 24 SUBPART E REQUIREMENT OF Product Name: GSM Mobile Phone Brand Name: BIRD Model Name: S1186 FCC ID: SNM-S1186 Report No.: EF/2004/B0001-01 Issue Date: Dec. 02, 2004 FCC Rule Part: 2 & 24E& 22H Prepared for NINGBO BIRD CO., LTD No. 999 Dacheng East Road, Fenghua City, Zhejiang, China Prepared by SGS Taiwan Ltd. No. 134, Wu Kun g Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EF/2004/B0001-01 ID: SNM-S1186 Issue Date: Dec. 02, 2004 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: NINGBO BIRD CO., LTD No.999 Dacheng East Road, Fenghua City, Zhejiang, China Equipment Under Test: GSM Mobile Phone FCC ID Number: SNM-S1186 Brand Name: BIRD Model No.: S1186 Model Difference: N/A File Number: EF/2004/B0001-01 Date of test: Nov. 10~ Dec. 01, 2004 Date of EUT Received: Nov. 08, 2004 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-1-1998 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 subpart H and FCC PART 24 subpart E. The test results of this report relate only to the tested sample identified in this report. Test By: Date Dec. 02, 2004 Willis Chen Approved By Date Dec. 02, 2004 Vincent Su Report No.: EF/2004/B0001-01 ID: SNM-S1186 Issue Date: Dec. 02, 2004 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Dec. 02, 2004 Report No.: EF/2004/B0001-01 ID: SNM-S1186 Issue Date: Dec. 02, 2004 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Product Description ......................................................................................................................... 6 1.2 Related Submittal(s) / Grant (s) ....................................................................................................... 6 1.3 Test Methodology ............................................................................................................................ 6 1.4 Test Facility...................................................................................................................................... 7 1.5 Special Accessories .......................................................................................................................... 7 1.6 Equipment Modifications................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ......................................................................................... 8 2.1 EUT Configuration .......................................................................................................................... 8 2.2 EUT Exercise ................................................................................................................................... 8 2.3 Test Procedure.................................................................................................................................. 8 2.4 Configuration of Tested System....................................................................................................... 9 3. SUMMARY OF TEST RESULTS ............................................................................................ 10 4. DESCRIPTION OF TEST MODES ......................................................................................... 10 5. RF POWER OUTPUT MEASUREMENT .............................................................................. 11 5.1 Standard Applicable ....................................................................................................................... 11 5.2 Test Set-up: .................................................................................................................................... 11 5.3 Measurement Procedure................................................................................................................. 11 5.4 Measuremen…

Text truncated - open the document above for the full version.
