SNM-S590GSM GPRS Mobile Phone

-----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, March 15, 2005 2:35 AM To: steve.cheng Cc: [email protected] Subject: 回信: TCB Review Comments for (SNM-S590, 940131L13) Dear Steve Our reply as below: Question #1: What is the calibration tolerance in the tune-up procedure? Answer: The maximum power is set to highest measured SAR power with +0dB, -0.2dB. Question #2: Test report: page 17; setup diagram on page 15 show a 20 db attenuator, a power splitter and RF cable was use during the conducted power measurement, but only 4 dB indicated in the correction factor. Please confirm if 20 dB attenuator losses has been considered in the merriment result. Answer: 20 dB offset had been setup in the spectrum to compensate for the 20 dB attenuator loss. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號 "steve.cheng" <steve.cheng@nacs emc.com> 收 件人 Wendy Liao <[email protected]> 2005/03/15 下午 副本抄 送 [email protected] 主旨 TCB Review Comments for (SNM-S590, 940131L13) TCB Review Comments for (SNM-S590, 940131L13) -EMC- Question #1: What is the calibration tolerance in the tune-up procedure? Question #2: Test report: page 17; setup diagram on page 15 show a 20 db attenuator, a power splitter and RF cable was use during the conducted power measurement, but only 4 dB indicated in the correction factor. Please confirm if 20 dB attenuator losses has been considered in the merriment result. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best Regards Steve Cheng / Technical Reviewer TCB/FCB/NB North American EMC Certification Service Inc. Email: [email protected] Tel: 403-241-8826 Best regards, Steve Cheng North American EMC Certification Services Inc. 359 Hawkland Cir., NW. Calgary, Alberta Canada T3G 3R3 Tel: (403) 241-8826 Email: [email protected]

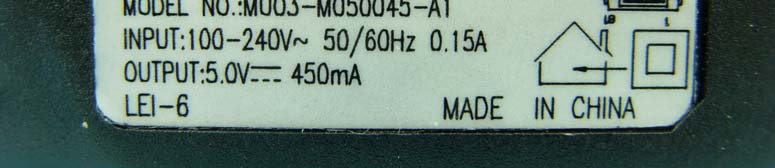

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 \

FCC ID Label Location (FCC ID: SNM-S590)

S590 Label (1280x960x16M jpeg)

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: SNM-S590 Report No.: 940131L13 Operational Description This device is the GSM GPRS Mobile Phone and operated frequency in the 1.9GHz (PCS) band. When GSMK technique will be applied under the transmission data and voice. In addition, the GPRS transmission rate is the class 10. The transmitter of the EUT is powered by charged battery or AC adapter. The antenna is External antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

D - 16 1900MHz SYSTEM VALIDATION DIPOLE SN: 5d022 D - 17 D - 18 D - 19 D - 20 D - 21 D - 22 D - 23 D - 24 D - 25

D3: 3G DOSIMETRIC E-FIELD PROBE

D4: DAE SN: 510

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

FCC ID: SNM-S590 Report No.: RF940131L131Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.: RF940131L13 MODEL NO.: S590 RECEIVED: Mar. 01, 2005 TESTED: Mar. 07 ~ Mar. 08, 2005 ISSUED: Mar. 08, 2005 APPLICANT: NINGBO BIRD CO., LTD ADDRESS: No. 999, Dacheng East Road, Fenghua City, Zhejiang, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 55 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA , A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: SNM-S590 Report No.: RF940131L132Report Format Version 2.0.1 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................6 3GENERAL INFORMATION........................................................................................7 3.1GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2DESCRIPTION OF TEST MODES ............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................8 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1MODULATION CHARACTERISTICS ......................................................................10 4.1.1DESCRIPTION OF MODULATION TECHNIQUE ...................................................10 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT...................................... 11 4.2OUTPUT POWER MEASUREMENT ......................................................................12 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT ....................................................12 4.2.2TEST INSTRUMENTS.............................................................................................13 4.2.3TEST PROCEDURES .............................................................................................14 4.2.4TEST SETUP...........................................................................................................15 4.2.5EUT OPERATING CONDITIONS ............................................................................16 4.2.6TEST RESULTS ......................................................................................................17 4.3FREQUENCY STABILITY MEASUREMENT...........................................................19 4.3.1LIMITS OF FREQUENCY STABILIITY MEASUREMENT .......................................19 4.3.2TEST INSTRUMENTS.............................................................................................19 4.3.3TEST PROCEDURE................................................................................................20 4.3.4TEST SETUP...........................................................................................................20 4.3.5TEST RESULTS ......................................................................................................21 4.4OCCUPIED BANDWIDTH MEASUREMENT ..........................................................23 4.4.1LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT .......................................23 4.4.2TEST INSTRUMENTS.............................................................................................23 4.4.3TEST SETUP...........................................................................................................23 4.4.4TEST PROCEDURES .............................................................................................24 4.4.5EUT OPERATING CONDITION ..............................................................................24 4.4.6TEST RESULTS ......................................................................................................24 4.5BAND EDGE MEASUREMENT...............................................................................28 4.5.1LIMITS OF BAND EDGE MEASUREMENT ............................................................28 4.5.2TEST INSTRUMENTS.............................................................................................28 FCC ID: SNM-S590 Report No.: RF940131L133Report Format Version 2.0.1 4.5.3TEST SETUP...........................................................................................................28 4.5.4TEST PROCEDURES .............................................................................................29 4.5.5EUT OPERATING CONDITION ..............................................................................29 4.5.6TEST RESULTS ......................................................................................................30 4.6CONDUCTED SPURIOUS EMISSIONS .................................................................31 4.6.1LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................31 4.6.2TEST INSTRUMENTS.............................................................................................31 4.6.3TEST PROCEDURE................................................................................................32 4.6.4TEST SETUP...........................................................................................................32 4.6.5EUT OPERATING CONDITIONS ........................................…

Text truncated - open the document above for the full version.

V11E Tune Up Procedure 1. Hardware connection a. Connecting RF tester 8960 and power supplier 3631 to GPIB interface card. b. Applying RS232 cable to connect the PCB board to PC’s COM1. c. Get RF cable to RF tester 8960 and then import the cable loss. 2. Double click figure of UNITS3 and then start calibration program. 3. Install main board into PCB board and click the start button on the calibration program to perform the task. 4. The calibration program will start with frequency band of GSM, then DCS and finally to PCS frequency band. After gaining the required power level, operators are able to adjust the DAC level and then install it to the handset.

FCC ID: SNM-S590 Report No.: SA940131L131Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA940131L13 MODEL NO.: S590 RECEIVED: Mar. 01, 2005 TESTED: Mar. 11, 2005 ISSUED: Mar. 15, 2005 APPLICANT: NINGBO BIRD CO., LTD ADDRESS: No. 999, Dacheng East Road, Fenghua City, Zhejiang, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 35 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA NO. 2177-01 FCC ID: SNM-S590 Report No.: SA940131L132Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................12 3.1 TOUCH/CHEEK TEST POSITION ............................................................................13 3.2 TILT TEST POSITION ...............................................................................................14 3.3 BODY-WORN CONFIGURATION .............................................................................14 4.DESCRIPTION OF SUPPORT UNITS ......................................................................15 5.TEST RESULTS ........................................................................................................16 5.1 TEST PROCEDURES ...............................................................................................16 5.2 MEASURED SAR RESULTS ....................................................................................17 5.3 SAR LIMITS...............................................................................................................21 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................21 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................24 6.SYSTEM VALIDATION ..............................................................................................25 6.1 TEST EQUIPMENT ...................................................................................................25 6.2 TEST PROCEDURE .................................................................................................25 6.3 VALIDATION RESULTS ............................................................................................27 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................28 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................29 7.1 PROBE CALIBRATION UNCERTAINTY ..................................................................29 7.2 ISOTROPY UNCERTAINTY .....................................................................................29 7.3 BOUNDARY EFFECT UNCERTAINTY.....................................................................30 7.4 PROBE LINEARITY UNCERTAINTY........................................................................30 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................31 7.6 RESPONSE TIME UNCERTAINTY ..........................................................................31 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................32 7.8 PROBE POSITIONER MECHANICAL TOLERANCE ...............................................32 7.9 PROBE POSITIONING .............................................................................................33 7.10 PHANTOM UNCERTAINTY ......................................................................................33 7.11 DASY4 UNCERTAINTY BUDGET ............................................................................34 8.INFORMATION ON THE TESTING LABORATORIES ..............................................35 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: SNM-S590 Report No.: SA940131L133Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : GSM GPRS Mobile Phone MODEL NO. : S590 BRAND NAME : BIRD, AIKO, NETIME APPLICANT : NINGBO BIRD CO., LTD TEST DATE: Mar. 11, 2005 TEST SAMPLE: MASS-PRODUCTION STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Mar. 15, 2005 ( Rennie Wang ) TECHNICAL ACCEPTANCE :, DATE:Mar. 15, 2005 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Mar. 15, 2005 (Cody Chang Deputy Manger ) FCC ID: SNM-S590 Report No.: SA940131L134Report Format Version 2.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PR…

Text truncated - open the document above for the full version.

Date/Time: 03/11/05 10:10:06 Test Laboratory: Advance Data Technology S590 Mode 1 BodyWorn Bottom 15mm - PCS1900 GPRS DUT: Mobil Phone ; Type: S590 ; Test Channel Frequency: 1880 MHz Communication System: PCS 1900 ; Frequency: 1880 MHz ; Duty Cycle: 1:4 Medium: MSL1900 Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: GMSK / UL 2 time solts Separation Distance : 15 mm ( The bottom side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.54, 4.54, 4.54) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 Middle Channel 661/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.824 mW/g Middle Channel 661/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.1 V/m Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.840 mW/g; SAR(10 g) = 0.520 mW/g Maximum value of SAR (measured) = 0.924 mW/g Date/Time: 03/11/05 10:32:48 Test Laboratory: Advance Data Technology S590 Mode 1 Body Worn Bottom 15mm - PCS1900 GPRS DUT: Mobil Phone ; Type: S590 ; Test Channel Frequency: 1909.8 MHz Communication System: PCS 1900 ; Frequency: 1909.8 MHz ; Duty Cycle: 1:4 Medium: MSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.55 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: GMSK / UL 2 time solts Separation Distance : 15 mm ( The bottom side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.54, 4.54, 4.54) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 High Channel 810/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.612 mW/g High Channel 810/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.3 V/m Peak SAR (extrapolated) = 0.983 W/kg SAR(1 g) = 0.611 mW/g; SAR(10 g) = 0.365 mW/g Maximum value of SAR (measured) = 0.673 mW/g Date/Time: 03/11/05 10:55:11 Test Laboratory: Advance Data Technology S590 Mode 2 Body Worn Front 15mm - PCS1900 GPRS DUT: Mobil Phone ; Type: S590 ; Test Channel Frequency: 1850.2 MHz Communication System: PCS 1900 ; Frequency: 1850.2 MHz ; Duty Cycle: 1:4 Medium: MSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.49 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: GMSK / UL 2 time solts Separation Distance : 15 mm ( The Top side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.54, 4.54, 4.54) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.317 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14 V/m Peak SAR (extrapolated) = 0.422 W/kg SAR(1 g) = 0.297 mW/g; SAR(10 g) = 0.197 mW/g Maximum value of SAR (measured) = 0.321 mW/g ` Date/Time: 03/11/05 11:21:31 Test Laboratory: Advance Data Technology S590 Mode 2 Body Worn Front 15mm - PCS1900 GPRS DUT: Mobil Phone ; Type: S590 ; Test Channel Frequency: 1880 MHz Communication System: PCS 1900 ; Frequency: 1880 MHz ; Duty Cycle: 1:4 Medium: MSL1900 Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: GMSK / UL 2 time solts Separation Distance : 15 mm ( The Top side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.54, 4.54, 4.54) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 Low Channel 2/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.236 mW/g Low Channel 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m Peak SAR (extrapolated) = 0.324 W/kg SAR(1 g) = 0.222 mW/g; SAR(10 g) = 0.143 mW/g Maximum value of SAR (measured) = 0.240 mW/g Date/Time: 03/11/05 11:45:03 Test Laboratory: Advance Data Technology S590 Mode 2 Body Worn Front 15mm - PCS1900 GPRS DUT: Mobil Phone ; Type: S590 ; Test Channel Frequency: 1909.8 MHz Communication System: PCS 1900 ; Frequency: 1909.8 MHz ; Duty Cycle: 1:4 Medium: MSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.55 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: GMSK / UL 2 time solts Separation Distance : 15 mm ( The Top side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: E…

Text truncated - open the document above for the full version.

FCC ID: SNM-S590 Report No.: RF940131L1354Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
