SNM-V5510Dual Band GSM Mobile Phone

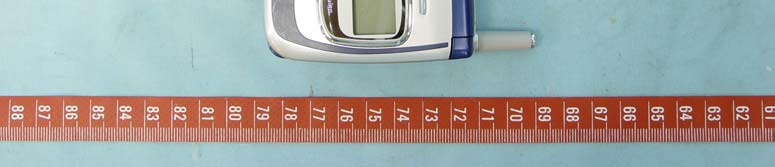

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location (FCC ID: SNM-V5510)

Dual Band GSM Mobile Phone V5510 BIRD FCC ID : SNM-V5510 Made in China

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: SNM-V5510 Report No.: F940504L15 Operational Description This device is the Dual Band GSM Mobile Phone and operated frequency in the 850MHz (GSM band) and 1900MHz (PCS band). When GMSK technique will be applied under the transmission data and voice. The transmitter of the EUT is powered by charged battery or AC adapter. The antenna is Fixed External antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

D4: 1900 MHz SYSTEM VALIDATION DIPOLE SN: 5d036

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Left Head Cheek Position Left Head Tilt Position Right Head Cheek Position Right Head Tilt Position EUT Photo Liquid Level Photo Tissue 850MHz D=150mm Tissue 1900MHz D=150mm Date/Time: 2005/5/13 14:02:11 Test Laboratory: Advance Data Technology V5510 PCS850 Right Head DUT: Dual Band GSM Mobile Phone ; Type: V5510 ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 824.2 MHz; σ = 0.88 mho/m; ε r = 42.6; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1531; ConvF(6.19, 6.19, 6.19) ; Calibrated: 2004/11/19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Low Channel 128/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.508 mW/g Touch position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.20 V/m Peak SAR (extrapolated) = 0.731 W/kg SAR(1 g) = 0.466 mW/g; SAR(10 g) = 0.303 mW/g Maximum value of SAR (measured) = 0.497 mW/g Date/Time: 2005/5/13 14:27:13 Test Laboratory: Advance Data Technology V5510 PCS850 Right Head DUT: Dual Band GSM Mobile Phone ; Type: V5510 ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 836.6 MHz; σ = 0.891 mho/m; ε r = 42.4; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1531; ConvF(6.19, 6.19, 6.19) ; Calibrated: 2004/11/19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Middle Channel 190/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.535 mW/g Touch position - Middle Channel 190/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.28 V/m Peak SAR (extrapolated) = 0.772 W/kg SAR(1 g) = 0.482 mW/g; SAR(10 g) = 0.309 mW/g Maximum value of SAR (measured) = 0.518 mW/g Date/Time: 2005/5/13 14:55:56 Test Laboratory: Advance Data Technology V5510 PCS850 Right Head DUT: Dual Band GSM Mobile Phone ; Type: V5510 ; Test Frequency: 848.8 MHz Communication System: PCS 850 ; Frequency: 848.8 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 848.8 MHz; σ = 0.901 mho/m; ε r = 42.3; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1531; ConvF(6.19, 6.19, 6.19) ; Calibrated: 2004/11/19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - High Channel 251/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.537 mW/g Touch position - High Channel 251/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.40 V/m Peak SAR (extrapolated) = 0.817 W/kg SAR(1 g) = 0.490 mW/g; SAR(10 g) = 0.309 mW/g Maximum value of SAR (measured) = 0.529 mW/g Date/Time: 2005/5/13 15:18:32 Test Laboratory: Advance Data Technology V5510 PCS850 Right Head DUT: Dual Band GSM Mobile Phone ; Type: V5510 ; Test Channel Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz; Duty Cycle: 1:8.3 Medium: HSL850 Medium parameters used: f = 824.2 MHz; σ = 0.88 mho/m; ε r = 42.6; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1531 ; ConvF(6.19, 6.19, 6.19) ; Calibrated: 2004/11/19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilt position - Low Channel 128/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.116 mW/g Tilt position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.99 V/m Peak SAR (extrapolated) = 0.142 W/kg SAR(1 g) = 0.111 mW/g; SAR(10 g) = 0.082 mW/g Maximum value of SAR (measured) = 0.117 mW/g Tilt position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.99 V/m Peak SAR (extrapolated) = 0.098 W/kg SAR(1 g) = 0.071 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.082 mW/g Date/Time: 2005/5/13 15:54:30 Test Laboratory: Advance Data Technology V5510 PCS850 Right Head DUT: Dual Band GSM Mobile Phone ; Type: V5510 ; Test Channel Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium: HSL850 Medium parameters used: f = 836.6 MHz; σ = 0.891 mho/m; ε r = 42.4; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Tilt ; M…

Text truncated - open the document above for the full version.

FCC ID: SNM-V5510 Report No.: SA940504L151Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA940504L15 MODEL NO.: V5510 RECEIVED: May 04, 2005 TESTED: May 12 ~ May 13, 2005 ISSUED: May 23, 2005 APPLICANT: NINGBO BIRD CO., LTD ADDRESS: No. 999, Dacheng East Road, Fenghua City, Zhejiang, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 40 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA NO. 2177-01 FCC ID: SNM-V5510 Report No.: SA940504L152Report Format Version 2.0.1 TABLE OF CONTENTS 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................................ 8 3.DESCRIPTION OF TEST POSITION AND CONFIGURATIONS............................................ 12 3.1TOUCH/CHEEK TEST POSITION .......................................................................................... 13 3.2TILT TEST POSITION ............................................................................................................. 14 3.3BODY-WORN CONFIGURATION ........................................................................................... 14 3.4DESCRIPTION OF TEST MODE ............................................................................................ 15 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 16 5.TEST RESULTS ...................................................................................................................... 17 5.1TEST PROCEDURES .............................................................................................................17 5.2MEASURED SAR RESULTS................................................................................................... 19 5.3SAR LIMITS ............................................................................................................................. 23 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 23 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 27 6.SYSTEM VALIDATION ............................................................................................................28 6.1TEST EQUIPMENT ................................................................................................................. 28 6.2TEST PROCEDURE................................................................................................................ 29 6.3VALIDATION RESULTS ..........................................................................................................31 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 32 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 33 7.1. PROBE CALIBRATION UNCERTAINTY................................................................................. 33 7.2. ISOTROPY UNCERTAINTY.................................................................................................... 34 7.3. BOUNDARY EFFECT UNCERTAINTY................................................................................... 34 7.4. PROBE LINEARITY UNCERTAINTY ...................................................................................... 35 7.5. READOUT ELECTRONICS UNCERTAINTY.......................................................................... 35 7.6. RESPONSE TIME UNCERTAINTY ........................................................................................ 35 7.7. INTEGRATION TIME UNCERTAINTY .................................................................................... 36 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 37 7.9. PROBE POSITIONING............................................................................................................ 37 7.10. PHANTOM UNCERTAINTY .................................................................................................... 38 7.11. DASY4 UNCERTAINTY BUDGET .......................................................................................... 39 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 40 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: SNM-V5510 Report No.: SA940504L153Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : Dual Band GSM Mobile Phone MODEL NO. : V5510 BRAND NAME : BIRD APPLICANT : NINGBO BIRD CO., LTD TEST DATE: May 12 ~ May 13, 2005 TEST SAMPLE: MASS-PRODUCTION STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment have been tested…

Text truncated - open the document above for the full version.

FCC ID: SNM-V5510 Report No.: RF940504L151Report Format Version 2.0.1 FCC TEST REPORT (PART 22) REPORT NO.: RF940504L15 MODEL NO.: V5510 RECEIVED: May 04, 2005 TESTED: May 05 ~ May 12, 2005 ISSUED: May 17, 2005 APPLICANT: NINGBO BIRD CO., LTD ADDRESS: No. 999, Dacheng East Road, Fenghua City, Zhejiang, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: SNM-V5510 Report No.: RF940504L152Report Format Version 2.0.1 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................6 3GENERAL INFORMATION........................................................................................7 3.1GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................8 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1MODULATION CHARACTERISTICS ......................................................................10 4.1.1DESCRIPTION OF MODULATION TECHNIQUE ...................................................10 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT...................................... 11 4.2OUTPUT POWER MEASUREMENT ......................................................................13 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT ....................................................13 4.2.2TEST INSTRUMENTS.............................................................................................14 4.2.3TEST PROCEDURES .............................................................................................15 4.2.4TEST SETUP...........................................................................................................16 4.2.5EUT OPERATING CONDITIONS ............................................................................17 4.2.6TEST RESULTS ......................................................................................................18 4.3FREQUENCY STABILITY MEASUREMENT...........................................................20 4.3.1LIMITS OF FREQUENCY STABILIITY MEASUREMENT .......................................20 4.3.2TEST INSTRUMENTS.............................................................................................20 4.3.3TEST PROCEDURE................................................................................................21 4.3.4TEST SETUP...........................................................................................................21 4.3.5TEST RESULTS ......................................................................................................22 4.4OCCUPIED BANDWIDTH MEASUREMENT ..........................................................24 4.4.1LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT .......................................24 4.4.2TEST INSTRUMENTS.............................................................................................24 4.4.3TEST SETUP...........................................................................................................24 4.4.4TEST PROCEDURES .............................................................................................25 4.4.5EUT OPERATING CONDITION ..............................................................................25 4.4.6TEST RESULTS ......................................................................................................25 4.5BAND EDGE MEASUREMENT...............................................................................29 4.5.1LIMITS OF BAND EDGE MEASUREMENT ............................................................29 4.5.2TEST INSTRUMENTS.............................................................................................29 4.5.3TEST SETUP...........................................................................................................29 4.5.4TEST PROCEDURES .............................................................................................30 FCC ID: SNM-V5510 Report No.: RF940504L153Report Format Version 2.0.1 4.5.5EUT OPERATING CONDITION ..............................................................................30 4.5.6TEST RESULTS ......................................................................................................31 4.6CONDUCTED SPURIOUS EMISSIONS .................................................................32 4.6.1LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................32 4.6.2TEST INSTRUMENTS.............................................................................................32 4.6.3TEST PROCEDURE................................................................................................33 4.6.4TEST SETUP...........................................................................................................33 4.6.5EUT OPERATING CONDITIONS ...............................…

Text truncated - open the document above for the full version.

FCC ID: SNM-V5510 Report No.: RF940504L151Report Format Version 2.0.1 FCC TEST REPORT (Part 24) REPORT NO.: RF940504L15 MODEL NO.: V5510 RECEIVED: May 04, 2005 TESTED: May 05 ~ May 12, 2005 ISSUED: May 02, 2005 APPLICANT: NINGBO BIRD CO., LTD ADDRESS: No. 999, Dacheng East Road, Fenghua City, Zhejiang, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA , A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: SNM-V5510 Report No.: RF940504L152Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 2.1MEASUREMENT UNCERTAINTY.............................................................................6 3GENERAL INFORMATION ........................................................................... 7 3.1GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2DESCRIPTION OF TEST MODES ............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................8 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 4TEST TYPES AND RESULTS..................................................................... 10 4.1MODULATION CHARACTERISTICS ......................................................................10 4.1.1DESCRIPTION OF MODULATION TECHNIQUE ...................................................10 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT...................................... 11 4.2OUTPUT POWER MEASUREMENT ......................................................................13 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT ....................................................13 4.2.2TEST INSTRUMENTS.............................................................................................14 4.2.3TEST PROCEDURES .............................................................................................15 4.2.4TEST SETUP...........................................................................................................16 4.2.5EUT OPERATING CONDITIONS ............................................................................17 4.2.6TEST RESULTS ......................................................................................................18 4.3FREQUENCY STABILITY MEASUREMENT...........................................................20 4.3.1LIMITS OF FREQUENCY STABILIITY MEASUREMENT .......................................20 4.3.2TEST INSTRUMENTS.............................................................................................20 4.3.3TEST PROCEDURE................................................................................................21 4.3.4TEST SETUP...........................................................................................................21 4.3.5TEST RESULTS ......................................................................................................22 4.4OCCUPIED BANDWIDTH MEASUREMENT ..........................................................24 4.4.1LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT .......................................24 4.4.2TEST INSTRUMENTS.............................................................................................24 4.4.3TEST SETUP...........................................................................................................24 4.4.4TEST PROCEDURES .............................................................................................25 4.4.5EUT OPERATING CONDITION ..............................................................................25 4.4.6TEST RESULTS ......................................................................................................25 4.5BAND EDGE MEASUREMENT...............................................................................32 FCC ID: SNM-V5510 Report No.: RF940504L153Report Format Version 2.0.1 4.5.1LIMITS OF BAND EDGE MEASUREMENT ............................................................32 4.5.2TEST INSTRUMENTS.............................................................................................32 4.5.3TEST SETUP...........................................................................................................32 4.5.4TEST PROCEDURES .............................................................................................33 4.5.5EUT OPERATING CONDITION ..............................................................................33 4.5.6TEST RESULTS ......................................................................................................34 4.6CONDUCTED SPURIOUS EMISSIONS .................................................................36 4.6.1LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................36 4.6.2TEST INSTRUMENTS.............................................................................................36 4.6.3TEST PROCEDURE................................................................................................37 4.6.4TEST SETUP...........................................................................................................37 4.6.5EUT OPERATING CONDITIONS ............................................................................…

Text truncated - open the document above for the full version.

FCC ID: SNM-V5510 Report No.: RF940504L1559Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST (EUT with charger) FCC ID: SNM-V5510 Report No.: RF940504L1560Report Format Version 2.0.1 RADIATED EMISSION TEST (EUT without charger)
