SOPFSC-BT806BBluetooth Module

FSC-BT806BDatasheet Shenzhen Feasycom Technology Co.,Ltdwww.feasycom.com -1- FSC-BT806B B Bluetooth Module Datasheet Version 1.2 FSC-BT806BDatasheet Shenzhen Feasycom Technology Co.,Ltdwww.feasycom.com -2- Copyright © 2013-2019 Feasycom Technology. All Rights Reserved. Feasycom Technology reserves the right to make corrections, modifications, and other changes to its products, documentation and services at anytime. Customers should obtain the newest relevant information before placing orders. To minimize customer product risks, customers should provide adequate design and operating safeguards. Without written permission from Feasycom Technology, reproduction, transfer, distribution or storage of part or all of the contents in this document in any form is prohibited. Revision History Version Data Notes 1.0 2018/05/25 Initial Version Devin Wan 1.1 2019/10/22 1. Add Ordering Informationand modify some incorrect descriptions 2. UpdateGeneral Specifications Devin Wan 1.2 2020/03/25 Update module picture, block diagram Devin Wan Contact Us Shenzhen Feasycom Technology Co.,LTD Email: [email protected] Address: Room 2004-2005,20th Floor,Huichao Technology Building,Jinhai Road, Xixiang ,Baoan District,Shenzhen,518100,China. Tel: 86-755-27924639,86-755-23062695 FSC-BT806BDatasheet Shenzhen Feasycom Technology Co.,Ltdwww.feasycom.com -3- Contents 1. INTRODUCTION ............................................................................................................................................................... 4 2. GENERAL SPECIFICATION ................................................................................................................................................. 7 3. HARDWARE SPECIFICATION ............................................................................................................................................. 9 3.2 PIN DEFINITION DESCRIPTIONS ................................................................................................................................................. 9 4. PHYSICAL INTERFACE ..................................................................................................................................................... 12 4.1 POWER MANAGEMENT .......................................................................................................................................................... 12 4.1.1 Power Supply ............................................................................................................................................................ 12 4.1.2Battery Charger ............................................................................................................................................................ 12 4.1.2.1Battery Charger Hardware Operating Modes ........................................................................................................... 12 4.1.2.2 Battery Charger Trimming and Calibration ........................................................................................................... 14 4.1.2.3 VM Battery Charger Control.................................................................................................................................. 14 4.1.2.4 Battery Charger Firmware and PS Keys ................................................................................................................. 14 4.2 RESET ................................................................................................................................................................................. 14 4.2.1Digital Pin States on Reset ........................................................................................................................................... 15 4.2.2Status After Reset ......................................................................................................................................................... 15 4.2.3Automatic Reset Protection ......................................................................................................................................... 15 4.3 GENERAL PURPOSE ANALOG IO ............................................................................................................................................... 16 4.4 GENERAL PURPOSE DIGITAL IO ................................................................................................................................................ 16 4.5 RF INTERFACE ...................................................................................................................................................................... 16 4.6 SERIAL INTERFACES ................................................................................................................................................................ 16 4.6.1 UART Interface ......................................................................................................................................................... 16 4.6.2 I 2 C Interface .............................................................................................................................................................. 18 4.6.3USB Interface ................................................................................................................................................................ 18 4.7LED DRIVERS .......................................................................................................................................................................... 19 4.8AUDIO INTERFACES ................................................................................................................................................................... 20 4.8.1 Audio Input and Output ........................................................................................................................................... 21 4.8.2 Audio Codec Interface ......…

Text truncated - open the document above for the full version.

Roland Corporation 1-5-3, Shinmiyakoda, Kita-ku, Hamamatsu, Shizuoka 431-2103 Japan Agent Authorization Company: Roland Corporation Address: Room 1-5-3, Shinmiyakoda, Kita-ku, Hamamatsu, Shizuoka 431-2103 Japan Product Name: Bluetooth Module Model Number(s): FSC-BT806B Product Description: Bluetooth Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 12, 2020 Name: Hisashi Ninomiya Title: Assistant Manager Company: Roland Corporation

Roland Corporation 1-5-3, Shinmiyakoda, Kita-ku, Hamamatsu, Shizuoka 431-2103 Japan Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 12, 2020 Subject; Request for Confidentiality FCC ID: SOPFSC-BT806B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Hisashi Ninomiya Title: Assistant Manager

Roland Corporation 1-5-3, Shinmiyakoda, Kita-ku, Hamamatsu, Shizuoka 431-2103 Japan RE FCC ID: SOPFSC-BT806B To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, [Hisashi Ninomiya] [Assistant Manager] Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover over the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is fixed. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed in a stand-alone configuration as shown in the test setup photos. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The modular was labeled with its own FCC ID. The outside of device in to which the module is installed will labeled Contains TX FCC ID: SOPFSC- BT806B, Please refer to User Manual. Roland Corporation 1-5-3, Shinmiyakoda, Kita-ku, Hamamatsu, Shizuoka 431-2103 Japan (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular is comply with all applicable FCC rules. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module operates under Part 15 .247 which is exempt from RF exposure evaluation owing to the very low operating power.

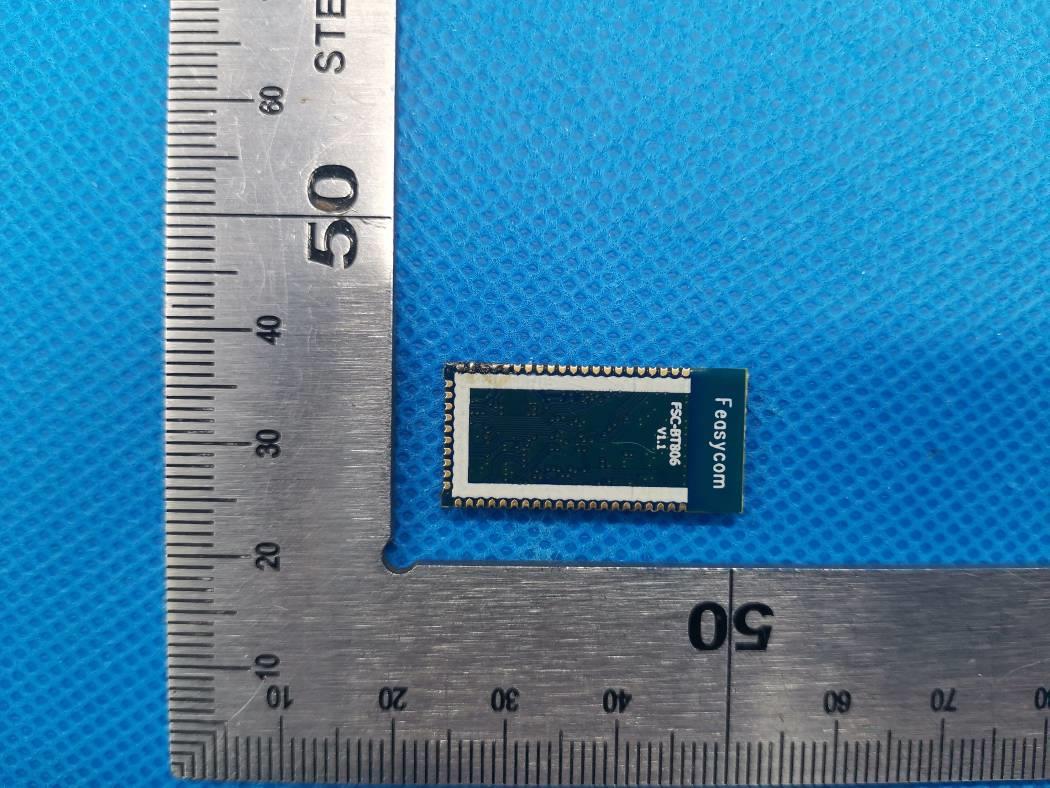

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location 5mm*10mm FCC ID: SOPFSC-BT806B IC: 9569A-FSCBT806B HVIN: FSC-BT806B

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna INTERNAL VIEW-3 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Module Model Name FSC-BT806B FCC ID SOPFSC-BT806B 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. BLE: Antenna Gain=-2dBi (Numeric 1.58), π=3.14 BR/EDR: Antenna Gain=-2dBi (Numeric 1.58), π=3.14 Note: 1. Only the worst case recorded. CONCLUSION Compliance the RF exposure requirement. Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2480 8.353 6.84 0.0022 1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2480 8.306 6.77 0.0021 1

Page 1 of 68 FCC Test Report Report No.: AGC03285200402FE03 FCC ID : SOPFSC-BT806B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Module BRAND NAME : Feasycom MODEL NAME : FSC-BT806B APPLICANT : Roland Corporation DATE OF ISSUE : Jun. 11, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03285200402FE03 Page 2 of 68 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 11, 2020 Valid Initial Release Report No.: AGC03285200402FE03 Page 3 of 68 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 20 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 Report No.: AGC03285200402FE03 Page 4 of 68 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 39 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 39 10.2. TEST SETUP ......................................................................................................................................... 41 10.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 42 10.4. TEST RESULT........................................................................................................................................ 42 11. NUMBER OF HOPPING FREQUENCY .......................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC03285200402FE03 Page 36 of 68 π /4-DQPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC03285200402FE03 Page 37 of 68 8-DPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC03285200402FE03 Page 38 of 68 8-DPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC03285200402FE03 Page 39 of 68 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC03285200402FE03 Page 40 of 68 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC03285200402FE03 Page 41 of 68 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC03285200402FE03 Page 42 of 68 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHZ No emission found between lowest internal used/generated frequencies to 30MHz. Report No.: AGC03285200402FE03 Page 43 of 68 RADIATED EMISSION BELOW 1GHZ EUT Bluetooth Module Model Name FSC-BT806B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Horizontal RESULT: PASS Report No.: AGC03285200402FE03 Page 44 of 68 EUT Bluetooth Module Model Name FSC-BT806B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 4 is the worst case and recorded in the report. Report No.: AGC03285200402FE03 Page 45 of 68 RADIATED EMISSION ABOVE 1GHZ EUT Bluetooth Module Model Name FSC-BT806B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 43.5374-30.47 peak 4804.000 35.9354-18.07 AVG 7206.000 38.8874-35.12 peak 7206.000 31.2454-22.76 AVG 43.450.08…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
