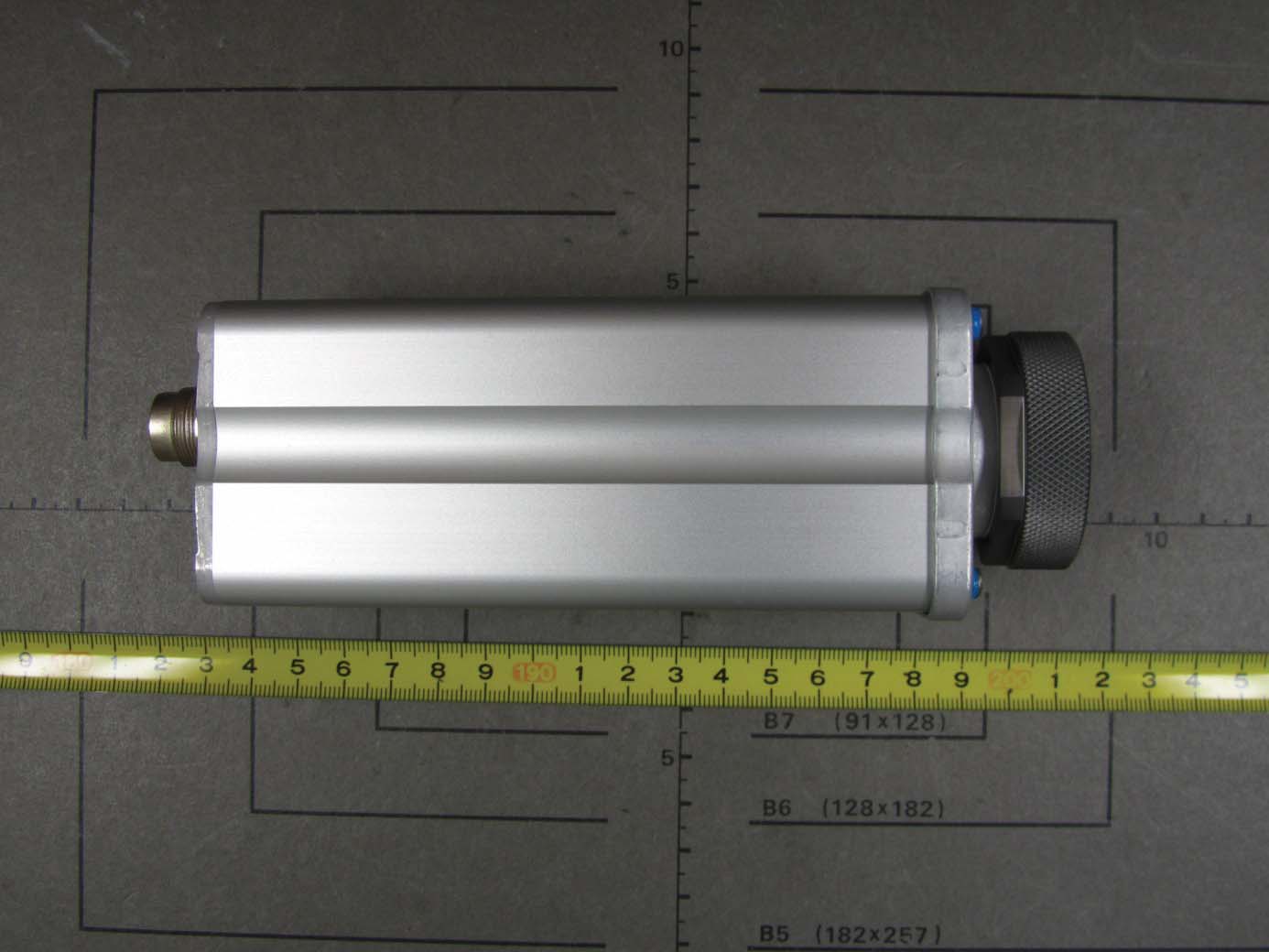

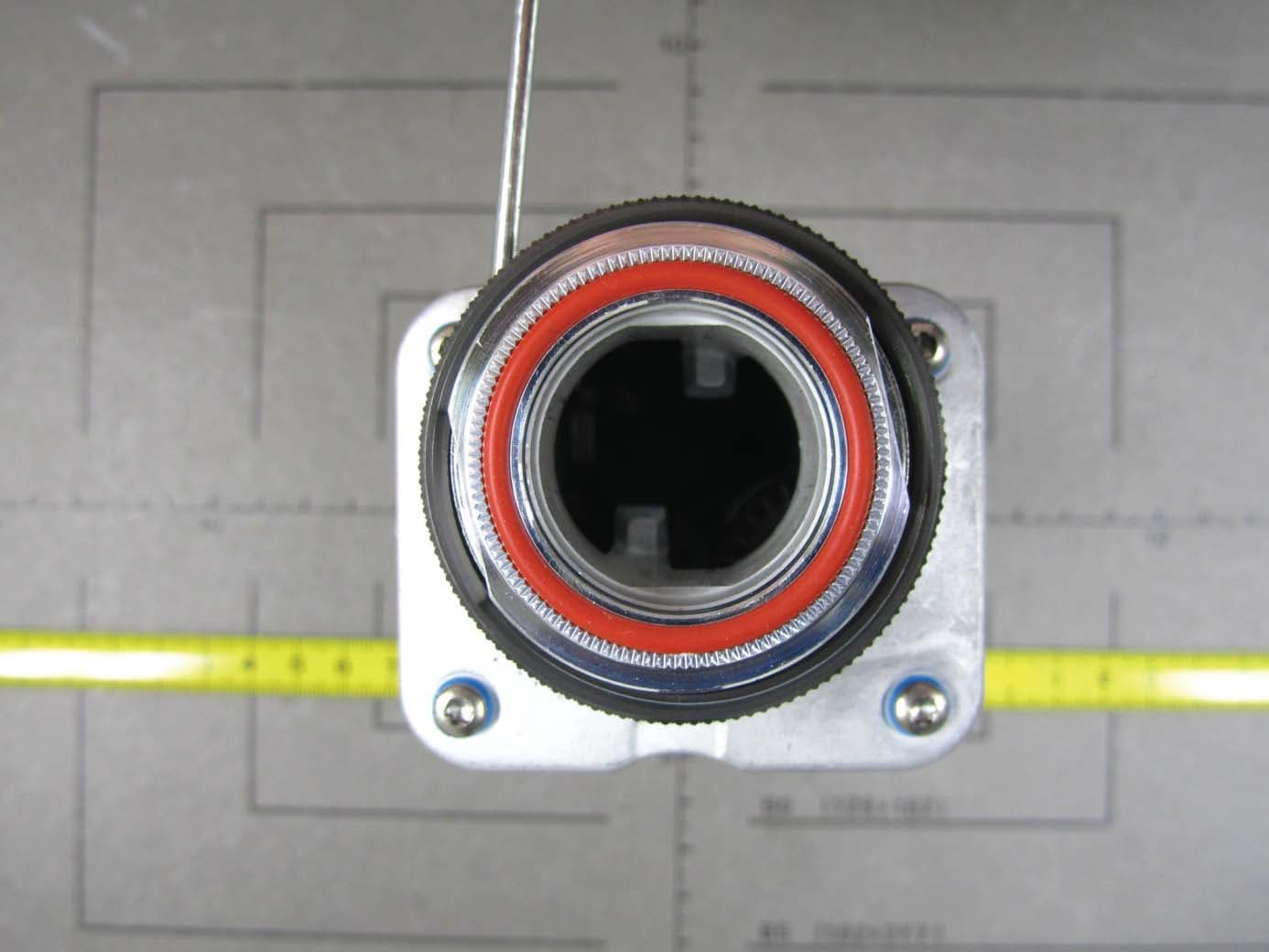

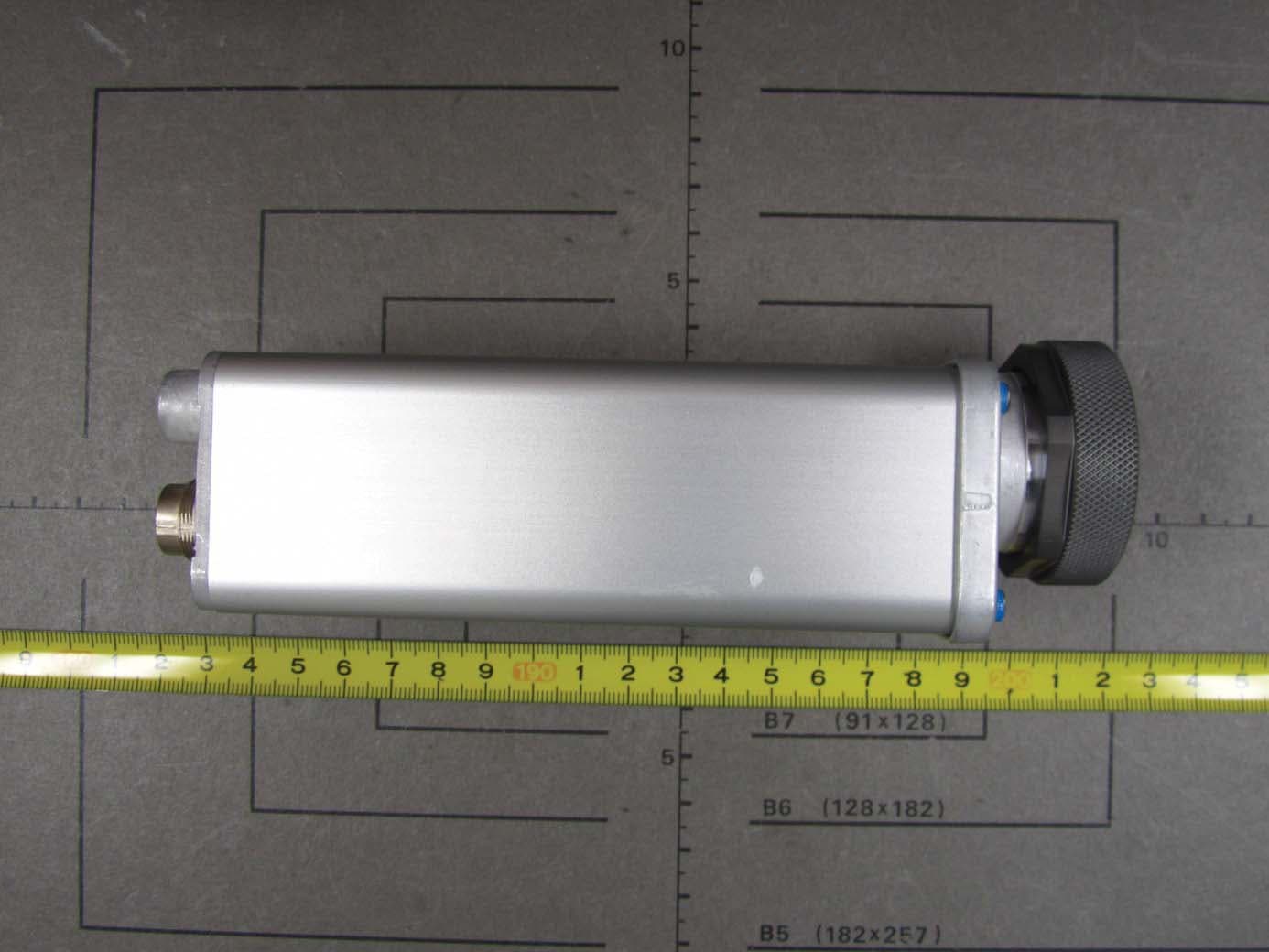

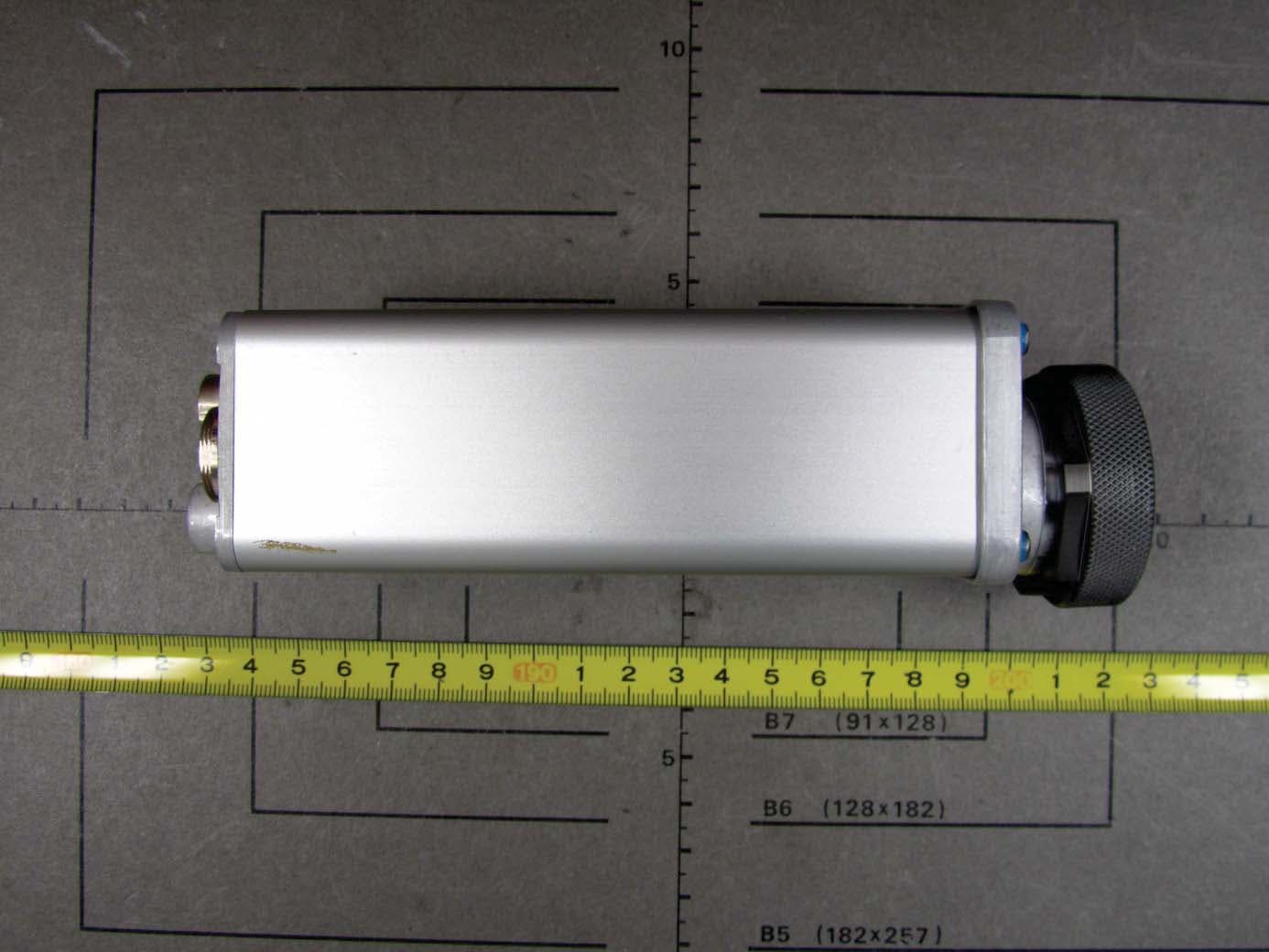

SP3-86010148V01Positioning tool for antennas

Type No. 86010148V01 Protocolscompliant to AISG 1.1 and 3GPP/AISG 2.0 Logical interface ex factory 1) 3GPP/AISG 2.0 Input voltage range10 ... 30 V (pin 1, pin 6) Power consumption< 1 W (stand by); < 10 W (motor activated) Connectors 2) 3) 2 x 8 pin connector according to IEC 60130-9; according to AISG Daisy chain in: male; Daisy chain out: female Hardware interfacesRS 485A/B (pin 5, pin 3); power supply (pin 1, pin 6); DC return (pin 7); according to AISG / 3GPP Adjustment time (full range)40 sec (typically, depending on antenna type) Adjustment cycles> 50,000 Temperature range–40 °C ... +60 °C Protection classIP 24 Lightning protectionAISG interface (each pin) 2.5 kA (10/350 μs) 8 kA (8/20 μs) Housing materialProfi le: Aluminum anodized; cover: Aluminum die cast coated Weight455 g (0.99 lbs) Packing size245 x 93 x 102 mm, (9.6 x 3.6 x 4 inches) Dimensions (H x W x D)177.5 x 59.5 x 49.5 mm, (7.0 x 2.3 x 1.9 inches) 1) The protocol of the logical interface can be switched from 3GPP/AISG 2.0 AISG 1.1 to with a vendor specifi c command. Start-up operation of the RCU is only possible in a RET system supporting 3GPP/ AISG 2.0! The protocol can also be changed as follows: 3GPP to AISG 1.1: Enter “AISG1” into the additional data fi eld “Installer’s ID” and perform a layer 2 reset or a power reset. AISG 1.1 to 3 GPP: Enter “3GPP” into the additional data fi led “Installer’s ID” and perform a layer 7 reset or a power reset. After switching the protocol any other information can be entered into the “Installer’s ID” fi eld. Please note: If the Primary of the RET system doesn’t support the standard of the ‘logical interface ex factory’, the RCU must be switched to the appropriate standard of the Primary before installation. Please contact Kathrein for further information. 2) The tightening torque for fi xing the connector must be 0.5 – 1.0 Nm (‘hand-tightened’). The connector should be tightened by hand or using the torque screwdriver (85010080) as described in the connecting cable data sheet (85010007, ...) 3) The RCU get‘s the information stored in the antenna after power on automatically if a corresponding antenna is used. It is not necessary to confi gurate the RCU manually. Standards:EN 60950-1 (Safety) EN 60950-22 (Safety – Equipment installed outdoor) EN 55022 (Emission) EN 55024 (Immunity) ETS 300019-1-4 (Environmental) UL 60950-1; 1 st edition Certifi cation:CE, FCC Scope of supply:Remote Control Unit Assembly paste KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820 www.kathrein.de 86010148V01 Page 1 of 5 936.4624/a Subject to alteration. Remote Control Unit (RCU) Remote Control Unit (RCU) for Kathrein base station antennas with adjustable electrical down- tilt and appropriate mechanical interface. ● Compliant to AISG 1.1 and 3GPP/AISG 2.0 ● Daisy Chain feasibility ● Compact size ● Suitable for operation under outdoor condition ● Automatic Confi guration 173.6 mm (6.8ʺ) 33.2 mm (1.27ʺ) M42 x 1.5 28.5 mm (1.1 ʺ ) Ø 46 mm (Ø 1.8 ʺ ) 59.5 mm (2.34 ʺ ) 49.5 mm (1.95ʺ) 8 mm (0.31ʺ) Daisy chain in (male) Daisy chain out (female) Bottom view of RCU Please note: Additional grounding of the RCU is not required if the RCU is fi xed to an antenna with proper ground- ing. Please assure that grounding of the antenna has been carried out according to all relevant local regulations. Please note:As a result of more stringent legal regulations and judgements regarding product liability, we are obliged to point out certain risks that may arise when products are used under extraordinary operating conditions. The mechanical design is based on the environmental conditions as stipulated in ETS 300 019-1-4 and thereby respects the static mechanical load imposed on an antenna by wind at maximum velocity. Wind loads are calculated according to DIN 1055-4. Extraordinary operating conditions, such as heavy icing or exceptional dynamic stress (e.g. strain caused by oscillating support structures), may result in the breakage of an antenna or even cause it to fall to the ground. These facts must be considered during the site planning process. The installation team must be properly qualifi ed and also be familiar with the relevant national safety regulations. The details given in our data sheets have to be followed carefully when installing the antennas and accessories. The limits for the coupling torque of RF-connectors, recommended by the connector manufacturers must be obeyed. Any previous datasheet issues have now become invalid. KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820 www.kathrein.de Page 2 of 5 86010148V01 936.4624/a Subject to alteration. Remote Control Unit (RCU) Description of the adjustment mechanism (protective cap removed): ➀ Adjustment wheel with twist-lock function. ➁ Downtilt spindle with integrated scale. ➀ Thread for fi xing the pro tective cap or the RCU (Remote Control Unit). ➁ Gearwheel for RCU power drive. To set the downtilt angle exactly, you must look horizontally at the scale. The lower edge of the gear- wheel must be used for alignment. 1 2 2 1 KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820 www.kathrein.de 86010148V01 Page 3 of 5 936.4624/a Subject to alteration. Instructions for RCU Installation Attaching the RCU (Remote Control Unit) for remote-controlled downtilt adjustment: Twist off the protective cap com- pletely from the antenna. Check the proper function of the phase shifter over the entire adjustment range by twisting the adjustment wheel in such a way, that the spindle moves completely in and out. Reset the downtilt to 0 degree. Completely remove the black adjustment wheel by simply pulling it downwards. Clean the thread surface. Apply the assembly-paste evenly onto the full circumference of the thread as ill…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Deutschland Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers (Chairman) Management: Joachim Birnthaler (CEO) Dr. Jens Butenandt (Managing Director) Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg Long/Short term Confidentiality Request 2013-07-12 FCC ID: SP3-86010148V01 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be tempo- rarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and pro- vide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this applica- tion. Thank you for your attention in this matter. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

FCC ID SP3-86010148V01 IC: 5530A-86010148V01 FCC ID SP3-86010148V01 IC: 5530A-86010148V01 FCC ID SP3-86010148V01 IC: 5530A-86010148V01

'DWXP'DWH SDJH 0D‰VWDE VFDOH 1:1 6HLWH

FCC ID SP3-86010148V01 IC: 5530A-86010148V01 FCC ID SP3-86010148V01 IC: 5530A-86010148V01

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 11297-22719-3 (Edition 3) Applicant: Kathrein-Werke KG Type of equipment: Positioning tool for antennas Type designation: RCU Order No.: 14071568 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) August 9, 2013 Page 1 of 50 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 3) Page 2 of 50 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements ....................................................................................... 9 6.2 Conducted AC Powerline Emission ....................................................................... 10 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 12 6.4 Radiated Emission at Alternative Test Site ............................................................ 14 6.5 Carrier Frequency Stability ..................................................................................... 16 7 Photographs Taken During Testing .............................................................................. 18 8 Test Results ................................................................................................................. 24 8.1 Occupied Bandwidth .............................................................................................. 26 8.2 Bandwidth of the Emission..................................................................................... 30 8.3 Designation of Emissions ....................................................................................... 32 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 33 8.5 Spectrum Mask ...................................................................................................... 35 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 37 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 40 8.8 Carrier Frequency Stability ..................................................................................... 42 8.9 Exposure of Humans to RF Fields ......................................................................... 45 9 Referenced Regulations ............................................................................................... 47 10 Test Equipment List with Calibration Data ................................................................... 49 11 Revision History ........................................................................................................... 50 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 3) Page 3 of 50 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : RCU Parts 2 : Serial number(s): CSF4106617 Manufacturer: Kathrein Werke KG, Rosenheim Type of equipment: Positioning tool for antennas Version: As received FCC ID: SP3-86010148V01 Industry Canada ID: 5530A-86010148V01 Additional parts/accessories: 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 3) Page 4 of 50 Pages Technical data of EUT Application frequency range: 13.01 - 14.11 MHz Frequency range: 13.553 – 13.567 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 1 Channel spacing: --- Designation of emissions 3 : 3K00A1D Type of antenna: Integrated on printed board Size/length of antenna: Ø 15 mm Connection of antenna: detachable not detachable Type of power supply of EUT: DC supply Specifications for power supply: nominal voltage: 24 V minimum voltage: 10 V maximum voltage: 30 V Type of power supply: AC supply Specifications for power supply: nominal voltage: 110 V nominal frequency: 60 Hz 3 Also known as "Class of Emission". TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 3) Page 5 of 50 Pages 2 Administrative Data Application detai…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 2) Page 19 of 51 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 2) Page 20 of 51 Pages Test setup for conducted AC powerline emission measurement - continued - TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 2) Page 21 of 51 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 2) Page 22 of 51 Pages Test setup for radiated emission measurement (alternate test site) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22719-3 (Edition 2) Page 23 of 51 Pages Test setup for radiated emission measurement (alternate test site) - continued -
