SP3-86010153Positioning tool for antennas

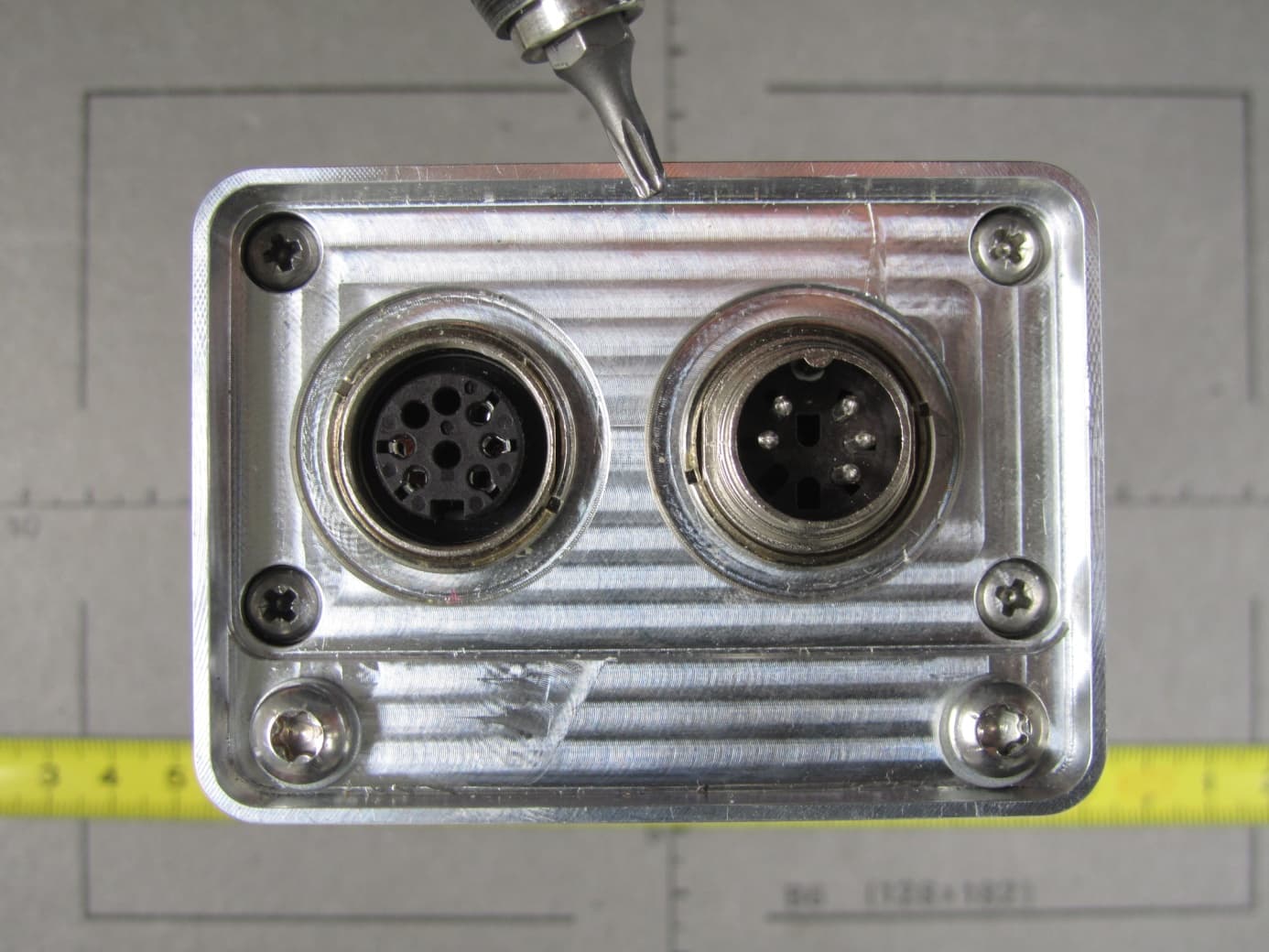

Type No. 86010153 Protocolscompliant to AISG 1.1 and 3GPP/AISG 2.0 Logical interface ex factory 1) 3GPP/AISG 2.0 Operates asSingle RETs or Multi RET Ex factorySingle RETs Input voltage range10 ... 30 V (pin 1, pin 6) Power consumption< 0.5 W (stand by); < 10 W (motor activated) Connectors 2) 2 x 8 pin connector according to IEC 60130-9; according to AISG Daisy chain in: male; Daisy chain out: female Hardware interfacesRS 485A/B (pin 5, pin 3); power supply (pin 1, pin 6); DC return (pin 7); according to AISG / 3GPP Adjustment time (full range)40 sec (typically, depending on antenna type) Adjustment cycles> 50,000 Temperature range–40 °C ... +60 °C Protection classIP 24 (installed) Lightning protectionAISG interface (each pin) 2.5 kA (10/350 μs) 8 kA (8/20 μs) Housing materialProfi le: Aluminum anodized; cover: Aluminum die cast coated Weight350 g (0.77 lbs) Packing size245 x 93 x 102 mm, (9.6 x 3.6 x 4 inches) Dimensions (H x W x D)142 x 71 x 50.4 mm, (5.6 x 2.8 x 2 inches) 1) The protocol of the logical interface can be switched from 3GPP/AISG 2.0 to AISG 1.1 with a vendor specifi c command. Start-up operation of the FlexRET is only possible in a RET system supporting 3GPP/ AISG 2.0! 1) Please note: If the Primary which controls the FlexRET system does not support the default ex-factory interface setting, then the RCU must be switched to the appropriate standard of the Primary before installation. Please contact Kathrein for further information. 2) If the FlexRET of an antenna has to be replaced, the FlexRET gets the information stored in the antenna after power on automatically. It is not necessary to confi gurate the FlexRET manually. Standards:EN 60950-1 (Safety) EN 60950-22 (Safety – Equipment installed outdoor) EN 55022 (Emission) EN 55024 (Immunity) ETS 300019-1-4 (Environmental) UL 60950-1; 1 st edition Certifi cation:CE, FCC Scope of supply:FlexRET Optional:Site-Sharring-Adapter (86010154) to create independent_logial interfaces at one antenna or site. Makes it possible to operate with more than one independent Node B. KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820 www.kathrein.de 86010153 Page 1 of 4 936.4643 Subject to alteration. FlexRET A fl exible, integrated solution for adjusting the electrical downtilt of Kathrein FlexRET antennas. ● Compliant to AISG 1.1 and 3GPP/AISG 2.0 ● Daisy Chain feasibility ● Single RETs or Multi RET displayed ● Pre-confi gurated KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820 www.kathrein.de Page 2 of 4 86010153 936.4643 Subject to alteration. FlexRET Startup of FlexRET The FlexRET module included in the antenna is preconfi gured with the following information: Antenna model no., Antenna Serial no., Antenna confi guration data. After connecting a control cable and scanning the antenna line devices (ALD) the used primary (e.g. NodeB, ALC, etc.) will fi nd the FlexRET. You only need to insert your additional data. Connecting the control cables: Connect a control cable to the daisy chain input of the FlexRET. The tightening torque for fi xing the connector must be 0.5 – 1.0 Nm (‘hand-tightened’). The connector should be tightened by hand or by a special torque screw driver (order no. 85010080). See also data sheet for Kathrein AISG-cable (86010007, ...). Please note: To ensure the tightness of the RET System, Kathrein recommend the use of Kathrein components only. Please note: If the daisy chain output is not used, do not remove the protection cap. For daisy chain operation, remove the protection cap and attach a control cable to interconnect with the daisy chain input of the subsequent FlexRET or external RCU. Please note: Do not remove the protection cap on the daisy chain output of the last FlexRET or RCU device. KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820 www.kathrein.de 86010153 Page 3 of 4 936.4643 Subject to alteration. FCC – Statements                    !"   #    $!%"     #    $   #      &  '    #  (  $    )             ' $   ' ##$     $ #        *  $        +'              $   #'    $  #    #         ,)      ,+   '    ,  '              ,  -   ./             +#  0- )11!"           !"   #   $!%"      # $   #       2 3    -&)4+  -   -   24-    3--    !…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Deutschland Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers (Chairman) Management: Joachim Birnthaler (CEO) Dr. Jens Butenandt (Managing Director) Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg Long/Short term Confidentiality Request 2013-07-12 FCC ID: SP3-86010153 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be tempo- rarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and pro- vide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this applica- tion. Thank you for your attention in this matter. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

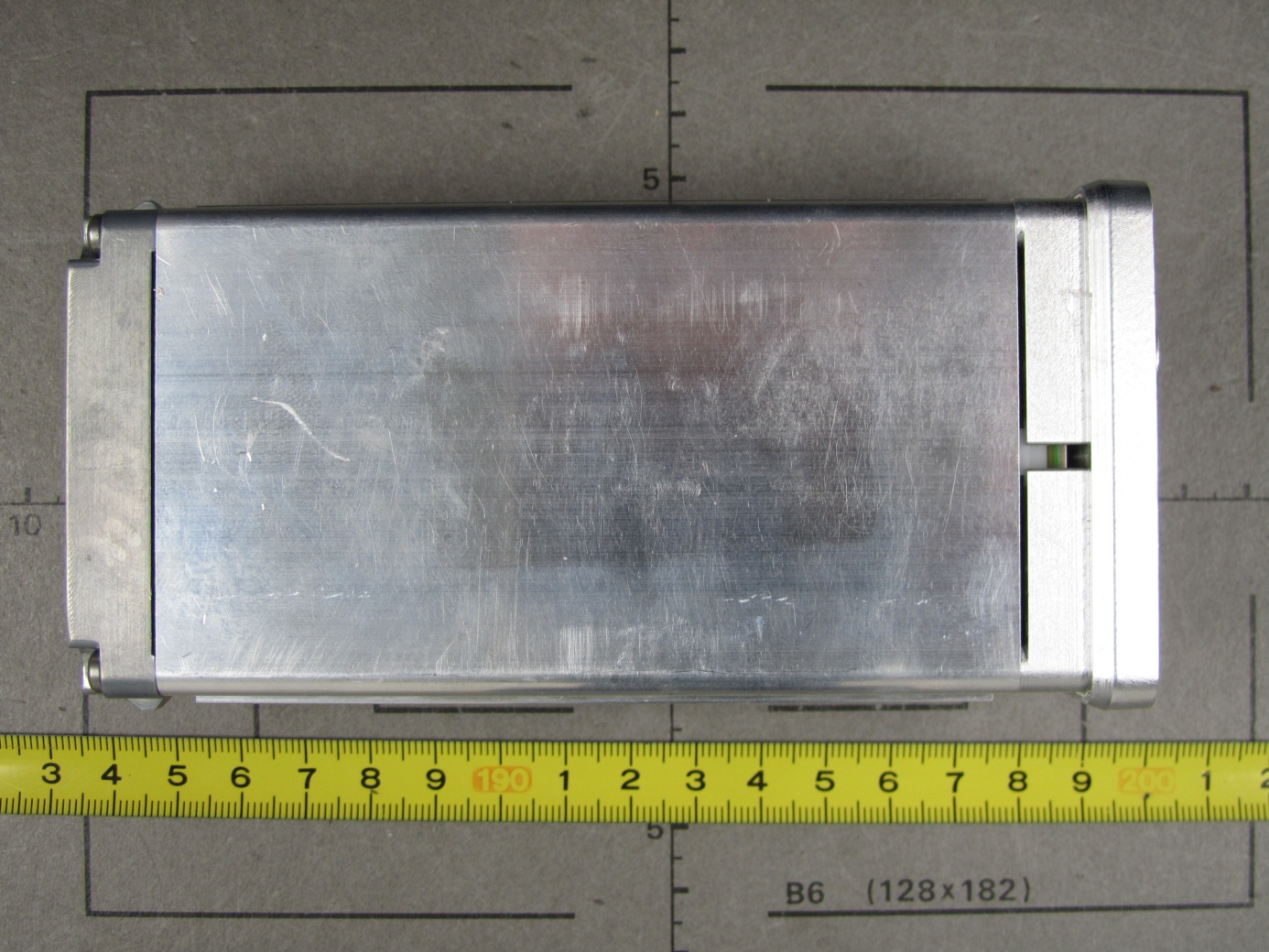

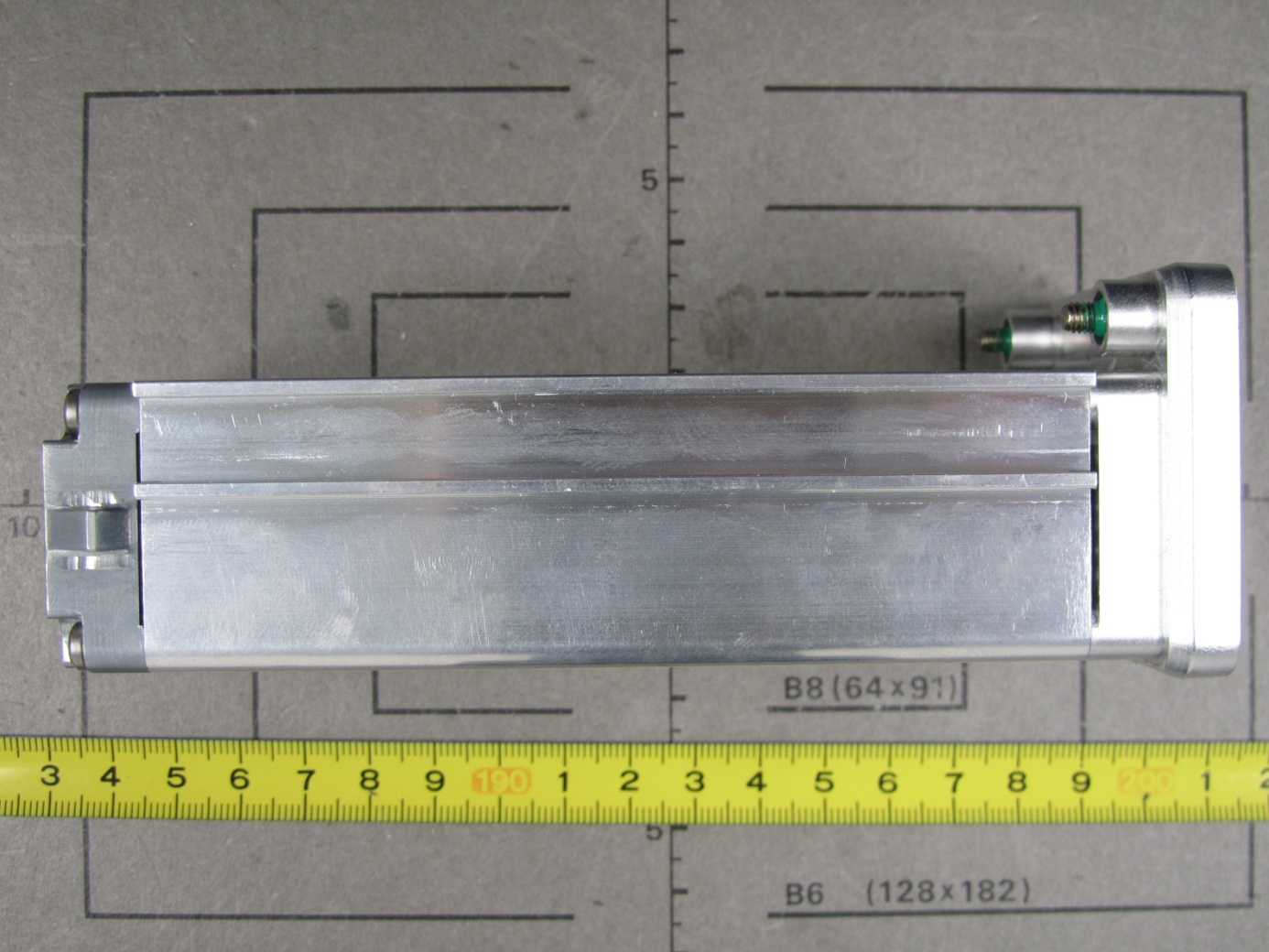

FCC ID SP3-86010153 IC: 5530A-86010153 FCC ID SP3-86010153 IC: 5530A-86010153 FCC ID SP3-86010153 IC: 5530A-86010153

Datum /Date:18.07.2013 page Maßstab / scale 1:1 1 /1Seite /

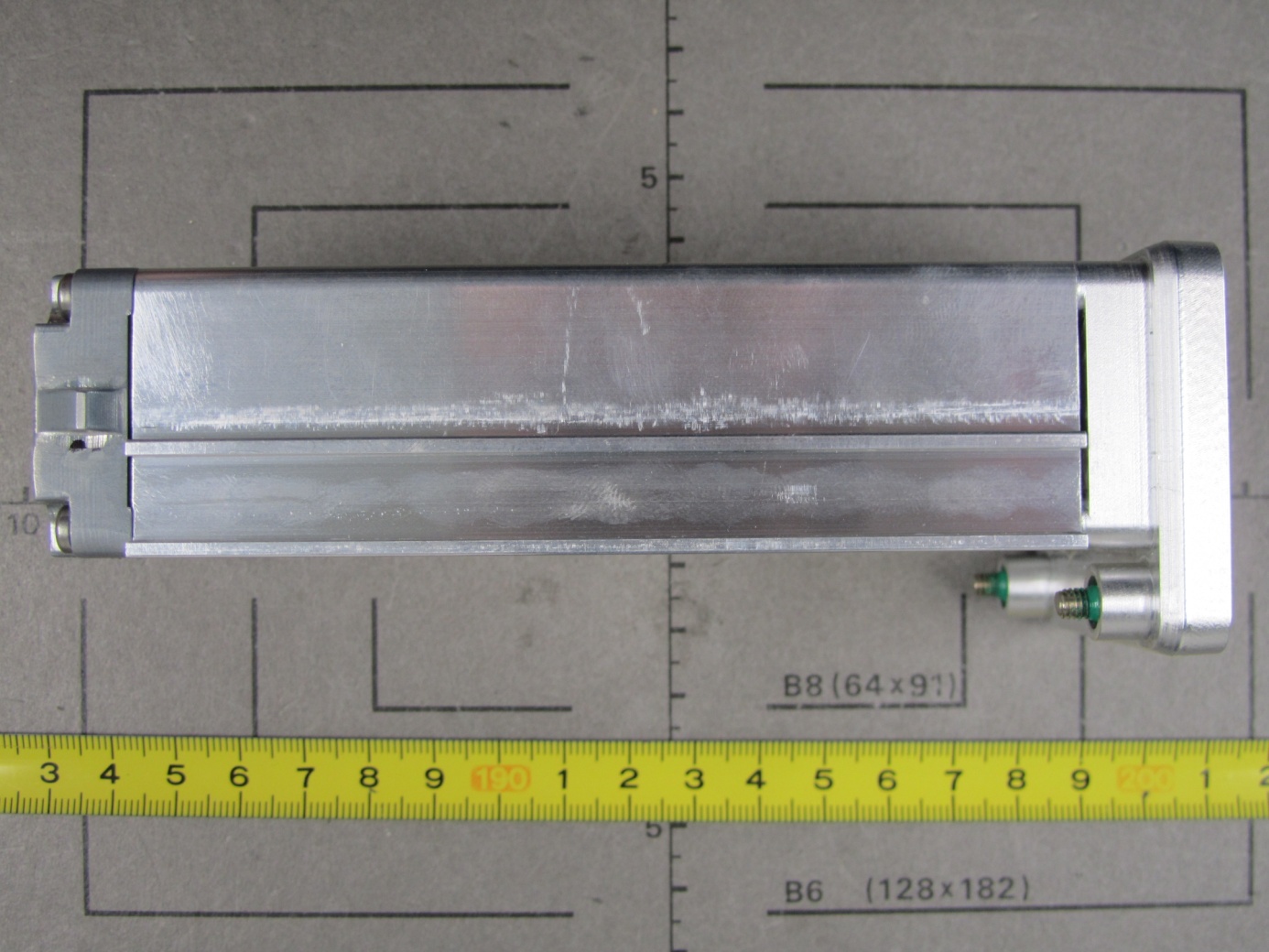

FCC ID SP3-86010153 IC: 5530A-86010153 FCC ID SP3-86010153 IC: 5530A-86010153 FCC ID SP3-86010153 IC: 5530A-86010153 FCC ID SP3-86010153 IC: 5530A-86010153 FCC ID SP3-86010153 IC: 5530A-86010153

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 11297-22715-01 (Edition 3) Applicant: Kathrein Werke KG Type of equipment: Positioning tool for antennas Type designation: FlexRet Order No.: 15071469 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) August 9, 2013 Page 1 of 51 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 3) Page 2 of 51 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements ........................................................................................ 9 6.2 Conducted AC Powerline Emission ....................................................................... 10 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 12 6.4 Radiated Emission at Alternative Test Site ............................................................ 14 6.5 Carrier Frequency Stability ..................................................................................... 16 7 Photographs Taken During Testing .............................................................................. 18 8 Test Results ................................................................................................................. 24 8.1 Occupied Bandwidth .............................................................................................. 26 8.2 Bandwidth of the Emission ..................................................................................... 30 8.3 Designation of Emissions ....................................................................................... 32 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 33 8.5 Spectrum Mask ...................................................................................................... 36 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 38 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 41 8.8 Carrier Frequency Stability ..................................................................................... 43 8.9 Exposure of Humans to RF Fields ......................................................................... 46 9 Referenced Regulations ............................................................................................... 48 10 Test Equipment List with Calibration Data .................................................................... 50 11 Revision History ........................................................................................................... 51 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 3) Page 3 of 51 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : FlexRet Parts 2 : Serial number(s): TÜV/EMV Einheit 2 Manufacturer: Kathrein Werke KG Type of equipment: Positioning tool for antennas Version: FCC ID: SP3-86010153 Industry Canada ID: 5530A-86010153 Additional parts/accessories: 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 3) Page 4 of 51 Pages Technical data of EUT Application frequency range: 13.11 - 14.01 MHz Frequency range: 13.56 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 1 Channel spacing: --- Designation of emissions 3 : Type of antenna: Integrated on printed board Size/length of antenna: 1 cm x 1.5 cm Connection of antenna: detachable not detachable Type of power supply of EUT: DC supply Specifications for power supply: nominal voltage: 24 V minimum voltage: 10 V maximum voltage: 30 V Type of power supply: AC supply Specifications for power supply: nominal voltage: 110 V nominal frequency: 60 Hz 3 Also known as "Class of Emission". TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 3) Page 5 of 51 Pages 2 Administrative Data Application details Applicant (full…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 2) Page 19 of 51 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 2) Page 20 of 51 Pages Test setup for conducted AC powerline emission measurement - continued - TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 2) Page 21 of 51 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 2) Page 22 of 51 Pages Test setup for radiated emission measurement (alternate test site) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 11297-22715-01 (Edition 2) Page 23 of 51 Pages Test setup for radiated emission measurement (alternate test site) - continued -
