SPV-THP220CELL PHONE GATEWAY

User’s manual -- 1 -- Thanks for using the Single-channel GSM fixed wireless terminal. Please read this user’s manual carefully before use. Note:Never use the terminal within the following areas: ●Areas where the wireless transceiver is forbidden to use or needs to be shut down. ●Gas stations ● Storage areas with flammable and explosive stuff ● Other environments in which danger maybe caused by wireless communication 1. Functions & Features Single-channel GSM fixed wireless terminalis an innovative wireless access terminal.You can make phone calls via GSM . It’s ideal to be used in offices and hometo reduce comparatively high phone charges. It also can be connected to charge counter as wireless public phone.This device has the following functions ： 1). Using SIM card and suitable for GSM 900/1800/850/1900MHz. 2). Router selection: call out vial GSM 3). Connected to the charge counter 4). Can set up call-out/call-in restriction 5). Caller ID 6). Hands free, redial, sound volume adjustment while calling in/out. 7). Provide the reverse polarity signal for charging. 8). PIN code protection. 9). Built-in Rechargeable battery 2. Terminal Configurations Standard Single-channel GSM Fixed Wireless Terminal includes the following accessories: AccessoriesQuantity Single-channel GSM Fixed Wireless Terminal mainframe 1 Antenna1 User’s manual -- 2 -- SIM cardboard1 Telephone cable2 Adapter1 User’s manual1 Bolt3 3. Terminal Installation 3.1 SIM card installation: Caution! Please fix the SIM card before connecting to the power supply! 1). Upend the mainframe so you can see the SIM card pedestal at the bottom. 2). Push SIM card nog gently along with arrowhead to put it up. 3). Insert SIM card into the nog. 4). Press down the nog of SIM card and push it by the backward direction of arrowhead until the SIM nog is fixed on the card pedestal. 5). Use the SIM cardboard to cover pedestal and screw it down. 3.2 Assembly of the terminal: phone2 phone1 External ports 1). Make sure the SIM card installed correctly. 2). Screw down the connector of the antenna to the bolt stick on the panel marked with “Antenna” on the back of the device. 3). Plug one connector of standard phone cable to the phone, and plug the other end to the port on the panel marked with “Phone” on the back of the device. 4). Make sure the switch of device is off, then plug the input connector of the adaptor to the AC power socket, and the output connector to the “Power” port on the back of the device. 4. Operation Instructions Turn on the power switch at the back of the terminal after connecting the terminal correctly 4.1 Explanation of indicators’ state： User’s manual -- 3 -- Indicators 1) The power indicator indicates whether the power get through or not. The indicator light is on when the device is power on, and flash in calling; the light is off when the device is turned off. 2) The signal intensity indicators whether the device get connected with GSM network or not and display signal intensity. The two lights are on (orange), it means the device get connected with GSM network. The some other lights are on (green), they display the current signal intensity. When the signal is stronger, more indictor lights will be on, vice versa. 4.2 Dial the telephone: GSM call out: the network indicator is off, press “#” after hearing the dialing tone until the network indicator is on, and then dial the number. 4.3 Answer a telephone call: When the telephone rings on, answer the phone by picking up the handset. 4.4. Recharge battery. The GSM-TIT670 can be recharged by adaptor. Note: please put the power ON when recharging. 5. Setting Functions This terminal can set up and adjust the following functions ： 1). Set up the local area code in advance. The user can dial the local telephone without dialing the local area code. 2). Can adjust the multi-level sound volume. 3). Can set up the restriction of call-in/call-out. 4). Can set up lock SIM card. User’s manual -- 4 -- Caution! The system setup must be operated by the professional person. 6. Technique Parameters Items Parameters Working voltage AC110~230V; DC12V (Adaptor is enclosed according to local standard voltage. Before use, please make sure the adaptor voltage matches with local voltage.) Environment temperature 0~45 °C Humidity40%~95% Atmospheric pressure85~110Kpa Environment noise<60dB Eradiation power2W Sensitivity-104dBm Antenna gain 1dB 7. Troubleshooting ▲ Notes 1、Working environment: Choose areas with good signal No.ProblemPossible CausesPossible Remedy 1 Not connected to GSM network. 1. SIM card not inserted correctly. 2. SIM card is dirty. 3. Antenna is not well connected. 1. Install the SIM card again. 2. Clean the SIM card with a dry cloth. 3. Check the antenna connection. 4. Adjust the antenna position. 2 No dialing tone is heard after off-hook. 1. The phone cable is not correctly connected. 1. Check the cable connection. 3No caller ID. 1. The service is not enabled. 2. The phone does not support caller ID. 1. Check the service is enabled on the GSM network. 2. Change for a phone supporting caller ID. User’s manual -- 5 -- 2、Requirement for the power supply: The reliable andstable power supplies will guarantee the normal working of GSM terminal. 3、Antenna: Keep the antenna far away from the telephone to reduce the communication disturbance. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes and modifications to this equipment. Such changes and modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits …

Text truncated - open the document above for the full version.

SLIC MCU Module Stabilivolt DC 12V DTMF Charger Stabilivolt Voltage rise Tele p hone Switch LED Crystal 22.1184MHz Crystal 3.5795MHz

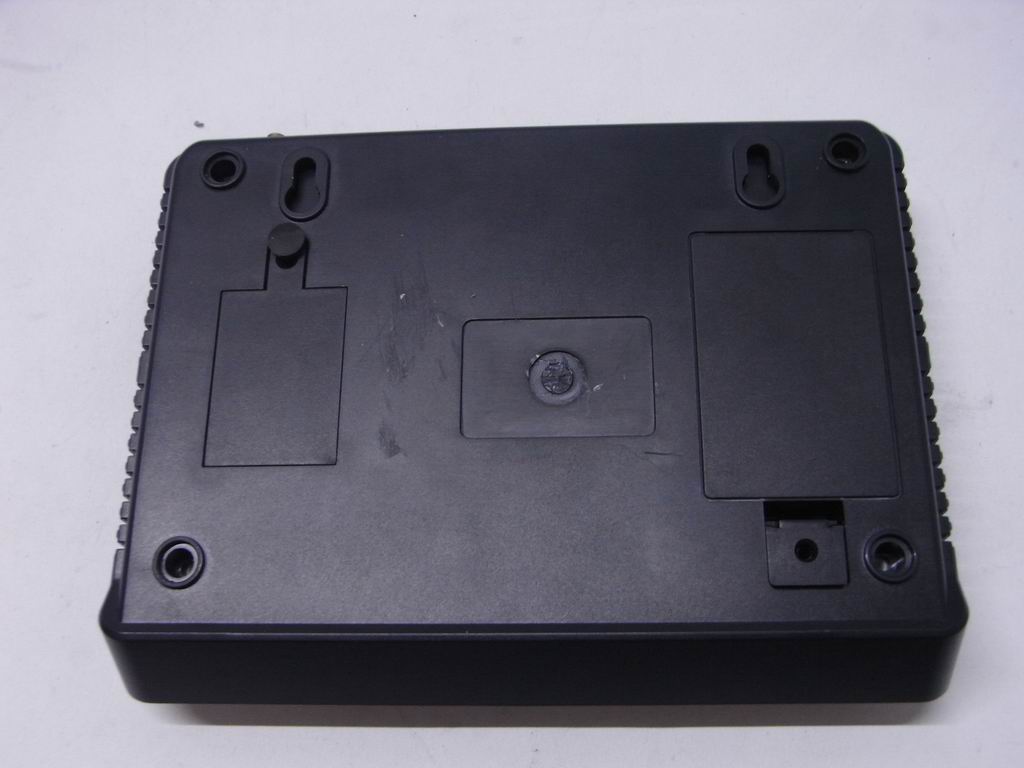

FCC ID: SPV-THP220Report No.: STS111020F3 Page 35 of 43 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: SPV-THP220Report No.: STS111020F3 Page 36 of 43 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: SPV-THP220Report No.: STS111020F3 Page 37 of 43 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: SPV-THP220Report No.: STS111020F3 Page 38 of 43 PHOTO OF ANTANNE PHOTO OF CABLE FCC ID: SPV-THP220Report No.: STS111020F3 Page 39 of 43 PHOTO OF POWER SUPPLY PHOTO OF BATTERY FCC ID: SPV-THP220Report No.: STS111020F3 Page 40 of 43 PHOTO OF THE ENTIRE SAMPLE

Maximum Permissible Exposure (MPE) Estimation 1. Limits and Guidelines on Exposure to Electromagnetic Fields General population/uncontrolled exposure apply in situations is which the general public may be exposed, or in which persons that are exposed as a consequenceof their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The exposure levels can be expressed in terms of power density, electric field strength, or magnetic field strength, as averaged over 30 minutes for the general public and 6 minutes for trained personnel. The exposure criterion is frequency dependent, and a chart covering the range from 3 kHz to 100 GHz can be found in NCRP No.86 (references IEEE C95.1-1999). Below are the limits. Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.3-3.0 3.0-30 30-300 300-1500 15,00-100,000 614 1842/f 61.4 -- -- 16.3/f 16.3/f 0.163 -- -- (100)* (900/f2)* 1.0 f/300 5 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.3-1.34 1.34-30.0 30-300 300-1500 15,00-100,000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100)* (180/f2)* 0.2 f/1500 1 Power density S [mW/cm2] for controlled area at 836.6 MHz, S= f (MHz)/300=836.6/300= 2.79mW/cm2 Power density S [mW/cm2] foruncontrolled area at 836.6 MHz, S= f (MHz)/1500=836.6/1500= 0.56 mW/cm2 Reference levels are provided for exposure assessment to determine whether the basic restrictions on exposure of humans to electromagnetic fields are exceeded. The basic restrictions on exposure to electromagnetic fields are based directly on established health effectsand biological considerations. 2. Prediction of the Exposure to Electromagnetic Fields Calculations can be made on a site by site basis toensure the power density is below the limits given above, or guidelines can be done beforehand to ensure the minimum distances from the antenna is maintained through the site planning. The calculations are based on FCC OET 65 Appendix B. 3. Calculation method of the Safe Distance Below method describes a theoretical approach to calculate possible exposure to electromagnetic radiation around a base station transceiver antenna. Precise statements are basically only possible either with measurements or complex calculations considering the complexity of the environment (e.g. soil conditions, near buildings and other obstacles) which causes reflections, scattering of electromagnetic fields. The maximum output power (given in EIRP) of a base station is usually limited by license conditions of the network operator. A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation. The calculations are based on FCC OET 65 Appendix B. Whereas: S= Power Density P = Maximum output power in W of the site G numeric = Numeric gain of the antenna relative to isotropic antenna R = distance between the antenna and the point of exposure in meters 4. Test Result 836.6MHz Power at antenna connector: 32.94 dBm (1.97W) Antenna gain: 1 dB (Numeric gain:1.26) Predication Distance: 20 cm Predication Frequency: 836.6 MHz S= (1970*1.26)/ (4*20*20*3.14) =0.494(mW/cm 2 ) SO, Power Density at Predication Frequency and Predication Distance: 0.494 (mW/cm 2 ) Limit for Occupational/Controlled Exposure at the Predication Frequency: 2.79 (mW/cm 2 ) Limit for General Population/Uncontrolled Exposure at the Predication Frequency: 0.56(mW/cm 2 ) TESTRESULT:PASS

123456789101112 A B C D 121110987654321 D C B A Title NumberRevisionSize A1 Date:20-Oct-2011Sheet of File:J:\SHARE\PROTEL画图区\接入\BGS2\PCB\接入省电BGS2(2011-08-22).DdbDrawn By: R1 R513 C1 R223 C2 R2 C104 IGT R54 R513 R4 R682 B C E Q1 9013 VCC_33V C54 C104 EAR_S R3 R101 R26 R223 C21 C104 R51 R123 3055-MICMICA CE 1 X2 2 X1 3 VSS 4 CLK 5 DATA 6 DTMF 7 VDD 8 U1 HT9200A SCL SDA C6 C104 VCC_33V B C E Q5 9013 R25 R104 EAR_SWITCH R24 R103 VCC_33V R5 R102 E9200 R6 R103 R16 R473 1 2 3 4 5 6 Vss 78 9 10 11 12 13 VD 14 A BD C U2 CD4066 VCC_33VEAR1 EAR1 EAR_SWITCH EAR_MAIN AC_DET SDA SCL WP DTMF_INT EAR_SWITCH A0 1 A1 2 A2 3 Vss 4 SDA 5 SCL 6 WP 7 Vcc 8 U6 24C16 WP SDA SCL VCC_33V RTS0 R8 R223 R9 R223 C23 C104 C27 C104 1 2 3 4 5 6 7 8 9 10 11 12 J6 RJ-11-2 R80 R101 E9200 C73 100uF/50V C16 C104 C19 C104 S2 SW2-2B D13 IN5822 B C E Q15 9013 R120 R204 AC_DET R117 R513 VCC_33V R123 R103 C64 100u/16v C63 C104 VCC_33V VIN_12V R84 R202 D4 RED CLK 3 RST 2 VCC 1 GND 4 IN 5 IO 6 J5 SIMCARD CCCLK CCRST CCVCC CCIO C17 C104 C15 C104 R21 R394 C24 C104 IN+ 1 IN- 2 GS 3 VREF 4 INH 5 PWDN 6 OSC1 7 OSC2 8 VSS 9 VDD 18 ST/GT 17 EST 16 STD 15 Q4 14 Q3 13 Q2 12 Q1 11 TOE 10 U8 HT9270 Q0 Q1 Q2 Q3 X2 3.5795MHz DTMF_INT R59 R103 B C E Q2 9013 VCC_33V R66 R223 VCC_33V R7 R472 P1.0 40 P1.1 41 P1.2 42 P1.3 43 P1.4 44 P1.5 1 P1.6 2 P1.7 3 RST 4 RXD/P3.0 5 TXD/P3.1 7 INT0/P3.2 8 INT1/P3.3 9 T0 10 T1 11 WR/P3.6 12 RD/P3.7 13 XTAL2 14 XTAL1 15 VSS 16 P2.0 18 P2.1 19 P2.2 20 P2.3 21 P2.4 22 P2.5 23 P2.6 24 P2.7 25 PSEN 26 ALE 27 EA/Vpp 29 P0.7 30 P0.6 31 P0.5 32 P0.4 33 P0.3 34 P0.2 35 P0.1 36 P0.0 37 VCC 38 P42 39 P43 6 P40 17 P41 28 U11 W78E365 C10 C10uF/10V R73 R103 VCC_33V C8 C22p C7 C22p X1 22.1184MHz R60 R55 R103 R58 R103 VCC_33V VCC_33V C3 C104 1 2 3 4 J3 4PIN VCC_33V RXD0 TXD0 TXD0 RXD0 ISP R98 R102 R81 R102 R35 R102 R14 R102 R18 R102 LED1 LED3 LED4 LED5 LED6 R23 R102 LED2 R36 R103 R19 R103 Q0 Q1 Q2 Q3 1 2 3 J1 PWR_JET abc R77 R222 R62 R622 C72 1000uF/10V L2 L125 D3 1N5822 VIN 1 VOUT 2 GND 3 ON/OFF 5 FEEDBACK 4 U13 LM2576 C69 C332 +4.5V R107 NC R124 RES D0 D1 D2 HK_DET C9 1000uF/10V C76 1000uF/16V TXD0 VCC1 灯板原理图 D33 LED D31 LED D32 LED D30 LED D28 LED D29 LED D27 LED LED17 LED16 LED15 LED14 LED13 LED11 LED12 VCC1 1 2 3 4 J8 2.54X4PIN 1 2 3 4 J9 2.54X4PIN LED6 LED5 LED4 LED3 LED2 LED1LED7 VCC_33V 1 2 3 4 J13 2.54X4PIN 1 2 3 4 J12 2.54X4PIN R29 R102 LED7 R32 R513 C31 R223 C32 R42 C104 R33 R513 R34 R682 B C E Q3 9013 VCC_33V C22 R31 C29 R17 VOICE_CON R20 R104 C25 C104 R68 R104 C50 C104 R78 R393 R79 R563 TIP-3055 RING-3055 AC 2 V- 1 V+ 3 AC 4 D2 Z606 HK_DET R45 R0(NC) B EC Q8 BCP53 R47 R302 LINE1 LINE2 L1 22uH D1 1N5822 D5 1N5401 VDD 1 GND 2 CE 3 4 4 VOUT 5 U14 SE5509-3.3V C33 C104 C60 2200uF/6.3V C59 C104 R72 R102 R90 R304 R91 R200 R74 R200 Y1 10D221 C55 C104 D S G Q4 FU9120N D0 1 D1 2 D2 3 CVCC 4 AGND 5 NC 6 NC 7 DET 8 CKTTX 9 CTTX1 10 CTTX2 11 RTTX 12 FTTX 13 RX 14 ZAC1 15 ZAC 16 RS 17 ZB 18 CAC 19 TX 20 VF 21 CLK 22 GATE 23 RSENSE 24 VPOS 25 CVCC 26 AGND 27 RLIM 28 IREF 29 RTH 30 RD 31 ILTF 32 CSVR 33 BGND 34 VBAT+ 35 NC 36 RING 37 NC 38 NC 39 NC 40 TIP 41 NC 42 CREV 43 VBAT1 44 U9 STLC3055 C18 C104 R93 R392 C20 C104 R95 R273 R97 R0.11D12 FR304 L6 L125 C44 CD288 CF1 C471/100 CVB C474/100 R57 R912 C36 1000uF/16V C37 C152/100 C38 22uF/50V C39 C223 C40 C104 R85 R200 R92 R200 D10 SR160 D11 SR160 I1 1R0 CVCC HK_DET D2 D1 D0 VBAT VBAT CVCC CVCC C11 C474/100 C41 C121 R27 R512 R28 R223 R37 R103 C42 C102 3055_RX 3055-MIC R87R512 C51 C102 C52 C102 C58 C222 R86 R103 R88 R333 C53 C121 TIP-3055 RING-3055 V-MODEL RXD TXD RTS R41 R101 R49 R101 RTS0 R40 R101 RXD0 R101 R104 VC 1 FB 2 TEST 3 SS 4 VCC 5 AGND 6 PGND 7 VSW 8 U5 CS5171 C14 C104 R12 R512 R11 R393 R75 R512 ON/OFF ON/OFF V-MODEL C13 C104 R13 R102 VOICE_CON X3 3.5795MHz C49 C30p C56 C30p C5 C30p C47 C30p AC 2 V- 1 V+ 3AC 4 D6 Z606 C57 C103/100 C61 C474/100 R10 R472 CCIN C65 C104 1 2 3 J2 BATT D7 IN5408 4.2V V-MODEL V- 16 SW 13 SW_C 11 SW_O 9 SW_O 8 SW_C 6 SW 4 V+ 1 J4 G6A-274P R64 R472 B C E Q11 9013 LINE1LINE2 TIP-3055RING-3055 V-3055 V-3055 R44 R201 POW-CON B C E Q10 9013 R71 R104 R83 POW-CON RING0 R61 R101 RING0 IN+ 1 IN- 2 E 3 C 4 U4 MCT817 R43 R103 R53 NOP VCC_33V HK_DET EAR_MAIN LINE1 LINE2 R65 R101 R69 R103 D S G Q6 G2305 SLIC_CTRL R56 R103 B C E Q9 9013 R67 R102 SLIC_CTRL EAR_S EAR1 R38 R103 VCC_33V C12 Y5V，C106/25v C26 Y5V，C226/10v V-3055 R52 R101 R50 R103 ACCU_TEMP ACCU_TEMP D SG Q7 AO3415 D SG Q16 AO3415 D SG Q14 AO3415 D SG Q12 AO3415 R70 R103 R63 R103 VIN_12V R100 NOP V-MODEL +4.5V 4.2V R46 R103 R48 R103 VCC_33V FSK_CTRL EAR1 FSK FSK FSK_CTRL R82 R103 (=12V) 这个网络由原来的EAR1改为3055_RX R200 100K C201 105 C200 33P EAR1 浮充电流=130~140mA RXD R39 R102 1 2 J7 BATT VMIC 1 EPN1 2 EPP1 3 GND 4 BATT+ 5 GND 6 ADC1 7 ON 8 GND 9 VDIG 10 RXD0 11 CTS0 12 TXD0 13 RING0 14 RTS0 15 VDDLP 16 CCRST 17 CCIN 18 CCIO 19 CVCC 20 CCCLK 21 V285 22 DO NOT USE 23 DSR0 24 DTR0 25 DCD0 26 GPIO9/I2CDAT 27 GPIO10/I2CCLK 28 TXD1 29 RXD1 30 RTS1 31 CTS1 32 EMERG_RST 33 GND 34 V180 35 GPIO8 36 GPIO7/PWM1 37 GPIO6/PWM2 38 GPIO5/LED 39 GPIO4 40 GPIO3 41 GPIO2 42 GPIO1 43 GND 44 GND 45 GND 46 GND 47 GND 48 GND 49 GND 50 GND 51 GND 52 BATT+ 53 GND 54 GND 55 GND 56 GND 57 GND 58 RF_OUT 59 GND 60 GND 61 GND 62 GND 63 GND 64 MICP1 65 MICN1 66 GND 67 U10 BGS2 V-MODEL V-MODEL RF_OUT MICA MICB EARAEARBIGT PD VDDLP SYNCC CCINCCIO CCVCC CCCLK CCRST VDIGRI DSR CTSRTS DTR DCD TXD CTS1 RTS1 TXD1 RXD1 I2CCLK I2CDAT V285 ADC1VMIC GPIO1GPIO2GPIO3GPIO4PWM1PWM2GPIO8V180 NO RI MICA MICB C78 33pF C28 33pF C30 33pF C79 18pF C70 18pF C71 18pF EARA EARB C80 33pF C34 33pF C68 33pF C81 18pF C74 18pF C75 18pF R102 R103 R103 R103 R104 R103 R99 R103 VCC_33V R105 R103 VCC_33V R108 R103 R106 R103 R109 R103 PD R119 R103 R118 R103 R110 R103 R113 R103 R111 R103 R114 R103 R112 R103 R115 R103 VCC_33V C62 1000uF/10V C35 C104 B C E Q13 9013 C46 C104 C48 C104 C43 C104 C45 C104 R76 R123 R116 R123 GAIN 1 IN- 2 IN+ 3 GND 4 GAIN 8 BYPASS 7 V+ 6 OUT 5 U15 LM386 C66 C104 V-3055 C77 10uF/16V EARA EARB R89 R123 C67 R121 R* R122 R0 VDIG

FCC 47 CFR PART 22 SUBPART H TEST REPORT For Applicant: REL IANCE CONTROLS CORPORATION Address: 2001 YOUNG COURT RACINE, WISCONSIN 53404 U.S.A Product Name: Cell Phone Gateway Model Name: THP220 Brand Name: N/A FCC ID: SPV-THP220 Report No.: STS111020F3 Date of Issue: November. 14, 2011 Issued by : Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park , Nanshan, Shenzhen, Guangdong ,China Tel : 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 43 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all thesignatures of testing engineers, reviewer and approver. FCC ID: SPV-THP220Report No.: STS111020F3 Page 2 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.............................................................................................................................4 2. GENERAL INFORMATION...........................................................................................................................................5 2.1 Product Information......................................................................................................................................................5 2.2 Objective........................................................................................................................................................................6 2.3 Test Standards and Results........................................................................................................................................6 2.4 Environmental Conditions...........................................................................................................................................6 3. TEST FACILITY..............................................................................................................................................................7 4. TEST EQUIPMENT LIST..............................................................................................................................................8 5. 47 CFR Part 2, Part 22H Requirements...................................................................................................................9 5.1 General Information......................................................................................................................................................9 5.1.1 Conducted Related Tests.........................................................................................................................................9 5.1.2 Radiated Power and Spurious Emission Tests...................................................................................................10 5.1.3 Frequency Stability Test.........................................................................................................................................11 6. FREQUENCIES............................................................................................................................................................12 6.1. Requirement...............................................................................................................................................................12 6.2 Test Procedure............................................................................................................................................................12 6.3 Test Result...................................................................................................................................................................12 7. Conducted RF Output Power..................................................................................................................................14 7.1 Requirement................................................................................................................................................................14 7.2 Test Procedure............................................................................................................................................................14 7.3 Test Result...................................................................................................................................................................14 8. OCCUPIED BANDWIDTH..........................................................................................................................................17 8.1 Occupied Bandwidth Definition................................................................................................................................17 8.2 Test Procedure............................................................................................................................................................17 8.3 Test Result...................................................................................................................................................................17 9. CONDUCTED SPURIOUS EMISSION.....................................................................................................................20 9.1 Requirement ................................................................................................................................................................20 9.2 Test Procedure............................................................................................................................................................20 9.3 Test Result...................................................................................................................................................................21 10. Transmitter Radiated Power …

Text truncated - open the document above for the full version.

FCC 47 CFR PART 24 SUBPART E TEST REPORT For Applicant : REL IANCE CONTROLS CORPORATION Address : 2001 YOUNG COURT RACINE, WISCONSIN 53404 U.S.A Product Name : Cell Phone Gateway Model Name : THP220 Brand Name : N/A FCC ID : SPV-THP220 Report No. : STS111020F4 Date of Issue : November. 14, 2011 Issued by : Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park , Nanshan, Shenzhen, Guangdong ,China Tel : 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 43 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all thesignatures of testing engineers, reviewer and approver. FCC ID: SPV-THP220Report No.: STS111020F4 Page 2 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.............................................................................................................................4 2. GENERAL INFORMATION...........................................................................................................................................5 2.1 Product Information......................................................................................................................................................5 2.2 Objective........................................................................................................................................................................6 2.3 Test Standards and Results........................................................................................................................................6 2.4 Environmental Conditions...........................................................................................................................................6 3. TEST FACILITY..............................................................................................................................................................7 4. TEST EQUIPMENT LIST..............................................................................................................................................8 5. 47 CFR Part 2, Part 24E Requirements...................................................................................................................9 5.1 General Information......................................................................................................................................................9 5.1.1 Conducted Related Tests.........................................................................................................................................9 5.1.2 Radiated Power and Spurious Emission Tests...................................................................................................10 5.1.3 Frequency Stability Test.........................................................................................................................................11 6. FREQUENCIES............................................................................................................................................................12 6.1. Requirement...............................................................................................................................................................12 6.2 Test Procedure............................................................................................................................................................12 6.3 Test Result...................................................................................................................................................................12 7. Conducted RF Output Power..................................................................................................................................14 7.1 Requirement................................................................................................................................................................14 7.2 Test Procedure............................................................................................................................................................14 7.3 Test Result...................................................................................................................................................................14 8. OCCUPIED BANDWIDTH..........................................................................................................................................17 8.1 Occupied Bandwidth Definition................................................................................................................................17 8.2 Test Procedure............................................................................................................................................................17 8.3 Test Result...................................................................................................................................................................17 9. CONDUCTED SPURIOUS EMISSION.....................................................................................................................20 9.1 Requirement ................................................................................................................................................................20 9.2 Test Procedure............................................................................................................................................................20 9.3 Test Result...................................................................................................................................................................21 10. Transmitter Radiate…

Text truncated - open the document above for the full version.

FCC ID: SPV-THP220Report No.: STS111020F3 Page 32 of 43 CONDUCTED TEST SETUP RADIATED EMISSION TEST SETUP FCC ID: SPV-THP220Report No.: STS111020F3 Page 33 of 43
