SQG-SONANX611MWi-Fi 6/BT Transceiver radio

User / Integration Guide Sona™ NX611 Modules v0.3 https://www.ezurio.com/ 2 © Copyright 2024 Ezurio All Rights Reserved Americas: +1-800-492-2320 Europe: +44-1628-858-940 Hong Kong: +852-2762-4823 Sona NX611 User /Integration Guide Revision History Version Date Notes Contributors Approver 0.1 23 March 2023 Preliminary version Various Andy Ross 0.2 11 June 2024 Ezurio branding. Sue White Dave Drogowski 0.3 06 August 2024 Updated Renderings with current labels and updated regulatory statements. Brian Petted Pete Scharpf Brian Petted https://www.ezurio.com/ 3 © Copyright 2024 Ezurio All Rights Reserved Americas: +1-800-492-2320 Europe: +44-1628-858-940 Hong Kong: +852-2762-4823 Sona NX611 User /Integration Guide Contents 1 Introduction ....................................................................................................................................................................................................................................... 4 2 SONA™ NX611 SIP Module ................................................................................................................................................................................................................. 5 2.1 SONA™ NX611 SIP Module PCB Footprint .............................................................................................................................................................................. 5 2.2 SONA™ NX611 SIP Module Mechanical Drawing .................................................................................................................................................................... 6 2.3 SONA™ NX611 SIP Module Pinout .......................................................................................................................................................................................... 7 3 SONA™ NX611 1216 Module .............................................................................................................................................................................................................. 9 3.1 SONA™ NX611 M.2 1216 Module PCB Footprint .................................................................................................................................................................... 9 3.2 SONA™ NX611 M.2 1216 Module Mechanical Drawing ........................................................................................................................................................ 10 3.3 SONA™ NX611 M.2 1216 Module Pinout .............................................................................................................................................................................. 11 4 SONA™ NX611 M.2 2230 Module .................................................................................................................................................................................................... 14 4.1 SONA™ NX611 M.2 2230 Module Mechanical Drawing ........................................................................................................................................................ 14 4.2 SONA™ NX611 M.2 2230 Module Pinout .............................................................................................................................................................................. 15 5 FCC and ISED Modular Certification Requirements ......................................................................................................................................................................... 17 5.1 Federal Communication Commission Interference Statement ............................................................................................................................................. 17 5.2 Innovation, Science and Economic Development, Canada (ISED) Statement ....................................................................................................................... 19 6 Sona NX611 SIP Certified Module Host Board Requirements .......................................................................................................................................................... 21 7 SONA™ NX611 M.2 2230 Module Mounting Guidelines .................................................................................................................................................................. 23 8 Regulatory ........................................................................................................................................................................................................................................ 24 https://www.ezurio.com/ 4 © Copyright 2024 Ezurio All Rights Reserved Americas: +1-800-492-2320 Europe: +44-1628-858-940 Hong Kong: +852-2762-4823 Sona NX611 User /Integration Guide 1 Introduction This document describes key hardware aspects of Laird Connectivity’s Sona™NX611 Wi-Fi6 / Bluetooth 5.3 modules, which are based on NXP’s IW611 chipset. It serves as a supplement to the full module datasheet and is provided to assist in initial hardware integration. This document also states the necessary conditions that need to be met in order to maintain the certification compliance in terms of physical end-product integration realization, end-product documentation regulatory statements, and labelling requirements. The following are covered in this user / integration guide: • SONA™ NX611 SIP Module – SONA™ NX611 SIP Module PCB Footprint – SONA™ NX611 SIP Module Mechanical Drawing • SONA™ NX611 1216 Module – SONA™ NX611 M.2 1216 Module PCB Footprint – SONA™ NX611 M.2 1216 Module Mechanical Drawing – SONA™ NX611 M.2 1216 Module Pinout • SONA™ NX611 M.2 2230 Module – SONA™ NX611 M.2 2230 Module Mechanical Drawing – SONA™ NX611 M.2 2230 Module Pinout – SONA™ NX611 M.2 2230 Module Note: Data in this document is drawn from several sources and is subject to change. Figure 1: Sona NX611 SIP Mo…

Text truncated - open the document above for the full version.

Ezurio 50 South Main Street, Ste 1100 Akron, OH, 44311, USA Americas: +1-800 492 2320 Europe: +44-1628-858-940 Hong Kong: +852 2762 4823 www.ezurio.com Federal Communication Commission 7435 Oakland Mills Road Columbia, MD 21046 March 28, 2024 Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: SQG-SONANX611M TO WHOM IT MAY CONCERN: Hereby we certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Further we certify that, as of the date of the filing of the application, Ezurio LLC is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, _______________ (signature & company stamp) Ezurio LLC W66 N220 Commerce Court, Cedarburg, WI 53012 USA Brian E. Petted (262)-893-9433 [email protected]

Ezurio 50 South Main Street, Ste 1100 Akron, OH, 44311, USA Americas: +1-800 492 2320 Europe: +44-1628-858-940 Hong Kong: +852 2762 4823 www.ezurio.com U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Ezurio LLC FRN #: 0022590616 Grantee Code: SQG Contact Name: Brian E. Petted, Technology Leader Street Address: W66 N220 Commerce Court City/Province/Zip: Cedarburg, Wisconsin, 53012 USA Telephone No: (262)-421-4974 Email:[email protected] Applicant Signature: Date: Signed by: Brian E. Petted, Technology Leader

Request for Confidentiality Date: March 28, 2024 Subject: Confidentiality Request for: _FCC ID: SQG-SONANX611M and IC:3147A-SONANX611M Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☒ Short Term ☐ Permanent Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent User’s Manual Ezurio LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. We are informed and aware of our obligation that we have to inform the involved TCB in written and in due time if we intend to market the product prior to the above specified confidentiality release date so that the short term confidentiality classification can be reset prior to product launch. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: December 15, 2024 Sincerely, Brian E. Petted Digitally signed by Brian E. Petted Date: 2024.03.28 10:18:39 -05'00' By: Brian E. Petted, Technology Leader (Signature) Ezurio 50 South Main Street, Ste 1100 Akron, OH, 44311, USA Americas: +1-800 492 2320 Europe: +44-1628-858-940 Hong Kong: +852 2762 4823 www.ezurio.com

The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? ☒ Yes Letter of Authorization and Anti- Drug Statement Applicant Name: Ezurio LLC Address: W66 N220 Commerce Court, Cedarburg, Wisconsin, 53012 USA Product Name: Sona NX611 Model Number: Sona NX611M FCC ID: SQG-SONANX611M We authorize: CETECOM Inc., to act on our behalf on all matters concerning the above named equipment. We declare that CETECOM Inc. is allowed to forward all information related to the approval project to the Federal Communications Commission and discuss any issues concerning the approval application. I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. Signature of Authorized Person Filing: Title: Technology Leader Date: May 14, 2024 Brian E. Petted Digitally signed by Brian E. Petted Date: 2024.05.14 13:21:38 -05'00' Ezurio 50 South Main Street, Ste 1100 Akron, OH, 44311, USA Americas: +1-800 492 2320 Europe: +44-1628-858-940 Hong Kong: +852 2762 4823 www.ezurio.com

FCC Modular Approval Statement Ezurio 50 South Main Street, Ste 1100 Akron, OH, 44311, USA Americas: +1-800 492 2320 Europe: +44-1628-858-940 Hong Kong: +852 2762 4823 www.ezurio.com 1 Receiver Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject: Modular Approval Statement Date: March 28, 2024 FCC Certification Number: SQG-SONANX611M Single-modular transmitter: A complete RF transmission sub-assembly, designed to be incorporated into another device, that must demonstrate compliance with FCC rules and policies independent of any host; Limited single-modular transmitter: A single-modular transmitter that complies with the § 15.212(a)(1) modular rules, only when constrained to specific operating host(s) and/or associated grants condition(s); TO WHOM IT MAY CONCERN Pursuant to Paragraphs FCC part 15.212, we herewith declare for our module. Single modular transmitters must meet all of the following requirements to obtain a modular transmitter approval. Limited modular approval may be granted for single that do not comply with all of the following requirements, Single Modular approval requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. X Comment: The module has an integral RF shield to isolate it from the surrounding environment. Please refer to EUT photos. (ii) The module must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. X Comment: All inputs are processed as data by the on board microprocessor. There is no direct access or control of the transmit modulation. (iii) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. X Comment: The module utilizes nRF52833 and SR040 components which contain on-chip voltage regulators. (iv) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), and 15.212(a). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals. The equipment certification X FCC Modular Approval Statement Ezurio 50 South Main Street, Ste 1100 Akron, OH, 44311, USA Americas: +1-800 492 2320 Europe: +44-1628-858-940 Hong Kong: +852 2762 4823 www.ezurio.com 2 submission shall contain i) a detailed description of the configuration of highest antenna gain for each type of antenna. ii) the maximum transmitting antenna gain for license modules iii) a detailed description of the configuration of lowest antenna gain for each type of receiving antenna for Dynamic F requency Selection (DFS) modules with removable antenna(s) Comment: The module uses IPEX MHF4L connectors which are in accordance with Part 15.203 (v) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be located inside another device during testing. X Comment: The module was tested in a stand-alone configuration and found to be compliant with Part 15 regulations. Please refer to Test Setup photo (vi) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements). X Comment: The module is labeled with its own FCC ID number affixed to each unit at manufacture. Information is clearly presented in the module’s regulatory information guide about labeling requirements for the final assembly. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. X Comment: The module is compliant with all applicable FCC rules. Details and instructions for maintaining compliance are given in the module’s Datasheet and Regulatory Information Guide. (viii) The module shall comply with applicable FCC RF exposure requirements, which are based on the intended use/configurations. X Comment: The module complies with this requirement. Please refer to the RF exposure report. Best Regards, ______________________ Brian E. Petted, Technology Leader Ezurio LLC

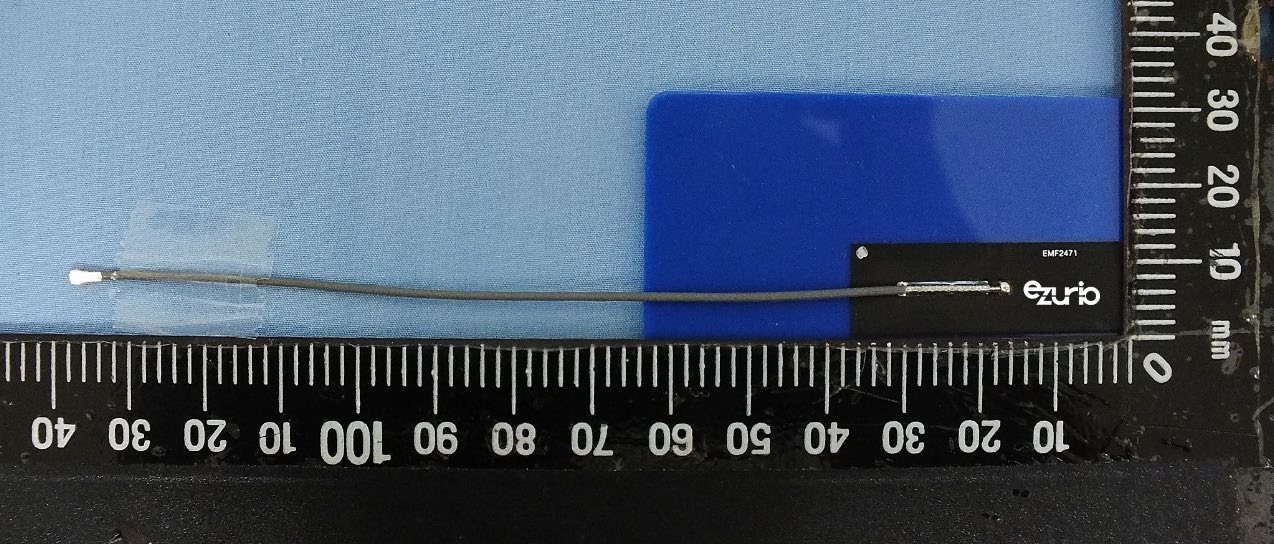

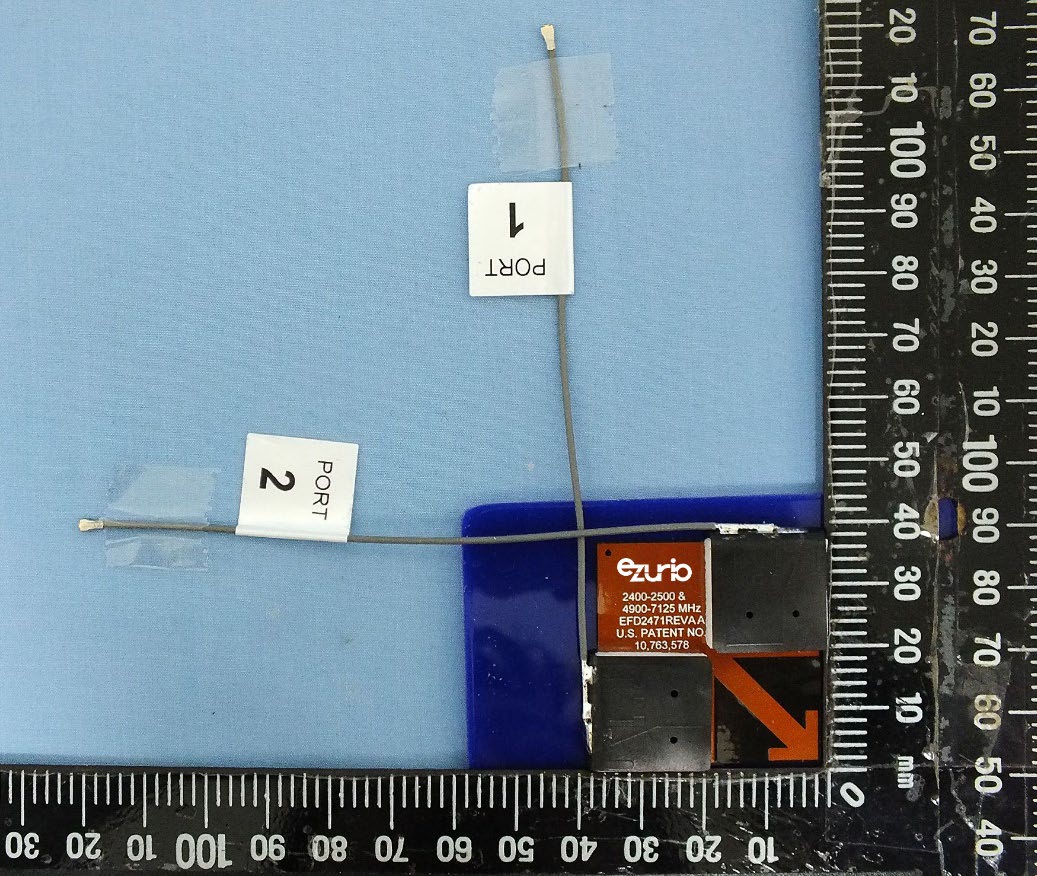

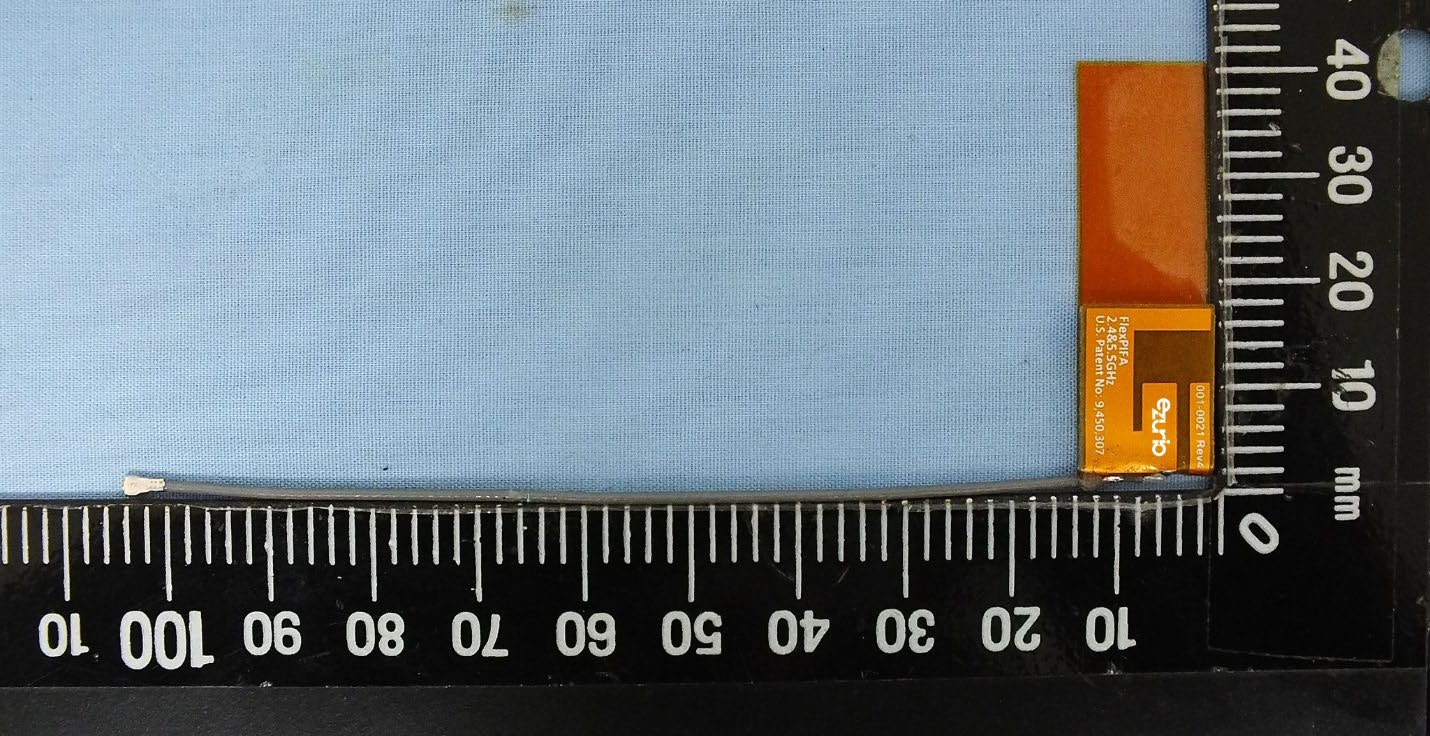

EXTERNAL PHOTOS Company Name Ezurio LLC Model # Sona NX611M FCC ID # SQG-SONANX611M IC # 3147A-SONANX611M Page 1 of 6 EXTERNAL PHOTOS Company Name Ezurio LLC Model # Sona NX611M FCC ID # SQG-SONANX611M IC # 3147A-SONANX611M Page 2 of 6 EXTERNAL PHOTOS Company Name Ezurio LLC Model # Sona NX611M FCC ID # SQG-SONANX611M IC # 3147A-SONANX611M Page 3 of 6 EXTERNAL PHOTOS Company Name Ezurio LLC Model # Sona NX611M FCC ID # SQG-SONANX611M IC # 3147A-SONANX611M Page 4 of 6 EXTERNAL PHOTOS Company Name Ezurio LLC Model # Sona NX611M FCC ID # SQG-SONANX611M IC # 3147A-SONANX611M Page 5 of 6 EXTERNAL PHOTOS Company Name Ezurio LLC Model # Sona NX611M FCC ID # SQG-SONANX611M IC # 3147A-SONANX611M Page 6 of 6

THIRD ANGLE PROJECTION 12.00 ±0.13 1.50 8.99 16.00 ±0.13 1.82 1 Pin 1 2 0.60 ±0.10 (RF connector) 1.75 ±0.15 0.45 Pin 1 PCB Surface Flatness Tolerances:+/-0.1mm REVISIONS REV.DESCRIPTIONDATEAPPROVED 1-1Initial releaseFeb 9, 2023AC ITEM NO.PART NUMBER REV. DESCRIPTION QTY. 1940-00274 2.0 PCBA, Module, Sona NX611 M.2 1216, 2 MHF4 1 2160-02404 1-1 Label, Sona NX611 M.2 1216 MHF4, 10mm x 11mm 1 1-1 453-00157 SHEET 1 OF 1 UNLESS OTHERWISE SPECIFIED: REV ITEM NUMBER:SIZE ITEM DESCRIPTION: DATE INTERPRET GEOMETRIC TOLERANCING PER: ASME 14.5M DIMENSIONS ARE IN MILLIMETERS TOLERANCES: ANGULAR: X.X X.XX 5 4 32 1 6 7 8 A B C D E F 8 7 6 5 4 32 1 F E D C B A B Module, Sona NX611 M.2 1216, 2 MHF4 CAD FILE: 453-00157 ± .5 ± .2 ± .1 UNLESS OTHERWISE NOTED, THIS DOCUMENT CONTAINS LAIRD CONNECTIVITY INFORMATION. REPRODUCTION, USE, DISCLOSURE OR TRANSMITTAL OF ALL OR ANY PART OF THIS DOCUMENT IS PROHIBITED EXCEPT TO THE EXTENT APPROVED IN WRITING BY AN AUTHORIZED REPRESENTATIVE OF LAIRD CONNECTIVITY. LAIRD CONNECTIVITY RESERVES ALL RIGHTS UNDER PATENTS, TRADEMARKS, COPY RIGHTS AND TRADE SECRETS. COPYRIGHT, LAIRD CONNECTIVITY 2022, ALL RIGHTS RESERVED. {%07%} Laird Connectivity

THIRD ANGLE PROJECTION 22.00 ±0.15 30.00 ±0.15 4.00 ±0.15 19.85 ±0.10 1 3 2.55 ±0.20 0.80 ±0.08 2 Pin 1 PCB Surface Flatness Tolerances:+/-0.1mm REVISIONS REV.DESCRIPTIONDATEAPPROVED 1-1Initial releaseMar 9, 2023AC NO.ITEM NUMBERREV.DESCRIPTIONQTY. 1940-002842-1PCBA, Module, Sona NX611 M.2 2230, 1 MHF41 2160-024061-1 Label, Product Identifier, Sona NX611 M.2 2230, 16mm x 14mm 1 3160-024071-1 Label, Product Identifier, Sona NX611 M.2 2230, Front, 8mm x 2mm 1 1-1 453-00166 SHEET 1 OF 1 UNLESS OTHERWISE SPECIFIED: REV DWG. NO.SIZE TITLE: DATE INTERPRET GEOMETRIC TOLERANCING PER: ASME 14.5M DIMENSIONS ARE IN MILLIMETERS TOLERANCES: ANGULAR: X.X X.XX 5 4 32 1 6 7 8 A B C D E F 8 7 6 5 4 32 1 F E D C B A B Module, Sona NX611 M.2 2230, 1 MHF4 CAD FILE: 453-00166 ± .5 ± .2 ± .1 UNLESS OTHERWISE NOTED, THIS DOCUMENT CONTAINS LAIRD EZURIO INFORMATION. REPRODUCTION, USE, DISCLOSURE OR TRANSMITTAL OF ALL OR ANY PART OF THIS DOCUMENT IS PROHIBITED EXCEPT TO THE EXTENT APPROVED IN WRITING BY AN AUTHORIZED REPRESENTATIVE OF EZURIO. EZURIO RESERVES ALL RIGHTS UNDER PATENTS, TRADEMARKS, COPY RIGHTS AND TRADE SECRETS. COPYRIGHT, EZURIO 2024, ALL RIGHTS RESERVED.

THIRD ANGLE PROJECTION 12.00 ±0.13 16.00 ±0.13 10.50 1.82 1 Pin 1 2 0.60 ±0.10 (RF connector) 1.75 ±0.15 0.45 Pin 1 PCB Surface Flatness Tolerances:+/-0.1mm REVISIONS REV.DESCRIPTIONDATEAPPROVED 1-1Initial releaseFeb 9, 2023AC 1-2Logo changeFeb 27, 2024AC ITEM NO.PART NUMBER REV. DESCRIPTION QTY. 1940-00275 2-1 PCBA, Module, Sona NX611 M.2 1216, 1 MHF4 1 2160-02404 1-2 Label, Sona NX611 M.2 1216 MHF4, 10mm x 11mm 1 1-2 453-00158 SHEET 1 OF 1 UNLESS OTHERWISE SPECIFIED: REV DWG. NO.SIZE TITLE: DATE INTERPRET GEOMETRIC TOLERANCING PER: ASME 14.5M DIMENSIONS ARE IN MILLIMETERS TOLERANCES: ANGULAR: X.X X.XX 5 4 32 1 6 7 8 A B C D E F 8 7 6 5 4 32 1 F E D C B A B Module, Sona NX611 M.2 1216, 1 MHF4 CAD FILE: 453-00158 ± .5 ± .2 ± .1 UNLESS OTHERWISE NOTED, THIS DOCUMENT CONTAINS LAIRD EZURIO INFORMATION. REPRODUCTION, USE, DISCLOSURE OR TRANSMITTAL OF ALL OR ANY PART OF THIS DOCUMENT IS PROHIBITED EXCEPT TO THE EXTENT APPROVED IN WRITING BY AN AUTHORIZED REPRESENTATIVE OF EZURIO. EZURIO RESERVES ALL RIGHTS UNDER PATENTS, TRADEMARKS, COPY RIGHTS AND TRADE SECRETS. COPYRIGHT, EZURIO 2024, ALL RIGHTS RESERVED.

THIRD ANGLE PROJECTION 22.00 ±0.15 30.00 ±0.15 4.00 ±0.15 19.85 ±0.10 1 3 2.55 ±0.20 0.80 ±0.08 2 Pin 1 PCB Surface Flatness Tolerances:+/-0.1mm REVISIONS REV.DESCRIPTIONDATEAPPROVED 1-1Initial releaseMar 9, 2023AC NO.ITEM NUMBERREV.DESCRIPTIONQTY. 1940-002832-1PCBA, Module, Sona NX611 M.2 2230, 2 MHF41 2160-024061-1 Label, Product Identifier, Sona NX611 M.2 2230, 16mm x 14mm 1 3160-024071-1 Label, Product Identifier, Sona NX611 M.2 2230, Front, 8mm x 2mm 1 1-1 453-00165 SHEET 1 OF 1 UNLESS OTHERWISE SPECIFIED: REV DWG. NO.SIZE TITLE: DATE INTERPRET GEOMETRIC TOLERANCING PER: ASME 14.5M DIMENSIONS ARE IN MILLIMETERS TOLERANCES: ANGULAR: X.X X.XX 5 4 32 1 6 7 8 A B C D E F 8 7 6 5 4 32 1 F E D C B A B Module, Sona NX611 M.2 2230, 2 MHF4 CAD FILE: 453-00165 ± .5 ± .2 ± .1 UNLESS OTHERWISE NOTED, THIS DOCUMENT CONTAINS LAIRD EZURIO INFORMATION. REPRODUCTION, USE, DISCLOSURE OR TRANSMITTAL OF ALL OR ANY PART OF THIS DOCUMENT IS PROHIBITED EXCEPT TO THE EXTENT APPROVED IN WRITING BY AN AUTHORIZED REPRESENTATIVE OF EZURIO. EZURIO RESERVES ALL RIGHTS UNDER PATENTS, TRADEMARKS, COPY RIGHTS AND TRADE SECRETS. COPYRIGHT, EZURIO 2024, ALL RIGHTS RESERVED.

A Company: Ezurio Page 1 of 71 Name: Module, SONA NX611 M.2 2230, 1 MHF / 2 MHF Report: TR 3768 166 165 RFX Model: SONA NX611M Job: C-3768 Serial: 00047 | 00048 Test Report 3768-166-165 RFX Equipment Under Test: Module, SONA NX611 M.2 2230, 1 MHF / 2 MHF Requirement(s): FCC: 1.1307, 1.1310 ISED: RSS-102 Test Date(s): 8/1/2024 Prepared for: Ezurio Attn: Brian Petted W66 N220 Commerce Ct. Cedarburg, WI 53012 Report Issued by: Dylan Rosenfeldt, EMC Engineer Signature: Date: 09/12/2024 Report Reviewed by: Adam Alger, Manager EMC Laboratory Signature: Date: 9/12/2024 Report Constructed by: Dylan Rosenfeldt, EMC Engineer Signature: Date: 9/10/2024 This test report may not be reproduced, except in full, without approval of Ezurio Company: Ezurio Page 2 of 71 Name: Module, SONA NX611 M.2 2230, 1 MHF / 2 MHF Report: TR 3768 166 165 RFX Model: SONA NX611M Quote: C-3768 Serial: 00047 | 00048 CONTENTS Contents ........................................................................................................................................................ 2 Ezurio Test Services in Review .................................................................................................................. 5 1 Test Report Summary ........................................................................................................................... 6 2 Client Information ................................................................................................................................. 7 2.1 Equipment Under Test (EUT) Information ................................................................................... 7 2.2 Product Description ..................................................................................................................... 7 2.3 Modifications Incorporated for Compliance ............................................................................... 7 2.4 Deviations and Exclusions from Test Specifications .................................................................... 7 2.5 EUT Information .......................................................................................................................... 7 2.6 Ancillary Equipment .................................................................................................................... 8 2.7 Antenna Information ................................................................................................................... 8 2.8 Test Channels 2.4 GHz WLAN ...................................................................................................... 8 2.9 Test Channels 5 GHz WLAN ......................................................................................................... 9 2.10 Test Channels BLE ...................................................................................................................... 10 2.11 Test Channels BT Classic ............................................................................................................ 10 3 References .......................................................................................................................................... 11 4 Uncertainty Summary ......................................................................................................................... 12 5 Test Data ............................................................................................................................................. 13 5.1 Antenna Port Conducted Emissions .......................................................................................... 13 6 FCC SAR Exemption – 2.4GHz WLAN................................................................................................... 49 6.1 SAR Exemption Limit.................................................................................................................. 49 6.2 Distance ..................................................................................................................................... 49 6.3 Power Calculation ...................................................................................................................... 49 6.4 SAR Test Exclusion Calculation .................................................................................................. 49 6.5 Result ......................................................................................................................................... 49 7 FCC SAR Exemption – BLE ................................................................................................................... 50 7.1 SAR Exemption Limit.................................................................................................................. 50 7.2 Distance ..................................................................................................................................... 50 7.3 Power Calculation ...................................................................................................................... 50 7.4 SAR Test Exclusion Calculation .................................................................................................. 50 7.5 Result ......................................................................................................................................... 50 8 FCC SAR Exemption – Bluetooth Classic ............................................................................................. 51 Company: Ezurio Page 3 of 71 Name: Module, SONA NX611 M.2 2230, 1 MHF / 2 MHF Report: TR 3768 166 165 RFX Model: SONA NX611M Quote: C-3768 Serial: 00047 | 00048 8.1 SAR Exemption Limit.................................................................................................................. 51 8.2 Distance ..................................................................................................................................... 51 8.3 Power Calculation .....................................…

Text truncated - open the document above for the full version.

A Company: Ezurio Page 1 of 49 Name:Module, SONA NX611 M.2 2230, 1 MHF Report: TR3768-166-2.4G Model:SONA NX611M Job: C-3768 Serial:00047 Test Report TR3768-166-2.4G Equipment Under Test: Module, SONA NX 611 M.2 2230, 1 MHF Requirement(s): eCFR 47 Part 15.247 | RSS-247 Test Date(s): 02/12/2024-04/30/2024 Prepared for: Ezurio Attn: Brian Petted W66 N220 Commerce Ct. Cedarburg, WI 53012 Report Issued by: Adam Hauke, EMC Engineer Signature: Date: 08/08/2024 Report Reviewed by: Adam Alger, Manager EMC Laboratory Signature: Date: 8/08/2024…

Text truncated - open the document above for the full version.
