SRMT11008340TEMPTALE RF GATEWAY/REPEATER/SIGNPOST

© SENSITECH INC REV A 9/6/2005 1 TempTale RF Infrastructure and Remote Site Server Setup Instructions Date: 8/15/2006 Revision: A FCC Part 15, Class A Manual Statement RF GATEWAY PN: T11008340 FCC ID: SRMT11008340 IC: 6654A-11008340 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Sensitech could void the users’ authorit y to operate the equipment RADIO AND TELEVISION INTERFERENCE NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. © SENSITECH INC REV A 9/6/2005 2 Table of Contents TempTale® RF System ................................................................................................................... 3 Section 1: Hardware Configuration Instructions for TTRF Infrastructure ........................................ 4 Equipment........................................................................................................................................ 4 Configuring the TTRF Gateway for a static IP address or DHCP agent ......................................... 4 Configure the Repeater/Signpost with a GLN and set Modes ........................................................ 6 Signpost-Repeater commands ........................................................................................................ 7 LED Patterns ................................................................................................................................... 9 Section 2: Software Installation Instructions TTM Remote Site Server......................................... 10 System Requirements ................................................................................................................... 10 Configuration Values Required...................................................................................................... 10 Media ............................................................................................................................................. 10 Installation...................................................................................................................................... 10 Configuration ................................................................................................................................. 11 Starting the services ...................................................................................................................... 12 Appendix A RfNetCfg.xml ............................................................................................................. 13 Appendix B RfSiteCfg.xml ............................................................................................................. 14 Appendix B RfSiteCfg.xml ............................................................................................................. 14 Appendix C ReceiveRFData.exe.config. xml ................................................................................ 15 Appendix D SendDataToCentralSite.xml ...................................................................................... 15 Hardware Configuration Instructions for TTRF Infrastructure © SENSITECH INC REV A 9/6/2005 3 TempTale® RF System The TempTale® RF system uses software and hardware to capture temperature data and download the data wirelessly to a local computer. The data is then sent via Internet to a secure database where the data can be viewed and analyzed. The software is Remote Site Server (RSS) and the hardware is; TempTale RF monitors (TTRF) and three other types of RF (Radio Frequency) devices: • Gateways - are RF monitor readers attached via Ethernet to the PC running RSS • Repeaters - extend the area covered by the network. • Signposts - transmit a location ID which is stored in the monitors. Depending on geographic region, the TTRF system operates within two ISM (Industrial, Scientific and Medicine) frequency bands: 870.0 MHz in Europe and 928 MHz in North America Within these bands, the TTRF System uses specific channels to transmit and receive data. For the 902 - 928 MHz band the following channels are used: 914.904 MHz 922.277 MHz For the 869 MHz band the following channel is used: 869.850 MHz The RF signal used is a narrow band transmission that transmits power at +2 dBm for the monitors and 0dBm for the Infrastructure (Gateway, Repeaters and Signposts). Both the monitor and Infrastructure devices have an ERP (Effective Radiated Power) of about 2dB below the FCC limit of 94 dB μV/m. The channel width is 185 kHz, with 99% of energy within this channel. For US TTRF systems, the RF infrastructure (Gateways, Repeaters and Signposts) will be set to one of the two channels based on the current S/N (Signal to Noise) ratio of all the available channels at the time the system is installed at a customer site. The operating channel can be manually changed at any time if there is too much noise (i.e. interference) on the current channel 1 . US operating TTRF systems (using the 902 – 928 MHz ISM band) conform to FCC rule Part 15, Section 249, which states: The field strength of emissions from intentional radiators operated within these frequency ba…

Text truncated - open the document above for the full version.

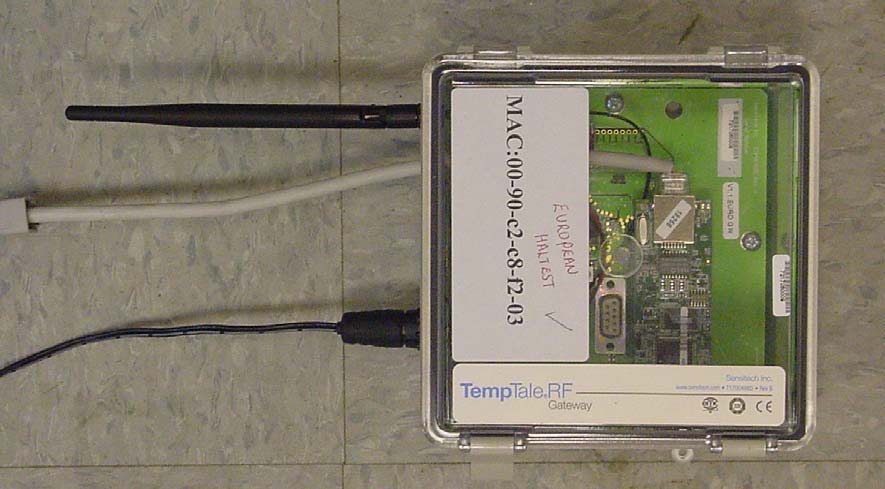

External Photos Front: Front without cover Back

Internal Photos Front Back Front: Back

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 236-06 In Accordance with the Requirements of Industry Canada RSS 210, Issue 6, Annex 1 Federal Communications Commission CFR Title 47 Part 15.249, Subpart C Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Sensitech Inc. 800 Cummings Center Suite 258X Beverly, MA 01915 (978) 927-7033 for TempTale RF Gateway/Repeater/Signpost 900 FCC ID: SRMT11008340 IC: 6654A-11008340 Report Issued on July 18, 2006 This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 236-06 Issue Date: 7/18/2006 Page 2 of 22 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1 Scope ................................................................................................................................... 3 2 Product Details..................................................................................................................... 3 3 Product Configuration .......................................................................................................... 4 4 Measurements Parameters.................................................................................................. 4 5 Measurement Summary....................................................................................................... 6 6 Measurement Data............................................................................................................... 7 7. Conducted Emissions Test Setup ..................................................................................... 19 8. Conducted Emissions Test Results .................................................................................. 20 9. Test Site Description ......................................................................................................... 22 Test Number: 236-06 Issue Date: 7/18/2006 Page 3 of 22 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1 Scope This test report certifies that the SensiTech Gateway/Repeater/Signpost 900, as tested, meets the RSS 210 Annex 1 Rules and FCC Part 15.249, Subpart C requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. 2 Product Details 2.1 Manufacturer: SensiTech 2.2 Model Number: Gateway/Repeater/Signpost 900 2.3 Serial Number: 7217060009 2.4 Description: The TempTale RF Gateway is a reader that is attached via an Ethernet connection to the PC controlling the wireless network. The TTRF Gateway chooses a channel within the band (set at shipment at either 915 MHz or 868 MHz) based on the current signal-to-noise ratio measured in each channel. The TTRF Repeater is used to extend the area that is covered by the network. The Repeater passes signals from the TTRF monitors and other repeaters to the TTRF Gateway. TTRF Repeaters uses the same channel as the TTRF Gateway that it finds when first installed. The Signpost is used at locations where it is not necessary to read data from the TTRF monitors. TTRF Signposts transmit a location ID that is stored in the monitors. As such, TTRF Signposts are typically used to record the length of time a shipment spends at a specific facility. TTRF Signposts are used in facilities that do not have a TTRF Gateway and TTRF Repeaters. 2.5 Power Source: 12V DC, 120 Volts, 60 Hz 2.6 EMC Modifications: None Test Number: 236-06 Issue Date: 7/18/2006 Page 4 of 22 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 3 Product Configuration 3.1 Operational Characteristics & Software The TempTale RF Gateway/Repeater/Signpost uses Remote Site Server software and TempTale RF monitors, gateways, repeaters, and signposts to capture temperature data and download the data wirelessly to a local computer. 3.2 Block Diagram EUT 120V AC 60Hz Powe r Ethernet unterminated antenna 12V DC Test Number: 236-06 Issue Date: 7/18/2006 Page 5 of 22 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 4 Measurements Parameters 4.1 Measurement Equipment Used to Perform Test Device ManufacturerModel No.Serial No.Last Cal Cal Due EMI Receiver Hewlett Packard 8546A 3650A00360 1/5/2005 1/5/2007 Spectrum Analyzer Hewlett Packard 8593E 3829A03887 3/13/2006 3/13/2007 Microwave Preamp Hewlett Packard 8449B 3008A01323 8/3/2004 8/3/2006 Biconilog Antenna Com-Power AC220 25509 1/31/2006 1/31/2007 Horn Antenna Electro-Metrics EM-6961 6337 7/30/2004 7/30/2006 4.2 Measurement & Equipment Setup Test Date: 7/13/2006 Test Engineer: Mike Desmarais Normal Site Temperature (15 - 35°C): 21.6 Extreme Test Temperatures (°C): 0 and +35 Relative Humidity (20 -75%RH): 25 Frequency Range: 914.9 – 922.0 MHz Measurement Distance: 3 Meters EMI Receiver IF Bandwidth: Depends on measurement EMI Receiver Avg Bandwidth: Depends on measurement Detector Function: Depends on measurement 4.3 Test Procedure Test measurements were made in accordance FCC Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. The test methods used to generate the data is this test report is in accordance with ANSI C63.4: 2003, American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Test Number: 236-06 Issue Date: 7/18/2006 Page 6 of 22 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.c…
