1 ZTE Blade A7 2020 User Manual 2 About This Manual Thank you for choosing this ZTE mobile device. In order to keep your device in its best condition, please read this manual and keep it for future reference. Copyright Copyright © 2020 ZTE CORPORATION All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. This manual has been designed with the utmost care to ensure the accuracy of its content. However, all statements, information and recommendations contained therein do not constitute a warranty of any kind, either expressed or implied. Please refer to For Your Safety to be sure to use your phone properly and safely. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at http://www.ztedevices.mx) for more information on self-service and supported product models. Information on the website takes precedence. 3 Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this manual may differ from the actual product. Content in this manual may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Instructional Icons NOTE Additional information, supplementary instruction or tips for the operation of the product. CAUTION Safety information that, if ignored, may cause minor damage to the equipment or service interruption. 4 WARNING Safety information that, if ignored, may cause serious damage to the equipment or danger to personal safety. Version No.: R1.0 Edition Time: January 7, 2020 5 Contents Exciting New Features .......................................... 10 Face Recognition ............................................................... 10 Fingerprint Identification .................................................... 10 Split-Screen Mode ............................................................. 10 Private Space ..................................................................... 10 Camera Features ............................................................... 11 Getting Started ....................................................... 12 Getting to Know Your Phone .............................................. 12 Knowing the Keys .............................................................. 13 Setting Up Your Phone ...................................................... 14 Charging the Phone ........................................................... 15 Powering On/Off ................................................................ 17 Setting Up for the First Time .............................................. 17 Locking/Unlocking the Screen and Keys ........................... 18 Getting to Know the Home Screen .................................... 19 Personalizing ......................................................... 21 Setting the Navigation Style ............................................... 21 Changing the System Language ........................................ 23 Switching to Vibration or Silent Mode ................................ 24 Using Do Not Disturb Mode ............................................... 25 Choosing Your Wallpaper .................................................. 27 Using Night Light ............................................................... 27 6 Knowing the Basics ............................................... 29 Phone Status Icons ............................................................ 29 Notification Icons ............................................................... 29 Using Quick Settings ......................................................... 30 Using App Shortcuts .......................................................... 31 Notification Dots ................................................................ 32 Opening and Switching Apps ............................................. 33 Using Split-Screen Mode ................................................... 34 Security ................................................................... 35 Protecting Your Phone With Screen Locks ........................ 35 Using Your Fingerprint ....................................................... 36 Using Face Recognition .................................................... 38 Protecting Your Phone With Screen Pinning ..................... 40 Connecting to Networks ........................................ 43 Connecting to Mobile Networks ......................................... 43 Connecting to Wi-Fi ........................................................... 44 Connecting to Devices .......................................... 45 Connecting to Bluetooth Devices ...................................... 45 Connecting to Your Computer via USB.............................. 46 Using USB On-The-Go (OTG) ........................................... 47 Sharing Your Mobile Data Connection Through Tethering ................................................................. 48 Phone Calls ............................................................ 49 7 Placing Calls ...................................................................... 49 Answering or Rejecting Calls ............................................. 50 Using Options During a Call............................................... 51 Managing Multi-party …

Text truncated - open the document above for the full version.

ZTE Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/2/12 Subject; Request for Confidentiality FCC ID: SRQ-BLADEA72020 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom List Tune up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yu Gong Title: Manager

ZTE Corporation. Letter of Authorization Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Model Number: ZTE Blade A7 2020 FCC Identifier: SRQ-BLADEA72020 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yu Gong Date: 2020/2/12 Title: Manager Signature of applicant:

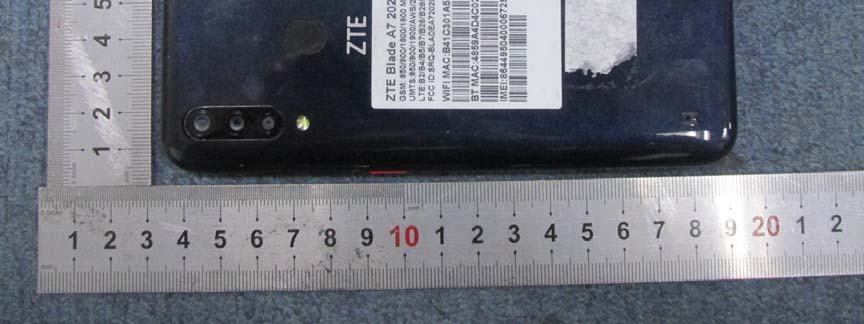

External Photo

Internal Photo LTE Sub ANT WWAN ANT BT/WIFI ANT GPS ANT

Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 21 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 835 2020-01-09 System Check Body 835 2020-01-09 System Check Head 1800 2020-01-10 System Check Body 1800 2020-01-10 System Check Head 1900 2020-01-11 System Check Body 1900 2020-01-11 System Check Head 2450 2020-01-12 System Check Body 2450 2020-01-12 System Check Head 2600 2020-01-13 System Check Body 2600 2020-01-13 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 21 System Performance Check (Head, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/09/2020 Measurement duration: 22 minutes 02 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 41.53 Relative permittivity 19.83 Conductivity (S/m) 0.92 Power drift (%) -3.20 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.92 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-12.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.058774 SAR 1g (W/Kg) 0.099622 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1515 0.1060 0.0662 0.0405 0.0242 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 21 System Performance Check (Body, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/09/2020 Measurement duration: 22 minutes 04 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 55.31 Relative permittivity 20.91 Conductivity (S/m) 0.97 Power drift (%) -1.52 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.99 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-12.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.056693 SAR 1g (W/Kg) 0.097610 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1439 0.1022 0.0643 0.0387 0.0218 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 21 System Performance Check (Head, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/10/2020 Measurement duration: 22 minutes 01 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 40.48 Relative permittivity 14.00 Conductivity (S/m) 1.40 Power Drift (%) -3.37 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.14 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.71 W/kg SAR 10g (W/Kg) 0.197553 SAR 1g (W/Kg) 0.406608 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7116 0.4360 0.2257 0.1139 0.0580 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 21 System Performance Check (Body, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/10/2020 Measurement duration: 22 minutes 05 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 53.45 Relative permittivity 15.50 Conductivity (S/m) 1.55 Power Drift (%) -1.83 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.22 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.197442 SAR 1g (W/Kg) 0.404420 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7159 0.4402 0.2285 0.1150 0.0577 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 21 System Performance Check (Head, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/11/2020 Measurement duration: 22 minutes 07 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1900 Relative permittivity (real part) 40.40 Relative permittivity 13.36 Conductivity (S/m) 1.41 Power Drift (%) -2.26 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.34 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.190604 SAR 1g (W/Kg) 0.399069 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 21 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7193 0.4353 0.2206 0.1080 0.0529 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 21 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 01/11/2020 Measurement duration: 22 minutes 08 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Po…

Text truncated - open the document above for the full version.

Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 57 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 GSM850 Right Cheek Middle 2020/01/09 2 GSM850/GPRS4Tx Body Back, Middle ,10mm 2020/01/09 3 GSM1900 Left Cheek Middle 2020/01/11 4 GSM1900/GPRS4Tx Body Face, Middle ,10mm 2020/01/11 5 GSM1900/GPRS4Tx Edge C, Middle ,10mm 2020/01/11 6 WCDMA1900 Left Cheek Middle 2020/01/11 7 WCDMA1900 Body Back, Middle ,10mm 2020/01/11 8 WCDMA1700 Left Cheek Middle 2020/01/10 9 WCDMA1700 Body Face, Middle ,10mm 2020/01/10 10 WCDMA850 Right Cheek Low 2020/01/09 11 WCDMA850 Body Back, Low ,10mm 2020/01/09 12 LTE Band2 Left Cheek Middle 2020/01/11 13 LTE Band2 Body Face, Middle ,10mm 2020/01/11 14 LTE Band2 Edge C, Middle ,10mm 2020/01/11 15 LTE Band4 Left Cheek Middle 2020/01/10 16 LTE Band4 Body Face, Middle ,10mm 2020/01/10 17 LTE Band5 Right Cheek Middle 2020/01/09 18 LTE Band5 Body Back, Middle ,10mm 2020/01/09 19 LTE Band7 Left Cheek Middle 2020/01/13 20 LTE Band7 Body Back, Middle ,10mm 2020/01/13 21 LTE Band26 Right Cheek Middle 2020/01/09 22 LTE Band26 Body Back, Middle ,10mm 2020/01/09 23 LTE Band66 Left Cheek Middle 2020/01/10 24 LTE Band66 Body Face, Middle ,10mm 2020/01/10 25 WIFI 2.4G 802.11b Left Cheek Middle 2020/01/12 26 WIFI 2.4G 802.11b Body Back, Middle ,10mm 2020/01/12 27 BT Left Cheek Middle 2020/01/12 28 BT Body Back, Middle ,10mm 2020/01/12 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 57 Plot 1: GSM850, Right Cheek, Middle Type: Phone measurement Date of measurement: 01/09/2020 Measurement duration: 22 minutes 04 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band GSM850 Channels 190 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 836.6 Relative permittivity (real part) 41.53 Relative permittivity (imaginary part) 19.83 Conductivity (S/m) 0.92 Variation (%) 3.51 ConvF: 1.92 SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-40.00 SAR Peak: 0.27W/kg SAR 10g (W/Kg) 0.144958 SAR 1g (W/Kg) 0.204920 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 57 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2656 0.2102 0.1581 0.1214 0.0957 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 57 Plot 2: GPRS850, Back, Middle,10mm Type: Phone measurement Date of measurement: 01/09/2020 Measurement duration: 22 minutes 03 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GSPRS850_4Tx Channels 190 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 836.6 Relative permittivity (real part) 55.31 Relative permittivity (imaginary part) 20.91 Conductivity (S/m) 0.97 Variation (%) -1.37 ConvF: 1.99 SURFACE SAR VOLUME SAR Maximum location: X=11.00, Y=-28.00 SAR Peak: 0.75 W/kg SAR 10g (W/Kg) 0.420880 SAR 1g (W/Kg) 0.570124 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 57 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6739 0.5694 0.4523 0.3498 0.2613 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 57 Plot 3: GSM1900, Left Cheek, Middle Type: Phone measurement Date of measurement: 01/11/2020 Measurement duration: 22 minutes 02 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Cheek Band GSM1900 Channels 661 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 8 Relative permittivity (real part) 40.40 Relative permittivity (imaginary part) 13.36 Conductivity (S/m) 1.41 Variation (%) 2.14 ConvF: 2.34 SURFACE SAR VOLUME SAR Maximum location: X=-55.00, Y=-60.00 SAR Peak: 0.23 W/kg SAR 10g (W/Kg) 0.074066 SAR 1g (W/Kg) 0.145922 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 57 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2276 0.1580 0.0897 0.0411 0.0115 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 57 Plot 4: GPRS1900, Face, Middle ,10mm Type: Phone measurement Date of measurement: 01/11/2019 Measurement duration: 22 minutes 01 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Face Band GPRS1900_4Tx Channels 661 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 8 Relative permittivity (real part) 53.38 Relative permittivity (imaginary part) 14.59 Conductivity (S/m) 1.54 Variation (%) -1.31 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=19.00, Y=27.00 SAR Peak: 0.81W/kg SAR 10g (W/Kg) 0.146767 SAR 1g (W/Kg) 0.331014 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 57 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.8123 0.3059 0.0591 0.0073 0.0035 3D screen shot Hot spot position Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 57 Plot 5: GPRS1900, Edge C, Middle ,10mm Type: Phone measurement Date of measurement: 01/11/2019 Measurement duration: 22 minutes 07 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge C Band GPRS1900_4Tx Channels 661 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 8 Relative permittivity (real part) 53.38 Relative permittivity (imaginary part) 14.59 Conductivity (S/m) 1.54 Variation (%) -0.49 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=-3.00, Y=5.00 SAR Peak: 0.60W/kg SAR 10g (W/Kg) 0.186429 SAR 1g (…

Text truncated - open the document above for the full version.

Report No. SET2020-00629 ANNEX C: Calibration Reports EP261 Probe Calibration Report SID835 Dipole Calibration Report SID1800 Dipole Calibration Report SID1900 Dipole Calibration Report SID2450 Dipole Calibration Report SID2600 Dipole Calibration Report Report No. SET2020-00629 EP261 Probe Calibration Report Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 SID835 Dipole Calibration Report Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 SID1800 Dipole Calibration Report Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 SID1900 Dipole Calibration Report Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 SID2450 Dipole Calibration Report Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629 Report No. SET2020-00629

Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 63 FCC SAR TEST REPORT Report No.： SET2020-00629 Product： LTE/WCDMA/GSM（GPRS）Multi-Mode Digital Mobile Phone Tra d e Na me: ZTE Model No.： ZTE Blade A7 2020 FCC ID： SRQ-BLADEA72020 Applicant： ZTE CORPORATION Address： ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Issued by： CCIC Southern Testing Co., Ltd Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Te l： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 63 Te s t R e p o r t Product. ...................: LTE/WCDMA/GSM（GPRS）Multi-Mode Digital Mobile Phone Model No. .................: ZTE Blade A7 2020 Brand Name..............: ZTE FCC ID.......................: SRQ-BLADEA72020 Applicant....................: ZTE CORPORATION Applicant Address.......: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Manufacturer............: ZTE CORPORATION Manufacturer Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result...............: Pass Test Date..................: 2020.01.09-2020.01.13 Tested by ..............: 2020-01-15 Mei Chun, Test Engineer Reviewed by.............: 2020-01-15 Chris You, Senior Engineer Approved by...............: 2020-01-15 Shuangwen Zhang, Manager Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) Page 3 of 63 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 7 4. Specific Absorption Rate (SAR) ............................................................................................... 9 5. Tissue check and recommend Dielectric Parameters ........................................................... 13 6. SAR measurement procedure ................................................................................................. 18 7. Conducted RF Output Power ................................................................................................. 19 8. Scaling Factor calculation ....................................................................................................... 41 9. Test Results ............................................................................................................................... 43 10. Simultaneous Transmissions Analysis .................................................................................... 56 11. Measurement Uncertainty ....................................................................................................... 58 12. Equipment List ......................................................................................................................... 62 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 63 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 63 ANNEX C: Appendix C: Calibration reports .................................................................................... 63 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 63 Report No. SET2020-00629 CCIC-SET/TRF:ISAR(2019-05-23) Page 4 of 63 1. Administrative Data 1.1 Testing Laboratory Te s t S i t e : CCIC Southern Testing Co., Ltd Address: Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China CNAS Lab Code: CCIC Southern Testing Co., Ltd is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L1659. NVLAP Lab Code: CCIC-SET is a third party testing organization accredited by NVLAP according to ISO/IEC 17025. The accreditation certificate number is 201008. FCC Registration: CCIC Southern Testing Co., Ltd . EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN5031, valid time is until December 31, 2020. ISED Registration: CCIC Southern Testin…

Text truncated - open the document above for the full version.

Report No.: SET2020-00479 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 167 RF TEST REPORT Report No.: SET2020-00479 Product: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone FCC ID: SRQ-BLADEA72020 Model No. : ZTE Blade A7 2020 Marketing Name: ZTE Blade A7 2020 Applicant: ZTE Corporation. Address: ZTE Plaza, Keji Road South, Shenzhen, China. Dates of Testing: 01/01/2020 —01/13/2020 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel：86 755 26627338 Fax：86 755 26627238 This test report consists of 167 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2020-00479 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 167 Test Report Product ................................. : LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Brand Name .......................... : ZTE Trade Name .......................... : ZTE Applicant .............................. : ZTE Corporation. Applicant Address ............... : ZTE Plaza, Keji Road South, Shenzhen, China Manufacturer ........................ : ZTE Corpor…
