SRQ-ZTE8000LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone

1 ZTE 8000 Quick Start Guide 2 LEGAL INFORMATION Copyright © 2020 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self‐service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevices.mx) for more information on self‐service and supported product models. Information on the website takes precedence. Visit https://ztedevices.mx/soporte/ to download the user manual. Disclaimer ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. Trademarks ZTE and the ZTE logos are trademarks of ZTE Corporation. Android™ is a trademark of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license. microSDXC Logo is a trademark of SD ‐3C, LLC. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Other trademarks and trade names are those of their respective owners. 3 Version No.: R1.0 Edition Time : November 18, 2019 Manual No.: 4 Getting to Know Your Phone Front camera Touch screen Earpiece Proximity & light sensor Volume key Power key Charging/USB Type‐C jack Headset jack Back cameras and flash Speaker Indicator light nano‐SIM/ microSDXC card tray Fingerprint sensor 5 Setting Up Your Phone The nano‐SIM card can be installed or removed while the phone is turned on. WARNING! To avoid damage to the phone, do not use any other kind of SIM cards, or any non‐standard nano‐SIM card cut from a SIM card. You can get a standard nano‐SIM card from your service provider. 1. Insert the tip of the tray eject tool into the hole on the card tray. 2. Pull out the card tray and place the nano‐SIM card and the microSDXC card (optional) on the tray, as shown. Carefully slide the tray back into place. nano‐SIM card microSDXC card 6 Charging the Phone Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible. WARNING! Use only ZTE‐approved chargers and USB Type‐C cables. The use of unapproved accessories could damage your phone or cause the battery to explode. NOTE: To achieve fast charging, you can use the original charger and USB Type‐C cable when charging your phone. WARNING! Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion. 1. Connect the adapter to the charging jack. 2. Connect the charger to a standard AC power outlet. 3. Disconnect the charger when the battery is fully charged. NOTE: If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try 7 again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging. Powering On/Off Your Phone Make sure the battery is charged before powering on.  Press and hold the Power key to turn on your phone.  To power off, press and hold the Power key to open the options menu, and touch > . NOTE: If the screen freezes or takes too long to respond, try pressing and holding the Power key for over 10 seconds to restart the phone. Waking Up Your Phone Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations. You can wake up your phone by turning on the display and unlocking the keys. 1. Press the Power key to turn the screen on. 2. Swipe up on the screen. NOTE: If you have set a face verification, a fingerprint, an unlock pattern, a PIN or a password for your phone, you’ll need to use your face or fingerprint, draw the pattern, or enter the PIN/password to unlock your screen. FM Radio Scanning for Channels 1. Plug in a wired headset, and touch FM Radio on the home screen. 2. Touch > Scan. Your phone scans for all available channels and saves them to the All channels list. Listening to FM Radio 1. Open FM Radio while the headset is connected. 8 2. Touch > All channels and select a channel. You can also drag the red line along the frequency panel or touch or to switch to other channels. NOTES:  Touch to add the channel to favourites.  Touch to listen to the radio through the phone speaker.  The FM radio feature does not require an Internet connection. 9 Product Safety Information Don’t make or receive phone calls while driving. Never text while driving. Keep your phone at least 10 mm away from your body while making calls. Small parts may cause choking. Your phone can produce a loud sound. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. Avoid contact with anything magnetic. Keep away from pacemakers and other electronic medical devices. Turn off when asked to in hospitals and medical facilities. Turn off when told to on aircraft and at airports. Turn off when near explosive materials or liquids. Don’t use at gas stations. Your phone may produce a bright or flashing light. Don’t dispose of your phone in fire. Avoid extreme temperatures. Avoid contact with liquids. Keep your phone dry. Do not attempt to disassem…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration.docx FCC Software Configuration Control Date: December 26, 2019 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: LTE/WCDMA/GSM(GPRS) Multi / ZTE 8000 Regarding FCC Country Code Selection guidelines Security v01r03. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have softwar out of compliance of the technical rules under which it has been certified. Name: Li Wenzhang Title: Manager Signature of applicant ZTE Corporation. FCC Software Configuration Control Declaration.docx Software Configuration Control Declaration Federal Communications Commission LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Regarding FCC Country Code Selection guidelines identified in KDB 594280 D02 UNII Device All applications for equipment authorization for transmitters that can have radio nical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: 2019/12/26 Declaration Mode Digital Mobile Phone KDB 594280 D02 UNII Device All applications for equipment authorization for transmitters that can have radio nical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has program the device

ZTE Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2019/12/26 Subject; Request for Confidentiality FCC ID: SRQ-ZTE8000 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom List Tune up procedure NII Software Security In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yu Gong Title: Manager

ZTE Corporation. Letter of Authorization Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Shenzhen, China Product Name: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Model Number: ZTE 8000 FCC Identifier: SRQ-ZTE8000 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yu Gong Date: 2019/12/26 Title: Manager Signature of applicant:

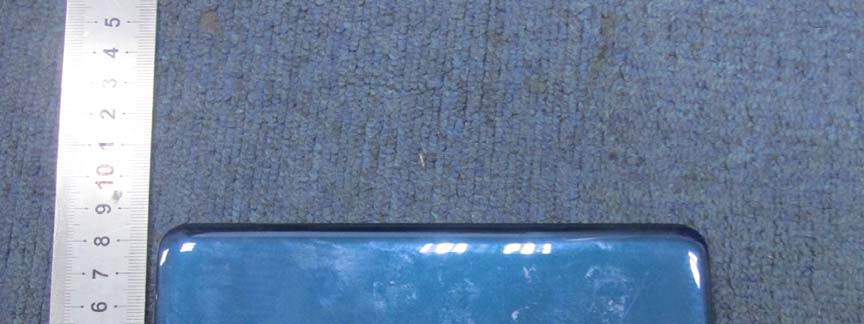

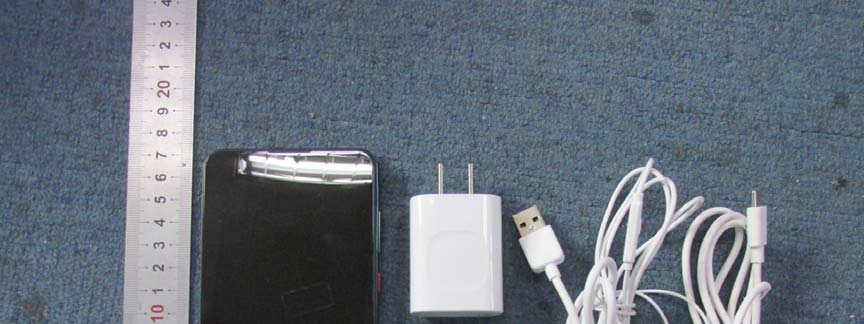

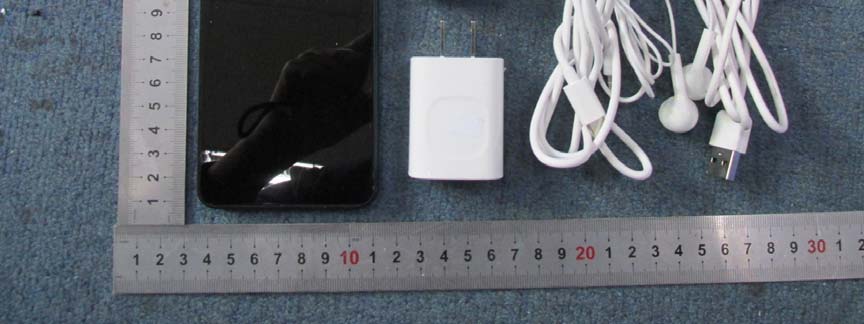

External Photo

Internal Photo LTE Sub ANT WWAN ANT BT/WIFI ANT GPS ANT

Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 29 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 835 2019-12-16 System Check Body 835 2019-12-16 System Check Head 1800 2019-12-17 System Check Body 1800 2019-12-17 System Check Head 1900 2019-12-18 System Check Body 1900 2019-12-18 System Check Head 2450 2019-12-19 System Check Body 2450 2019-12-19 System Check Head 2600 2019-12-20 System Check Body 2600 2019-12-20 System Check Head 5200 2019-12-21 System Check Body 5200 2019-12-21 System Check Head 5800 2019-12-24 System Check Body 5800 2019-12-24 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 29 System Performance Check (Head, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/16/2019 Measurement duration: 22 minutes 04 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 41.58 Relative permittivity 20.05 Conductivity (S/m) 0.93 Power drift (%) -2.33 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.92 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-13.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.058461 SAR 1g (W/Kg) 0.098813 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 29 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1480 0.1053 0.0669 0.0412 0.0242 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 29 System Performance Check (Body, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/16/2019 Measurement duration: 22 minutes 03 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 55.28 Relative permittivity 21.34 Conductivity (S/m) 0.99 Power drift (%) -2.16 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.99 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-13.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.059511 SAR 1g (W/Kg) 0.101892 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 29 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1498 0.1068 0.0678 0.0414 0.0240 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 29 System Performance Check (Head, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/17/2019 Measurement duration: 22 minutes 08 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 40.46 Relative permittivity 14.20 Conductivity (S/m) 1.42 Power Drift (%) -2.50 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.14 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.71 W/kg SAR 10g (W/Kg) 0.196797 SAR 1g (W/Kg) 0.405952 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 29 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7106 0.4355 0.2250 0.1129 0.0567 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 29 System Performance Check (Body, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/17/2019 Measurement duration: 22 minutes 06 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 53.47 Relative permittivity 15.30 Conductivity (S/m) 1.53 Power Drift (%) -2.95 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.22 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.195907 SAR 1g (W/Kg) 0.403010 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 29 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7173 0.4392 0.2268 0.1138 0.0572 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 29 System Performance Check (Head, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/18/2019 Measurement duration: 22 minutes 02 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1900 Relative permittivity (real part) 40.39 Relative permittivity 13.36 Conductivity (S/m) 1.41 Power Drift (%) -2.67 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.34 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.190294 SAR 1g (W/Kg) 0.398384 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 29 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7152 0.4346 0.2213 0.1087 0.0530 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 29 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/18/2019 Measure…

Text truncated - open the document above for the full version.

Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 53 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 GSM850 Right Cheek Middle 2019/12/16 2 GSM850/GPRS4Tx Body Back, Middle ,10mm 2019/12/16 3 GSM1900 Left Cheek Middle 2019/12/18 4 GSM1900/GPRS4Tx Edge C, Middle ,10mm 2019/12/18 5 WCDMA1900 Left Cheek Middle 2019/12/18 6 WCDMA1900 Edge C, Middle ,10mm 2019/12/18 7 WCDMA1700 Left Cheek Low 2019/12/17 8 WCDMA1700 Edge C, Low ,10mm 2019/12/17 9 WCDMA850 Right Cheek Middle 2019/12/16 10 WCDMA850 Body Back, Middle ,10mm 2019/12/16 11 LTE Band2 Left Cheek Middle 2019/12/18 12 LTE Band2 Edge C, Middle ,10mm 2019/12/18 13 LTE Band4 Left Cheek Middle 2019/12/17 14 LTE Band4 Edge C, Middle ,10mm 2019/12/17 15 LTE Band5 Right Cheek Middle 2019/12/16 16 LTE Band5 Body Back, Middle ,10mm 2019/12/16 17 LTE Band7 Left Cheek Middle 2019/12/20 18 LTE Band7 Body Back, Middle ,15mm 2019/12/20 19 LTE Band26 Right Cheek Middle 2019/12/16 20 LTE Band26 Body Back, Middle ,10mm 2019/12/16 21 LTE Band66 Left Cheek Middle 2019/12/17 22 LTE Band66 Body Back, Middle ,10mm 2019/12/17 23 WIFI 2.4G 802.11b Left Cheek Middle 2019/12/19 24 WIFI 2.4G 802.11b Body Face, Middle ,15mm 2019/12/19 25 WIFI 5G 802.11a Left Cheek Middle 2019/12/21 26 WIFI 5G 802.11a Body Face, Middle ,15mm 2019/12/21 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 53 Plot 1: GSM850, Right Cheek, Middle Type: Phone measurement Date of measurement: 12/16/2019 Measurement duration: 22 minutes 03 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Right Cheek Band GSM850 Channels 190 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 836.6 Relative permittivity (real part) 41.58 Relative permittivity (imaginary part) 20.05 Conductivity (S/m) 0.93 Variation (%) -3.32 ConvF: 1.92 SURFACE SAR VOLUME SAR Maximum location: X=-47.00, Y=-42.00 SAR Peak: 0.23W/kg SAR 10g (W/Kg) 0.130380 SAR 1g (W/Kg) 0.180190 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 53 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4179 0.1851 0.1231 0.1125 0.0727 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 53 Plot 2: GPRS850, Back, Middle,10mm Type: Phone measurement Date of measurement: 12/16/2019 Measurement duration: 22 minutes 01 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band GSPRS850_4Tx Channels 190 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 836.6 Relative permittivity (real part) 55.28 Relative permittivity (imaginary part) 21.34 Conductivity (S/m) 0.99 Variation (%) -4.05 ConvF: 1.99 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=46.00 SAR Peak: 0.76 W/kg SAR 10g (W/Kg) 0.241784 SAR 1g (W/Kg) 0.458527 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 53 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7518 0.4826 0.2682 0.1471 0.0815 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 53 Plot 3: GSM1900, Left Cheek, Middle Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 04 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Cheek Band GSM1900 Channels 661 Signal GSM (Duty cycle: 1:8.3) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 8 Relative permittivity (real part) 40.39 Relative permittivity (imaginary part) 13.36 Conductivity (S/m) 1.41 Variation (%) 2.40 ConvF: 2.34 SURFACE SAR VOLUME SAR Maximum location: X=-53.00, Y=-60.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.035111 SAR 1g (W/Kg) 0.079227 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 53 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1544 0.0873 0.0448 0.0190 0.0000 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 53 Plot 4: GPRS1900, Edge C, Middle ,10mm Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 06 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge C Band GPRS1900_4Tx Channels 661 Signal GPRS(Duty cycle: 1:2) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 8 Relative permittivity (real part) 53.40 Relative permittivity (imaginary part) 14.40 Conductivity (S/m) 1.52 Variation (%) -1.60 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-5.00 SAR Peak: 1.02W/kg SAR 10g (W/Kg) 0.297429 SAR 1g (W/Kg) 0.603419 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 53 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.0205 0.6593 0.3640 0.1905 0.0934 3D screen shot Hot spot position Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 53 Plot 5: WCDMA1900, Left Cheek, Middle,10mm Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 02 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Left Cheek Band Band2_WCDMA1900 Channels 9400 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 Relative permittivity (real part) 40.39 Relative permittivity (imaginary part) 13.36 Conductivity (S/m) 1.41 Variation (%) 1.03 ConvF: 2.34 SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-59.00 SAR Peak: 0.18W/kg SAR 10g (W/Kg) 0.052816 SAR 1g (W/Kg) 0.107497 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) …

Text truncated - open the document above for the full version.

Report No. SET2019-17018 ANNEX C: Calibration Reports EP261 Probe Calibration Report SID835 Dipole Calibration Report SID1800 Dipole Calibration Report SID1900 Dipole Calibration Report SID2450 Dipole Calibration Report SID2600 Dipole Calibration Report SID5G Dipole Calibration Report Report No. SET2019-17018 EP261 Probe Calibration Report Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 SID835 Dipole Calibration Report Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 SID1800 Dipole Calibration Report Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 SID1900 Dipole Calibration Report Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 SID2450 Dipole Calibration Report Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018 Report No. SET2019-17018

Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 67 FCC SAR TEST REPORT Report No.： SET2019-17018 Product： LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Tra d e Na me: ZTE Model No.： ZTE 8000 FCC ID： SRQ-ZTE8000 Applicant： ZTE CORPORATION Address： ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Issued by： CCIC Southern Testing Co., Ltd Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Te l： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 67 Te s t R e p o r t Product. ...................: LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone Model No. .................: ZTE 8000 Brand Name..............: ZTE FCC ID.......................: SRQ-ZTE8000 Applicant....................: ZTE CORPORATION Applicant Address.......: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Manufacturer............: ZTE CORPORATION Manufacturer Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result...............: Pass Test Date..................: 2019.12.16-2019.12.24 Tested by ..............: 2019-12-27 Mei Chun, Test Engineer Reviewed by.............: 2019-12-27 Chris You, Senior Engineer Approved by...............: 2019-12-27 Shuangwen Zhang, Manager Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) Page 3 of 67 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 7 4. Specific Absorption Rate (SAR) ............................................................................................... 9 5. Tissue check and recommend Dielectric Parameters ........................................................... 13 6. SAR measurement procedure ................................................................................................. 18 7. Conducted RF Output Power ................................................................................................. 19 8. SAR test Exclusion and estimate SAR calculation: .............................................................. 41 9. Scaling Factor calculation ....................................................................................................... 44 10. Test Results ............................................................................................................................... 46 11. Simultaneous Transmissions Analysis .................................................................................... 60 12. Measurement Uncertainty ....................................................................................................... 62 13. Equipment List ......................................................................................................................... 66 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 67 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 67 ANNEX C: Appendix C: Calibration reports .................................................................................... 67 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 67 Report No. SET2019-17018 CCIC-SET/TRF:ISAR(2019-05-23) Page 4 of 67 1. Administrative Data 1.1 Testing Laboratory Te s t S i t e : CCIC Southern Testing Co., Ltd Address: Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China CNAS Lab Code: CCIC Southern Testing Co., Ltd is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 1702…
