SRS-M7-VMVHF Wireless Data Modem

Raveon Technologies, Incorporated

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Mar 25, 2010
Application Purpose: Original Equipment
Date of Application: Mar 25, 2010
Equipment Note: VHF Wireless Data Modem
Frequency Range: 151.82000000 - 154.60000000
Company: Raveon Technologies, Incorporated
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

RV-M7-VM MURS Data Radio Modem Technical Manual Version A0 F eb 2010 Raveon Technologies Corporation 2780LaMiradaDrive,SuiteC V ista,CA92081 www.raveontech.com Table of Contents 1. GeneralInformationabouttheRV&M7..........................................................4 1.1. Congratulations!.............................................................................................................................4 1.2. NOTICE.........................................................................................................................................4 1.3. Safety/WarningInformation.........................................................................................................4 1.4. SafetyTraininginformation:...........................................................................................................4 1.5. FCCComplianceInformation.........................................................................................................6 2. Overview.......................................................................................................7 2.1. Features.........................................................................................................................................7 3. Specifications................................................................................................8 3.1. General..........................................................................................................................................8 3.2. Transmitter.....................................................................................E rror! Bookmark not defined. 3.3. Receiver.........................................................................................................................................8 3.4. UserInputandOutputSignals.......................................................................................................8 3.5. ModelNumbers..............................................................................................................................9 4. ElectricalInputsandOutputs......................................................................10 4.1. LEDs............................................................................................................................................10 4.2. DCPower....................................................................................................................................10 4.3. &WXweatherproofVersion.............................................................E rror! Bookmark not defined. PowerCord............................................................................................Error! Bookmark not defined. 4.4. RS232serialcablefor–WXversion..............................................E rror! Bookmark not defined. 4.5. OptionalEIA&485/RS&485SerialI/O...............................................Error! Bookmark not defined. RS&485ConnectorPinOut....................................................................Error! Bookmark not defined. Configuring............................................................................................Error! Bookmark not defined. BiasandTerminationResistors.............................................................Error! Bookmark not defined. 4.6. RS422/EIA&422SerialI/OConnector.............................................E rror! Bookmark not defined. ConfiguringforRS&422..........................................................................Error! Bookmark not defined. BiasandTerminationResistors.............................................................Error! Bookmark not defined. 4.7. LowPowerMode(LPM)................................................................E rror! Bookmark not defined. 5. UserSerialPortCommands.......................................................................12 5.1. Overview......................................................................................................................................12 5.2. CommandMode..........................................................................................................................12 5.3. SettingaParameter.....................................................................................................................12 5.4. ReadingaParameter...................................................................................................................13 5.5. CONFIGButton............................................................................................................................13 5.6. ExitingtheCommandMode.........................................................................................................14 5.7. PasswordProtection....................................................................................................................14 5.8. RestoringFactoryDefaults............................................................E rror! Bookmark not defined. 5.9. CommandModeCommands.......................................................................................................15 5.10. Othernon&ATcommands.............................................................................................................17 5.11. FactoryDefaultSettings.................................................................E rror! Bookmark not defined. 6. UsingtheM7Modem–PacketMode.........................................................18 6.1. Setup...........................................................................................................................................18 6.2. ProgrammingChannelsandFrequencies....................................................................................19 6.3. DataTransmission.........................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Mar 2, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We Raveon Technologies Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): RV-M7-VB and RV-M7-VM We affirm that between SIEMIC and Raveon Technologies Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, John Sonnenberg President Raveon Technologies Corporation

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 March 2, 2010 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SRS-M7-VM We hereby request confidential treatment of information accompanying this application as outlined below: - Schematic Diagrams - Parts List - Operational Description - Tuning Procedure - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, John Sonnenberg President Raveon Technologies Corporation

External Photos

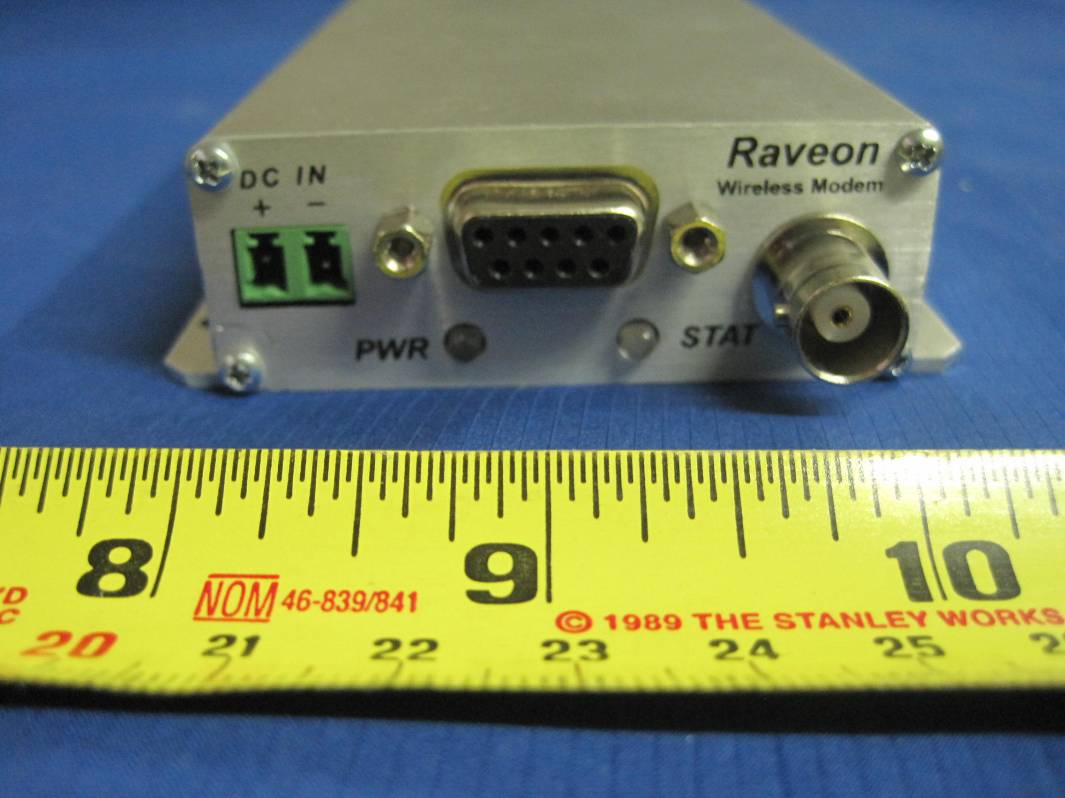

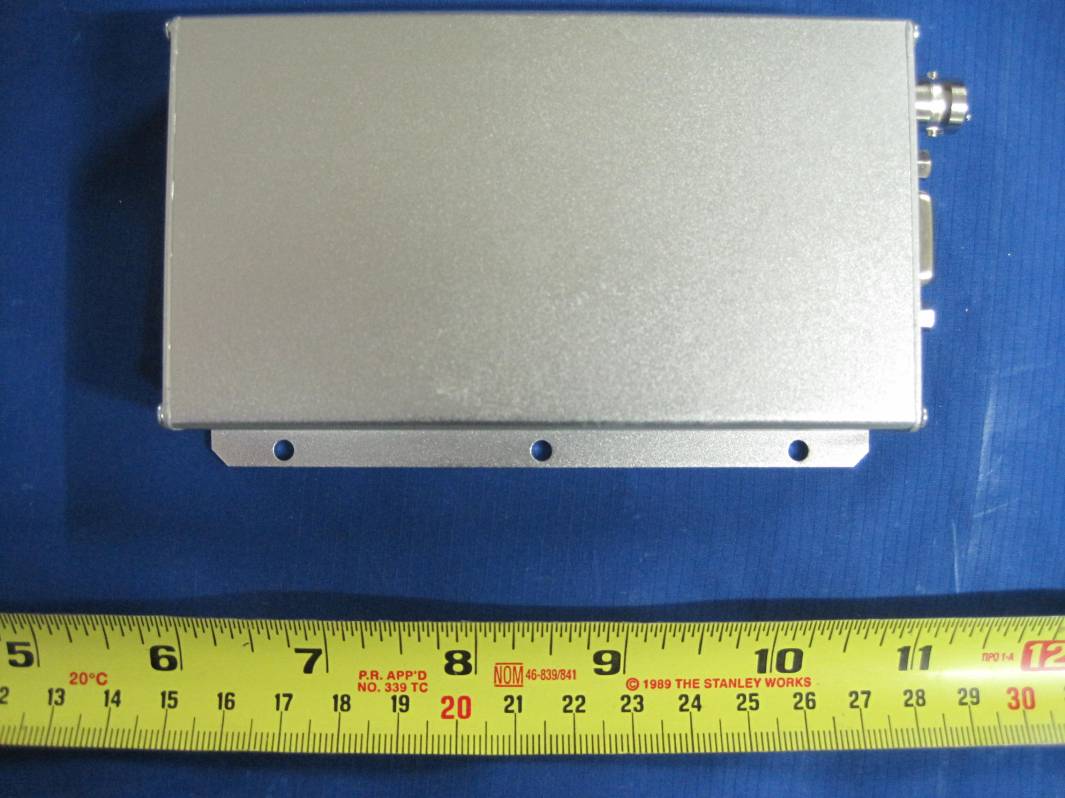

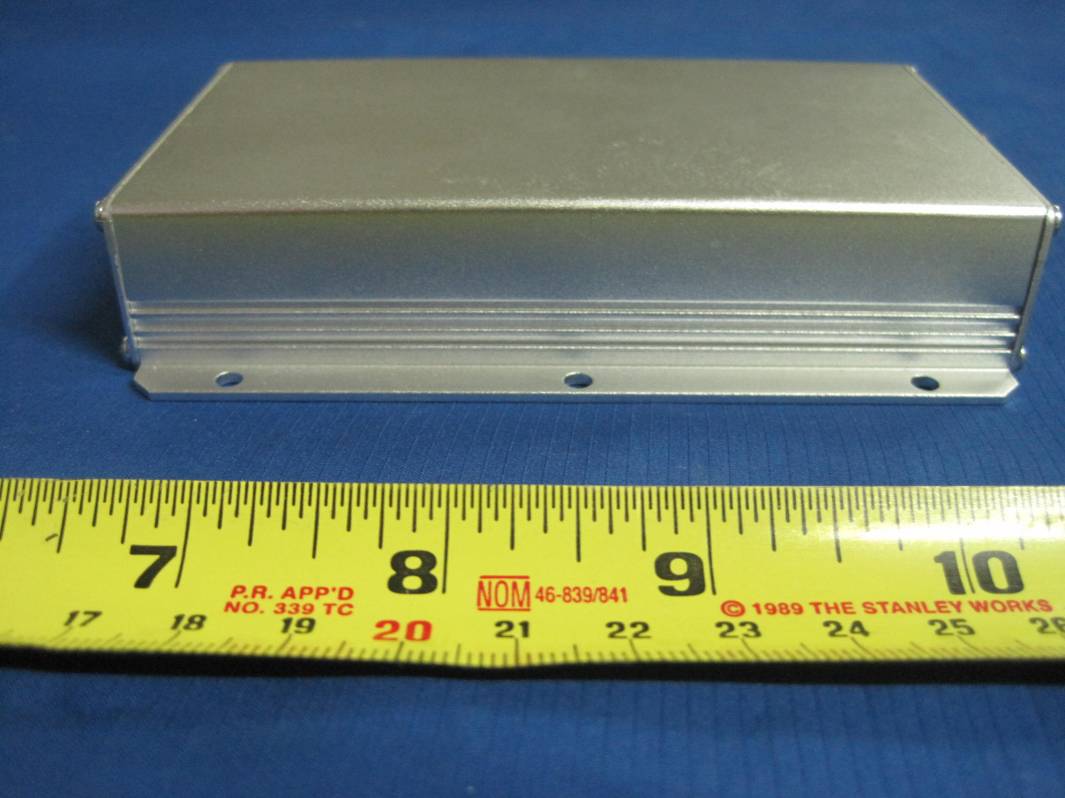

EUT Photo Top View Bottom View Right Side View Left Side View Front Side View Rear Side View

ID Label/Location Info

Example of FCC Label, SRS-M7-VM Text reads: FCCID: SRS-M7-VM This complies with parts 15, and 95 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. Location of FCC Label

Internal Photos

PCB Board-with RF shield Top View Bottom View PCB Board-without RF shield Top View Bottom View

RF Exposure Info

MPE CALCULATION For Raveon Technologies Corporation– Radio data Modem, Model: RV-M7-VB FCC ID: SRSM7-VB RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 150 ~174MHz Limits for General Population/Uncontrolled Exposure in the band of: 30MHz – 300MHz Power Density Limit: 0.2 mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Power = 33.00dBm, Typical Antenna Gain = 6dBi, MPE limit=0.2mW/cm 2 By using equation R = √PG / 4πS R= 57cm Result The Above Result had shown that the minimum separation distance in order to meet MPE requirement is 60cm. Completed By : Choon Sian Ooi Date : March 19, 2010

Test Report

RAVEON TECHNOLOGY CORPORATION Data Radio Modem Model: RV-M7-VM 19 March 2010 Report No.: SL10020501-RTC-001 (RV-M7-VM) (This report supersedes: None) Modifications made to the product : None This Test Report is Issued Under the Authority of: Choon Sian Ooi Compliance Engineer Leslie Bai Director of Certification This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report of Raveon Technologies Corporation Model : RVM7VM To FCC 95J 2010 Serial# SL10020501RTC001 (RVM7VM) Issue Date 19 March 2010 Page 2 of 56 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with onestop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom Title: RF Test Report of Raveon Technologies Corporation Model : RVM7VM To FCC 95J 2010 Serial# SL10020501RTC001 (RVM7VM) Issue Date 19 March 2010 Page 3 of 56 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Raveon Technologies Corporation Model : RVM7VM To FCC 95J 2010 Serial# SL10020501RTC001 (RVM7VM) Issue Date 19 March 2010 Page 4 of 56 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................................................... 6 2 TECHNICAL DETAILS .................................................................................................................................................................... 7 3 MODIFICATION............................................................................................................................................................................... 8 4 TEST SUMMARY ............................................................................................................................................................................ 9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.................................................................................................. 10 ANNEX A. TEST INSTRUMENT & METHOD......................................................................................................................................... 31 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS .......................................................................................................................... 35 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT.................................................................................................................. 35 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM................................................................................................................. 39 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES ......................................................................................................................... 40 Title: RF Test Report of Raveon Technologies Corporation Model : RVM7VM To FCC 95J 2010 Serial# SL10020501RTC001 (RVM7VM) Issue Date 19 March 2010 Page 5 of 56 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Raveon Technologies Corporation Model : RVM7VM To FCC 95J 2010 Serial# SL10020501RTC001 (RVM7VM) Issue Date 19 March 2010 Page 6 of 56 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the Raveon Technologies Corporation, Model: NanoUHF against the current Stipulated Standards. The Data Radio Modem have demonstrated compliance with the FCC 95J 2010. The equipment under test radio operating frequency is 151.82MHz MHz 154.6MHz. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : The M7 RF data radio is a rugged highperformance, highspeed narrowbanddata modem. It contains a receiver, a transmitter, and modem, creating an easytouse transparent data radio link. The M7’s user interface is asynchronous RS232 data into and out of the M7 (CMOS level optional). Modem operation is virtually transparent to the user and the configuration of the modem is via the user serial port. Unlike any other radio modem on the market, the M7 may be operated in either a “Packetized Mode” or a “Streaming RealTime Mode”. There are advantages to each approach, and your choice depends upon how your system operates. For privacy and network versatility, the M7 incorporates a 16 bit identification code. Its protocol also uses a 16bit CRC to guarantee the integrity of the data. Perfect for SCADA and telemetry applications, the M7 can be used for simple pointtopoint data communication applications, or for more sophisticated pointto multipoint, peertopeer, or mesh networks. Although the M7 i…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission 30MHz to 1GHz Front View Rear View Above 1GHz Front View Rear View

Contact Information

Applicant

John Richard Sonnenberg(CEO)

[email protected]760-807-3885Fax: 760-444-5997

Test Firm

Bureau Veritas Consumer Products Services, Inc.Sarb Shelopal

[email protected]+1 925 963 4420

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	95J	151.82 MHz - 154.6 MHz	2 W	11K0F2D	180.0000000000 Hz

Confidentiality

Long Term

Grant Notes

Power listed is maximum conducted RF output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 60 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance
