SSH-SYNKTXSYNK Wireless Transmitter

5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 1 of 4 User’s manual Product: Spread Spectrum Spatial Multiplexing MIMO Wireless Module Model: P23368 This radio module will not be sold to general public OEM integrators. This radio module will be used and installed for Stryker product only. Therefore we will not supply the User’s manual, the installation is official for Stryker. FCC ID: SSH-SYNKTX IC: 4919C-SYNKTX Stryker will include the following Notice required by FCC/IC on the product and in the User’s manual. 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 2 of 4 Compliance and Regulatory Information FCC Rules, Part 15 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference, including interference that may cause undesired operation of this device. Modification Warning The FCC / The Industry Canada regulations provide that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canadian This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:  l'appareil ne doitpas produire de brouillage, et  l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Exposure Statement This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radiofrequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans et d’exposition aux fréquences 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 3 of 4 radioélectriques (RF) CNR-102 de l’IC. Cet équipement doitêtre installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps. Federal Communication Interference Statement (United States only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Re-orient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment to an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/TV technician for help This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Canadian Depertment of Communications Industry Canada Notice (Canada only) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenned'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduireles risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 4 of 4 songain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante. INFORMATION FOR OEM SYSTEM INTEGRATION This radio transmitter 4919C-SYNKTX has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio 4919C-SYNKTX a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou d…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012 SCS-F26 Modular Approval Letter Page 2 of 3 Rev 7.0 Endoscopy 08/21/13 SYNK Wireless Transmitter, FCC ID: SSH-SYNKTX , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138 SCS-F26 Modular Approval Letter Page 3 of 3 Rev 7.0 Endoscopy LMA Declaration Letter We, Stryker Endoscopy, declare that we will retain control over the final installation of the device, (FCC ID: SSH-SYNKTX) such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must be only approved for use when installed in devices produced by a specific manufacturer. Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138

Endoscopy 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com 8/21/2013 DTS‐UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : SSH-SYNKTX (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 5180-5240 Yes , No Yes , No Yes , No Yes , No 5260-5320 Yes , No Yes , No Yes , No Yes , No 5500-5700 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If yes, pls explain how it was implemented : (pls also help to provide detail of options for each country selection) A region token will be used to program country code and corresponding frequency table to the SYNK wireless transceiver system by Stryker. The token will be labeled with region code and country name on it to distinguish different countries. The end users don’t have an option to select country code because the country code is fixed before shipped out to end users. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) (6) Please help to provide justification on how device was restricted to operate in 5600-5650MHz in below. Signature: Name / Title : Steven Maulick/ Associate Director of Engineering Services Phone/Fax: 408‐754‐2261/408‐754‐2507 Email: [email protected] Address: 5900 Optical Ct., San Jose, CA 95138 The frequency bands of 5600‐5650MHz is disabled in the frequency table, so the SYNK wireless transmitter will not be operated in 5600‐5650MHz.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Endoscopy August 21, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Stryker Endoscopy, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): SYNK Wireless Transmitter, P23368 We affirm that between SIEMIC and Stryker Endoscopy, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ______________________________ Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 08/21/13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SSH-SYNKTX We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________________________________ Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 08/21/13 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: SSH-SYNKTX To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, _______________________________________________ Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138

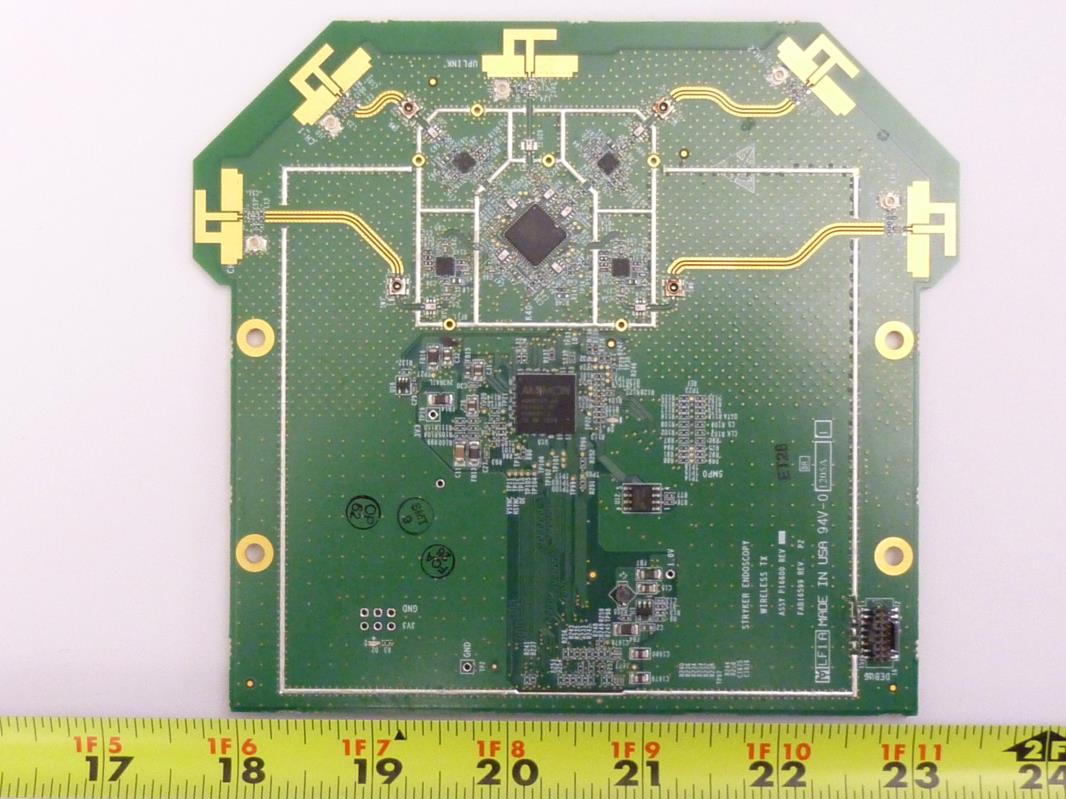

EUT Photo EUT – Top View EUT – Bottom View

FCC ID: SSH-SYNKTXIC:4919C-SYNKTXModel:P23368

Label Location

EUT Photo EUT – Top View EUT – Bottom View

MPE CALCULATION FCC ID: SSH-SYNKTX RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 5745-5825MHz Limits for General Population/Uncontrolled Exposure in the band of: 300 – 1500 GHz Power Density Limit: 1 mW/ cm 2 ; Equation: S = PG / 4R 2 or R = √PG / 4S Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Mid Channel: 5785MHz TX-Chain1: Power = 7.90 dBm, Antenna Gain = 1.9 dBi, Prediction distance 20cm, S1 = 0.0019 mW/cm 2 TX-Chain2: Power = 5.95 dBm, Antenna Gain = 1.9 dBi, Prediction distance 20cm, S2 = 0.0012 mW/cm 2 TX-Chain3: Power = 8.20 dBm, Antenna Gain = 1.9 dBi, Prediction distance 20cm, S3 = 0.0020 mW/cm 2 TX-Chain4: Power = 7.06 dBm, Antenna Gain = 1.9 dBi, Prediction distance 20cm, S4 = 0.0016 mW/cm 2 Total S = S1 + S2 +S3 + S4 = 0.0019 mW/cm 2 + 0.0012 mW/cm 2 + 0.0020 mW/cm 2 + 0.0016 mW/cm 2 =0.0067 mW/ cm 2 Result The Above Result had shown that Device complied with 1 mW/cm 2 Power density requirement for distance of 20cm. Completed By : David Zhang Date : Jan 7th, 2013

STRYKER ENDOSCOPY SYNK TRANSMITTER Model: P23368 Jan 13th, 2013 Report No.: SL12011902-STR-001_ SYNK_Transmitter(DFS Client) (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Choon Sian Ooi Compliance Engineer David Zhang Compliance Engineer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 2 of 59 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one$stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 3 of 59 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 4 of 59 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ............................................................................................................. 6 3 TEST SUMMARY .......................................................................................................................................................... 9 4 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ...................................................................................... 10 ANNEX A. TEST INSTRUMENT & METHOD......................................................................................................................... 27 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................................... 28 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT .................................................................................................... 29 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM ................................................................................................... 31 ANNEX E SIEMIC ACCREDITATION ................................................................................................................................... 32 Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 5 of 59 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 6 of 59 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Stryker Endoscopy, SYNK TRANSMITTER, against the current Stipulated Standards. The SYNK TRANSMITTER has demonstrated compliance with the FCC15.407h, FCC 06$96, and IC RSS210 Issue 8: 2010. Applicant & EUT Information Applicant Information Applicant / Client Stryker Endoscopy 5900 Optical Court, San Jose, California 95138 U.S.A Manufacturer1 Stryker Endoscopy 5900 Optical Court, San Jose, California 95138 U.S.A EUT Information EUT Description : SYNK TRANSMITTER Model Name : P23368 Serial No : N/A Input Power : 100-240VAC, 50-60Hz Frequency : 5180~5320MHz, 5500~5700MHz, 5745-5825MHz Modulation : OFDM Classification Per Stipulated Test Standard : UNII Device Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 7 of 59 www.siemic.com 2 TECHNICAL DETAILS Laboratory performing the tests SIEMIC Laboratories 775 Montague Expressway Milpitas, CA, 95035 Date of EUT received Sep 10th, 2012 Dates of test (from – to) Oct 18 th , 2012 – Jan 7 th , 2013 Equipment Category UNII Standard applied See page 2 FCC ID: SSH-SYNKTX IC ID: 4919C-SYNKTX EUT Test Mode Evaluation EUT Major Function List Functions Description Fn#1 Wireless communication EUT Test Mode List RF Test Modes Description Test Configuration RF_Test Mode TTE test software Continues Tx 5150~5350MHz 5470~5725MHz Channel Frequency (MHz) Channel Frequency (MHz) 1 5180 9 5500 2 5200 10 5520 3 5220 11 5540 4 5240 12 5560 5 5260 13 5580 6 5280 14 5660 7 5300 15 5680 8 5320 16 5700 5725~5825MHz Channel Frequency (MHz) 17 5745 18 5765 19 5785 20 5805 21 5825 Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test…

Text truncated - open the document above for the full version.

Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 26 of 59 www.siemic.com Test Result$5470MHz to 5725MHz band 1VIE W Ref Lvl -35 dBm Ref Lvl -35 dBm RBW 3 MHz VBW 3 MHz SWT 1850 s RF Att 0 dB TRG Center 5.58 GHz185 s/ A IN1 1AP 1AP UnitdB m P2 0 -13 0 -12 0 -11 0 -10 0 -9 0 -8 0 -7 0 -6 0 -5 0 -4 0 -13 5 -3 5 1 Marker 1 [T1] -59.55 dBm 0.000000 s Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 27 of 59 www.siemic.com Annex A. TEST INSTRUMENT & METHOD Annex A.i. TEST INSTRUMENTATION & GENERAL PROCEDURES Instrument Model Serial # Calibration Due R&S EMI Test Receiver ESIB 40 100179 4/20/2013 Dual Channels Arbitrary Waveform Generator (Tabor Electronics Ltd) WWW$1072 207593 6/04/2013 Synthesized Signal Generator (Agilent/HP) HP8665B 3744A01304 5/14/2013 Synthesized Sweep Generator (Anritsu/Wultron) 68169B 973407 5/18/2013 Splitter/Combiner (Mini$Circuit) ZFSC$2$9G+ S F030000719 N/A Splitter/Combiner (Mini$Circuit) ZFSC$2$9G+ S F030000718 N/A Attenuator (30dB) $ $ N/A Attenuator (20dB) $ $ N/A Attenuator (10dB) $ $ N/A Attenuator (6dB) $ $ N/A Attenuator (3dB) $ $ N/A Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 28 of 59 www.siemic.com Annex B EUT AND TEST SETUP PHOTOGRAPHS Please see the attachment. Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 29 of 59 www.siemic.com Annex C. TEST SETUP AND SUPPORTING EQUIPMENT EUT TEST CONDITIONS Annex C. i. SUPPORTING EQUIPMENT DESCRIPTION The following is a description of supporting equipment and details of cables used with the EUT. Equipment Description (Including Brand Name) Model & Serial Number Cable Description (List Length, Type & Purpose) PC Laptop / HP N/A Serial ( From PC to DFS master & Client) Multimedia Generator ODSG$02C DVI SYNK Receiver (DFS Master) P23366 RF cable WISE 26” HDTV Display VHW261I0620 DVI Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 30 of 59 www.siemic.com Annex C.ii. EUT OPERATING CONDITIONS The following is the description of how the EUT is exercised during testing. Test Description Of Operation DFS Testing The EUT was controlled via PC Using manufacturer’s program. Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 31 of 59 www.siemic.com Annex D USER MANUAL, BLOCK & CIRCUIT DIAGRAM Please see attachment Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 32 of 59 www.siemic.com DIT SIEMIC SI Annex E SIEMIC ACCREDITATION SIEMIC ACCREDITATION DETAILS: A2LA 17025 & ISO Guide 65 : 2742.01 , 2742.2 Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 33 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 34 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 35 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 36 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 37 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 38 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 39 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 40 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 41 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL12011902$STR$001_ SYNK_Transmitter(DFS Client) Issue Date Jan 13th, 2013 Page 42 of 59 www.siemic.com Title: RF Test Report of Stryker Endoscopy, Model : P23368 To DFS Test Report Serial# SL…

Text truncated - open the document above for the full version.
