SSH-UNIGTY15Universal Gateway

5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 1 of 4 User’s manual Product: Spoke System Model: 0240-060-150 This radio module will not be sold to general public OEM integrators. This radio module will be used and installed for Stryker product only. Therefore we will not supply the User’s manual, the installation is official for Stryker. FCC ID: SSH-UNIGTY15 IC: 4919C-UNIGTY15 Stryker will include the following Notice required by FCC/IC on the product and in the User’s manual. 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 2 of 4 Compliance and Regulatory Information FCC Rules, Part 15 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference, including interference that may cause undesired operation of this device. Modification Warning The FCC / The Industry Canada regulations provide that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canadian This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:  l'appareil ne doitpas produire de brouillage, et  l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Exposure Statement This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radiofrequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans et d’exposition aux fréquences 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 3 of 4 radioélectriques (RF) CNR-102 de l’IC. Cet équipement doitêtre installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps. Federal Communication Interference Statement (United States only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Re-orient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment to an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/TV technician for help This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Canadian Depertment of Communications Industry Canada Notice (Canada only) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenned'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduireles risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et 5900 Optical Court San Jose, CA 95138 t: 408 754 2000 f: 408 754 2505 www.stryker.com Endoscopy Page 4 of 4 songain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante. INFORMATION FOR OEM SYSTEM INTEGRATION This radio transmitter 4919C-UNIGTY15 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio 4919C-UNIGTY15 a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au ga…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 Nov. 10, 2015 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Stryker Endoscopy hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): FCC ID: SSH-UNIGTY15 Product Description: Universal Gateway Model Number: 0240-060-150 We affirm that between SIEMIC, Inc. and Stryker Endoscopy, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ______________________________11/10/2015 Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 4.0 Nov. 10, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SSH-UNIGTY15 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ______________________________11/10/2015 Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 Nov. 10, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: SSH-UNIGTY15 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ______________________________11/10/2015 Steven Maulick, Associate Director of Engineering Services 5900 Optical Ct. San Jose, CA 95138 SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0

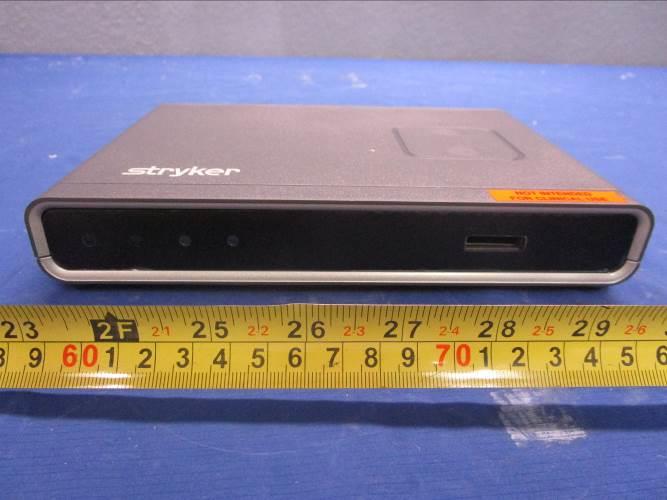

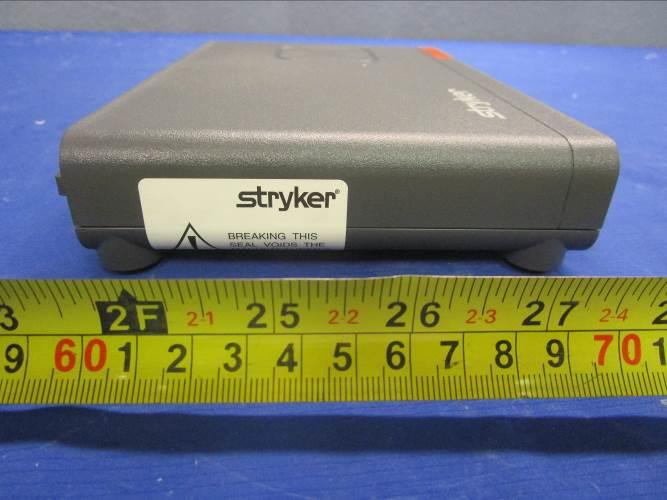

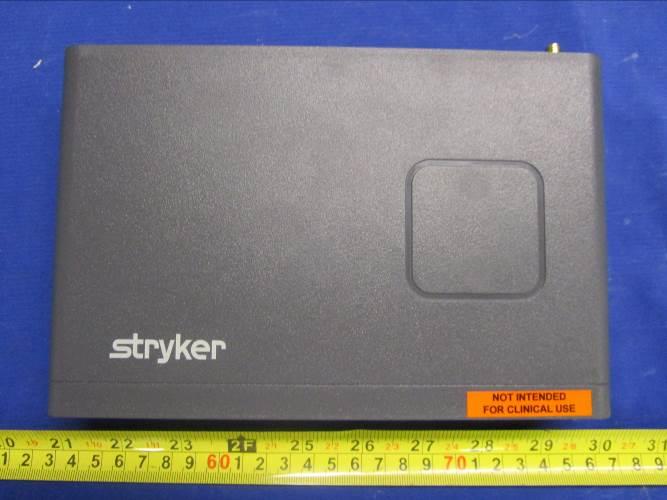

Test report No. FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Page 8 of 35 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: 6.4 EUT Photos – External Top Side Bottom Side Front Side Rear Side Left Side Right Side

NOTES: 1. INTERPRET DRAWING PER AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) Y14.5M-1994 STANDARD. 2. MATERIAL: .002 BRIGHT SILVER POLYESTER LAMINATED W/ .001 IMPRINTABLE POLYESTER (COMPUCAL OR EQUIVALENT). 3. ADHESIVE: FLEXMOUNT V23 BACK SIDE 4. TEXT AND GRAPHICS: PMS BLACK C 5. NO CHANGES IN MATERIAL OR PROCESS WITHOUT THE WRITTEN CONSENT OF STRYKER 6 MANUFACTURING DATE TO BE PRINTED AT TIME OF PRODUCTION USE FORMAT: YYYY-MM (YEAR-MONTH). 7 SERIAL NUMBER TO BE PRINTED AT TIME OF PRODUCTION UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES DECIMALS .XX.01 XXX.005 ANGLES.5 REQUIREMENTS FOR FINISHED PARTS UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS APPLY AFTER COATING ON ALL PLATED PARTS CORNERS MUST BEND SMOOTHLY TOLERANCES FRACTIONAL..............1.64 CORNER BREAK (EXTERNAL)(DEBUR)..... .002 TO 0.20R (OR EQUIVALENT) FILLET RADII (INTERNAL)............ .002 TO 0.20R THREAD CHAMFER (OR CSK)........... 1 TO 1/2 THREADS DEEP SURFACE INTERSECTIONS...............010 MAX HOLES AND FEATURES TO BE ON THE ..010 MAX GENERAL FINISH..................... 63 MAX CONCENTRICITY .006 TIR PERPENDICULARITY .006 IN/IN TOTAL (MAX) PARALLELISM .010 (MAX) ROUNDNESS .006 (MAX) FLATNESS .006 IN/IN (MAX) STRAIGHTNESS .001 IN/IN (MAX) SYMMETRY .020 (MAX) THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF STRYKER ENDOSCOPY, SAN JOSE. NEITHER THIS DOCUMENT NOR THE INFORMATION HEREIN MAY BE REPRODUCED, OR DISCLOSED TO OR FOR THE BENEFIT OF ANY THIRD PARTY WITHOUT THE PRIOR WRITTEN CONSENT OF STRYKER. SHEET1 OF 1 SAN JOSE, CA 95138 5900 OPTICAL COURT STRYKER ENDOSCOPY DRAWN BY: DATE SIZE DWG. NO. REV. TITLE: THIRD ANGLE PROJECTION REVISIONS APPROVEDDATEDESCRIPTIONLTR A ECO92822 NEW RELEASE 04/28/15 S/C. BARNARD A F. TURPO 11/20/15 -DO NOT SCALE DRAWING- i DEVICE LABEL, “0240-060-150” C P27309 3.550 .080 .050 4X R.145 2.000 4X R.010 .975 0240-060-150 Stryker Endoscopy 5900 Optical Court San Jose, CA 95138 +1.408.754.2000 +1.800.624.4422 YYYY-MM IC: 4919C-UNIGTY15 P27309 C FCC ID: SSH-UNIGTY15 This device complies with part 15 of the FCC rules. Operation is subject to the f ollowing two conditions: (1) This device may not cause harmful int erf erence, and (2) this device must accept any int erf erence received, including int erf erence that may cause undesired operation. SN XXXXXXXXXX Spoke Made in USA B ECO97878 ADD DC VOLTAGE AND RATING 08/27/15 S/C. BARNARD & TUV SYMBOLS 12V 2.5A AC/DC Adapter Manufacturer: XP Power Model: AFM30US12 C ECO22183 ADD FCC & IC NUMBER 11/20/15 S/P. HSU 6 7

Test report No. FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Page 9 of 35 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: 6.5 EUT Photos – Internal Cover off View 1 Cover off View 2 with PCBA1 PCBA1 Top View PCBA Bottom View PCBA Bottom View PCBA 2 Bottom View

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Report No.: FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Supersede Report No.: FCC-IC_RF_SL15052101-STR-002_RFID Applicant : Stryker Endoscopy Product Name : Universal Gateway (hereafter called Spoke) Model No. : 0240-060-150 Test Standard : FCC 15.225 FCC 15.207 RSS 210 Issue 8 (2010) Test Method : ANSI C63.10: 2013 RSS Gen 4.6, RSS Gen 4.7 & RSS Gen 4.9 FCC ID : SSH-UNIGTY15 IC ID : 4919C-UNIGTY15 Dates of test : 09/05/2015 Issue Date : 11/10/2015 Test Result : ☒ Pass ☐ Fail Equipment complied with the specification [X] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: Ronak Patel Chen Ge Test Engineer Engineer Reviewer Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Page 2 of 35 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC, RF/Wireless, Telecom Canada IC, A2LA, NIST EMC, RF/Wireless, Telecom Taiwan BSMI, NCC, NIST EMC, RF, Telecom, Safety Hong Kong OFTA, NIST RF/Wireless, Telecom Australia NATA, NIST EMC, RF, Telecom, Safety Korea KCC/RRA, NIST EMI, EMS, RF, Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC, RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom, Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC, RF, Telecom Canada IC FCB, NIST EMC, RF, Telecom Singapore iDA, NIST EMC, RF, Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF, Telecom Hong Kong OFTA (US002) RF, Telecom Test report No. FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Page 3 of 35 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 6.2 Radio Description ...................................................................................................................................................... 6 6.3 EUT test modes/configuration Description.................................................................................................................... 7 6.4 EUT Photos – External .............................................................................................................................................. 8 6.5 EUT Photos – Internal ................................................................................................................................................ 9 6.6 EUT Test Setup Photos ........................................................................................................................................... 11 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 13 7.1 Supporting Equipment ............................................................................................................................................. 13 7.2 Cabling Description ................................................................................................................................................. 13 7.3 Test Software Description ........................................................................................................................................ 13 8 TEST SUMMARY ......................................................................................................................................................... 14 9 MEASUREMENT UNCERTAINTY ................................................................................................................................. 15 10 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................................. 16 10.1 Antenna …

Text truncated - open the document above for the full version.

Test report No. FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Page 11 of 35 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: 6.6 EUT Test Setup Photos Radiated Emission Test setup (<1GHz) – Front View Radiated Emission Test setup (<1GHz) – Rear View Radiation Emission Test setup (<30MHz) – Front View 0 deg R Emission Test setup (<30MHz) – Rear View 0 deg Radiation Emission Test setup (<30MHz) – Front View 90 deg R Emission Test setup (<30MHz) – Rear View 90 deg Test report No. FCC-IC_RF_SL15052101-STR-002_RFID Rev 1.0 Page 12 of 35 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Conducted Emission test setup– Front View Conducted Emission Test setup – Rear View
