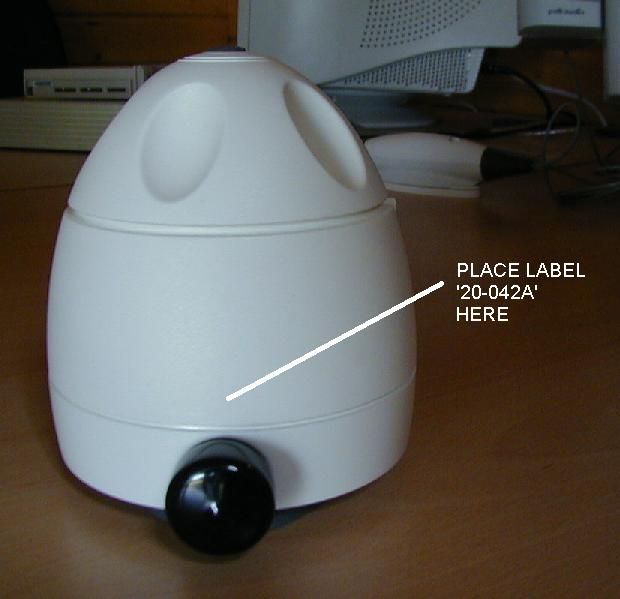

SSULD20D100SME LD-20D Leak Tracker Shut off valve

DETECTOR VALVE 1. Valve Charging Knob. This Control is used to “Recharge” the valve after it has closed. To achieve this carefully rotate the knob clockwise 90 degrees from the off position until it stops (this point is indicated on the body). Carefully release the knob and it will remain in position. 2. Valve Test Button. This is the Detector Valve test button and should only be used if you cannot reach the Remote Controller and need to shut off the incoming water supply. The valve must then be manually reset as described in (1) above. 3. Battery Cover. To remove the battery covers gently press the clip in the direction of the arrow and then pull upwards. The batteries require careful insertion to ensure the correct polarity and connection. Only use prime quality AA batteries and only replace a complete set of cells. Take extreme care in the use and disposal of batteries as there is a risk of fire or explosion if cells are not handled or disposed of correctly; the SME 110vac mains transformer is available as an optional extra. Issue 12 June 2005 Solutions Made Easy Limited 2850 North Pulaski Chicago, IL 60641, USA Free Phone 1800 621 1556 LEAK TRACKER LD-20D USER GUIDE 110VAC ONLY USE ONLY FCC ID : SSULD20D100 FCC ID: SSULD20D200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FOR HOUSE BUILDERS The LD20-D Leak Tracker has features which protect new homes during the final stages of construction prior to the “handover”. Once the LD20-D is installed it is recommended that the system is set to the Manual Mode (15 minute setting). If a higher degree of protection is required select the away mode This setting will only allow 2 minutes of high water flow and 10 minutes of low water flow (3gallons/hr or less) sufficient for cleaners, tradesmen and sales staff etc, to carry out their duties. In the event of a need for more water the valve can be simply reset to restart the water flow. To ensure the system is not tampered with or abused, the controller can be removed from the new home to a safe keeping place. The valve will still offer maximum protection but without the audible alarm feature. The incoming homeowner can then be presented with the controller & user guide instructions. The Remote Controller and Detector V alve are factory registered to each other and will only work together, serial numbers are affixed to both valve and controller for identification CONTROL BUTTONS Protective Button Cover Flap. (1) To ensure no accidental control inputs are made to the system keep the protective flap closed during normal use. Valve Close Button. (2) Press to shut off the incoming water supply. The valve must then be manually reset every time the Valve Close Button has been pressed. To ensure reliable service test once every month by pressing this button. Failure to do this will invalidate the Guarantee. Manual / Auto Mode Selector Button. (3) Press to select either Manual or Auto Mode. LEDs 15 or 11 (see diagram) will indicate which mode has been selected. Manual Time Adjust Button. (4) (Use in manual mode only) Pressing this button repeatedly will select the desired water flow time on the time display (7). This is the amount of time that water is allowed to flow continuously before the alarm is sounded indicating a problem. After a further 10 minutes the valve will close, shutting off the water supply if the reset button is not pressed to cancel the alarm. When in the manual mode should no flow occurs for 12 hr, the flow control time will automatically set to the minimum time setting of 15 minutes for added protection. The initial setting is then restored following the first usage of water. Away Mode Selector Button. (5) This mode should be selected if the property is to be left unoccupied for longer than 24 hrs. In the event of any abnormal flow or leak the water supply is closed after a period of 10 minutes on flows below 3 gallon/hour or 2 minutes where the water flow is higher, i.e. in the event of a significant leak or a burst pipe. Reset Button. (6) The Reset button is used to cancel an alarm signal or for cancelling any incorrect user input. MODES Auto Mode computes the best protection flow / time settings for an occupied property and collects your water use data for the ‘economiser’ function and stores the data in its memory. To automatically set up your system; press and hold down the manual/auto button (3) for 5 seconds, until the economiser lights (8) scroll up and down continuously. The lights will scroll up and down for the 48 hour sampling period. When a single time light remains illuminated the system has then auto- set. During this 48 hour learning period only flows exceeding 180 minutes duration will trigger an alarm. It is important that no other control inputs are made to the controller or valve during this set up period & that you use water wisely during the “set up” period to provide a low water use benchmark. Plumber Mode when a small non damaging leak such as a running toilet valve has been detected and a plumber is not immediately available to rectify the problem, press and hold the Reset (6) button until 2 audible “beeps” are heard then immediately press the Away button (5) and release. This plumber mode will remain active for 4 days; thereafter the system will revert to the previous setting. This mode can be cancelled by pressing the Reset button (6) at any time. Note: Water leaks above 3 gallons/m will alarm as normal in this setting . CONTROL LEDs Manual Time Display LEDs. (7) (15 - 180 minutes) Displays the chosen time setting when the manual control function is selected or the unit has auto set. Economiser Water Use Gage LEDs. (8) This function requires the unit to have been set in the Auto Set Up mode on commissioning or at a late…

Text truncated - open the document above for the full version.

ÌÒÏç fiÕ– ...fläŒ —ÀѤà ̄Ãfl– ›—““¤›Ã—Œ ̃ d ÃÀŒ“ ›ÿflŒŸ◊“Ÿ —–¤ŒflÃ◊—“ ’“—fi ›øƪ∫ ́¥¥ß ́≤∞øΩμ ̈∏ª ...ø ̈ªÆ≥∑≤ºªÆÙ ̈øμª ̈∑≥ª ̈± ƪøº ̈∏ª ∑≤≠ ̈Æ ́Ω ̈∑±≤≠ ∫ ́¥¥ß ø≤º ́≤ºªÆ≠ ̈ø≤º ̈∏ª≥Ú ‹— “—à flÃä”–à ̈± ∑≤≠ ̈ø¥¥ ̈∏ª ™ø¥™ª ∑∫ ß± ́ º± ≤± ̈ ∏ø™ª æø≠∑Ω ∞¥ ́≥æ∑≤π ≠μ∑¥¥≠ ø≤º ̈±±¥≠Ú Õª∞øÆø ̈ª ̈∏ª ̈©± ∏ø¥™ª≠ ±∫ ̈∏ª ™ø¥™ª ø≠≠ª≥æ¥ß ø ̈ ̈∏ª ∞ø∞ªÆ ≠ª∞øÆø ̈∑±≤ ≠ ̈Æ∑∞Ú Œª ̈ø∑≤ ̈∏ª æø≠ª ∞¥ø ̈ª ø≠≠ª≥æ¥ß ø≤º ∞¥øΩª ̈∏ª ƪ≥ø∑≤∑≤π Ω±≥∞±≤ª≤ ̈≠ ∑≤ ø ≠ø∫ª ∞¥øΩª ‹— “—à ÃÀŒ“ Ãÿ¤ ›ÿflŒŸ◊“Ÿ ’“—fi ›‘—Õ¤ Ãÿ¤ ...fläŒ ÕÀ––‘« flà Ãÿ¤ ◊“䌓fl‘ Õ×– ›—›’ ̄ fl‘ ¤ ̃ Œ¤”— ◊“Ÿ fl Õ¤›Ã◊—“ —⁄ –‘À”fi◊“Ÿ –◊–¤ ...—Œ’ Œ¤fl‹« ⁄—Œ Ãÿ¤ fl‘ ¤ ⁄◊ÃÃ◊“Ÿ fl“ —–Ã◊—“fl‘ ...fläŒ ⁄◊‘äŒ À“–fl›’◊“Ÿ Ãÿ¤ ...fl䌔◊“‹¤Œ ̇ Õ¤–flŒflÃ◊“Ÿ Ãÿ¤ fl‘ ¤ ‘±Ωø ̈ª ß± ́Æ ∑≤ ̈ªÆ≤ø¥ ≠ ̈±∞ Ω±Ωμ ø≤º Ω¥±≠ª ̈∏ª ©ø ̈ªÆ ≠ ́∞∞¥ßÙ Ω∏ªΩμ ̈∏ø ̈ ø¥¥ ©ø ̈ªÆ ́≠∑≤π ºª™∑Ωª≠ øƪ ̈ ́Æ≤ªº ±∫∫ ∑≤Ω¥ ́º∑≤π ∏± ̈ ©ø ̈ªÆ æ±∑¥ªÆ≠ ø≤º ∏ªø ̈∑≤π ≠ß≠ ̈ª≥≠ à ́Æ≤ ±≤ ø¥¥ Ω±¥º ̈ø∞≠ ∑≤ ̈∏ª ∞Ʊ∞ªÆ ̈ß ̈± ø∑º ̈∏ª ºÆø∑≤∑≤π º±©≤ ∞ƱΩª≠≠ ø≤º ≥∑≤∑≥∑≠ª ©ø ̈ªÆ ¥±≠≠ ©∏ª≤ Ω ́ ̈ ̈∑≤π ̈∏ª ∞∑∞ª ©±Æμ ̈± ∑≤≠ ̈ø¥¥ ̈∏ª ...ø ̈ªÆ≥∑≤ºªÆ æø≠ª ∞¥ø ̈ª fiª∫±Æª Ω ́ ̈ ̈∑≤π ̈∏ª ∞∑∞ª ∏ø™ª æ ́Ωμª ̈≠ ø≤º ≥±∞ ø™ø∑¥ø楪 ̈± Ω±¥¥ªΩ ̈ ø≤ß ≠∞∑¥ ̈ ©ø ̈ªÆÚ ¤≤≠ ́ƪ ß± ́ ∏ø™ª ̈∏ª Ω±ÆƪΩ ̈ ∞¥ ́≥æ∑≤π Ω±≤≤ªΩ ̈±Æ≠ ƪøºßÚ Œª≥±™ª ̈∏ª ≠ªΩ ̈∑±≤ ±∫ ∞∑∞ª ÆªØ ́∑ƪº ø≠ ≤ªøÆ ̈± ø≤º ∂ ́≠ ̈ ø∫ ̈ªÆ ̈∏ª ≠ ̈±∞ Ω±Ωμ ø≠ ∞ÆøΩ ̈∑Ωø¥ ø≤º æª∫±Æª ø≤ß ºÆø© ±∫∫ ∞±∑≤ ̈ ∞ƪ∫ªÆøæ¥ß ©∑ ̈∏ ø ∞∑∞ª Ω ́ ̈ ̈ªÆÙ ̈∏ª≤ ƪ≥±™ª ø≤ß æ ́ÆÆ≠ ø≤º ∞ ́Æπª ± ́ ̈ ø≤ß º∑≠¥±ºπªº ºªæÆ∑≠ ∫Ʊ≥ ̈∏ª ∞∑∞ª ...fläŒ —⁄⁄ ◊“‹◊›fl׌ —–Ã◊—“fl‘ fl‹ ◊›¤ fl¥¥ ∞Ʊ∞ªÆ ̈∑ª≠ ©∑¥¥ æª≤ª∫∑ ̈ ∫Ʊ≥ ∑≤≠ ̈ø¥¥∑≤π ø ¥±© Ω±≠ ̈ ©ø ̈ªÆ ∫∑¥ ̈ªÆ ∑ ̈ ©∑¥¥ ∞Ʊ ̈ªΩ ̈ fl¥¥ ©ø ̈ªÆ ́≠∑≤π ø∞∞¥∑ø≤Ωª≠ ø≤º ∑≤Ωƪø≠ª ̈∏ª∑Æ Æª¥∑øæ∑¥∑ ̈ß ø≤º ¥±≤πª™∑ ̈ß fl¥©øß≠ ∑≤≠ ̈ø¥¥ ̈∏ª ∫∑¥ ̈ªÆ ∂ ́≠ ̈ ∞Æ∑±Æ ̈± ̈∏ª ...ø ̈ªÆ≥∑≤ºªÆ ø≤º ∂ ́≠ ̈ ø∫ ̈ªÆ ̈∏ª ∑≤Ω±≥∑≤π ≠ ̈±∞ Ω±Ωμ fiflÃ䌫 ›— ¤Œ fiflÃ䌫 ›— ¤Œ Œ¤‘¤flÕ¤ ›‘◊– fl‘ ¤ äÕà fiÀÃד ÌÒÏå fiÕ– ...fläŒ ◊“‘¤Ã ̄Ãfl– ›—““¤›Ã—Œ ̃

Solutions Made Easy Limited Dryland House, 261 Bath Road, Bawdrip, Somerset, TA7 8PW Tel: +44(0) 1278 684984. Fax: +44(1)278 684077 E.MAIL: [email protected]. www.soleasy.co.uk 1 st September 2005 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in CFR47 1.2002(b), to the application is subject to denial of federal benefits that include FCC benefits Thank you for your attention to these matters. Yours faithfully Solutions Made Easy Limited Michael E Lee Director Company Reg No. 3782787 (UK)

Solutions Made Easy Limited Dryland House, 261 Bath Road, Bawdrip, Somerset, TA7 8PW Tel: +44(0) 1278 684984. Fax: +44(1)278 684077 E.MAIL: [email protected]. www.soleasy.co.uk Request for Confidentiality 1 st September 2005 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK RE: Certification Application Leak Tracker LD20D Detector Valve FCC ID: SSULD20D100 To Whom It May Concern: Please be advised that the following information disclosed in the process of this application is to be held confidential on behalf of Solutions Made Easy Limited • Circuit Diagrams • Technical Descriptions • Block Diagrams The application contains technical information which Solutions Made Easy Limited deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Solutions Made Easy Limited Michael E Lee Director Company Reg No. 3782787 (UK)

PM2201 P R O D U C T S T R U C T U R E S I N G L E L E V E L (P A R T S L I S T) R E P O R T P age 1 23/02/05 Avin Electronics Ltd From Part Number SME1000(1) to Part Number SME1000(1) Part Number Sort 00:04 Parent Number Description Type Issue Unit Quantity B Reference Date Eff' Date Eff' Date Of % Qty Seq' Component Nbr Description Typ /Msr Per F From To Change Loss Loss SME1000(1) Valve RF Issue 1 1 10026 AC101 Res 100R 0.1W 5% SMR63 4 EA 1.000 R7 08/10/04 99/99/99 21/01/05 .000 0 0002 AC102 Res 1K0 0.1W 5% SMR63 4 EA 1.000 R20 08/10/04 99/99/99 21/01/05 .000 0 0017 AC103 Res 10K 0.1W 5% SMR63 4 EA 1.000 R6 08/10/04 99/99/99 09/02/05 .000 0 0025 AC104 Res 100K 0.1W 5% SMR63 4 EA 3.000 R8-10 08/10/04 99/99/99 09/02/05 .000 0 0003 AC105 Res 1M0 0.1W 5% SMR63 4 EA 2.000 R13,14 08/10/04 99/99/99 21/01/05 .000 0 0021 AC223 Res 22K 0.1W 5% SMR63 4 EA 1.000 R3 08/10/04 99/99/99 21/01/05 .000 0 0013 AC224 Res 220K 0.1W 5% SMR63 4 EA 1.000 R2 09/02/05 99/99/99 09/02/05 .000 0 0007 AC225 Res 2M2 0.1W 5% SMR63 4 EA 2.000 R12,17 08/10/04 99/99/99 09/02/05 .000 0 0006 AC272 Res 2K7 0.1W 5% SMR63 4 EA 2.000 R16,18 08/10/04 99/99/99 21/01/05 .000 0 0023 AC473 Res 47K 0.1W 5% SMR63 4 EA 3.000 R1,4,5 08/10/04 99/99/99 21/01/05 .000 0 0010 AC475 Res 4M7 0.1W 5% SMR63 4 EA 1.000 R11 08/10/04 99/99/99 21/01/05 .000 0 0011 AC479 Res 4R7 0.1W 5% SMR63 4 EA 1.000 R15 08/10/04 99/99/99 21/01/05 .000 0 0030 AC821 Res 820R 0.1W 5% SMR63 4 EA 1.000 R21 08/10/04 99/99/99 21/01/05 .000 0 0024 AJ470 Res 47R 1W 5% 2512 4 EA 1.000 R19 08/10/04 99/99/99 21/01/05 .000 0 0032 BAS16 Diode SOT23 4 EA 3.000 D3-5 08/10/04 99/99/99 21/01/05 .000 0 0033 BC847C Transistor NPN SOT23 4 EA 1.000 Q4 08/10/04 99/99/99 21/01/05 .000 0 0034 BZX84C20 Zener 20V Sot 23 350MW 4 EA 1.000 D6 08/10/04 99/99/99 21/01/05 .000 0 0045 DTSA644K Switch Tactile 6x6 r/a 4 EA 1.000 S1 08/10/04 99/99/99 21/01/05 .000 0 0035 FDV302P Mosfet SOT23 4 EA 1.000 Q1 08/10/04 99/99/99 21/01/05 .000 0 0049 FOILP1003(1) FOIL P1003 ISS.1 (TSL057) 4 EA 1.000 24/01/05 99/99/99 24/01/05 .000 0 0020 GA150 Cap. Ceramic 15pF 50V 5% 4 EA 2.000 C23,26 08/10/04 99/99/99 21/01/05 .000 0 0022 GA330 Cap. Ceramic 33pF 50V 5% 4 EA 2.000 C3,13 08/10/04 99/99/99 21/01/05 .000 0 0009 GA3R9COG50 Cap.Ceramic 3p9F 50V 0603 4 EA 2.000 C10,11 08/10/04 99/99/99 21/01/05 .000 0 0004 GB102 Cap.Ceramic 1nF 50V 10% 4 EA 4.000 C6,7,20,25 08/10/04 99/99/99 21/01/05 .000 0 0027 GB104Y5V 25V Cap.Cer 100nF 25V Y5V0603 4 EA 4.000 C4,16,17,21 16/11/04 99/99/99 21/01/05 .000 0 0005 GB105Y5V Cap.Cer 1uF 10V Y5V0603 4 EA 2.000 C14,24 08/10/04 99/99/99 21/01/05 .000 0 0008 GB332X7R50 Cap.Cer 3n3F 50V X7R 0603 4 EA 1.000 C9 08/10/04 99/99/99 21/01/05 .000 0 0037 GF1A Diode 1A 50V Rectifier 4 EA 2.000 D2,9 08/10/04 99/99/99 21/01/05 .000 0 0012 GF475Y5V16 Cap 4u7F 16V 1206 20-80% 4 EA 1.000 C5 08/10/04 99/99/99 21/01/05 .000 0 0018 GJ106Y5V10 Cap.Ceramic 10uF 10V 1206 4 EA 1.000 C15 08/10/04 99/99/99 21/01/05 .000 0 0047 HE3621A0510 RELAY, REED SIL SPNO 5V 4 EA 1.000 K1 08/10/04 99/99/99 21/01/05 .000 0 0019 LQW18AN12NGOOD Inductor 12nH SMD 2% 4 EA 3.000 L2-4 08/10/04 99/99/99 21/01/05 .000 0 0048 M24C02-WMN6 E Squared S/M SO-8 4 EA 1.000 U2 09/11/04 99/99/99 21/01/05 .000 0 0029 MAL4-471K Inductor, Axial 470uH 4 EA 1.000 L1 08/10/04 99/99/99 21/01/05 .000 0 0036 NDS355AN MOSFET, N SOT23 4 EA 1.000 Q2 12/11/04 99/99/99 21/01/05 .000 0 0038 NDT453N MOSFET, N SOT-223 4 EA 1.000 Q3 08/10/04 99/99/99 21/01/05 .000 0 0039 NRF905 RF Transceiver 32QFN5X5 4 EA 1.000 U4 08/10/04 99/99/99 21/01/05 .000 0 0016 NX3225DA160BLT Crystal 16MHz FA238 4 EA 1.000 Y2 08/10/04 99/99/99 21/01/05 .000 0 0001 PCBP1003(1) PCB VALVE ISS.1(SME) 4 EA 1.000 21/01/05 99/99/99 21/01/05 .000 0 0041 S1M Diode 1A 1000V 4 EA 1.000 D7 08/10/04 99/99/99 21/01/05 .000 0 0042 S2M Diode 1.5A 1000V 4 EA 1.000 D8 08/10/04 99/99/99 21/01/05 .000 0 0043 ST72F264G2M6 Micro ST SMD 28pin SO28 4 EA 1.000 U3 08/10/04 99/99/99 21/01/05 .000 0 0044 STPS340U Diode Schottky SOD6 4 EA 1.000 D1 08/10/04 99/99/99 21/01/05 .000 0 0031 TE1E102MJ Cap 1000uF 25V Elec Axial 4 EA 1.000 C8 08/10/04 99/99/99 21/01/05 .000 0 0040 TRJ66SR RJ12 6/6 Data Socket 4 EA 1.000 P3 08/10/04 99/99/99 21/01/05 .000 0 0046 XC6201P332PR Voltage Regulator 3.3V 4 EA 1.000 U1 08/10/04 99/99/99 21/01/05 .000 0 ------------------------------------------------------------------------------------------------------------------------------- ----- 1 Items Selected Report Ends

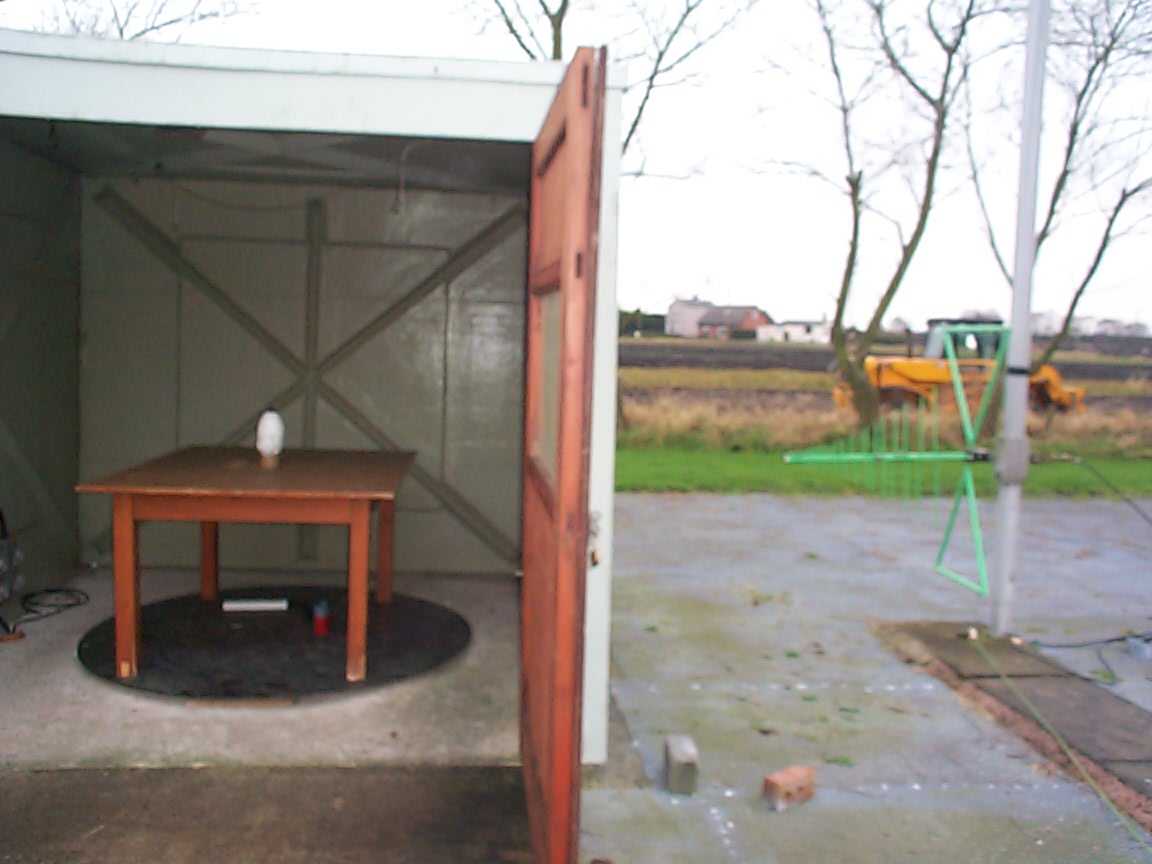

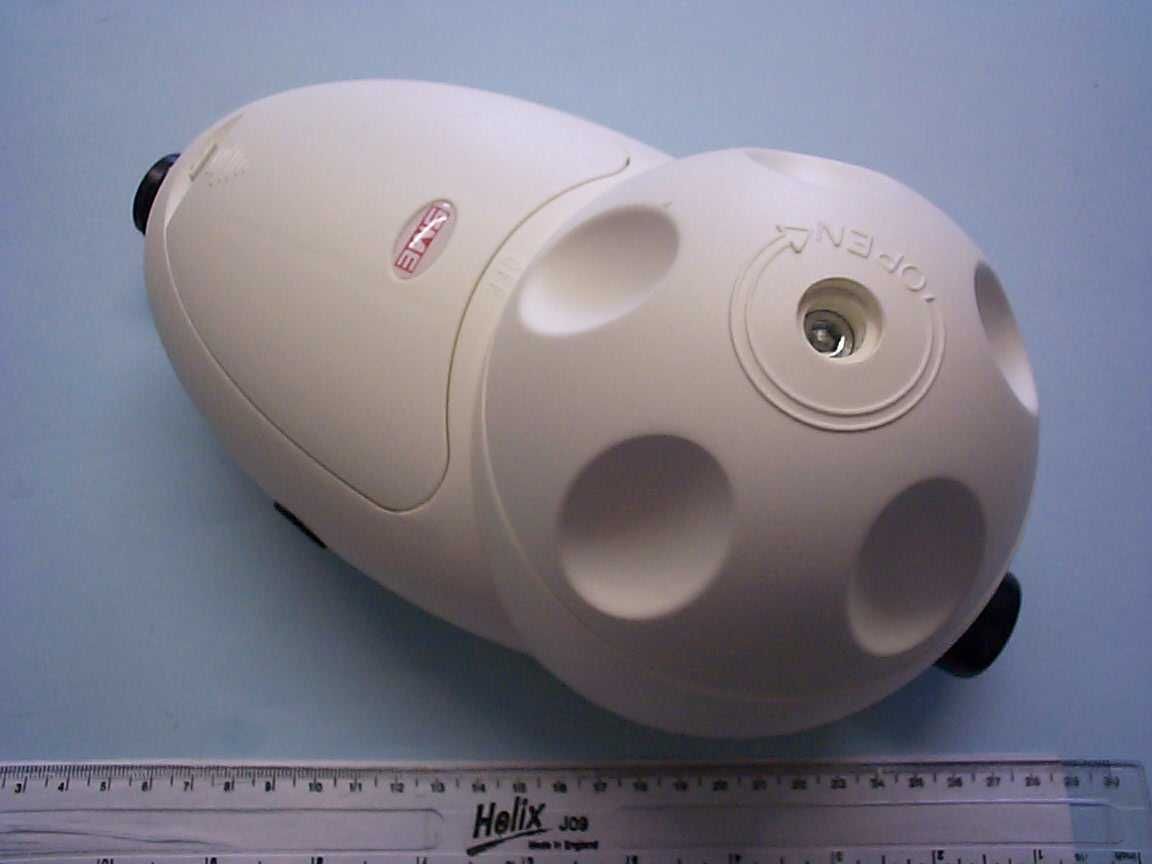

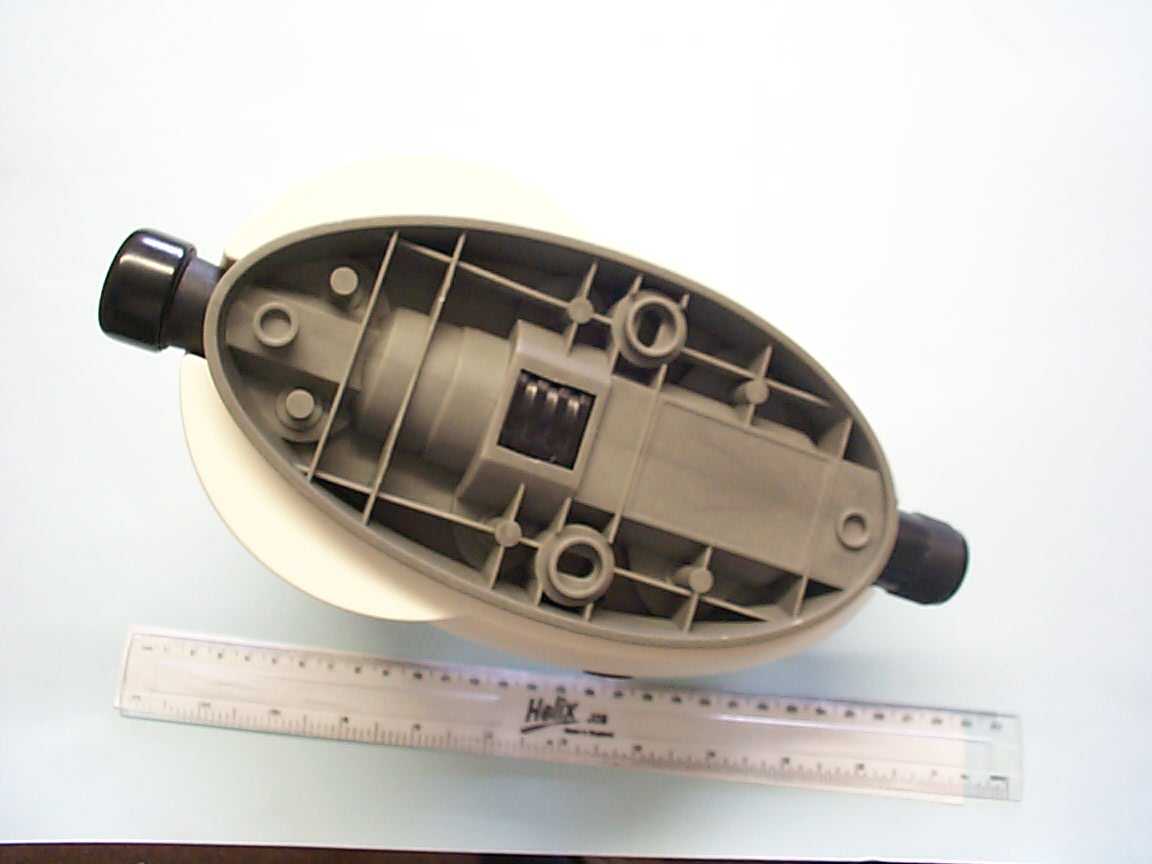

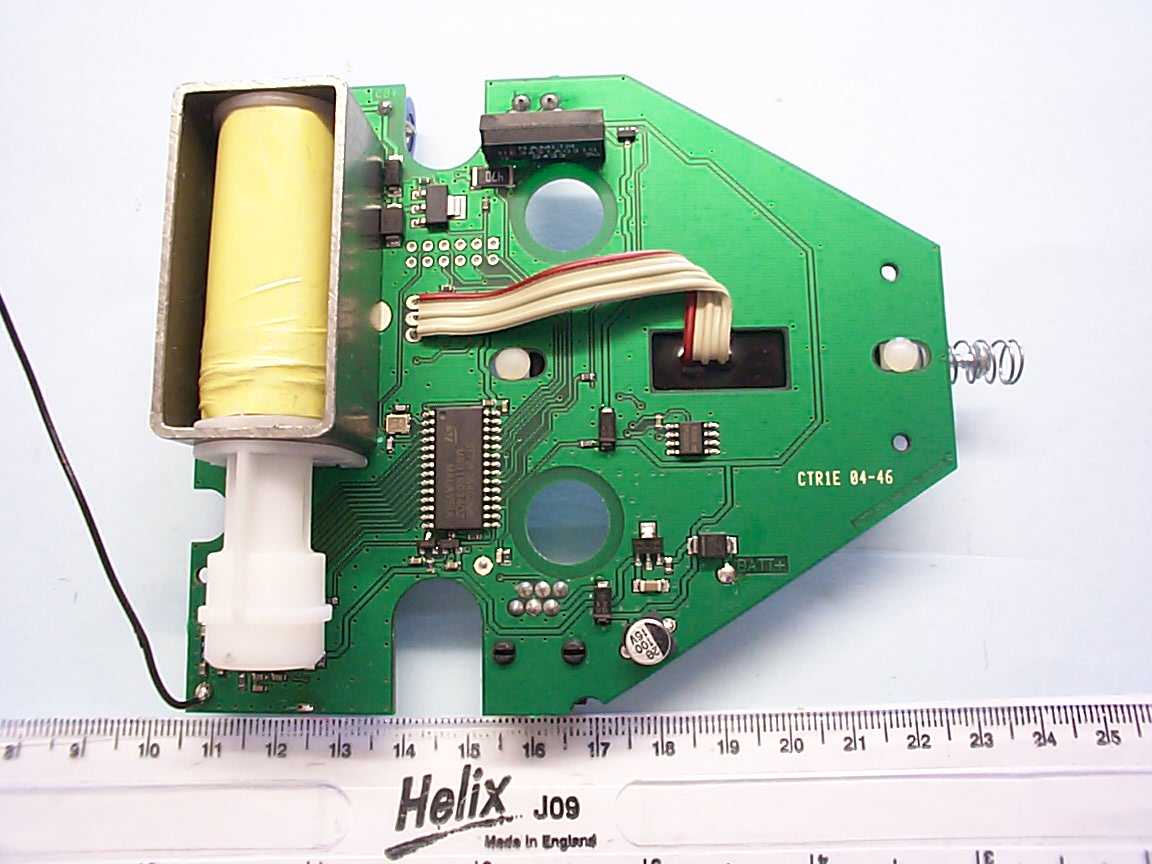

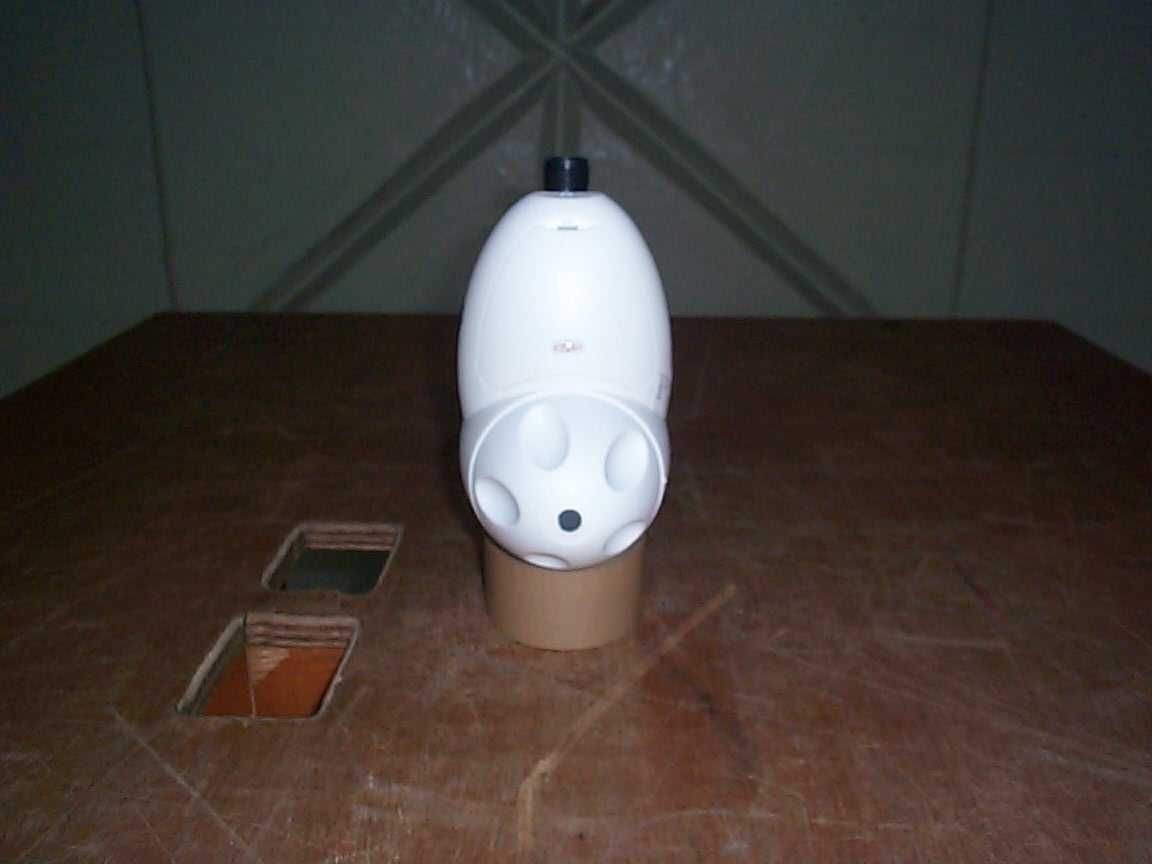

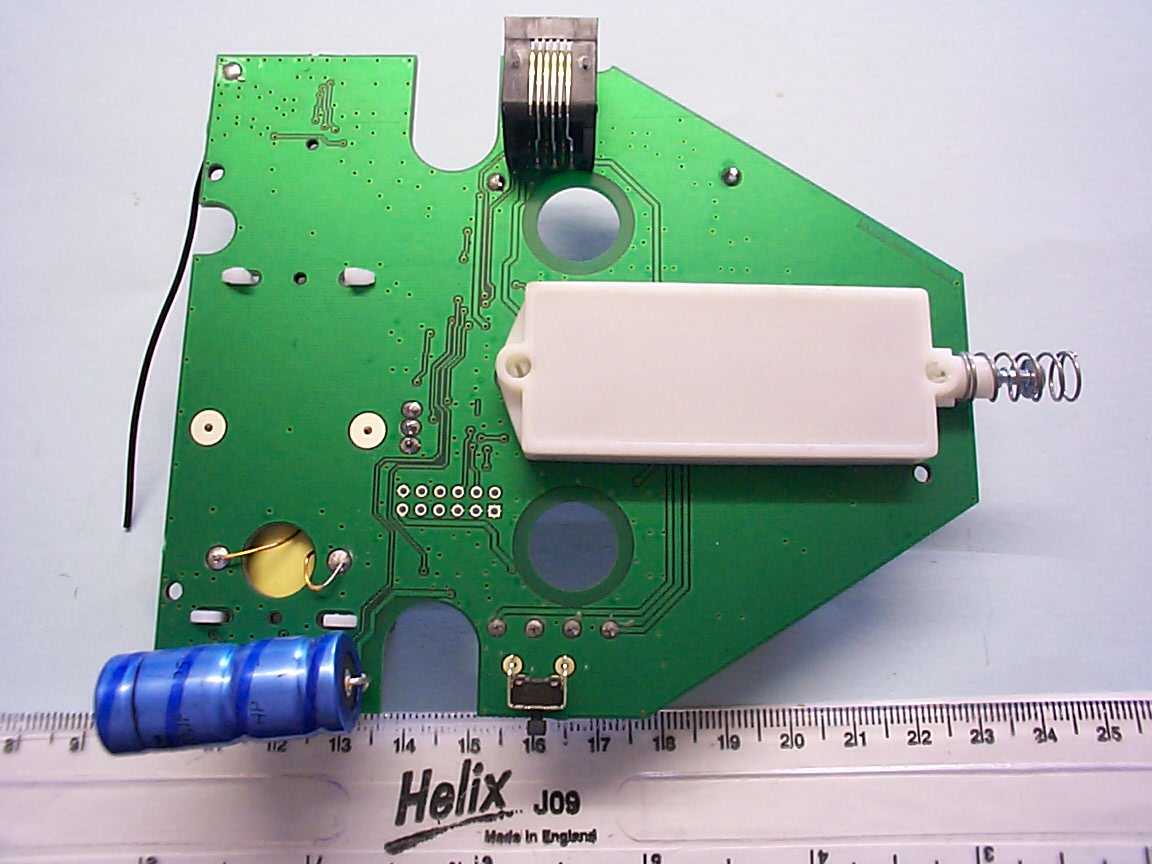

TRL COMPLIANCE SERVICES LTD EMC DIVISION M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO: RU1142/6219 COPY NO: 2 ISSUE NO: 1 FCC ID: SSULD20D100 REPORT ON THE CERTIFICATION TESTING OF A SOLUTIONS MADE EASY Ltd LEAK TRACKER LD20-D DETECTOR VALVE WITH RESPECT TO THE FCC RULES CFR 47, PART 15.249 January 2005 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 14 th January 2005 – 3 rd March 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 5 th December 2005 Distribution: Copy Nos: 1. SOLUTIONS MADE EASY Ltd 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1142/6219 Page 2 of 28 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-8 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C SCAN PLOT(s) D DUTY CYCLE PLOT(s) E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1142/6219 Page 3 of 28 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: SSULD20D100 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.249 January 2005 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: LEAK TRACKER LD20-D DETECTOR VALVE EQUIPMENT SERIAL No: Engineering Sample EQUIPMENT TYPE: Detector & Controlled Shutoff Valve PRODUCT USE: Prevention of Water Leakage CARRIER EMISSION: 8.42 mV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable FREQUENCY OF OPERATION: 910.0MHz CHANNEL SPACING: Not applicable, Wideband NUMBER OF CHANNELS: Not Applicable FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +110Vac or +6Vdc TEST DATE(s): 14 th January 2005 – 3 rd March 2005 ORDER No(s): 800015 APPLICANT: Solutions Made Easy Ltd ADDRESS: 261 Bath Road Bawdrip Somerset TA7 8PW TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER RF335U iss03 RU1142/6219 Page 4 of 28 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): LEAK TRACKER LD20-D DETECTOR VALVE EQUIPMENT TYPE: Detector & Controlled Shutoff Valve SERIAL NUMBER OF EUT: Engineering Sample PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.249 January 2005 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 800015 APPLICANT’S CONTACT PERSON(s): Mr M Lee E-mail address: [email protected] APPLICANT: Solutions Made Easy Ltd ADDRESS: 261 Bath Road Bawdrip Somerset TA7 8PW TEL: +44 (0) 1278 686160 FAX: +44 (0) 1278 684077 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 14 th January 2005 – 3 rd March 2005 TEST REPORT No: RU1142/6219 RF335U iss03 RU1142/6219 Page 5 of 28 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.249(a) Quasi Peak YES Intentional Emission Field Strength: 15.249(a) Quasi Peak YES Intentional Emission Band Occupancy: 15.215 Peak YES Intentional Emission ERP (mW): N/A - NO Spurious Emissions – Conducted: 15.207 Quasi Peak Average YES Spurious Emissions – Radiated <1000MHz: 15.209 Quasi Peak YES Spurious Emissions – Radiated >1000MHz: 15.209 15.249(a) Average YES Maximum Frequency of Search: 15.33 - YES Antenna Arrangements Integral: 15.203 - YES Antenna Arrangements External Connector: 15.204 - YES Restricted Bands 15.205 - YES Extrapolation Factor 15.31(f) - YES 2. Product Use: Prevention of Water Leakage 3. Emission Designator: 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: bps 6. Temperatures: Ambient (Tnom) 8 o C 7. Supply Voltages: Vnom +110Vac or +6Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: RF335U iss03 RU1142/6219 Page 6 of 28 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 8 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 41% (<1GHz), 0.3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 0.3m [X] Supply voltage = +110Vac or +6Vdc Channel number = 1 Freq (MHz) Meas Rx. (dBμV) Cable loss (dB) Ant Factor Field Strength (dBμV/m) Extrap Fact Field Strength (μV/m) Limit (μV/m) 30MHz - 88MHz 88MHz - 216MHz 216MHz - 960MHz 960MHz - 1GHz 1GHz - 5GHz 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3 Extrapolation factor 20dB from 0.3m to 3m, as per Part 15.31f 4 Measurements >1GHz @ 0.3m as per Part 15.31f(1) 5 Receiver detector <1GHz = CISPR, Quasi-Peak, 120kHz bandwidth 6 Receiver detector >1GHz = Average, 1MHz resolution bandwidth 7 Peak emissions are within 20 dB of the average limit 8 New batteries used for battery powered products. 9 (R) Indicates restricted bands, as per Part 15.205 10 Results not within 20 dB’s of li…
