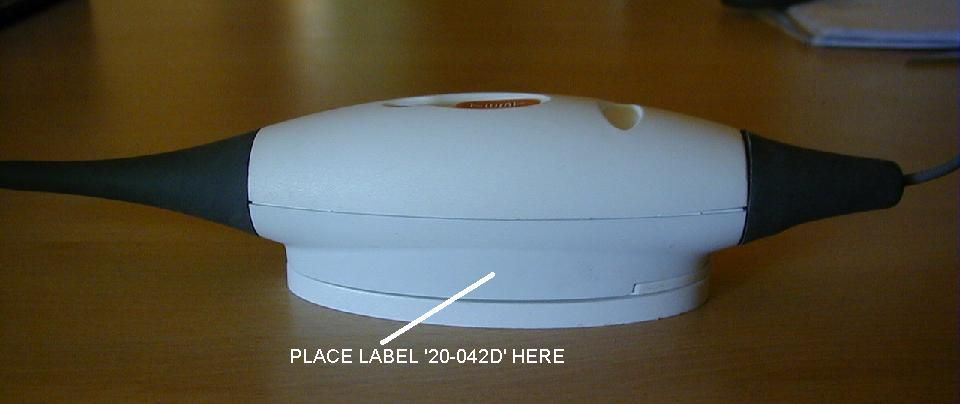

SSULD20D300SME LD20D Leak Tracker Wet Sensor

Retrofit - Registration 1. Registration Wet-Sensor to existing Leak Tracker system The following procedure must be completed when a) an extra ‘wet pad’ is to be fitted, b) a replacement ‘wet-pad’ is to be fitted or c) a wet-pad is specified for installation at a later date than the Waterminder unit. Press and hold the ‘test’ button on the ‘wet-pad’ until 2-bleeps are heard Press and release the Valve Test Button on the side of the valve, three bleeps should be heard from the Remote Controller – the wet-pad is now registered to the Leak Tracker system. Should the ‘Wet-Pad’ Fail to Register? Repeat until three bleeps are heard at the controller Solutions Made Easy Limited 2850 North Pulaski Chicago IL 60641, USA Free Phone 1800 621 1556 WET-SENSOR ONLY FOR USE WITH THE LEAK TRACKER LD-20D SYSTEM USER GUIDE IMPORTANT NOTE FOR INSTALLERS The Leak Tracker LD20D Wet-Sensor operates on radio frequency so requires no wiring between the Wet-Sensor the Remote Controller or Detector Valve supplied with the Leak Tracker LD20D System. If the Wet-Sensor has been supplied as part of a Leak Tracker LD20D system direct from the factory the Wet-Sensor comes all ready registered (RF compatibility) for immediate installation. If the wet-sensor is supplied as a retrofit unit it will need to be registered to the Leak Tracker LD20D system already installed before it will operate. If this operation is not completed the wet- sensor will not operate. Once registration has been complete it is a good idea to make a record of the LD20D system serial number and attach this to the Wet-Sensor for future reference The Controller and Valve are factory registered to each other and will only work together, serial numbers are affixed to both valve and controller for identification FCC ID :SSULD20D300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1)this device may cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1. Optional RF Wet Sensor (Radio Controlled) The battery powered Optional Wet Sensor is a point of use water leak early warning accessory which can be used in conjunction with the Leak Tracker LD20D system. As soon as the Wet Sensor detects moisture, a signal is sent directly to the LD20D Leak Tracker detector valve. Prior to the detector valve isolating the water supply it first determines if water is flowing through the system. If no water is flowing the valve will ignore the Wet Sensor and assume that the water sensed is a spillage. If water is flowing the detector valve immediately isolates the water supply. Both an audio and visual alarm is activated at the wet-sensor; this allows the wet- sensor activated to be identified in multi wet- sensors insulations. The remote controller also gives an audio warning to indicate that a wet-sensor has been activated plus the wet sensor LED on the remote controller (12) is lit to show that the water has been isolated by a wet-sensor. (see Leak Tracker LD20D User Guide Up to 10 Wet Sensors can be used with a single LD20D system. Typical Wet Sensor Locations are: Utility and laundry rooms, Bathrooms, Kitchens, Loft spaces, Basements, Pump rooms, beneath hot water tank & in boiler areas. 2. Installation Once the most desirable position has been determined for the wet-pad (this is the damp sensing pad) – under a washing machine, under a bath, under a shower or as required, a location for the main body of the wet- sensor should be identified that can be easily reached and does not place any strain on the wet-pad cable when the wet – pad is in the desired position. The unit will operated with the main body in any orientation however the back plate supplied is designed to hold the main body in a vertically plane with the ariel upper most– ensure that there is sufficient space above the ariel to allow the main body to be removed from the back plate without deforming the ariel before fixing the back plate.. Once the back plate has been fixed remove the battery cover from the main body and insert a pp3 battery (not supplied) replace the battery cover and place the main body on the back plate. Place the wet pad in the desired position ensuring that the contacts on the base of the pad are in contact with the floor or surface to be checked – ensure that the cable cannot be accidentally moved the unit is now ready for operation and testing. 3. Testing To test the unit the test button on the main body of the Wet Sensor should be pressed and released – remember unless water is flowing the Leak Tracker Detector Valve will not operate. The Wet Sensor should sound a warning and the LED (warning light) on the main body should illuminate. Additionally the Remote Controller should sound a warning and the Wet Sensor warning light illuminate. Following testing reset the Remote Controller by pressing and release the reset button (see Leak Tracker LD20D user instructions)

LD20-D LEAK TRACKER Directions for Installation (Please read carefully before starting the Installation) Before attempting to install the LD20-D Leak Tracker read through this installation guide and decide if you are prepared to complete the project with the knowledge and equipment you have, or whether you need to get help from a professional plumber. Also, that your water supply is within the LD20-D Leak Trackers specification range. The installation must comply with Federal, State and local building codes, please contact your local Building Inspector prior to starting the project. FCC ID : SSULD20D100 FCC ID: SSULD20D200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PLEASE LEAVE THIS DOCUMENT WITH THE HOME OWNER 2 YEAR LIMITED WARRANTY The SME LD20D Leak Tracker is warranted to be free from defects in material and workmanship under normal use for 2 year from date of purchase. In the event of a malfunction or failure of this product during this period, the purchaser should properly package the entire unit and return it to the place of purchase with proof of purchase, which includes date of purchase (for example, a receipt or sales slip) SME Limited will replace the unit free of charge. This warranty is limited to the original retail purchaser and is not transferable. The warranty does not cover damage due to accidents, abuse, tampering, normal wear and tear, freezing water or misuse, nor does it cover damage resulting from service by unauthorized personnel. Any indication that the unit has been tampered with will void the product warranty LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT. SME SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE, WHETHER DIRECT OR INDIRECT. THIS WARRANTY IS EXPRESSLY GRANTED IN LIEU OF ALL OTHER WARRANTIES EXCEPT IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO: THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE PERIOD OF THIS EXPRESS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This Warranty gives you specific rights and you may also have other rights, which vary, from state to state. In the event you have any questions concerning the use and care of your SME product or concerning service under this warranty or otherwise, please write to: SME Limited, 2850 North Pulaski, Chicago, IL, 60641 U L ® NSF ® SME ������������������� SECTION 1-Planning the Installation The SME LD20-D Leak Tracker system has two basic components, an intelligent Detector Valve and a Remote Controller. For maximum protection the Detector Valve must be installed in the cold water riser as close as practical to the point where the riser enters the property after the water meter and main shut off valve but before any branch line, in this way all water runs and point of use outlets within the property will be monitored. The Leak Tracker Detector Valve must not be installed in the hot water branch line. If your home is fitted with any of the following they must be considered in the installation: Sprinkler System - If the cold water riser supplies a fire sprinkler system in the property the Leak Tracker Detector Valve must be installed after this branch. Water Softener - If a water softener is installed in your home water can flow depending on the make and model for up to 60 minutes during the regeneration process. The Leak Tracker will consider this regeneration flow as a normal condition and will set its-self accordingly if the auto set-up feature is used. This means that whilst the “real” water use in a property may only be for a maximum of 15 minutes at any time the Leak Tracker will operate on a reduced sensitivity based on the water softener requirements rather than the “real” flow pattern for the home. This “unreal flow” can be eliminated by installing the Leak Tracker after the water softener. Irrigation System - Lawn and general irrigation systems present the same problem as water softeners and we recommend that the irrigation branch run is taken off before the Leak Tracker Climatic Conditions - Both the Leak Tracker Detector Valve and the Remote Controller must be installed in an area that is protected from freezing temperatures, rain, snow and direct sunlight. Old Steel Systems - If the Leak Tracker Detector Valve is to be fitted into an old galvanized iron system or if debris is likely to be a problem in the system a Y- type filter of the appropriate size should be installed before the Detector Valve in the riser. Valves will be required either side of the Y-type filter to allow the filter element to be periodically cleaned. Depending on the specification of the plumbing system in your home (copper, galvanized iron, CPVC or PB) fittings will need to be purchased to fit the Leak Tracker Detector Valve into the existing pipe-work; fittings are readily available through your local plumbing supply store. If you are unsure or have galvanised iron or PB pipe work we would advise that you contact a professional plumber. As the Detector Valve is battery operated (4 x AA cells: 1.5V not supplied) there is no restriction as to where it can be installed relative to available power outlets. Should the optional power pack be specified the Detector Valve must be installed within 6 feet of a 110-volt alternating current wall mounted (not ceiling mounted) power outlet. Do not use a trailing lead if a power outlet is not within 6 feet of the Detector Valve you must have one installed by a professional electrician in compliance with building codes. As the Remote Co…

Text truncated - open the document above for the full version.

Solutions Made Easy Limited Dryland House, 261 Bath Road, Bawdrip, Somerset, TA7 8PW Tel: +44(0) 1278 684984. Fax: +44(1)278 684077 E.MAIL: [email protected]. www.soleasy.co.uk 1 st September 2005 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in CFR47 1.2002(b), to the application is subject to denial of federal benefits that include FCC benefits Thank you for your attention to these matters. Yours faithfully Solutions Made Easy Limited Michael E Lee Director Company Reg No. 3782787 (UK)

Solutions Made Easy Limited Dryland House, 261 Bath Road, Bawdrip, Somerset, TA7 8PW Tel: +44(0) 1278 684984. Fax: +44(1)278 684077 E.MAIL: [email protected]. www.soleasy.co.uk Request for Confidentiality 1 st September 2005 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK RE: Certification Application Leak Tracker LD20D Wet-Sensor FCC ID: SSULD20D300 To Whom It May Concern: Please be advised that the following information disclosed in the process of this application is to be held confidential on behalf of Solutions Made Easy Limited. • Circuit Diagrams • Technical Descriptions • Block Diagrams The application contains technical information which Solutions Made Easy Limited deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Solutions Made Easy Limited Michael E Lee Director Company Reg No. 3782787 (UK)

PM2201 P R O D U C T S T R U C T U R E S I N G L E L E V E L (P A R T S L I S T) R E P O R T Page 1 18/ 10/05 Avin Electronics Ltd From Part Number SME1002 to Part Number SME1002 Part Number Sort 16:18 Parent Number Description Type Issue Unit Quantity B Reference Date Eff' Date Eff' Date Of % Qty Seq' Component Nbr Description Typ /Msr Per F From To Change Loss Loss SME1002 Wetpad RF 1 A0002 AC000 Res 0R 0.1W 5% SMR63 0603 4 EA 1.000 R1 09/11/04 99/99/99 09/11/04 .000 0 0022 AC101 Res 100R 0.1W 5% SMR63 4 EA 1.000 R8 22/01/05 99/99/99 22/01/05 .000 0 0013 AC103 Res 10K 0.1W 5% SMR63 4 EA 1.000 R6 22/01/05 99/99/99 22/01/05 .000 0 0021 AC104 Res 100K 0.1W 5% SMR63 4 EA 1.000 R5 22/01/05 99/99/99 22/01/05 .000 0 0003 AC105 Res 1M0 0.1W 5% SMR63 4 EA 2.000 R13,14 09/11/04 99/99/99 09/11/04 .000 0 0024 AC124 Res 120K 0.1W 5% SMR63 4 EA 1.000 R12 22/01/05 99/99/99 22/01/05 .000 0 0025 AC181 Res 180R 0.1W 5% SMR63 4 EA 1.000 R11 22/01/05 99/99/99 22/01/05 .000 0 0018 AC223 Res 22K 0.1W 5% SMR63 4 EA 1.000 R3 22/01/05 99/99/99 22/01/05 .000 0 0006 AC225 Res 2M2 0.1W 5% SMR63 4 EA 1.000 R10 22/01/05 99/99/99 22/01/05 .000 0 0020 AC473 Res 47K 0.1W 5% SMR63 4 EA 2.000 R4,7 22/01/05 99/99/99 22/01/05 .000 0 0009 AC475 Res 4M7 0.1W 5% SMR63 4 EA 1.000 R9 22/01/05 99/99/99 22/01/05 .000 0 0010 AC479 Res 4R7 0.1W 5% SMR63 4 EA 1.000 R15 22/01/05 99/99/99 22/01/05 .000 0 0026 BAS16 Diode SOT23 4 EA 1.000 D3 22/01/05 99/99/99 22/01/05 .000 0 0028 FDV302P Mosfet SOT23 4 EA 1.000 Q1 22/01/05 99/99/99 22/01/05 .000 0 0017 GA150 Cap. Ceramic 15pF 50V 5% 4 EA 2.000 C1,2 22/01/05 99/99/99 22/01/05 .000 0 0034 GA221 Cap.Ceramic 220pF 50V 5% 4 EA 1.000 C3 22/01/05 99/99/99 22/01/05 .000 0 0019 GA330 Cap. Ceramic 33pF 50V 5% 4 EA 3.000 C4,8,13 22/01/05 99/99/99 22/01/05 .000 0 0008 GA3R9COG50 Cap.Ceramic 3p9F 50V 0603 4 EA 2.000 C10,11 22/01/05 99/99/99 22/01/05 .000 0 0004 GB102 Cap.Ceramic 1nF 50V 10% 4 EA 2.000 C7,25 22/01/05 99/99/99 22/01/05 .000 0 0014 GB103Y5V Cap.Cer 10nF 50V Y5V 4 EA 1.000 C22 22/01/05 99/99/99 22/01/05 .000 0 0023 GB104Y5V 25V Cap.Cer 100nF 25V Y5V0603 4 EA 5.000 C15,16,18,20,23 22/01/05 99/99/99 22/01/05 .000 0 0005 GB105Y5V Cap.Cer 1uF 10V Y5V0603 4 EA 1.000 C24 22/01/05 99/99/99 22/01/05 .000 0 0007 GB332X7R50 Cap.Cer 3n3F 50V X7R 0603 4 EA 1.000 C9 22/01/05 99/99/99 22/01/05 .000 0 0029 GF1A Diode 1A 50V Rectifier 4 EA 1.000 D1 22/01/05 99/99/99 22/01/05 .000 0 0011 GJ475Y5V16 Cap.Ceramic4.7uF 16V 1206 4 EA 1.000 C5 22/01/05 99/99/99 22/01/05 .000 0 0015 GRM235Y5V106Z16 Cap.Cer 10uF Y5V 16V 1210 4 EA 1.000 C14 22/01/05 99/99/99 22/01/05 .000 0 0016 LQW18AN12NGOOD Inductor 12nH SMD 2% 4 EA 3.000 L2,3,4 22/01/05 99/99/99 22/01/05 .000 0 0031 M24C02-WMN6 E Squared S/M SO-8 4 EA 1.000 U2 22/01/05 99/99/99 22/01/05 .000 0 0032 NRF905 RF Transceiver 32QFN5X5 4 EA 1.000 U4 22/01/05 99/99/99 22/01/05 .000 0 0012 NX3225DA160BLT Crystal 16MHz FA238 4 EA 1.000 Y1 22/01/05 99/99/99 22/01/05 .000 0 0001 PCBSME1002(C) Pcb Wetpad issue C 4 EA 1.000 PCB1 09/11/04 99/99/99 09/11/04 .000 0 0033 ST72F264G2M6 Micro ST SMD 28pin SO28 4 EA 1.000 U3 22/01/05 99/99/99 22/01/05 .000 0 0030 TOL2012MR LED Red SM Chip 0805 4 EA 1.000 D2 22/01/05 99/99/99 22/01/05 .000 0 0027 TR12BL Transducer 12mm External 4 EA 1.000 BZ1 22/01/05 99/99/99 22/01/05 .000 0 0050 XC6201P332PR Voltage Regulator 3.3V 4 EA 1.000 U1 22/01/05 99/99/99 22/01/05 .000 0 ------------------------------------------------------------------------------------------------------------------------------- ----- 1 Items Selected Report Ends

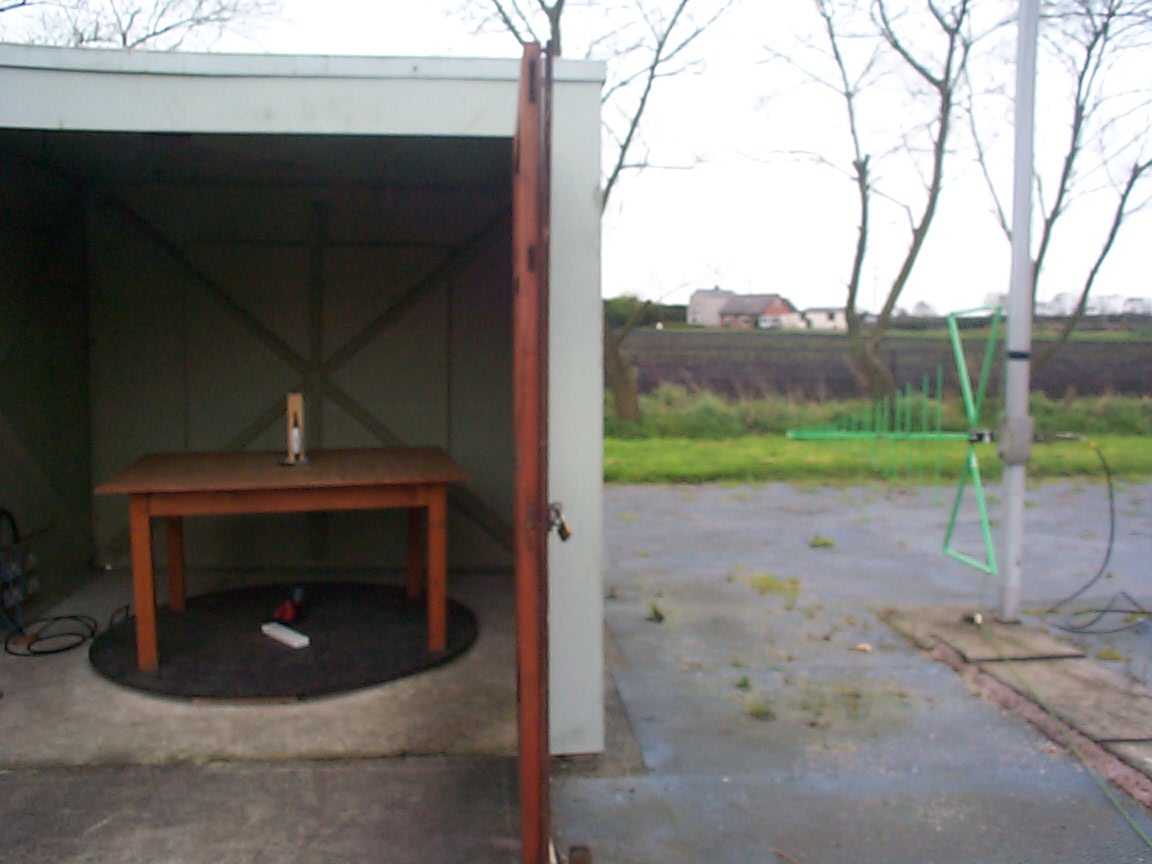

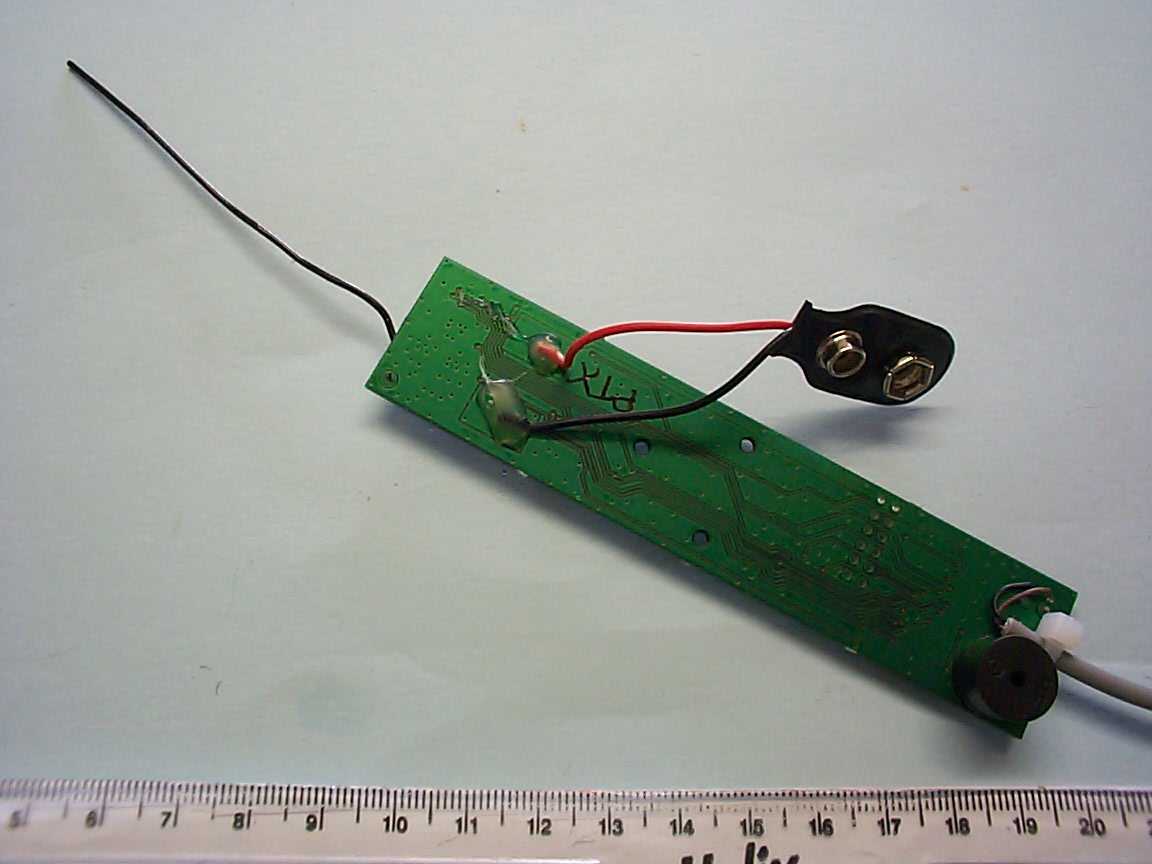

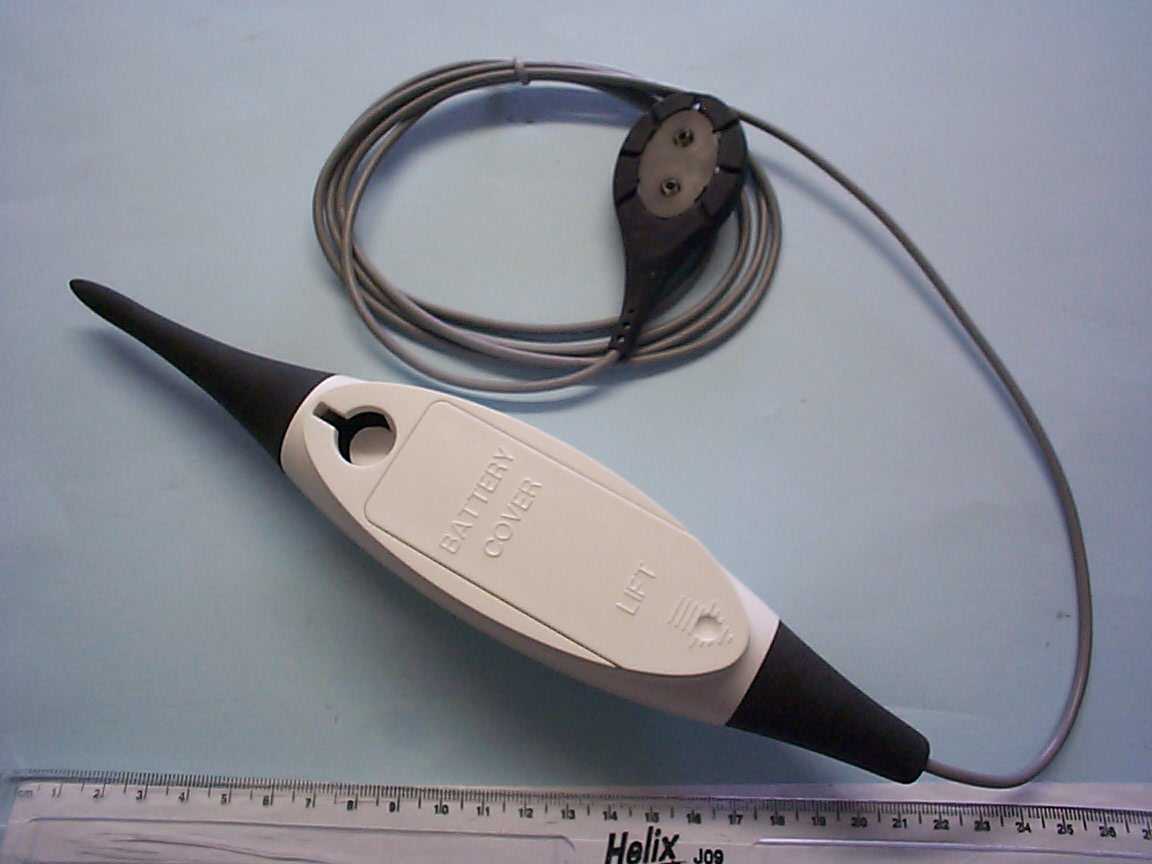

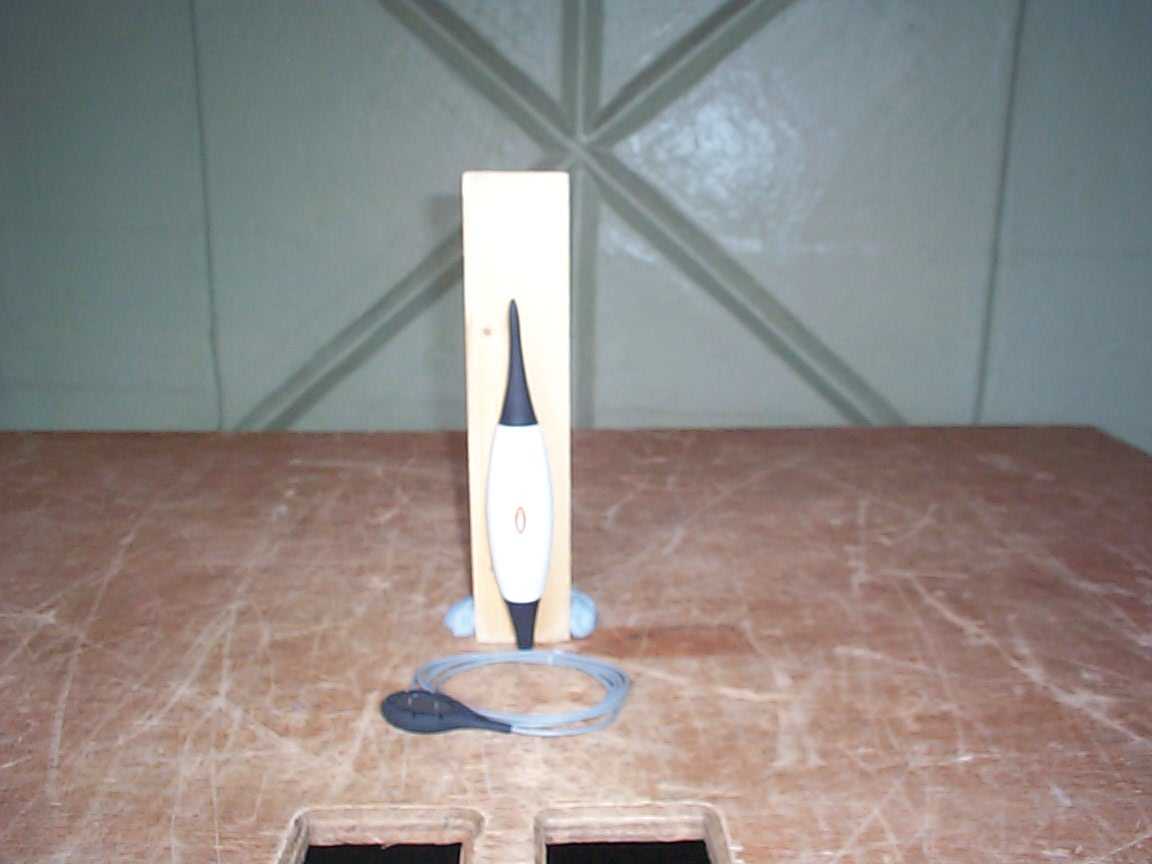

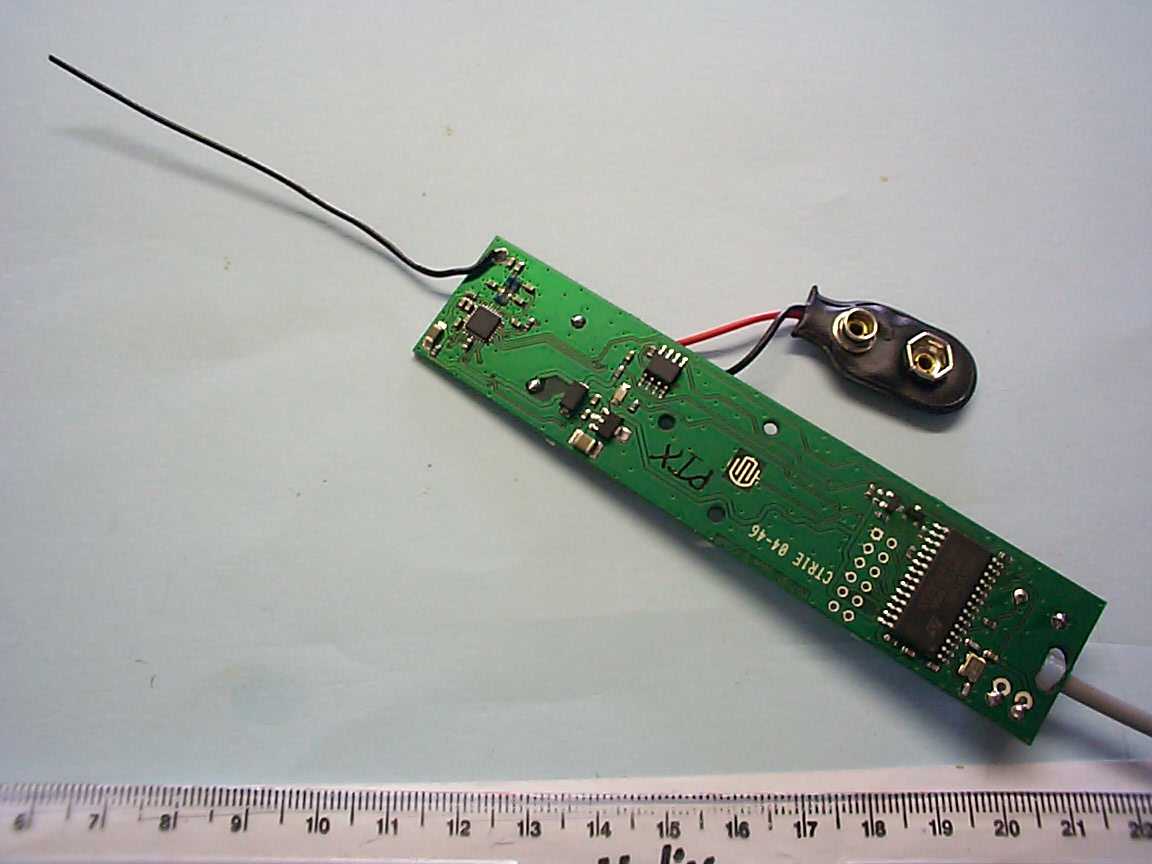

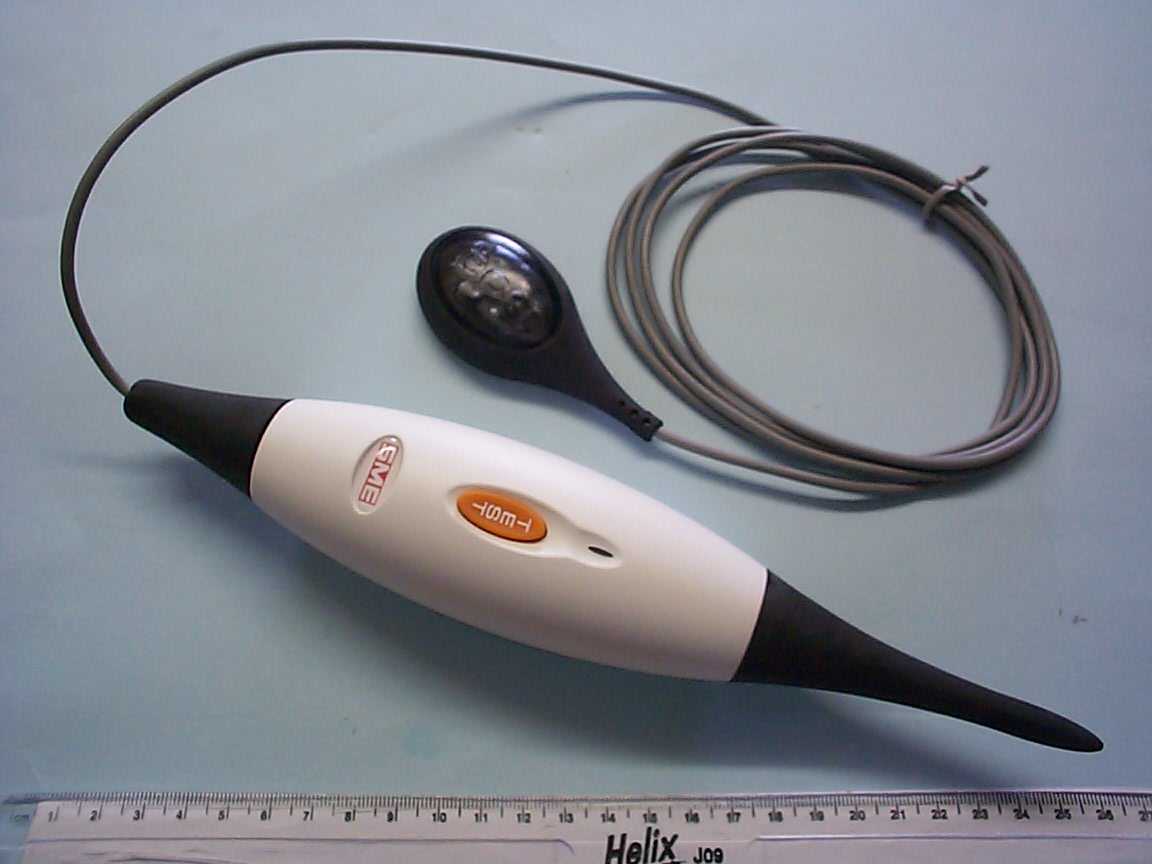

TRL COMPLIANCE SERVICES LTD EMC DIVISION M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO: RU1142/6217 COPY NO: 2 ISSUE NO: 1 FCC ID: SSULD20D300 REPORT ON THE CERTIFICATION TESTING OF A SOLUTIONS MADE EASY Ltd LEAK TRACKER LD20-D WET SENSOR WITH RESPECT TO THE FCC RULES CFR 47, PART 15.249 January 2005 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 15 th April 2005 – 18 th April 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 5 th December 2005 Distribution: Copy Nos: 1. SOLUTIONS MADE EASY Ltd 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1142/6217 Page 2 of 22 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-8 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C SCAN PLOT(s) D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1142/6217 Page 3 of 22 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: SSULD20D300 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.249 January 2005 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: LEAK TRACKER LD20-D WET SENSOR EQUIPMENT SERIAL No: Engineering Sample EQUIPMENT TYPE: Water sensor PRODUCT USE: Leak Detection CARRIER EMISSION: 5.31 mV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable FREQUENCY OF OPERATION: 910.0MHz CHANNEL SPACING: Not applicable, Wideband NUMBER OF CHANNELS: Not applicable FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +9Vdc TEST DATE(s): 15 th April 2005 – 18 th April 2005 ORDER No(s): 800015 APPLICANT: Solutions Made Easy Ltd ADDRESS: 261 Bath Road Bawdrip Somerset TA7 8PW TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER RF335U iss03 RU1142/6217 Page 4 of 22 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): LEAK TRACKER LD20-D WET SENSOR EQUIPMENT TYPE: Leak Detector SERIAL NUMBER OF EUT: Engineering Sample PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.249 January 2005 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 800015 APPLICANT’S CONTACT PERSON(s): Mr M Lee E-mail address: [email protected] APPLICANT: Solutions Made Easy Ltd ADDRESS: 261 Bath Road Bawdrip Somerset TA7 8PW TEL: +44 (0) 1278 686160 FAX: +44 (0) 1278 684077 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 15 th April 2005 – 18 th April 2005 TEST REPORT No: RU1142/6217 RF335U iss03 RU1142/6217 Page 5 of 22 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.249(a) Quasi Peak YES Intentional Emission Field Strength: 15.249(a) Quasi Peak YES Intentional Emission Band Occupancy: 15.215 Peak YES Intentional Emission ERP (mW): N/A - NO Spurious Emissions – Conducted: 15.207 - NO Spurious Emissions – Radiated <1000MHz: 15.209 Quasi Peak YES Spurious Emissions – Radiated >1000MHz: 15.209 15.249(a) Average YES Maximum Frequency of Search: 15.33 - YES Antenna Arrangements Integral: 15.203 - YES Antenna Arrangements External Connector: 15.204 - YES Restricted Bands 15.205 - YES Extrapolation Factor 15.31(f) - YES 2. Product Use: Leak Detection 3. Emission Designator: 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: bps 6. Temperatures: Ambient (Tnom) 8 o C 7. Supply Voltages: Vnom +9Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: RF335U iss03 RU1142/6217 Page 6 of 22 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 28 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 30%(<1GHz), 0.3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 0.3m [X] Supply voltage = +9Vdc Channel number = 1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 30MHz - 88MHz 88MHz - 216MHz 216MHz - 960MHz 960MHz - 1GHz 1GHz - 5GHz 1819.80 2730.00(R) 3639.58(R) 4550.00 43.09 40.26 40.06 34.09 0.85 0.99 0.87 1.50 26.9 29.8 31.8 32.7 70.84 71.05 72.73 68.29 -20 -20 -20 -20 348.34 356.86 433.01 259.71 500 500 500 500 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3 Extrapolation factor 20dB from 0.3m to 3m, as per Part 15.31f 4 Measurements >1GHz @ 0.3m as per Part 15.31f(1) 5 Receiver detector <1GHz = CISPR, Quasi-Peak, 120kHz bandwidth 6 Receiver detector >1GHz = Average, 1MHz resolution bandwidth 7 New batteries used for battery powered products. 8 (R) Indicates restricted bands, as per Part 15.205 9 Results not within 10 dB’s of limit are not necessar…
