APEX 1930 PCS Band Repeater User’s Manual Please read this manual before operating this product. After you finish reading this manual, store it in a safe place for future reference. TABLE OF CONTENTS 1. GENERAL .................................................................................................................................................... 1 1.1. N OTICE................................................................................................................................................... 1 1.2. S AFETY PRECAUTIONS............................................................................................................................. 2 1.3. V ERSION HISTORY................................................................................................................................... 3 1.3.1. Manual Version History List ........................................................................................................... 3 1.3.2. Firmware Version History List ........................................................................................................ 3 1.3.3. WEB GUI Version History List........................................................................................................ 3 1.4. G LOSSARY.............................................................................................................................................. 3 2. INTRODUCTION .......................................................................................................................................... 5 2.1. APEX1930................................................................................................................................................. 5 2.2. APEX1930 KEY FEATURES......................................................................................................................... 6 2.3. COMPONENTS............................................................................................................................................. 6 2.3.1. APEX1930 .......................................................................................................................................... 6 2.4. DESCRIPTION.............................................................................................................................................. 6 2.4.1. Overview............................................................................................................................................. 7 2.4.2. INTERNAL CONFIGURATION........................................................................................................................ 7 2.4.3. RFU (RF Unit)..................................................................................................................................... 8 2.4.4. Duplexer ............................................................................................................................................. 8 2.4.5. PSU (Power Supply Unit) ................................................................................................................... 9 2.4.6. MCU (Main Control Unit) .................................................................................................................... 9 3. MECHANICAL INSTALLATION ................................................................................................................ 10 3.1. MOUNTING................................................................................................................................................ 10 4. CABLE INSTALLATION.............................................................................................................................11 4.1. CABLE CONNECTION...................................................................................................................................11 4.2. POWER ON............................................................................................................................................... 12 4.3. GROUNDING.............................................................................................................................................. 13 5. GUI OPERATION ....................................................................................................................................... 13 5.1. GUI OPERATION FLOW CHART................................................................................................................... 14 5.2. INTERNET NETWORK SETUP....................................................................................................................... 14 5.2.1. Windows 7 ........................................................................................................................................ 14 5.3. GUI LOGIN................................................................................................................................................ 16 5.4. GUI NETWORK SETUP...............................................................................................................................16 5.4.1. Time Setting...................................................................................................................................... 16 5.4.2. Network Set-up................................................................................................................................. 17 5.4.3. User Note ......................................................................................................................................... 18 5.4.4. User Comment ................................................................................................................................. 18 5.5. GUI SYSTEM CONTROL............................................................................................................................. 18 5.5.1. SYSTEM CONTROL............................................................…

Text truncated - open the document above for the full version.

APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 18 (Default value is 20 minutes.) 5.4.3. User Note <User Note> • Location Information: Type the location information such as the building name, address, city, state, zip code and telephone, and then click Apply. • Donor Site Information: Type the base station’s ID, and then click Apply. • Installer Information: Type the installer information such as the company, name and telephone, Click Apply. 5.4.4. User Comment <User Comment> • User Comment: The user can store up to 50 comments in memory. The length of each comment is limited to 20 characters. 5.5. GUI System Control APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 19 5.5.1. System Control • Easy Setup is a fast start function. The function measures isolation, detects input level and assing gain to achieve maximum output power. The function ends with the repeater set to amplify siganals in both directions within the confines of the band selection. Before runing easy setup, set the center frequency and bandwidth (refer to 4.3.3 part 2). Maximum output power requires at least -71dBm input power and suficient antenna isolaiton. • Isolatoin Check can be executed at anytime to measure isolation between the donor and server antennas. Isolation Check momentarily disables service. Isolation check automatically runs when factory default is initiated. • Factory Default restores the amplifier to its initial state. The function ends with amplifiers off, AGC mode off, gain set to minimum(55dB) and UL gain offset set to 0dB. Band sellection and APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 20 all other system parameters are not changed. The featurs is usefull in claering abnormal conditions. • System Reset cycles the microporcessor unit. The function is similar to switching off/on the repeater power switch. 5.5.2. Operating Control • DL and UL Path Control allows the user to toggle on or off the power ampligiers. • DL and UL Gain is available when AGC mode is off. The user may enter gain values manually. Manual gain control is an alternative to autonatic gain control(AGC). Manual gain is disabled (grayed out) when AGC mode is on. Gain cannot be controlled manually above the available gain found on the status page. The system will not allow gain to be increased such that maximum output power(24dBm) is exceeded. • Gain Tracking sets UL gain equal to DL gain. The feature helos maintain forward and reverse link ballance. The function control is grayed out when AGC mode is on. • Automatic Gain Control : - In contrast to manual gain control, automatic gain control (AGC) sets gain such that the desired amplifier output level (dBm) is automatically set. - The user controls gain by adjusting the AGC level. The user may set the level from 0dBm to 24dBm. AGC can be used to control the signal level radiated from the server antennas. - AGC may also be user to match the repeater to a DAS (distributed antenna system). AGC level may be restricted by available gain and DL input power. • UL Gain offset is used in conjuction with AGC to reduce the amount of amplification in the reverse direction (uplink). In the cases UL offset is set to 0dB. • Automatic Shutdown (ASD): - ASD temporarily shuts down the amplifier if the ASD level is exeded. It is not necessary to turn off ASD. ASD events are stored in the alarm hostory log. Repeated ASD events will evenually shutdown the amplifier permanently and trigger the external shutdown lamp. - ASD Level is set to 27dBm by default. It is not necessary to change the default level. APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 21 5.5.3. Alarm Control • Alarm response time may be set between 1 and 5 minutes. • Alam Mask allows the user to customize the type of alarms sent to the SNMP server when remote monitoring is in use. 5.5.4. Band select • Band select sets the digital filter to the center frequency and bandwidth of the local service for which the repeater is intended to ampligy. Likewise, all other signals outside of the selected Center Frequency and Bandwidth are rejected. • The user can select one, two three distinct sections within the PCS band. Each of the 1st, 2nd and 3rd filter blocks can be set to 1MHz to 20MHz of Bandwidth. Only the downlink center frequency is set by the user. The uplink center frequency are automatically set in acordance with the downlink frequencies. • Filter Rejection allows the user to change the digital filter characteristics. Normal rejectrion is used for CDMA and EVDO service. High regection is used for LTE service. • Frequency information is available as a reference for seting the center frequency and band width (refer to section 7). 5.6. GUI System Control 5.6.1. Manual Setting [Recommended] 5.6.1.1. Auto Gain Control Setting Step 1. Isolation Check The Isolation will calculate the Available Maximum Gain which defines the maximum gain to be setup. Click Isolation APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 22 Step 2. Click OK. Step 3. When below pop-up appears after Isolation is completed, Click OK. Step 4. AGC must be turned on. AGC automatically assigns gain in accordance with AGC level. Use AGC level to increase or decrease gain. (Gain Offset is a gain differential between DL Output gain and UL output gain.) Ex>AGC Level 24dBm, Gain Offset -3dB → DL Output +24dBm, UL Output +21dBm AGC Level 24dBm, Gain Offset 0dB → DL Output +24dBm, UL Output +24dBm APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 23 Step 5. Turn on the DL and UL path controls. 5.6.1.2. Manual Gain setting When you want to set gain value not using Auto Gain control refer to the following. Step 1. For manual gain control AGC must be turned off. APEX1930 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766 24 Step 2. The user can select any gain value as long as it does over-drive the amplifier or exceed isolation requirements. Gain is automatically limited where conditions do not permit high gain. Select the DL and …

Text truncated - open the document above for the full version.

Gamma Nu, Inc. 452-1 Sanghyun-Dong, Yongin-City, Kyonggi-Do, 449-130 Korea, Tel : +82-31-266-7700 E-Mail: [email protected] Gamma Nu Europe AB Kungsholmsgatan 10, 3tr SE-112 27 Stockholm, Sweden, Tel : +46-8-652- 0040 E-Mail: [email protected] ACPS-1900-8 Indoor Directional Patch Antenna 회전 방지용 홀 추가 회전 방지용 M3 볼트 추가 -30 -20 -10 0 -90+90 180 Electrical Specification Mechanical Specifications Installation Radiation Pattern Frequency range 1850-1995MHz Polarization Vertical Gain 8dBi Horizontal beam width 70º Vertical beam width 65º VSWR ≤ 1.5 : 1 Impedance 50 Ohm Max. Power rating 5 W Dimension (L x W x H) 138 x 108 x 26 mm Weight (excl. Brackets) 0.25 kg Connector 1 x N- Female Mounting Wall Tilt Ver. 15º / Hor. 360º Horizontal Pattern Vertical Pattern www.gammanu.com Data subject to change. -30 -20 -10 0 -90+90 180

YG-1900-12 Yagi Antenna Electrical Specification Mechanical Specifications Installation Radiation Pattern Frequency range 1850-1995MHz Polarization Vertical Gain 12dBi Horizontal beam width 40º Vertical beam width 37º VSWR ≤ 1.5 : 1 Impedance 50 Ohm Front-to-back ratio ≥ 15dB Max. Power rating 10 W Dimension (L x W x H) 417 x 110 x 82 mm Shipping Dimension 450 x 180 x 88 mm Weight (excl. Brackets) 0.7 kg Connector 1 x N- Female Mounting Pole Horizontal Pattern Vertical Pattern www.gammanu.com Data subject to change.

R-tron, Inc. Date: March21, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Jin-Mo Yang, Engineering Manager of ESTECH Co., Ltd. and hereafter referred to as ESTECH, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jin-Mo Yang, Engineering Manager of ESTECH Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ESTECH as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, YONG HOON KANG / CTO R-tron, Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

R-tron, Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID:STE-APEX1930 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram / Block Diagram Operational description Tune up procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (please enter the product announcement date here): 45days Internal Photos / External Photos / Test setup photo / User manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards YONG HOON KANG / CTO R-tron, Inc. TEL: 82-2-6343-1023, FAX: 82-2-6343-1050

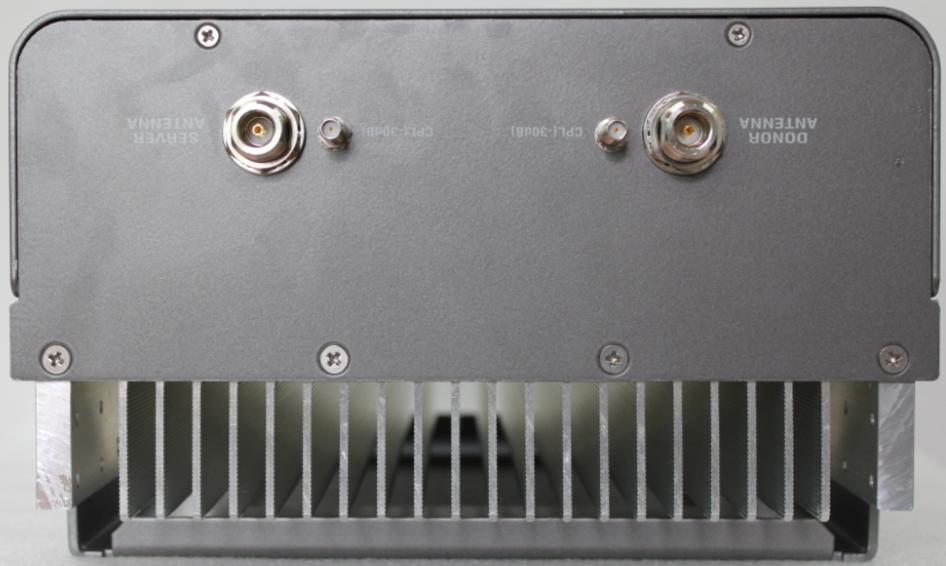

*Repeater* <Top View > < Bottom View > <Front View> <Rear view> <Left side view> <Right side view>

3. APEX1930 FCC 257mm (10.11 inch) 396mm (15.59 inch) 158.5mm (6.24 inch) MADE IN KOREA MAKER : R-tron lnc.SERIAL NO. / DATE :FCC ID : STE-APEX1930COMPLIES WITH PART 24 FCC RULES.POWER : 110 - 220Vac, 50/60HzPRODUCT PART NUMBER : APEX1930 152.4mm (6 inch) 203.2mm (8 inch) 250mm (9.84 inch) 254mm (10 inch) 4. APEX1930 명판 MADE IN KOREA MAKER : R-tron lnc.SERIAL NO. / DATE :FCC ID : STE-APEX1930COMPLIES WITH PART 24 FCC RULES.POWER : 110 - 220Vac, 50/60HzPRODUCT PART NUMBER : APEX1930

*RF Unit (RFU) * <RFU Top view> <RFU Bottom view> *MCU(Digital Board)* <MCU Top View> <MCU Bottom View> *NCU* <Top View> <Bottom View> <CPU B’D Top View> <CPU B’D Bottom View> *Duplexer* <Duplexer Donor> <Duplexer Service> *AC-DC PSU*

Product Name Model Name Applicant FCC ID ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT APEX1930 ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 Repeater STE-APEX1930 R-tron Inc. Report Number : ESTR1104-008EST-QP-20-01(0)1 of 49 FCC ID : STE-APEX1930 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ESTECH CO., LTD. http://www.estech.co.kr Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD FCC Test Report Applicant Product Report Number APEX1930 KOREA R-tron Inc. o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 24 SubpartE Tested by Approved by I.K. Hong/ Engineer (Signature) Tag-Sun Park/Engineering manager (Signature) Test Result Pass 2010-04-182010-03-15 ~ 2010-04-18Other ESTR1104-008 Jisan IT Venture Center 7F, 1004-9 Doksan-Dong, Gumcheon-Gu, Seoul, Korea Repeater NONE R-tron Inc. Report Number : ESTR1104-008EST-QP-20-01(0)2 of 49 FCC ID : STE-APEX1930 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 14 6. Spurious and Harmonic Emission at Antenna Terminal Page 22 7. Field Strength of Spurious Radiation Page 40 8. Frequency stability Page 50 Contents ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1104-008EST-QP-20-01(0)3 of 49 FCC ID : STE-APEX1930 1. General Information 1.1 EUT Description ESTECH CO., LTD. http://www.estech.co.kr FCC ID STE-APEX1930 Product Name Repeater APEX1924 Frequency Input: 110~240VAC 50~60Hz Power Rating Uplink 1851.25MHz ~ 1908.75MHz (PCS) Uplink&Downlink (25/600/1175) Uplink 1852.50MHz ~ 1907.50MHz (PCS for LTE) Downlink 1931.25MHz ~ 1988.75MHz (PCS) Channel Uplink&Downlink (50/600/1150) Downlink 1932.50MHz ~ 1987.50MHz (PCS for LTE) Model Name Report Number : ESTR1104-008EST-QP-20-01(0)4 of 49 FCC ID : STE-APEX1930 2. Laboratory Information 3. Summary of Test Results Result PASS PASS PASS PASS PASS PASS 2.1051 Field Strength of Spurious Radiation Frequency stability Modulation Characteristics2.1047 2.1055 2.1053 RF Output Power Occupied Bandwidth PASS Spurious and Harmonic Emission at Antenna Terminal ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.1 Laboratory Name 2.2 Location Estech Co., Ltd. 2.4 Major Accredited Mark Head Office EMC Lab(Ichon) EMC Lab(Yanggi) 2.3 Quality System 2.1049Band Edge Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Accredited by KOLAS(ISO/IEC 17025) 2.1046 2.1049 StandardTest Item Report Number : ESTR1104-008EST-QP-20-01(0)5 of 49 FCC ID : STE-APEX1930 4. RF Output Power 4.1 Test Procedure according to ANSI/TIA/EIA 603 Clause 2.2.17 4.2 Test Equipments The following test equipments are used during tests Next Cal. 2011-09-09 2012-02-24 2012-02-15 2012-02-24 4.3.1 Test Results (Uplink)-PCS Conducted power Low25 Mid.600 High1175 29.93 29.92 1851.2529.91 1880.00 1908.75 Ch No.Freq (MHz)Power Output (dBm) Signal GeneratorE4432B Equipment Spectrum Analyzer Manufacturer Spectrum AnalyzerAgilent HP ESTECH CO., LTD. http://www.estech.co.kr E4402B Vector Signal Generato r Model E4440AAgilent 1. The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. 2. The RF output port of the EUT was connected to the dual directional coupler and Wireless communications test set connected dual directional coupler The RF Power is measured Power matter This test was performed three channels (Low, High, Middle) 3. Test setup for RF Conducted measurement ROHDE&SCHWARZSMBV100A Report Number : ESTR1104-008EST-QP-20-01(0)6 of 49 FCC ID : STE-APEX1930 4.3.2 Test Results (Downlink)-PCS Low25 Mid600 High1175 4.3.3 Test Results (Uplink)-PCS FOR LTE Low50 Mid600 High1150 4.3.3 Test Results (Downlink)-PCS FOR LTE Low50 Mid600 High1150 29.97 Ch No. ESTECH CO., LTD. http://www.estech.co.kr Power Output (dBm) 29.92 Power Output (dBm) Ch No. Freq (MHz)Ch No. Freq (MHz) 1931.25 1988.75 1960.00 29.91 29.98 Freq (MHz) 29.95 1907.50 1960.00 29.90 1987.5029.90 1852.5029.88 1880.00 Power Output (dBm) 1932.50 29.93 Report Number : ESTR1104-008EST-QP-20-01(0)7 of 49 FCC ID : STE-APEX1930 4.4 Test Plot Uplink-PCS RF Power Output (25) RF Power Output (600) RF Power Output (1175) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1104-008EST-QP-20-01(0)8 of 49 FCC ID : STE-APEX1930 Downlink-PCS RF Power Output (25) RF Power Output (600) RF Power Output (1175) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1104-008EST-QP-20-01(0)9 of 49 FCC ID : STE-APEX1930 Input Signal Output Power Uplink Ch PCS(600) Downlink Ch PCS(600) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1104-008EST-QP-20-01(0)10 of 49 FCC ID : STE-APEX1930 4.4 Test Plot Uplink-PCS for LTE RF Power Output (50) RF Power Output (600) RF Power Output (1150) ESTECH …

Text truncated - open the document above for the full version.

FCC ID : STE-APEX1930 EUT Test Photographs PCS/LTE-UP PCS/LTE-DOWN ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1104-008EST-QP-20-01(0)1 of 1
