STE-APEX730LTE Band Repeater

APEX730 LTE Band Repeater User’s Manual Please read this manual before operating this product. After you finish reading this manual, store it in a safe place for future reference. TABLE OF CONTENTS 1. GENERAL...........................................................................................................................................................1 1.1 N OTICE.............................................................................................................................................................................................1 1.2 S AFETY PRECAUTIONS...................................................................................................................................................................2 1.3 V ERSION HISTORY..........................................................................................................................................................................3 1.3.1 Manual Version History List .................................................................................................................................................3 1.3.2 Firmware Version History List .............................................................................................................................................3 1.3.3 WEB GUI Version History List .............................................................................................................................................3 1.4 G LOSSARY.......................................................................................................................................................................................4 2. INTRODUCTION...............................................................................................................................................5 2.1 APEX730........................................................................................................................................................................................5 2.2 APEX730 KEY FEATURES............................................................................................................................................................5 2.3 C OMPONENT....................................................................................................................................................................................6 2.3.1 APEX730 ..................................................................................................................................................................................6 2.4 D ESCRIPTION...................................................................................................................................................................................7 2.4.1 Overview ...................................................................................................................................................................................7 2.4.2 I NTERNAL CONFIGURATION.................................................................................................................................................8 2.4.3 RFU (RF Unit) .........................................................................................................................................................................8 2.4.4 Duplexer ...................................................................................................................................................................................8 2.4.5 PSU (Power Supply Unit) ......................................................................................................................................................8 2.4.6 NCU (Network Control Unit) ...............................................................................................................................................8 3. MECHANICAL INSTALLATION......................................................................................................................9 3.1 C ONFIRM ITEM FROM LIST............................................................................................................................................................9 3.2 M OUNTING.......................................................................................................................................................................................9 3.3 G ROUNDING.................................................................................................................................................................................12 3.4 RF CABLE CONNECTION............................................................................................................................................................12 3.5 P OWER ON....................................................................................................................................................................................13 4. GUI OPERATION.............................................................................................................................................13 4.1 GUI OPERATION FLOW CHART.................................................................................................................................................14 4.2 I NTERNET NETWORK SETUP......................................................................................................................................................15 4.2.1 Windows 7 (Refer to 5.9 for other versions of Windows) ........................................................................................15 4.3 S YSTEM LOGIN.............................................................................................................................................................................16 4.4 S YSTEM SETUP.............................................................................................…

Text truncated - open the document above for the full version.

R-tron, Inc. Date: September 14, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Jin-Mo Yang,Engineering Manager of ESTECH Co., Ltd. and hereafter referred to as ESTECH, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jin-Mo Yang,Engineering Manager of ESTECH Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ESTECH as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, YONG HOON KANG / CTO R-tron, Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

R-tron, Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: STE-APEX730 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram / Block Diagram Operational description Tune up procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until :180days. Int ernal Photos / External Photos / Test setup photo / User manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards YONG HOON KANG / CTO R-tron, Inc. TEL: 82-2-6343-1050, FAX: 82-2-6343-1050

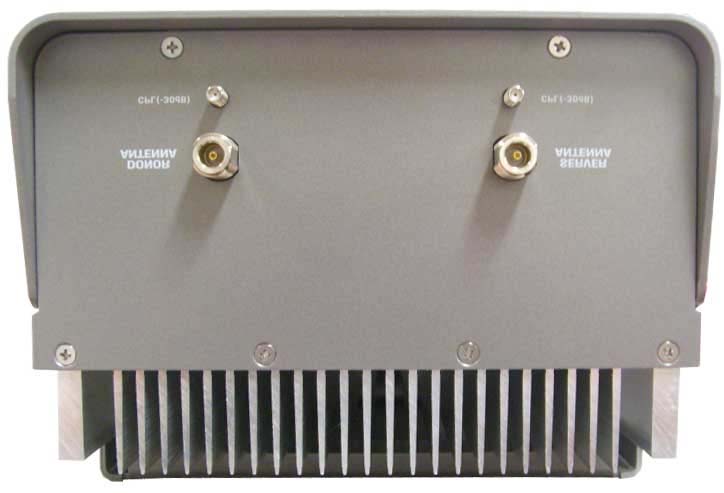

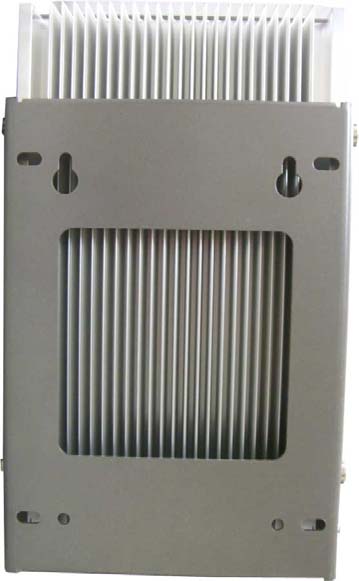

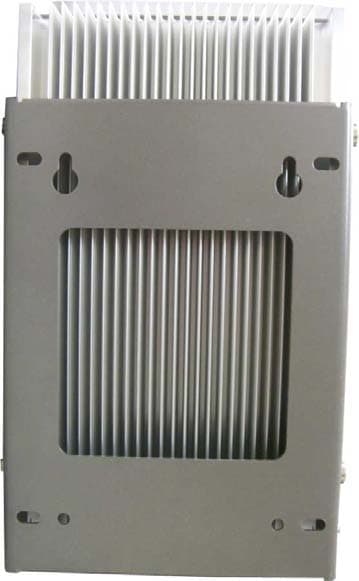

APEX730 EUT-Photograph *Repeater* <Top View > < Bottom View > <Front View> <Rear view> <Left side view> <Right side view>

Label_APEX730 I.T.E 31CY E258109 PRODUCT PART NUMBER : APEX730POWER : 100 - 240Vac, 50/60Hz, 2ACOMPLIES WITH PART 27 FCC RULES.FCC ID : STE-APEX730SERIAL NO. / DATE :MAKER : R-tron lnc. MADE IN KOREA R I.T.E 31CY E258109 PRODUCT PART NUMBER : APEX730POWER : 100 - 240Vac, 50/60Hz, 2ACOMPLIES WITH PART 27 FCC RULES.FCC ID : STE-APEX730SERIAL NO. / DATE :MAKER : R-tron lnc. MADE IN KOREA R

APEX730 EUT-Photograph < The Inside of the Repeater > *RF Unit (RFU) * <RFU Top view> <RFU Bottom view> *MCU(Digital Board)* <MCU Top View> <MCU Bottom View> *NCU* <Top View> <Bottom View> <LED B’D Top View> <LED B’D Bottom View> *Duplexer* <Duplexer Donor / Service> *AC-DC PSU*

RF Exposure Measurement 1. Introduction The maximum Gain measured in Fully Anechoic Chamber is 0.85dBi or 1.22 (numeric). 2. Classification MODE: LTE 3. RF Exposure Limit Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 1.63 * (100) 6 4.89/f * (900/f 2 ) 6 0.1631.06 F/3006 56 Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 1.63 * (100) 30 2.19/f * (180/f 2 ) 30 0.0730.230 -F/150030 -1.030 F = Frequency in MHz 0.3 - 3.0 300 - 1500 1500 - 100,000 614 3.0 - 30 30 - 300 1842/f 61.4 Because this deivce is transmitting the high power signal, it is regarded specially as a dangerous band for its heating harmfulness to the human body. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, Page 1 of 3 The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user's manual. So, this product is classified as the Mobile Device. According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) - Class A Frequency Range (MHz) 1500 - 100,000 614 - Electric Field Strength (V/m) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) - Class B - Frequency Range (MHz) Electric Field Strength (V/m) 0.3 - 1.34 300 - 1500 1.34 - 30 30 - 300 824/f 27.5 4. Friis Formula Friis transmission formula : P d = (P out *G) / (4*π*r 2 ) The maximum Gain measured in Fully Anechoic Chamber is 0.85dBi or 1.22 (numeric). P out = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 MODE: LTE Page 2 of 3 The software provided by Manufacturer enabled the EUT to transmit with max power at lowest, middle and highest channel individually. Pd is the limit of MPE, 1mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0.85dBi or 1.22 (numeric). 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: MODE: Uplink Band Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) A701.001011.580.171060.5 B 707.001020.940.172640.5 C(L)713.001016.250.171850.5 C(U)782.001018.590.172250.5 MODE: (Down Link) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) A731.001000.000.169100.5 B 737.001000.930.169260.5 C(L)743.001000.230.169140.5 C(U)751.001025.7000.173450.5 Page 3 of 3 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human beign under normal use condition.

Product Name Model Name Applicant FCC ID APEX730 STE-APEX730 R-tron Inc. ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT Repeater Report Number : ESTR1108-006EST-QP-20-01(0)1 of 40 FCC ID : STE-APEX730 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ESTR1108-006 Jisan IT Venture Center 7F, 1004-9 Doksan-Dong, Gumcheon-Gu, Seoul, Korea Repeater NONE R-tron Inc. Test Result Pass 2011-08-162011-08-01 ~ 2011-08-16Other o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 27 Tested by Approved by I.K. Hong/ Engineer (Signature) Tag-Sun Park/Engineering manager (Signature) ESTECH CO., LTD. http://www.estech.co.kr Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD FCC Test Report Applicant Product Report Number APEX730 KOREA R-tron Inc. Report Number : ESTR1108-006EST-QP-20-01(0)2 of 40 FCC ID : STE-APEX730 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 11 6. Spurious and Harmonic Emission at Antenna Terminal Page 16 7. Field Strength of Spurious Radiation Page 29 8. Frequency stability Page 33 Appendix 1 : RF Exposure Measurement Contents ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1108-006EST-QP-20-01(0)3 of 40 FCC ID : STE-APEX730 1. General Information 1.1 EUT Description Input: 110~240VAC 50~60Hz Power Rating Downlink BW(10MHz) 746MHz ~ 757MHz Frequency Uplink BW(10MHz) 776MHz ~ 787MHz Downlink BW(5MHz) 728MHz ~ 746MHz Model Name APEX730 Uplink BW(5MHz) 698MHz ~ 716MHz ESTECH CO., LTD. http://www.estech.co.kr FCC ID STE-APEX730 Product Name Repeater A B A N D C Band C Band BB A N D A B A N D BB A N D CB A N D CB A N D A B A N D C Band C Band BB A N D A B A N D BB A N D CB A N D CB A N D Report Number : ESTR1108-006EST-QP-20-01(0)4 of 40 FCC ID : STE-APEX730 2. Laboratory Information 3. Summary of Test Results Result PASS PASS PASS PASS 2.3 Quality System Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Accredited by KOLAS(ISO/IEC 17025) Head Office StandardTest Item 2.4 Major Accredited Mark EMC Lab(Ichon) EMC Lab(Yanggi) ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.1 Laboratory Name 2.2 Location Estech Co., Ltd. RF Output Power Occupied Bandwidth 2.1046 & 27.50 2.1049 27.53(c) & 27.53(f) & 27.53(g) PASS Field Strength of Spurious Radiation Frequency stability27.54 27.53(c) & 27.53(f) & 27.53(g) Band Edge / Spurious and Harmonic Emission at Antenna Terminal Report Number : ESTR1108-006EST-QP-20-01(0)5 of 40 FCC ID : STE-APEX730 4. RF Output Power 4.1 Test Procedure according to ANSI/TIA/EIA 603 Clause 2.2.17 4.2 Test Equipments The following test equipments are used during tests Next Cal. 2012-09-05 2012-02-24 2012-02-15 2012-02-24 4.3.1 Test Results (Uplink)-BW5MHz Conducted power * (L)=Lower 700MHz band) ESTECH CO., LTD. http://www.estech.co.kr E4402B Vector Signal Generato r Model E4440AAgilent EquipmentManufacturer ROHDE&SCHWARZ 1. The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. 2. The RF output port of the EUT was connected to the S/A This test was performed three channels (Low, High, Middle) 3. Test setup for RF Conducted measurement Freq (MHz) Signal Generator Spectrum Analyzer SMBV100A Power Output (dBm) E4432BHP B C(L) Spectrum AnalyzerAgilent Block A 30.09 30.07 701.0030.05 707.00 713.00 Report Number : ESTR1108-006EST-QP-20-01(0)6 of 40 FCC ID : STE-APEX730 4.3.2 Test Results (Downlink)-BW5MHz * (L)=Lower 700MHz band) 4.3.3 Test Results (Uplink)-BW10MHz * (U)=Upper 700MHz band) 4.3.4 Test Results (Downlink)-BW10MHz * (U)=Upper 700MHz band) 782.0030.08 Power Output (dBm) 30.00 743.00 Freq (MHz) 30.11 ESTECH CO., LTD. http://www.estech.co.kr Power Output (dBm) 30.01 Power Output (dBm)Freq (MHz) 30.04 731.00 737.00 Block 751.00 C(U) Freq (MHz) Block C(U) Block A B C(L) Report Number : ESTR1108-006EST-QP-20-01(0)7 of 40 FCC ID : STE-APEX730 4.4 Test Plot Uplink-BW5MHz RF Power Output (701MHz) RF Power Output (707MHz) RF Power Output (713MHz) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1108-006EST-QP-20-01(0)8 of 40 FCC ID : STE-APEX730 Downlink-BW5MHz RF Power Output (731MHZ) RF Power Output (737MH) RF Power Output (743MHz) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1108-006EST-QP-20-01(0)9 of 40 FCC ID : STE-APEX730 Uplink-BW10MHz RF Power Output (782MHz) Downlink-BW10MHz RF Power Output (751MHz) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1108-006EST-QP-20-01(0)10 of 40 FCC ID : STE-APEX730 5. Occupied Bandwidth 5.1 Test Procedure 5.2 Test Equipments The following test equipments are used during tests Next Cal. 2012-09-05 2012-02-24 2012-02-15 2012-02-24 5…

Text truncated - open the document above for the full version.

Product Name Model Name APEX730 ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT Repeater Report Number : ESTR1108-006EST-QP-20-01(0)1 of 52 Applicant FCC ID STE-APEX730 ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 R-tron Inc. Report Number : ESTR1108-006EST-QP-20-01(0)1 of 52 FCC ID : STE-APEX730 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ESTR1108-006 Jisan IT Venture Center 7F, 1004-9 Doksan-Dong, Gumcheon-Gu, Seoul, Korea Repeater NONE R-tron Inc. Test Result Pass 2011-08-162011-08-01 ~ 2011-08-16Other ESTECH CO., LTD. http://www.estech.co.kr FCC Test Report Applicant Product Report Number APEX730 KOREA R-tron Inc. Report Number : ESTR1108-006EST-QP-20-01(0)2 of 52 o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 27 Tested by Approved by I.K. Hong/ Engineer (Signature) Tag-Sun Park/Engineering manager (Signature) Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD Report Number : ESTR1108-006EST-QP-20-01(0)2 of 52 FCC ID : STE-APEX730 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 15 6. Spurious and Harmonic Emission at Antenna Terminal Page 20 7. Field Strength of Spurious Radiation Page 40 8. Frequency stability Page 44 Contents ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR1108-006EST-QP-20-01(0)3 of 52 Appendix 1 : RF Exposure Measurement Report Number : ESTR1108-006EST-QP-20-01(0)3 of 52 FCC ID : STE-APEX730 1. General Information 1.1 EUT Description ESTECH CO., LTD. http://www.estech.co.kr FCC ID STE-APEX730 Product Name Repeater Input: 110~240VAC 50~60Hz Power Rating Model Name APEX730 Uplink BW(5MHz) 698MHz ~ 716MHz Downlink BW(10MHz) 746MHz ~ 757MHz Frequency Uplink BW(10MHz) 776MHz ~ 787MHz Downlink BW(5MHz) 728MHz ~ 746MHz Report Number : ESTR1108-006EST-QP-20-01(0)4 of 52 A B A N D C Band C Band BB A N D A B A N D BB A N D CB A N D CB A N D A B A N D C Band C Band BB A N D A B A N D BB A N D CB A N D CB A N D Report Number : ESTR1108-006EST-QP-20-01(0)4 of 52 FCC ID : STE-APEX730 2. Laboratory Information 3. Summary of Test Results Result StandardTest Item 2.4 Major Accredited Mark 2.3 Quality System Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.1 Laboratory Name 2.2 Location Estech Co., Ltd. PASS PASS PASS PASS RF Output Power Occupied Bandwidth 2.1046 & 27.50 2.1049 27.53(c) & 27.53(f) & 27.53(g) PASS Field Strength of Spurious Radiation Frequency stability27.54 27.53(c) & 27.53(f) & 27.53(g) Band Edge / Spurious and Harmonic Emission at Antenna Terminal Report Number : ESTR1108-006EST-QP-20-01(0)5 of 52 FCC ID : STE-APEX730 4. RF Output Power 4.1 Test Procedure according to ANSI/TIA/EIA 603 Clause 2.2.17 ESTECH CO., LTD. http://www.estech.co.kr 1. The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. 2. The RF output port of the EUT was connected to the S/A This test was performed three channels (Low, High, Middle) 3. Test setup for RF Conducted measurement Report Number : ESTR1108-006EST-QP-20-01(0)6 of 52 4.2 Test Equipments The following test equipments are used during tests Next Cal. 2012-09-05 2012-02-24 2012-02-15 2012-02-24 4.3.1 Test Results (Uplink)-BW5MHz Conducted power * (L)=Lower 700MHz band) E4402B Vector Signal Generato r Model E4440AAgilent EquipmentManufacturer ROHDE&SCHWARZ Freq (MHz) Signal Generator Spectrum Analyzer SMBV100A Power Output (dBm) E4432BHP B C(L) Spectrum AnalyzerAgilent Block A 30.09 30.07 701.0030.05 707.00 713.00 Report Number : ESTR1108-006EST-QP-20-01(0)6 of 52 FCC ID : STE-APEX730 4.3.2 Test Results (Downlink)-BW5MHz * (L)=Lower 700MHz band) 4.3.3 Test Results (Uplink)-BW10MHz * (U)=Upper 700MHz band) 30.00 743.00 782.0030.08 ESTECH CO., LTD. http://www.estech.co.kr Power Output (dBm) 30.01 Power Output (dBm)Freq (MHz) 30.04 731.00 737.00 Block Block A B C(L) C(U) Freq (MHz) Report Number : ESTR1108-006EST-QP-20-01(0)7 of 52 * (U)=Upper 700MHz band) 4.3.4 Test Results (Downlink)-BW10MHz * (U)=Upper 700MHz band) Freq (MHz)Power Output (dBm) 30.11751.00 Block C(U) Report Number : ESTR1108-006EST-QP-20-01(0)7 of 52 FCC ID : STE-APEX730 Multiple signals Test Results (Uplink)-BW5MHz Test Results (Downlink)-BW5MHz ESTECH CO., LTD. http://www.estech.co.kr BlockFreq (MHz)Power Output (dBm) BlockFreq (MHz)Power Output (dBm) A701.00 A731.0031.01 30.02 B707.0030.20 C(L)713.0030.19 B737.0030.92 Report Number : ESTR1108-006EST-QP-20-01(0)8 of 52 * (L)=Lower 700MHz band) Test Results (Uplink)-BW10MHz * (U)=Upper 700MHz band) Test Results (Downlink)-BW10MHz * (U)=Upper 700MHz band) C(L)743.003…

Text truncated - open the document above for the full version.
