STFBS12Magic Cube Bluetooth Speaker

BS12 Bluetooth Speaker User Instruction ·Name˖ Magic Cube ·Model No.˖ BS12 ·Bluetooth searching name˖ magic cube ·BT version˖3.0 ·Battery inside: 800MAHˈCharging time: 1.5HˈPlaying time: 4-6 HDŽ ·Standby time˖100H ·Talking time˖4-6H ·5W Speaker with powerful sound quality ·Distortion: ̆1% ·˳ith LINE IN to connect to mp3 or other audio device ·With micro phone to talkDŽ ·Power˖ 5V ·Dimmension˖90*90*90mm ˖Volume increase ˖Volume less ˖Press 2s to power one. Auctomatically connect to the last connected device. ˖Press 2S to search bt device ˖Press to pick up the phone, press 2s to close phone call or reject the phonecall. Press 2 times to redial the last no. LED indicator˖ After power on, it will automatically connect the last device, blue led flash. If failed to connect or no connect, will go to paring mode and blue led flash fast. The BT speaker will sleep after 2 minutes no connection. AUX is in priority. After line in to other device, the volume is MAX, and no Bluetooth work. User can adjust the volume of audio device. During charging, red led is on and greed led on after fully charged. Package includes: Magic Cube Speaker, Minu USB cable to charge, 3.5mm Audio Line. BS-12 Bluetooth Speaker FCC Warning Statement Changes or modifications not expressly approved by the party responsible for complianc e could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital d evice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turnin g the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ϋ Reorient or relocate the receiving antenna. ϋIncrease the separation between the equipment and receiver. ϋ Connect the equipment into an outlet on a circuit different from that to which the receiv er is connected. ϋ Consult the dealer or an experienced radio/TV technician for help. compliance BS12

DATE : Nov 11, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: STFBS12 Product Name: Magic Cube Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Nov 11, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Nixon Wu Signature Printed Title: Chief Operations Officer On behalf of : Dream Link Limited Telephone: 852 2515 0832

Statement We Dream Link Limited Hereby Declare that The product Magic Cube Bluetooth Speaker, models no. BS12, MI-SPB70-101, MI-SPB70-651 are all identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Yours sincerely, Dated this Nov 11, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Nixon Wu Signature Printed Title: Chief Operations Officer On behalf of : Dream Link Limited Telephone: 852 2515 0832

00001

Mark Location: FCC ID Label Location

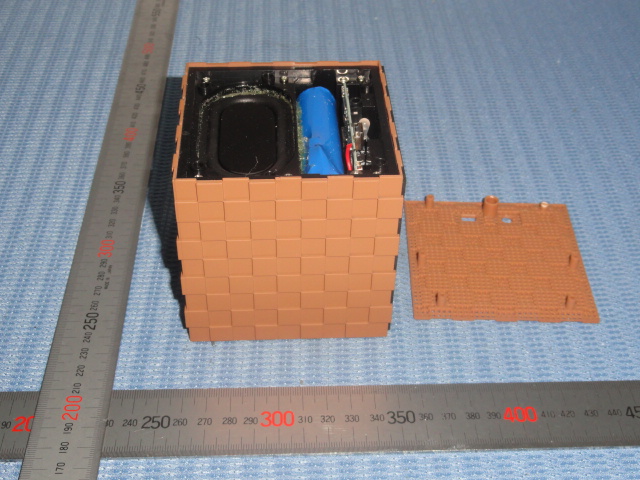

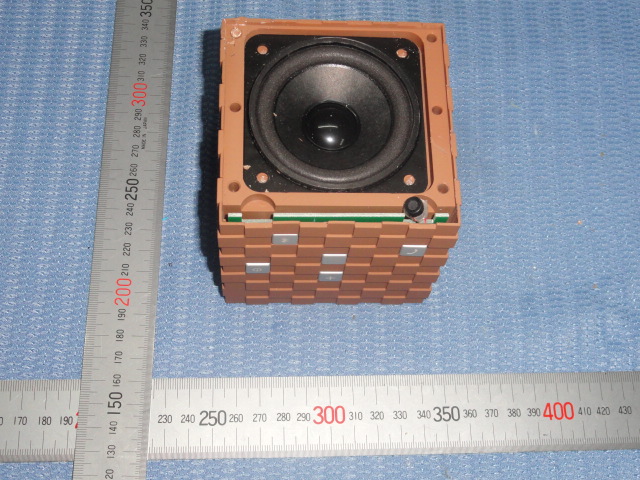

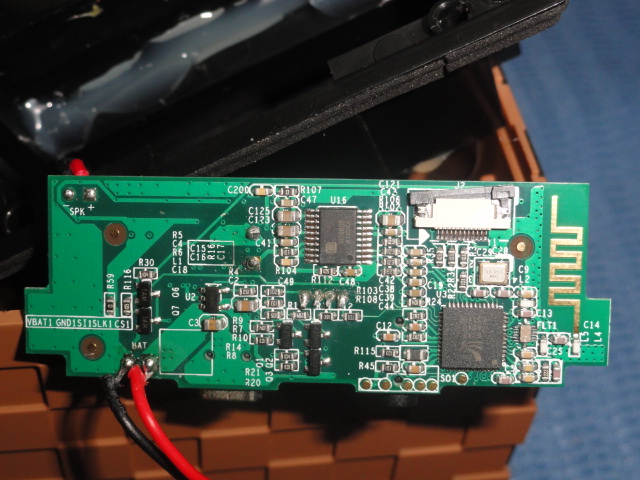

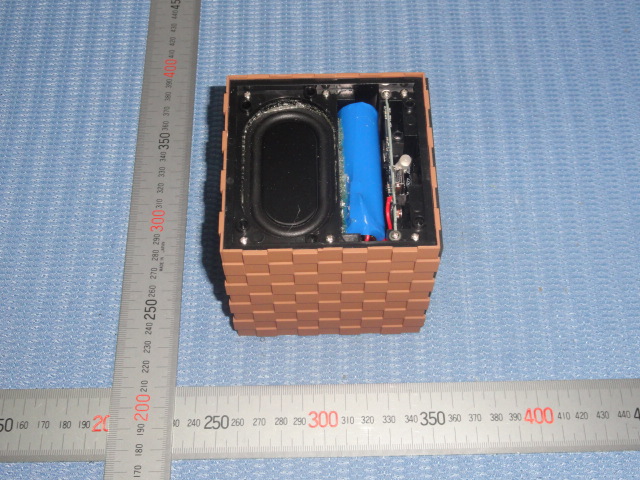

Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): Bluetooth Mode: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =1.15/5 * 1.57= 0.36, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

ISO/IEC17025Accredited Lab. Report No: FCC 1310139 File reference No: 2013-11-04 Applicant: Dream Link Limited Product: Magic Cube Bluetooth Speaker Model No: BS12, MI-SPB70-101, MI-SPB70-651 Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: November 04, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1310139 Page 2 of 81 Date: 2013-11-04 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: 1310139 Page 3 of 81 Date: 2013-11-04 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.........................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
