STQAPL00AirPlay for the iPoD Shuffle

Model: FM-228/IPS-APL-00 Description: FM Transmitter Date: 8.April.2005 Introduction FM-228/IPS-APL-00 is a stereo audio signal transmitter over FM band. It works as a slave device of iPod Shuffle and controlled by the signal command from iPod Shuffle through UART interface. It operates in either one of the two frequency bands. The two bands are hardware programmable by factory jumper setting of open and short. One is 88.1 to 107.9 MHz for U.S. The other one is 76.1 to 89.9MHz for Japan. Both are in the step of 100 kHz. Features a. A LCD displays 4 digits in 7-segment format with one decimal place. Digits show the transmission frequency in the unit of MHz. b. Two buttons to adjust the transmission frequency. c. Three buttons to memory transmission channel. d. An automobile power rates 12-24 Volts and 500mA whose is from the external device.（Sealed lead-acid batteries. e. Stereo analog audio input is from external device. f. The operation mode of FM-228/IPS-APL-00 is controlled by external device. Appearance Figure 2 Figure 1 Operation The default frequencies are 88.1 to 107.9 MHz for US . The front of FM-228/IPS-APL-00 has the said LCD and five control buttons. The LCD shows the transmission frequency in MHz with one decimal place and the display will switch off automatically for power saving purpose after no further key operation in 1sec. One of the control button symbolic “ — “ has the function of tuning the transmission frequency downward in 200KHz step. Another control button marked “＋” tunes the frequency upward in 200KHz. Another control button marked “1” “2” or “3” preset memory control button. Preset the memory buttons “1” “2” or “3”. will pressing the two buttons “＋” or “ — ” step the transmission frequency any channel purpose after Holding “1” or “2” or “3” for 2sec the LCD show one flash read-in memory channel complete . Should FM-228/IPS-APL-00 unit plug-in iPod shuffle pressing the play button the volume should be set up to 50% after 2sec pressing the “1” or “2” or “3” button read the memory frequency channel. Pressing the two buttons “＋” or “—” step the transmission frequency up or down respectively. Holding down the two buttons “＋” or “ — ” for 1.5sec will accelerate the stepping frequency. For accelerate activation in 30sec. FM-228/IPS-APL-00 will turn on and start transmission for receiving the “Begin Transmission” command through UART interface or receiving audio signal through the audio plug for 1sec. System will turn off automatically for receiving the “End Transmission” command though UART interface or not receiving audio signal for 60sec. LCD of FM-228/IPS-APL-00 will only be activated and turn on either system is plugged into car's power 12Vdc or one of the control buttons is pressed. LCD will turn off automatically for no further activation in 8sec.

Helen Zhao Subject: FW: FW: Xtreme Accessories, LLC., FCC ID: STQAPL00, Assessment NO.: AN05T473... 4/26/2005 -----Original Message----- From: Weili Sent: Tuesday, April 26, 2005 1:31 PM To: Helen Zhao Subject: Re: FW: Xtreme Accessories, LLC., FCC ID: STQAPL00, Assessment NO.: AN05T473... Hi, Helen. Here are the revised report upon your request. Also along with the revised manual. Thanks a lot. Regards, Wei -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Monday, April 25, 2005 3:42 PM To: Helen Zhao Subject: Xtreme Accessories, LLC., FCC ID: STQAPL00, Assessment NO.: AN05T4732, Notice#1 Question #1: This device operates at frequency 88-108MHz, based upon ANSI C63.4, you need to report test data at L, M, H channel, choosing to report worst data is not acceptable. Please add radiated fundamental and spurious emission test data at L, M channnel, and bandedge plot at middle channel into the test report. Question #2: The limit for 215.8MHz in the radiated test table is incorrectl. Please revise. Question #3 : The report indicates that "The audio input was set to max. level during the test." Please advise how you did it and where the volumn control locates, on iPod Shuffle, or on the EUT. Question #4 : The user manual does not contain FCC 15.21 user information. Please revise the user manual. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

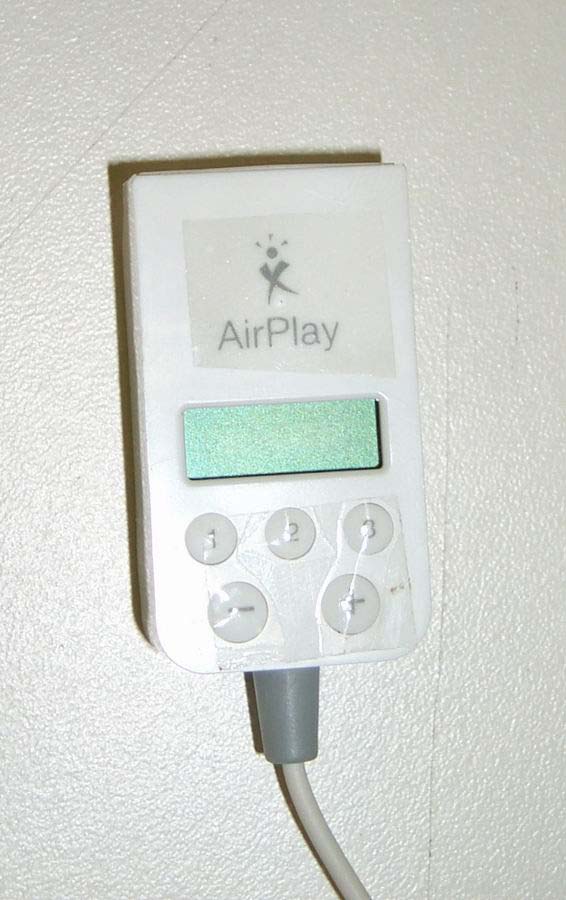

FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 19 Front View FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 20 Rear View

FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.2 Location of Label on the Side of EUT Figure 2.1 FCC ID Label Figure 2.2 FCC ID Label Location FCC ID: STQAPL00 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Label

Description The ID appearance of FM-228/IPS-APL-00 shown in Figure 1 and 2. The functional block diagram of FM-228/IPS-APL-00 is depicted in Figure 3. And the schematic is shown in Figure 4. The first stage is the transmitter plug-in iPod Shuffle and is tuned with the selected frequency. ID appearance The front of FM-228/IPS-APL-00 has the said LCD and five control buttons. The LCD shows the transmission frequency in MHz with one decimal place and the display will switch off automatically for power saving purpose after no further key operation in 1sec. One of the control button symbolic “—“ has the function of tuning the transmission frequency downward in 200KHz step. Another control button marked “ ＋ ” tunes the frequency upward in 200KHz. Another control button marked “1” “2” or “3” preset memory control button. At the top side of FM-228/IPS-APL-00, there are USB connector plug to iPod Shuffle USB connector. The audio from iPod Shuffle is the audio signal input connector. On the top of FM-228/IPS-APL-00, a customer logo is silk-screen printed. A brief product description is printed on the rear side of FM-228/IPS-APL-00. Block diagram In the block diagram, there are totally six functional blocks, (1) Power management; (2) RF transmission; (3) Micro-controller unit; (4) Input device and interface; (5) Output device; (6) Memory. Schematic The key components of power management have HT7544-1 and MMBT3906. BH1415F is the key chips of RF transmission. YT908-FM228(NT6612A or TM8708) is the essential part of FM-228/IPS-APL-00 as the centralized control block. The dedicated firmware is resident inside the ROM part of the micro-controller. The control buttons are the input device. The interface is the audio signal input and the UART interface. The output device is LCD panel and the display backlight. HT2201 works as the memory of FM-228/IPS-APL-00. It stores the transmission frequency and provides the last transmission frequency.

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of AIRPLAY FOR IPOD SHUFFLE MODEL: IPS-APL-00 FCC ID: STQAPL00 April 21, 2005 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: Xtreme Accessories LLC. Report prepared by: Advanced Compliance Lab Report number: 0048-050418-01 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Lab FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .........................................................................................................1 Table of Contents ...........................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION ...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility ..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION ......................................................................9 3.1 Justification ..................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System .................................................................9 4. SYSTEM SCHEMATICS .........................................................................................12 5. RADIATED EMISSION DATA ...............................................................................13 5.1 Field Strength Calculation ..........................................................................13 5.2 Test Methods and Conditions .....................................................................13 5.3 Test Data .......................................................................................................14 5.4 Occupied Bandwidth ...................................................................................17 6. PHOTOS OF TESTED EUT ....................................................................................19 FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT ......................................................8 Figure 3.1 Radiated Test Setup, Position X.................................................................10 Figure 3.2 Radiated Test Setup, Position Y.................................................................10 Figure 3.3 Radiated Test Setup, Position Z .................................................................11 Figure 4.1 EUT Schematics ...........................................................................................12 Figure 5.1 Bandwidth Plot ............................................................................................18 Figure 6.1 Front View....................................................................................................20 Figure 6.2 Rear View .....................................................................................................21 Figure 6.3 Inside View, Cover Opened ........................................................................22 Figure 6.4 Component Side ...........................................................................................23 Figure 6.5 Foil Side ........................................................................................................24 Figure 6.6 DC Car Lighter ............................................................................................25 FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: AIRPLAY FOR IPOD SHUFFLE Model: IPS-APL-00 Applicant: Xtreme Accessories LLC. 15751 SW 41 Street, #100 Fort Lauderdale FL 33331 Test Type: FCC Part 15C CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LABORATORY Test Date: April 21, 2005 Report Number: 0048-050418-01 The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15 subpart C. This said equipment in the configuration described in th…

Text truncated - open the document above for the full version.

FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Test Setup-Position X Figure 3.2 Radiated Test Setup-Position Y FCC ID: STQAPL00 Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.3 Radiated Test Setup-Position Z
