SU7295SEPC2KCENTRY REMOTE CONTROL

CONTENTS 1A - General information 1B - Technical specifications 1C - Main components 1 - TRANSMITTER OVERVIEW 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS 1B - Technical specifications Operating frequency295 MHz Number of keys:2 Battery :2 x 3V lithium batteries CR2016 Battery life:18 ÷ 24 months Number combinations :16,777,216 Protocol :AUTOkey compatible Operating temperature: -20°F÷+131°F (-20°C÷+55°C) Overall dimensions:2.4”x1.4”x0.51” (61x36x13 mm) Weight:0.49 oz. (14 gr.) 1C - Main components Tri-colour LED Key holder ring Light grey push-buttons 6 - TROUBLESHOOTING 295SEPA2KC MONARCH Dark grey case Fig. 2 1A - General information The Community Controls - Monarch 295SEPA2K transmitter is a key chain style 2 buttons mini transmitter operating at 295 MHz. It has been designed for use with programmable telephone entry, security, and access control systems operating with a 295 MHz frequency receiver. The protocol is AUTOkey compatible and the code sent by the transmitter includes a 24 bit security code which allows up to 16,777,216 code combinations. The Community Controls - 295R receiver which operates with this transmitter has a Wiegand 33 bit and can operate any type of access control system equipped with the same protocol. The CR 2016 lithium batteries of the transmitter have a shelf life of about 6 months. The product fully complies with Part 15 of FCC Regulations and the European Directives 99/5/CE, 89/336/CEE, 73/23/CEE. Manual with Patented TM ChargeGuard Circuit Patent Pending Community Controls Thank you for choosing a Community Controls product . Please read this manual carefully before using the product. Made in Italy. Copyright © 2004 by Community Controls IS-TM22ACCUK Rev. 0 del 05.03.2013 The warranty period of Community Controls 295 transmitters is 24 months, beginning from the manufacturing date of the transmitter. During this period, if the product does operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of Community Controls. The warranty does not extend to the transmitter case which can be damaged by conditions outside the control of Community Controls or to battery life. WARRANTY This device complies with FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 15 of the Notice Any changes or modification to equipment not expressly approved by could void the manufacturer’s warranty. Community Controls Community Controls 2 - NUMBERING To access the battery open the case with a screwdriver acting on the slot between the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b. Slide out the old batteries and replace them with the new ones [CR2016] respecting the polarity, with the positive (+) side upward. NOTE: Please dispose of the batteries properly according to local laws and regulations. Test proper battery installation by verifying that the LED illuminates when the button is pushed. 5 - BATTERY ACCESS 3 - PROGRAMMING Each transmitter is manufactured and sold with a different factory-set serial number . The transmitter must be programmed into your system memory. Your own installer or reseller will provide you the necessary instructions for your system. 4 - OPERATION A - Firmly depress the button until the small red LED illuminates. B - After the LED has illuminated, release the button. If the device you are attempting to activate does not respond, repeat steps A and B or consult section 7 ( Troubleshooting ) of this manual. Fig. 3a Fig. 3b 6 - BATTERY STATUS Led GREENNormal level~6000 pulses [*] - Normal range Led ORANGEAttention levelMax 300 pulses - Low range[*] Led REDLow levelReplace battery - No range Led color Battery level TX Status The system does not receive the transmitter signal. The transmitter LED is ON Check to verify the transmitter is programmed into your system PROBLEM SOLUTION The operating range is reduced Replace the transmitter batteries 7 - TROUBLESHOOTING [ * ] : Depends on batteries type and operating conditions . Batteries life calculated with 1-sec pulses. 2500 South 3850 West, Suite A - Salt Lake City, Utah 84120 www.communitycontrols.com - [email protected] Community Controls - Type : 295SEPA2KC FCC ID : SU7295SEPC2KC CONTENTS 1A - General information 1B - Technical specifications 1C - Main components 1 - TRANSMITTER OVERVIEW 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS 1B - Technical specifications Operating frequency295 MHz Number of keys:2 Battery :2 x 3V lithium batteries CR2016 Battery life:18 ÷ 24 months Number combinations :65,536 Protocol :ClikCard® compatible Different Facilities codes64 Operating temperature: -20°F÷+131°F (-20°C÷+55°C) Overall dimensions:2.4”x1.4”x0.51” (61x36x13 mm) Weight:0.49 oz. (14 gr.) 1C - Main components Tri-color LED Key holder ring Dark grey push-buttons 6 - TROUBLESHOOTING MONARCH 295SEPC2K Dark grey case Fig. 2 1A - General information The Community Controls - Monarch 295SEPC2KC transmitter is a 2- key chain style mini transmitter operating at 295 MHz. It has been designed for use with programmable telephone entry, security, and access control systems operating with a 295 MHz frequency receiver. The protocol is ClikCard® compatible and the code sent by the transmitter includes a 16 bit security code which allows up to 65,536 combinations and 6 bit of facility code for 64 different combinations. The - 295R receiver which operates with this transmitter has a Wiegand 26 bit and can operate any type of access control system equipped with the same protocol. The CR 2016 lithium batteries of the transmitter have a shelf life of about 6 months. The product fully complies with Part 15 of FCC Regulations and the European Directives 99/5/CE, 89/336/CEE, 73/23/CEE. Community Controls Manual with Patented TM Charge…

Text truncated - open the document above for the full version.

2500 South 3850 West, Suite A Salt Lake City, Utah 84120 800-28-GATES (284-2837) 801-972-4331 801-972-1202 Fax www.communitycontrols.com Timco Engineering 849 N.W. State Road 45 PO Box 370 Newberry, FL 32669 Attn: Director of Certification Authority to Act as Agent- FCC On our behalf, I authorize Tom Jackson, General Manager, or Merry Jackson, Office Manager, of Nemko-CCL, Inc. at 1940 W. Alexander Street, Salt Lake City, UT 84119, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Timco Engineering still resides with Controlled Entry Distributors, Inc. (DBA Community Controls) located at 2500 South 3850 West Suite A, Salt Lake City, UT 84120 Dated this 8th Day of October 20 13 Agency agreement expiration date) December 31, 2014 By: Bradley Kofford Signature Printed Title: President On behalf of : Controlled Entry Distributors dba Community Controls Telephone: 801-972-4331 Linear r mu„„c cioe S :C-NTEX LiiiMaster ELITE TRANSMITTERS/REMOTES I GATE ENTRY CARDS I GATE ACCESSORIES

41= 41:10 ra mirsocio 800-28GATES 2500 South 3850 West, Suite A Salt Lake City, Utah 84120 800-28-GATES (284-2837) 801-972-4331 I 801-972-1202 Fax www.communitycontrols.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SU7295SEPC2KC Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Operational Description Schematics Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, / Brad offor President Controlled Entry Distributors, Inc dba Community Controls Linear. SEN TEX Lain/aster ELITE TRANSMITTERS/REMOTES I GATE ENTRY CARDS I GATE ACCESSORIES

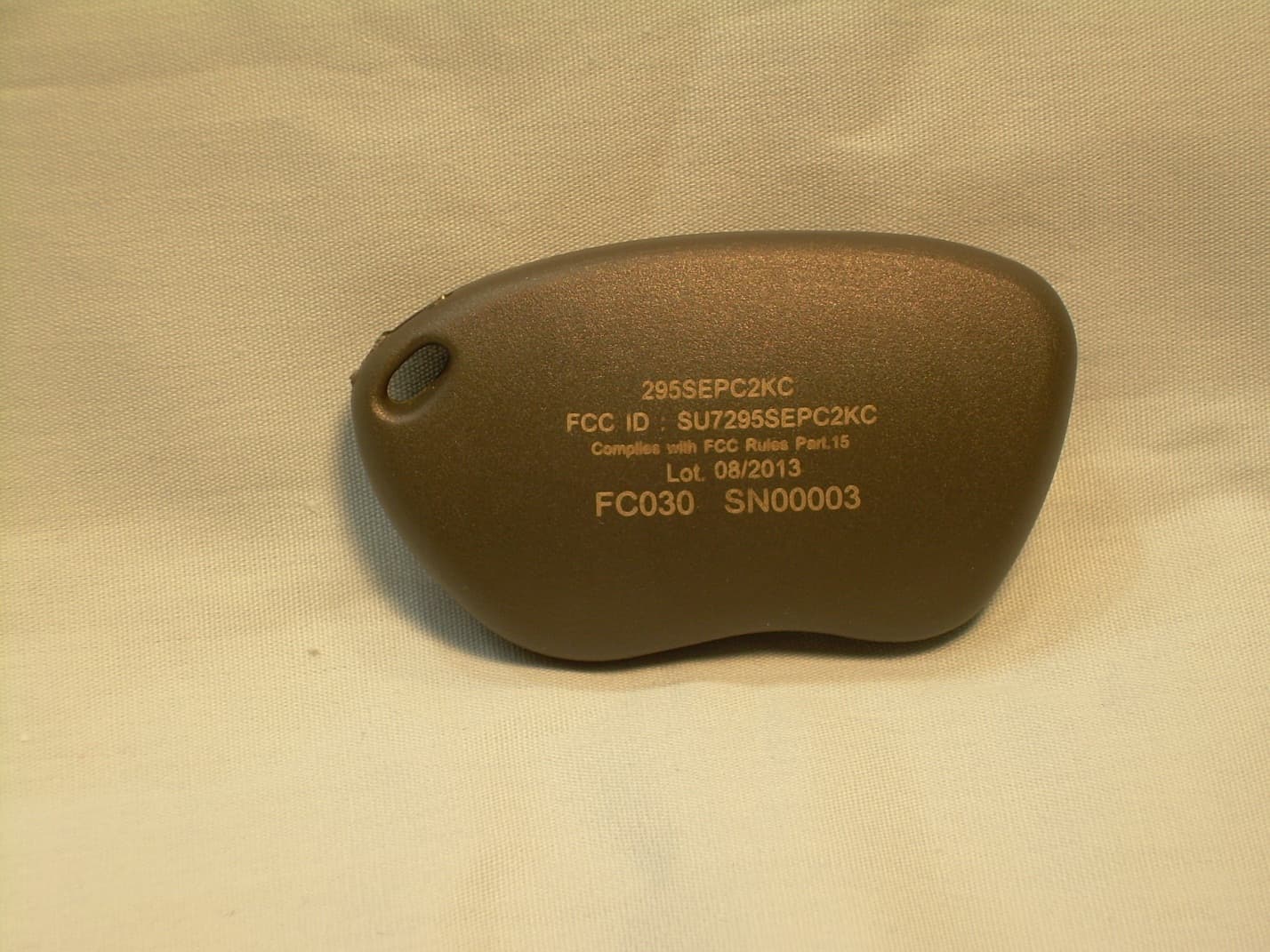

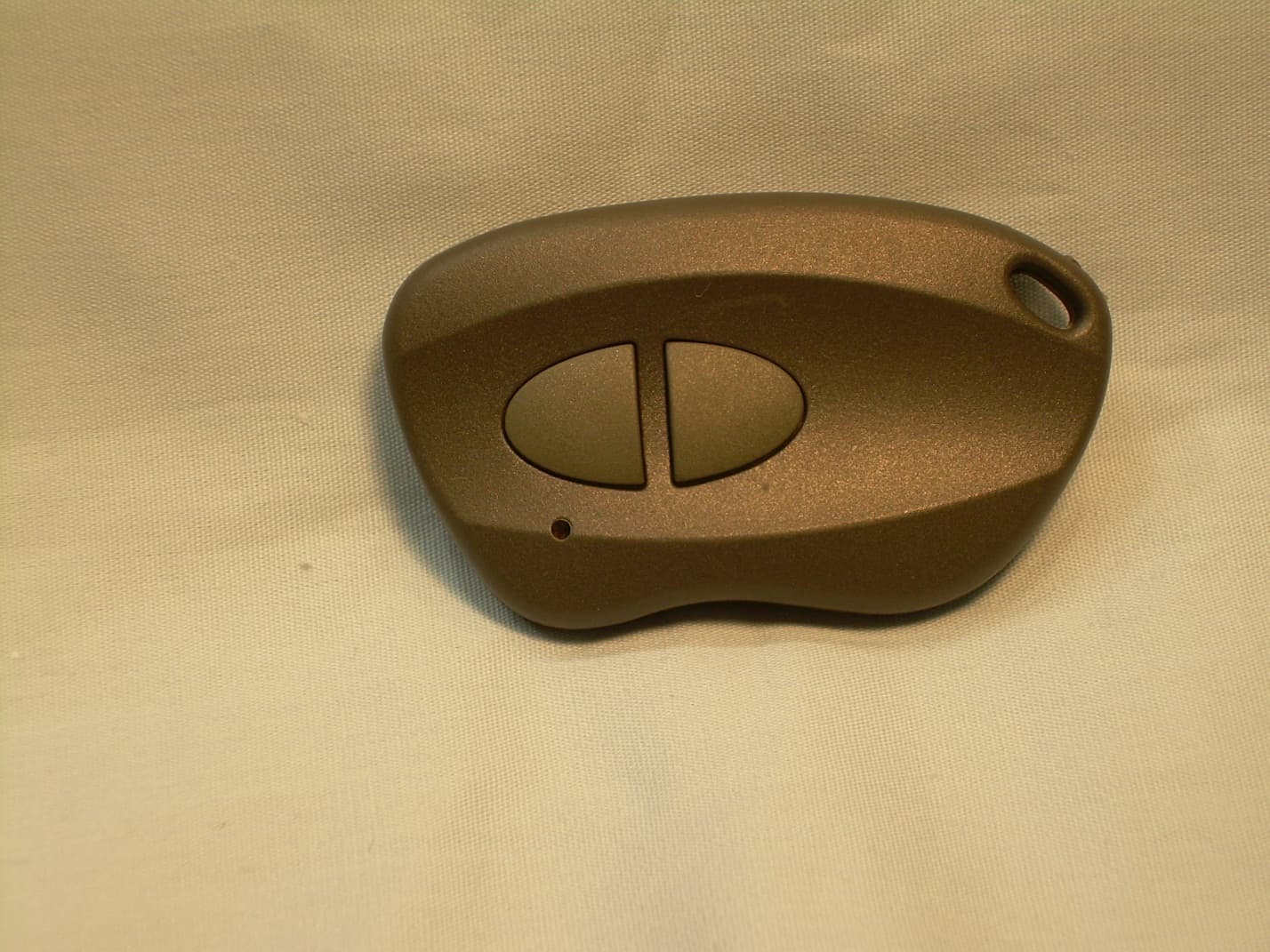

Front View of the EUT - 295SEPC2KC Back View of the EUT- 295SEPC2KC Front View of the EUT - 295SEPA2KC Back View of the EUT- 295SEPA2KC

Label and Location- 295SEPC2KC Label and Location- 295SEPA2KC

Label and Location- 295SEPC2KC Label and Location- 295SEPA2KC

View of the Component Side of the PCB View of the Trace Side of the PCB

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: 295SEPA2KC and 295SEPC2KC Test Specifications: FCC Part 15, Subpart C FCC ID: SU7295SEPC2KC Test Report Serial No: 240024-2.2 Applicant: Controlled Entry Distributors, Inc. dba Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A Date of Test: August 20, 2013 Report Issue Date: August 22, 2013 Accredited Testing Laboratory By: NVLAP Lab Code 100272‐0 Nemko-CCL, Inc. TEST REPORT: 240024-2.2 REPORT ISSUE DATE: 08/22/2013 Page 2 of 27 TRF-15.231SUBC Issue 2 Aug 2013 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Controlled Entry Distributors, Inc. dba Community Controls - Manufacturer: ELPRO INNOTEK S.p.A. - Brand Name: Monarch - Model Number: 295SEPA2KC and 295SEPC2KC - FCC ID: SU7295SEPC2KC On this 22 nd day of August 2013, I, individually and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the Nemko-CCL, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen Test Technician Reviewed by: Thomas C. Jackson General Manager Nemko-CCL, Inc. TEST REPORT: 240024-2.2 REPORT ISSUE DATE: 08/22/2013 Page 3 of 27 TRF-15.231SUBC Issue 2 Aug 2013 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................6 SECTION 4.0 OPERATION OF EUT DURING TESTING..................................................10 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS ..........12 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT .........................................18 APPENDIX 2 PHOTOGRAPHS ................................................................................................21 Nemko-CCL, Inc. TEST REPORT: 240024-2.2 REPORT ISSUE DATE: 08/22/2013 Page 4 of 27 TRF-15.231SUBC Issue 2 Aug 2013 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Controlled Entry Distributors, Inc. dba Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A Contact Name: Brad Kofford Title: President 1.2 Manufacturer: Company Name: ELPRO INNOTEK S.p.A. Via Piave, 23 I-31020 S. Pietro Di Feletto (TV) Italy Contact Name: Ing. G. Massimo Dalle Carbonare Title: Product Manager Nemko-CCL, Inc. TEST REPORT: 240024-2.2 REPORT ISSUE DATE: 08/22/2013 Page 5 of 27 TRF-15.231SUBC Issue 2 Aug 2013 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Monarch Model Number: 295SEPA2KC Serial Number: 00003 Size: 6 cm x 3 cm x 1 cm Country of Manufacture: Italy 2.2 Description of EUT: The 295SEPA2KC and 295SEPC2KC are 2 button remote controls for use in entry control systems for gates and doors. The transmitter operates at 295 MHz using a modified Manchester encoding. The difference in the units is the protocol used. The 295SEPC2KC uses ClikCard® protocol and the 295SEPA2KC used AUTOkey® protocol. The 295SEPA2KC and 295SEPC2KC are powered by 2 CR2016 batteries. The antenna is a trace on the PCB. 2.3 EUT and Support Equipment: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Monarch MN: 295SEPA2KC (Note 1) SN: 00003 SU7295SEPC2KC 295 MHz Transmitter See Section 2.4 Note: (1) EUT 2.4 Interface Ports on EUT: There are no interface ports on the EUT. 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Nemko-CCL, Inc. TEST REPORT: 240024-2.2 REPORT ISSUE DATE: 08/22/2013 Page 6 of 27 TRF-15.231SUBC Issue 2 Aug 2013 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) Section 15.203 and Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this Part are not exceeded. 3.2.2 §15.231 (a) The provision…

Text truncated - open the document above for the full version.

Appendix 1 Test Procedures and Test Equipment of the Test Report states the test procedures used for testing and the other items of test equipment used to make measurements. The antennas used for testing are listed in the table of test equipment in that section. The antennas used for testing are listed in the table in Appendix 1 Test Procedures and Test Equipment with current calibration information. The third paragraph of Appendix 1 Test Procedures and Test Equipment states the requirement to use a loop antenna to measure emissions below 30 MHz. The antenna used is shown below. Loop Antenna The fifth paragraph of Appendix 1 Test Procedures and Test Equipment states the requirement to use a biconilog antenna. A biconilog antenna was used to measure the frequency range of 30 to 1000 MHz. The antenna used is shown below. Biconilog Antenna The fifth paragraph of Appendix 1 Test Procedures and Test Equipment states the requirement to use a horn type antenna for measurement above 1 GHz. The Double Ridge Guide antenna is used for frequencies between 1GHz and 18GHz. The Pyramidal horn antennas are used for frequencies between 18 GHz and 40 GHz. Photographs of the antennas used for testing are included below. Double Ridge Guide Horn Antenna Pyramidal Horn Antennas
