SU7300MCP21KC300 MHz REMOTE CONTROL

1A - General information The Community Controls- Monarch transmitter is a key chain style mini transmitter operating at 300 MHz.It has been designed for use with automated gates, security and access control systems operating with a 300 MHz frequency receiver. The code sent by the transmitter is MultiCode® compatible and includes a 10 bit security code which allows up to 1024 code combinations. CONTENTS 1A - General information 1B - Technical specifications 1C - Main components 1 - TRANSMITTER OVERVIEW 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS 6 - TROUBLESHOOTING Manual MONARCH 300MCP21KC CommunityControls Thank you for choosing a Community Controls product. Please read this manual carefully before using the product. Made in Italy. Copyright © 2013 by Community Controls. 6 - TROUBLESHOOTING PROBLEM SOLUTION The operating range is reduced Check to verify the transmitter is programmed into your system Replace the transmitter batteries Replace the transmitter batteries The warranty period of 300MCP21KCtransmitteris 24months, beginning from the manufacturing date of the transmitter. During this period, if the product does not operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of Community Controls. The warranty does not extend to the transmitter case which can be damaged by conditions outside the control of Community Controlsor to battery life. Community Controls WARRANTY Community Controls- Type : 300MCP21KC FCC ID : SU7300MCP21KC This device com plies with F CC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 15 of the Notice Any changes or modifications not expressly approved by the party responsible for compliance (or Community Controls) could void the user’s authority to operate this equipment. The system does not receiver the transmitter signal. The transmitter LED is ON The system does not receiver the transmitter signal. The transmitter LED will not light COMMUNITY CONTROLS 2500 South 3850 West, Suite A Salt Lake City, UT 84120 (800) 284-2837 - (866) 867-3637 Fax www.communitycontrols.com with Patented ChargeGuard 2 - NUMBERING To access the battery open the case with a screwdriver acting on the slot between the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b. Slide out the old batteries and replace them with the new ones [CR2016] respecting the polarity, with the positive (+) side facing up. NOTE: Please dispose of the batteries properly according to local laws and regulations. Test proper battery installation by verifying that the red LED illuminates when the button is pushed. 5 - BATTERY ACCESS 3 - PROGRAMMING Each transmitter is manufactured and sold with a different factory- set serial number . The transmitter must be programmed into your system memory. Your own installer or reseller will provide you the necessary instructions for your system. 4 - OPERATION A - Firmly depress the button until the small red LED illuminates. B - After the LED has illuminated, release the button. If the device you are attempting to activate does not respond, repeat steps A and B or consult section 6 ( Troubleshooting ) of this manual. Fig. 3a Fig. 3b 1B - Technical specifications Operating frequency300 MHz Number of keys:1 Battery :2 x 3V lithium batteries CR2016 Battery life:18 ÷ 24 months Number combinations :1024 Operating temperature: -20°F÷+131°F (-20°C÷+55°C) Overall dimensions:2.4”x1.4”x0.51” (61x36x13 mm) Weight:0.49 oz. (14 gr.) The CR2016 lithium batteries of the transmitter have a shelf life of about 6 months. The product fully complies with Part 15 of FCC Regulations and the European Directives 99/5/CE, 89/336/CEE, 73/23/CEE. 1C - Main components Red LED Key holder ring Grey push-button Light grey case Fig. 2 BATTERY STATUS Led GREENNormal level~6000 pulses [*] - Normal range Led ORANGEAttention levelMax 300 pulses - Low range[*] Led REDLow levelReplace battery - No range Led color Battery level TX Status

2500 South 3850 West, Suite A Salt Lake City, Utah 84120 800-28-GATES (284-2837) 801-972-4331 801-972-1202 Fax www.communitycontrols.com Timco Engineering 849 N.W. State Road 45 PO Box 370 Newberry, FL 32669 Attn: Director of Certification Authority to Act as Agent- FCC On our behalf, I authorize Tom Jackson, General Manager, or Merry Jackson, Office Manager, of Nemko-CCL, Inc. at 1940 W. Alexander Street, Salt Lake City, UT 84119, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Timco Engineering still resides with Controlled Entry Distributors, Inc. (DBA Community Controls) located at 2500 South 3850 West Suite A, Salt Lake City, UT 84120 Dated this 8th Day of October 20 13 Agency agreement expiration date) December 31, 2014 By: Bradley Kofford Signature Printed Title: President On behalf of : Controlled Entry Distributors dba Community Controls Telephone: 801-972-4331 Linear r mu„„c cioe S :C-NTEX LiiiMaster ELITE TRANSMITTERS/REMOTES I GATE ENTRY CARDS I GATE ACCESSORIES

c rri irri unity co 'rlr41010 8 0 0 - 2 8 G A 1- E SC) 2500 South 3850 West, Suite A Salt Lake City, Utah 84120 800-28-GATES (284-2837) 801-972-4331 I 801-972-1202 Fax www.communitycontrols.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SU7300MCP21KC Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Operational Description Schematics Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. President Controlled Entry Distributors, Inc dba Community Controls Linear MULTI.COOE SEN TEX LiiiMaster ELITE Sincerely, K Brad K ffor TRANSMITTERS/REMOTES I GATE ENTRY CARDS I GATE ACCESSORIES

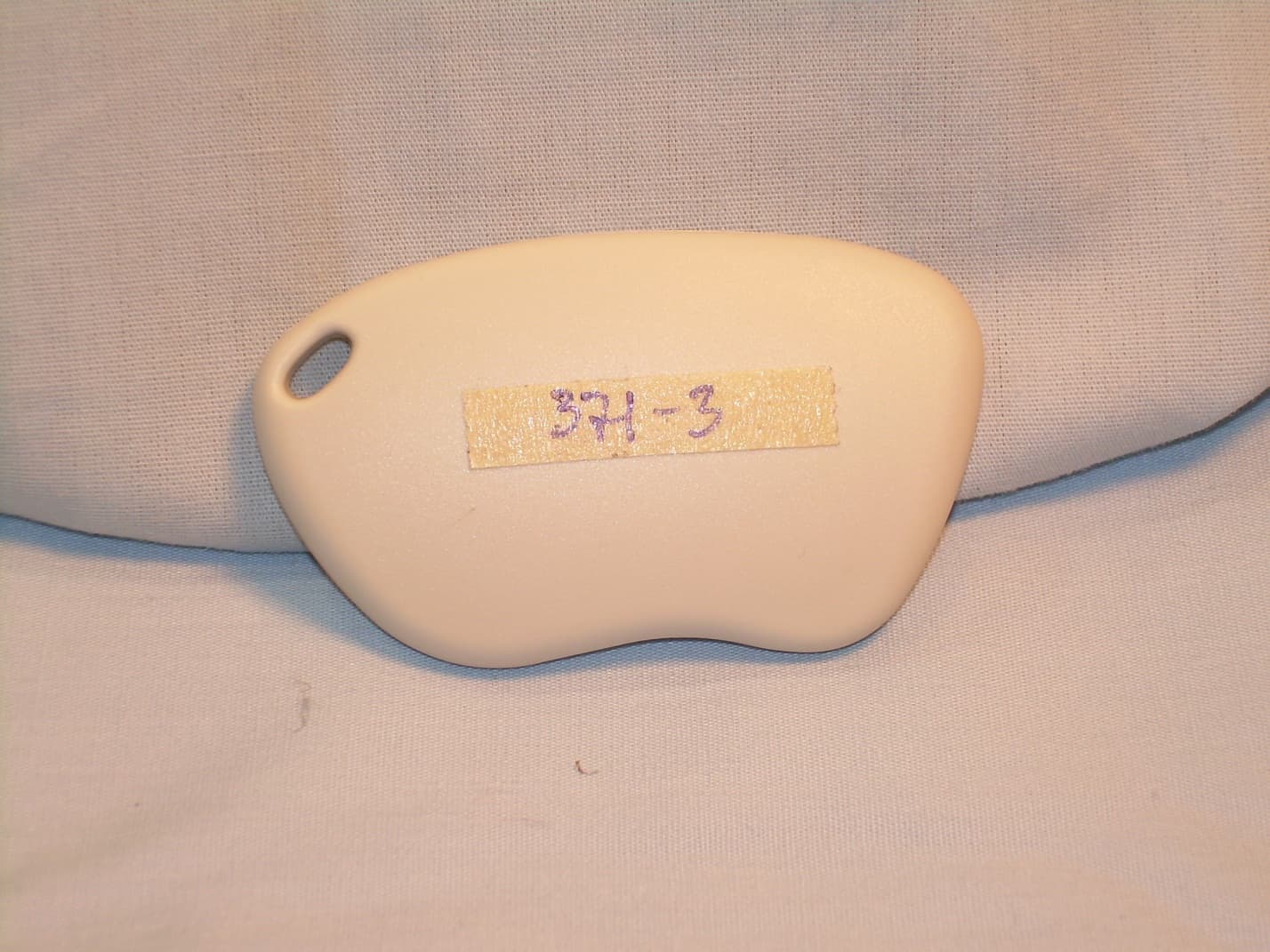

View of the Front of the EUT Photograph 5 – View of the Back side of the EUT

Label and Location

Label and Location

View of the Component Side of the PCB View of the Trace Side of the PCB

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: 300MCP21KC Test Specifications: FCC Part 15, Subpart C FCC ID: SU7300MCP21KC Test Report Serial No: 245065-2.2 Applicant: Controlled Entry Distributors, Inc. dBa Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A Date of Test: October 1, 2013 Report Issue Date: October 14, 2013 Accredited Testing Laboratory By: NVLAP Lab Code 100272‐0 Nemko-CCL, Inc. TEST REPORT: 245065-2.2 REPORT ISSUE DATE: 10/14/2013 Page 2 of 27 TRF-15.231SUBC Issue 2 Sep 2013 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Controlled Entry Distributors, Inc., dBa Community Controls - Manufacturer: ELPRO INNOTEK S.p.A. - Brand Name: Monarch - Model Number: 300MCP21KC - FCC ID: SU7300MCP21KC On this 14 th day of October 2013, I, individually and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the Nemko-CCL, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen Test Technician Reviewed by: Thomas C. Jackson General Manager Nemko-CCL, Inc. TEST REPORT: 245065-2.2 REPORT ISSUE DATE: 10/14/2013 Page 3 of 27 TRF-15.231SUBC Issue 2 Sep 2013 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................6 SECTION 4.0 OPERATION OF EUT DURING TESTING..................................................10 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS ..........12 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT .........................................18 APPENDIX 2 PHOTOGRAPHS ................................................................................................21 Nemko-CCL, Inc. TEST REPORT: 245065-2.2 REPORT ISSUE DATE: 10/14/2013 Page 4 of 27 TRF-15.231SUBC Issue 2 Sep 2013 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Controlled Entry Distributors, Inc. dBa Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A Contact Name: Brad Kofford Title: President 1.2 Manufacturer: Company Name: ELPRO INNOTEK S.p.A. Via Piave, 23 I-31020 S. Pietro Di Feletto (TV) Italy Contact Name: Ing. G. Massimo Dalle Carbonare Title: Product Manager Nemko-CCL, Inc. TEST REPORT: 245065-2.2 REPORT ISSUE DATE: 10/14/2013 Page 5 of 27 TRF-15.231SUBC Issue 2 Sep 2013 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Monarch Model Number: 300MCP21KC Serial Number: None Dimensions: 6.1 cm x 3.6 cm x 1.3 cm 2.2 Description of EUT: The 300MCP21KC is a single button remote control for use in entry control systems for gates and doors. The transmitter operates at 300 MHz using a modified Manchester encoding. The 300MCP21KC is powered by 2 CR2016 batteries. 2.3 EUT and Support Equipment: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Monarch MN: 300MCP21KC (Note 1) SN: None SU7300MCP21KC 300 MHz Transmitter See Section 2.4 Note: (1) EUT 2.4 Interface Ports on EUT: There are no interface ports on the EUT. 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Nemko-CCL, Inc. TEST REPORT: 245065-2.2 REPORT ISSUE DATE: 10/14/2013 Page 6 of 27 TRF-15.231SUBC Issue 2 Sep 2013 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) Section 15.203, Section 15.207, and Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this Part are not exceeded. 3.2.2 §15.207 Conducted Limits (a) Except for Class A digital devices, for equipment that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or fre…

Text truncated - open the document above for the full version.

Radiated Disturbance Setup – Horizontal Placement Radiated Disturbance Setup – On Edge Configuration Radiated Disturbance Setup – Vertical Configuration
